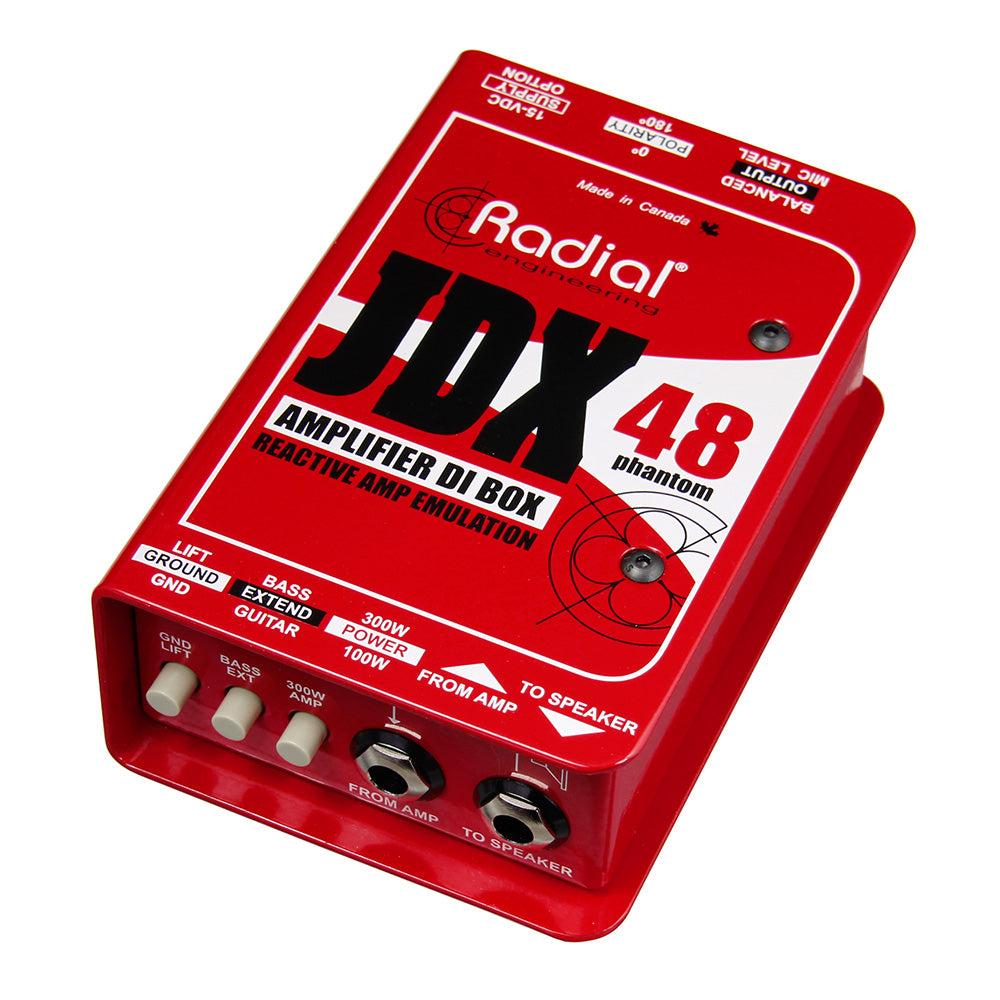

Radial Engineering JDX-48 Guitar Amp Direct Box

  • Dale #:

    RADI-JDX48
  • Availability:

    Sold Out
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Radial JDX 48 Reactor is a direct box designed to capture the explosive dynamics and warmth of an electric guitar amplifier by connecting between the guitar amp head and speaker cabinet. This delivers a sound that is similar to a well-placed microphone while eliminating the frustrating incons... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Radial JDX 48 Reactor is a direct box designed to capture the explosive dynamics and warmth of an electric guitar amplifier by connecting between the guitar amp head and speaker cabinet. This delivers a sound that is similar to a well-placed microphone while eliminating the frustrating inconsistencies.

Features:

  • Captures sound of both the head and the cabinet
  • Delivers consistent tone - show after show
  • Works equally well on electric guitar and bass
  • Can be used with 48V phantom power or DC supply

The design begins with 100% discrete class-A circuitry and a transformer-coupled 'reactive load' that captures both the sound from the amp head along with the back electromagnetic impulse from the loudspeaker. This produces a more realistic rendering than the usual resistive pad offered by other manufacturers. The signal is then processed via a carefully designed multi-stage filter to emulate the tone of a 4x12 half stack cabinet.

In use, the JDX 48 delivers greater consistency over a typical microphone as irregularities such as mic placement and varying acoustics no longer play the dominant role on stage. This is most appreciated when using in-ear monitors as the tone remains consistent from one show to the next, resulting in shorter setup times and a more comfortable audio feed for the artist.

Although originally designed for guitar, the JDX has also become a favorite on bass. The clarity and punch in the lower midrange delivers a tone that is reminiscent of an Ampeg SVT connected to an 8x10 cabinet. On guitar it sounds as if you have a Shure SM57 in front of a Marshall half-stack. This new version also offers greater power handling for 300 watt amps and extended low end for deep bass frequencies.

The JDX 48 Reactor¦ the most natural sounding amp DI ever!

More +

Product Specs

Audio circuit type: Discrete Class-A - Transformer Isolated
Frequency response: Shaped for guitar use
Dynamic range: 114dB
Noise floor: -100dBu below 0dBu
Maximum input: 120W @ 8Ω
Maximum output: +14dBu (clip level)
Thermal input limit: +49 VAC (from amplifier)
Total harmonic distortion: <0.015% (+10dBu input @ 1KHz)
Inter-modulation distortion: 0.03% (+10dBu input @ 1KHz)
Input impedance: 15kΩ
Output impedance: 2kΩ (XLR out)
Bass extension: Lowers frequency response for bass guitar

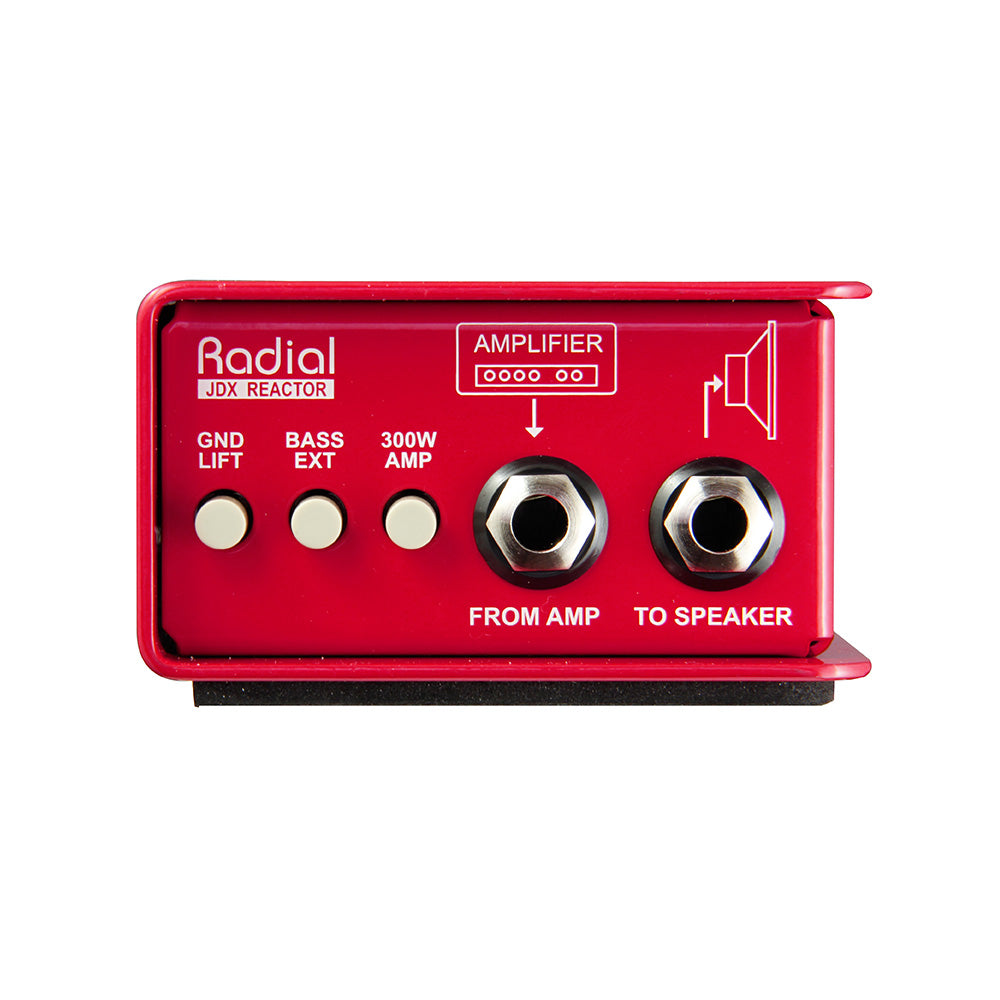

300 Watt amp: Increases power handling from 100W to 300W

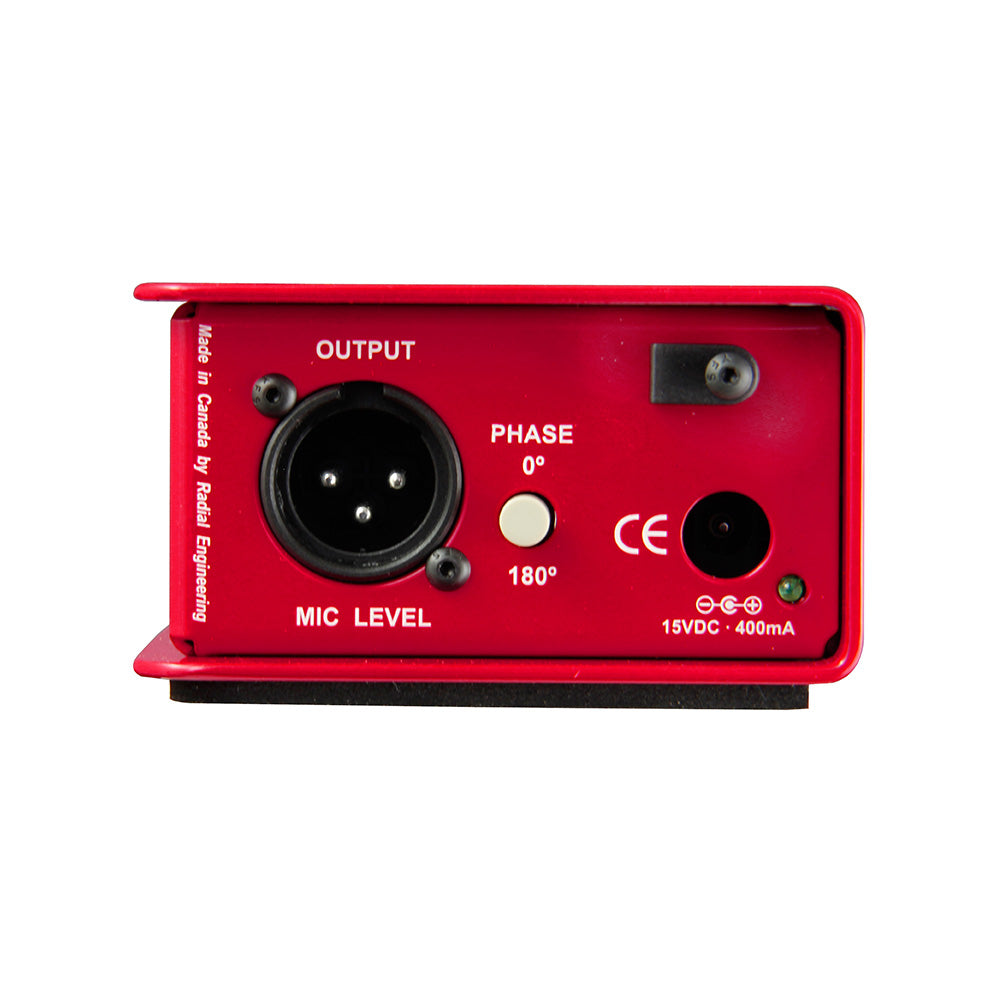

180° polarity reverse: Inverts signal polarity at the XLR output
Ground lift: Shunts ground via a resistive network
Filter: Active speaker emulation band-pass filter
XLR configuration: AES standard (pin-2 hot)
Power: 48V phantom or +15VDC/400mA adapter Included
Construction: 14 gauge steel chassis and outer shell
Finish: Durable powder coat
Size: Size: 5" x 6.25" x 2" (127 x 159 x 51mm)
Weight: 2.80lbs (1.28 kg)
Warranty: Radial 3-year, transferable
