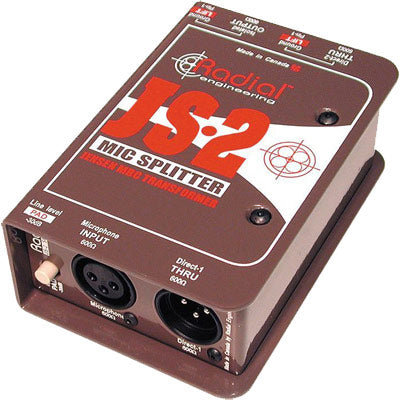

Radial Engineering JS2 Passive Microphone Splitter: One Input to Two Direct & One Isolated Output
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Features electrically isolated XLR I/O, a second auxiliary direct throughput with ground lift, and a transformer-isolated output. Has a 30dB pad, supplies 48V DC phantom power for microphones, has a ground lift, and has common mode noise rejection up to -100dB at 60Hz. Features a stand-alone housing with 14-gauge, I-beam steel frame with baked enamel finish and an innovative bookend cover.
Features- Passive splitter direct boxElectrically isolated XLR I/OSecond auxiliary direct throughput with ground liftTransformer-isolated output30dB pad48V DC phantom powerGround liftCommon mode noise rejection up to -100dB at 60Hz14-gauge, I-Beam steel frameBaked enamel finishInnovative bookend cover
| Input impedance | 1.06kOhms (1kHz, -20dBu) |
| Insertion loss | .8dB |
| Voltage gain | -.82dB (1kHz, -20dBu) |
| Deviation from linear phase | +3.3/-0¡ (20Hz to 20kHz, -20dBu) |
| Frequency Response | 10Hz to 80kHz |
| Distortion (THD) | 0.001% (1kHz, -20dBu),0.05% (20Hz, -20dBu) |
| Maximum input level | +2.0dBu (20Hz, 1% THD) |
| Common-mode rejection ratio (CMRR) | 130dB (60Hz), 95dB (3kHz) |
| Output Impedance | 245 Ohms |
| Size (H x W x D) | 2Ó x 3.25Ó x 5Ó |
| Weight | 1.95lbs / .9kg |
| Construction | 14-gauge steel chassis / shell, baked enamel finish |
Features electrically isolated XLR I/O, a second auxiliary direct throughput with ground lift, and a transformer-isolated output. Has a 30dB pad, supplies 48V DC phantom power for microphones, has a ground lift, and has common mode noise rejection up to -100dB at 60Hz. Features a stand-alone housing with 14-gauge, I-beam steel frame with baked enamel finish and an innovative bookend cover.
Features- Passive splitter direct boxElectrically isolated XLR I/OSecond auxiliary direct throughput with ground liftTransformer-isolated output30dB pad48V DC phantom powerGround liftCommon mode noise rejection up to -100dB at 60Hz14-gauge, I-Beam steel frameBaked enamel finishInnovative bookend cover
| Input impedance | 1.06kOhms (1kHz, -20dBu) |
| Insertion loss | .8dB |
| Voltage gain | -.82dB (1kHz, -20dBu) |
| Deviation from linear phase | +3.3/-0¡ (20Hz to 20kHz, -20dBu) |
| Frequency Response | 10Hz to 80kHz |
| Distortion (THD) | 0.001% (1kHz, -20dBu),0.05% (20Hz, -20dBu) |
| Maximum input level | +2.0dBu (20Hz, 1% THD) |
| Common-mode rejection ratio (CMRR) | 130dB (60Hz), 95dB (3kHz) |
| Output Impedance | 245 Ohms |
| Size (H x W x D) | 2Ó x 3.25Ó x 5Ó |
| Weight | 1.95lbs / .9kg |
| Construction | 14-gauge steel chassis / shell, baked enamel finish |
