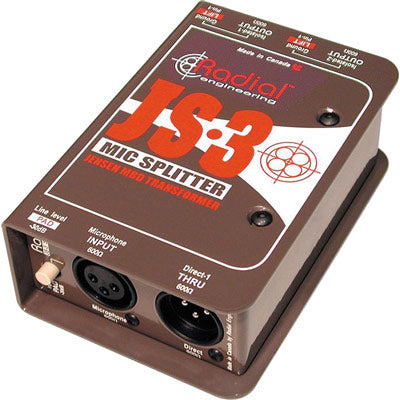

Radial Engineering JS3 Passive Microphone Splitter with 1 Input to 1 Direct & 2 Isolated Outputs
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Features electrically isolated XLR I/O, a direct throughput with ground lift, and 2 transformer-isolated outputs. Has a 30dB pad, delivers 48V DC phantom power for microphones, has a ground lift, and has common mode noise rejection up to -100dB at 60Hz. Features a standalone housing with 14-gauge, I-beam steel frame with baked enamel finish and an innovative bookend cover. It also uses a Jensen JT-MBD mic bridging transformer. The JT-MBD features a 1:1:1 with dual secondary windings to allow dual isolated outputs. This allows the JS-3 to be equipped with a main direct-out for FOH and 2 isolated outs for monitor mix and broadcast feed.
Features- Passive splitter direct boxElectrically isolated XLR I/ODirect throughput with ground lift2 transformer-isolated outputs30dB pad48V DC phantom powerGround liftCommon mode noise rejection up to -100dB at 60Hz14-gauge, I-Beam steel frameBaked enamel finishInnovative bookend cover
| Input impedance | 578Ohms (1kHz, -20dBu) |
| Insertion loss | 1.2dB |
| Voltage gain | -1.2dB (1kHz, -20dBu) |
| Deviation from linear phase | +2.8/-0¡ (20Hz to 20kHz, -20dBu) |
| Frequency Response | 10Hz to 80kHz |
| Distortion (THD) | 0.001% (1kHz, -20dBu), 0.05% (20Hz, -20dBu) |
| Maximum input level | +2.0dBu (20Hz, 1%THD) |
| Common-mode rejection ratio (CMRR) | 130dB (60Hz), 96dB (3kHz) |
| Output Impedance | 254 Ohms |
| Size (H x W x D) | 2Ó x 3.25Ó x 5Ó |
| Weight | 1.95lbs / .9kg |
| Construction | 14-gauge steel chassis / shell, baked enamel finish |
Features electrically isolated XLR I/O, a direct throughput with ground lift, and 2 transformer-isolated outputs. Has a 30dB pad, delivers 48V DC phantom power for microphones, has a ground lift, and has common mode noise rejection up to -100dB at 60Hz. Features a standalone housing with 14-gauge, I-beam steel frame with baked enamel finish and an innovative bookend cover. It also uses a Jensen JT-MBD mic bridging transformer. The JT-MBD features a 1:1:1 with dual secondary windings to allow dual isolated outputs. This allows the JS-3 to be equipped with a main direct-out for FOH and 2 isolated outs for monitor mix and broadcast feed.
Features- Passive splitter direct boxElectrically isolated XLR I/ODirect throughput with ground lift2 transformer-isolated outputs30dB pad48V DC phantom powerGround liftCommon mode noise rejection up to -100dB at 60Hz14-gauge, I-Beam steel frameBaked enamel finishInnovative bookend cover
| Input impedance | 578Ohms (1kHz, -20dBu) |
| Insertion loss | 1.2dB |
| Voltage gain | -1.2dB (1kHz, -20dBu) |
| Deviation from linear phase | +2.8/-0¡ (20Hz to 20kHz, -20dBu) |
| Frequency Response | 10Hz to 80kHz |
| Distortion (THD) | 0.001% (1kHz, -20dBu), 0.05% (20Hz, -20dBu) |
| Maximum input level | +2.0dBu (20Hz, 1%THD) |
| Common-mode rejection ratio (CMRR) | 130dB (60Hz), 96dB (3kHz) |
| Output Impedance | 254 Ohms |
| Size (H x W x D) | 2Ó x 3.25Ó x 5Ó |
| Weight | 1.95lbs / .9kg |
| Construction | 14-gauge steel chassis / shell, baked enamel finish |
