Radial Engineering LX-2 Passive Line Splitter with Jensen Transformer

  • Dale #:

    RADI-LX2
  • Availability:

    Sold Out
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Radial LX-2™ is a passive balanced line level audio splitter that allows you to easily send an audio signal to two different destinations at once without noise, while also providing the ability to attenuate the signal to tame hot outputs from a mixing console or mic preamp. The input of the... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Radial LX-2™ is a passive balanced line level audio splitter that allows you to easily send an audio signal to two different destinations at once without noise, while also providing the ability to attenuate the signal to tame hot outputs from a mixing console or mic preamp.

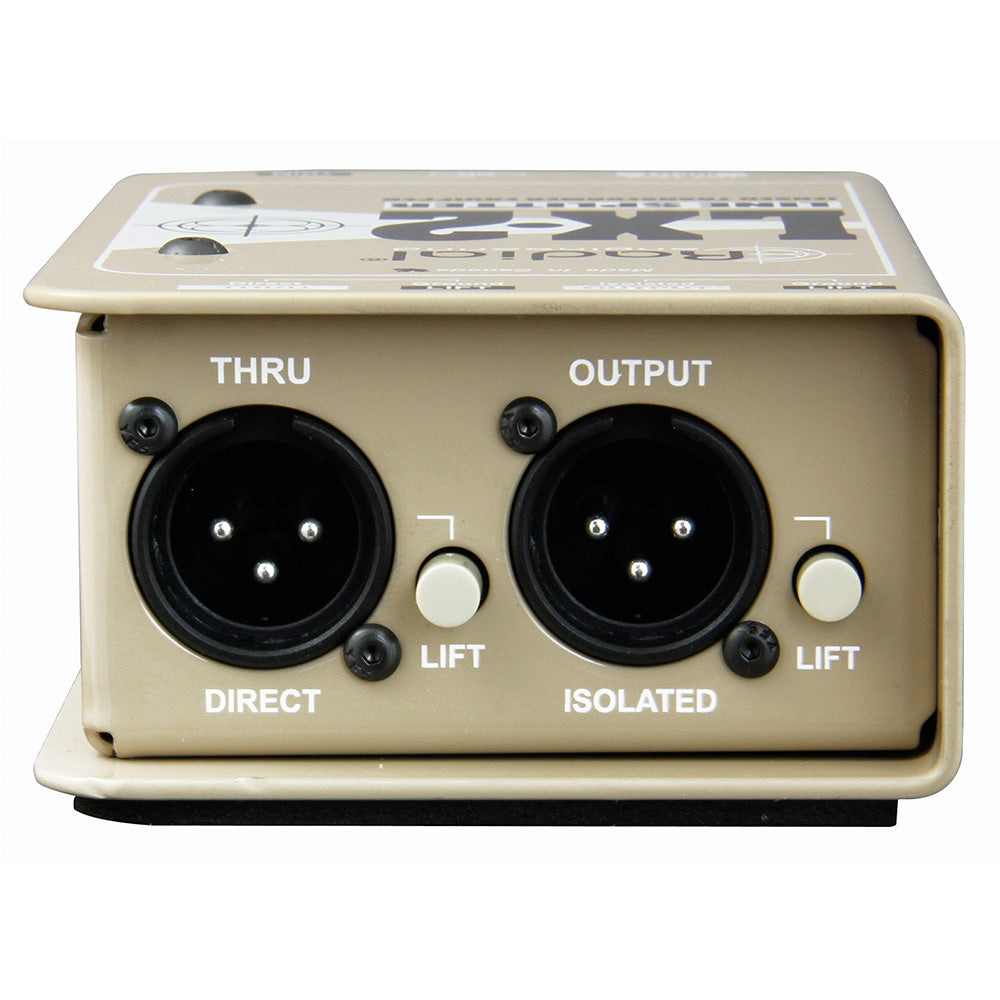

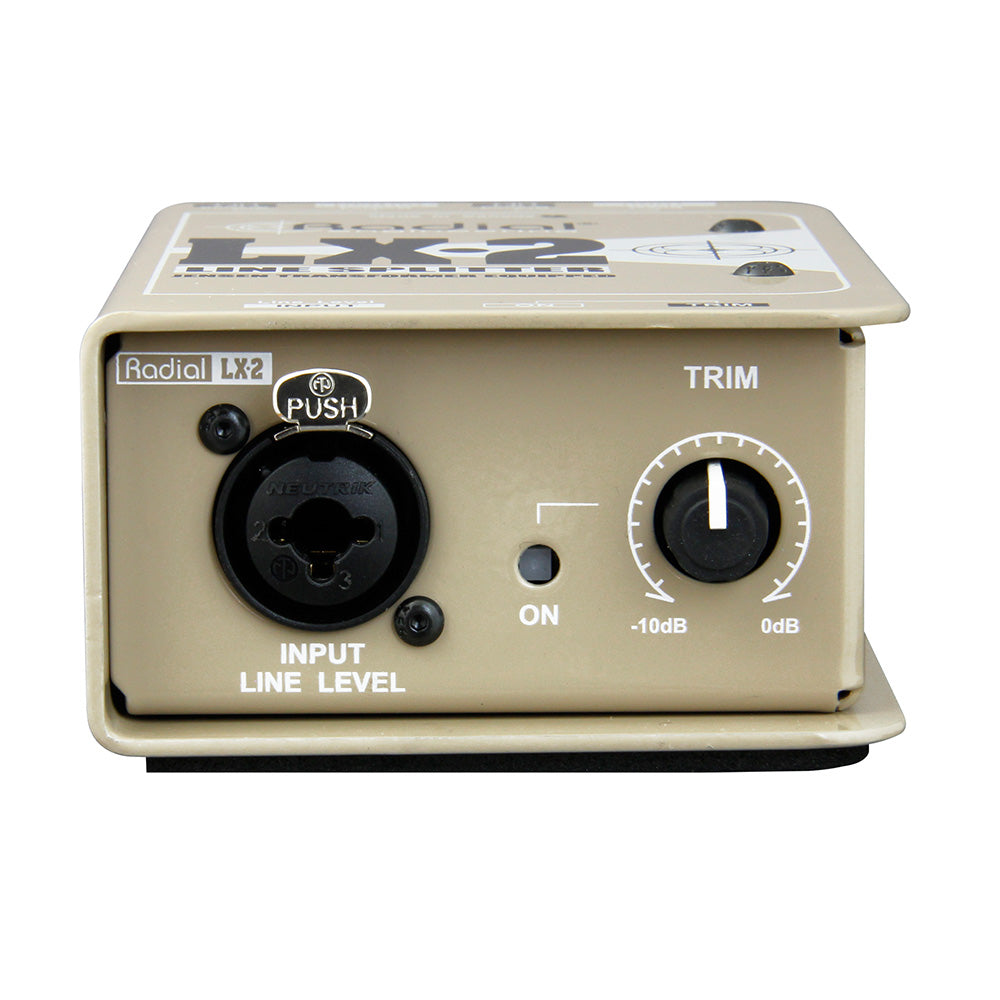

The input of the LX-2 features a XLR/TRS combo jack, which allows you to connect balanced or unbalanced line level signals to be split to two different destinations. A premium Jensen® transformer JT-11-FLPC inside provides exceptional frequency response and phase coherency to ensure that the highest audio quality is maintained, while isolating the two outputs from each other to eliminate hum and buzz from ground loops. Ground lift switches on each of the two XLR outputs help to further reduce noise from ground loops. For situations where a level adjustment is required, the trim control on the LX-2 allows you to attenuate overly hot signals. This lets you drive your mic preamps hard to achieve coloration, while trimming the level at the LX-2 to avoid clipping the inputs of your recording interface. This trim control is activated by a recessed ‘set & forget’ switch; for live use or in situations where attenuation is not needed, simply disengage this switch to prevent accidental and unwanted level adjustments.

The LX-2 is built with 14-gauge steel to ensure it continues to reliably perform night after night even on the most demanding tours, while a book-end design protects the connectors and switches. Rigid I-beam construction prevents the circuit board from being torqued, eliminating the possibility of damaged connections. The LX-2 has a compact footprint, with the added benefit of allowing up to 8 units to be rack-mounted using the Radial J-Rak™.

The Radial LX-2 is an uncompromising problem solver for your audio toolkit, providing Jensen® transformer-isolated line level splitting and attenuation in a compact and rugged device.

Features:

  • Split one audio signal to two destinations simultaneously
  • Jensen® transformer equipped for exceptional audio quality
  • Eliminates hum and buzz caused by ground loops
  • Variable trim control can be engaged for easy level adjustment

More +

Product Specs

Audio Circuit Type:  Passive, transformer based
Frequency Response: 20Hz - 20kHz +/-0.5dB
Total Harmonic Distortion:  <0.001% @ 1kHz
Dynamic Range:  140dB
Gain: -1.5dBu
Maximum Input: +21dBu
Noise Floor:  -119dBu
Phase Deviation:  +0.3° @ 20Hz
Common Mode Rejection:  94dB @ 60Hz, 83dB @3kHz
Input Impedance:  716Ω
Output impedance:  116Ω
Transformer: Jensen JT-11-FLPCH
Trim On: Engages input trim control
Trim Knob: Variable input attenuator
Ground Lifts: Disconnects pin-1 at XLR output
XLR Configuration: AES standard (pin-2 hot)
Connectors: Combo XLR/¼" input, XLR-M iso and direct out
Construction:  14-gauge steel
Finish: Durable Powder Coat
Size (L x W x H): 84mm x 127mm x 48mm (3.3" x 5" x 2")
Weight: 0.7kg (1.5lbs)
Shipping Size (L x W x H): 102 x 76 x 165mm (4" x 3" x 6.5")
Shipping Weight: 0.87 kg (1.92 lbs)
Conditions:  For indoor use at temperatures between +5°C and +40°C
Warranty:  Radial 3-year, transferable
