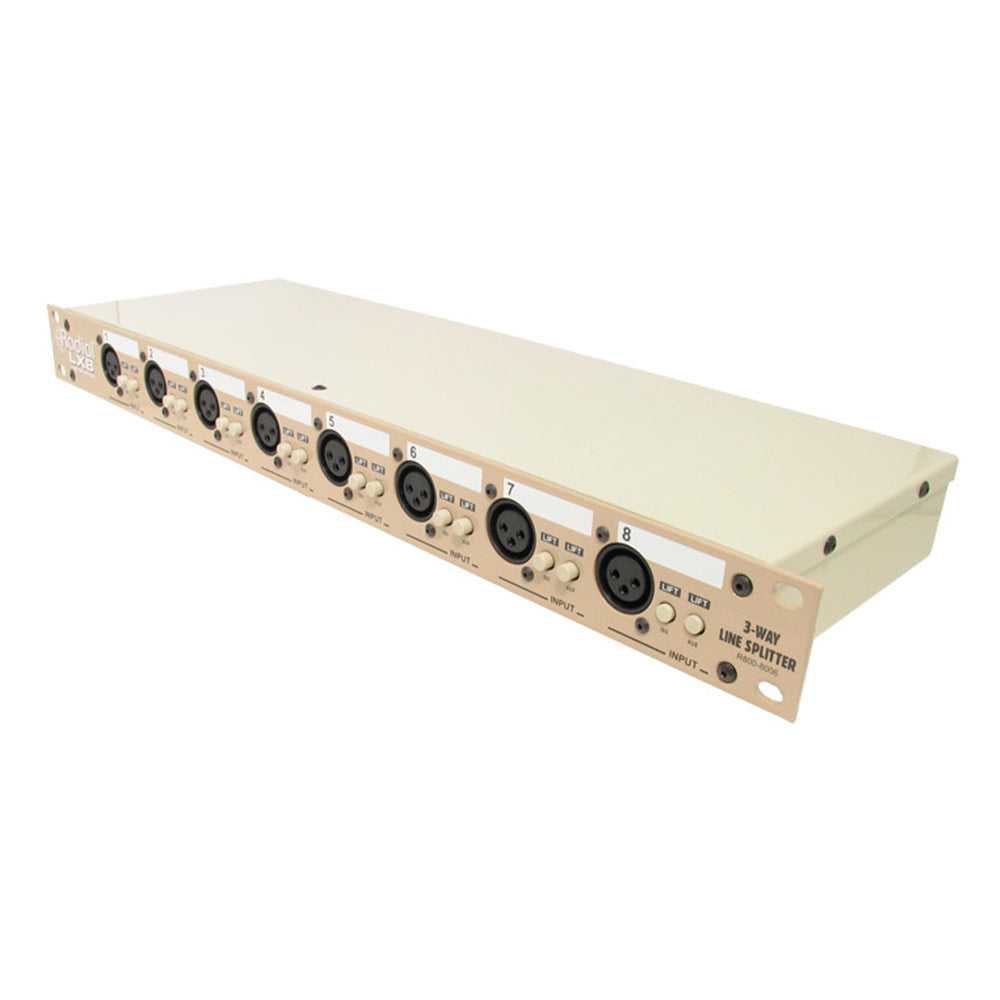

Radial Engineering LX8 8-Channel Line Splitter and Isolator (Eclipse Transformers)

Sale price$1,459.99 Regular price$1,752.00
Save $292.01
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Radial LX8 is an eight channel passive line-level isolator designed specifically to manage balanced signals in professional audio systems. Applications include splitting a source between two destinations or simply isolating devices to eliminate the hum and buzz caused by ground loops.

    Features:

    • 8-channel balanced line level signal splitter & isolator
    • Handles +26dB signals without distortion or artifact
    • Over 100dB of common mode noise rejection
    • Eliminates hum and buzz caused by ground loops

    The single rack space design begins with 100% passive circuit which means it does not require any powering whatsoever to make it work. Inside, each of the eight channels is equipped with a premium Eclipse ET-LD4 transformer that is able to handle transients in excess of +26dB at all frequencies right down to 20Hz without audible distortion. This results in an accurate signal transfer with minimal phase shift or artifact. In the studio, the Eclipse transformer delivers added warmth and a natural 'vintage-sounding' compression that is preferred by the most critical listeners. When used in larger systems, you benefit from significantly lower noise.

    Input connections include a series of front-panel XLRs for easy integration into live racks or a rear-mounted 25-pin D-sub. Output connections include a hardwire thru-put, a transformer isolated output and an auxiliary output, the latter two being equipped with ground lift switches to help eliminate hum and buzz caused by ground loops. All rear panel connections are presented with choice of standard 25-pin D-Sub wired to the Tascam-ProTools standard or with screw-down Phoenix connectors for easy field termination for permanent installations. (Note: The Phoenix cable terminal connectors are sold separately).

    All of the eight incoming signals are routed to the direct output, the transformer isolated output and an auxiliary out, enabling multiple signal paths to be put into practice without the usual noise that is associated. These features combine to make the Radial LX8 the perfect isolator for the most demanding multi-channel audio system.

    Audio circuit type:Ê Passive transformer based line level splitter
    Number of channels: 8 channel 3-way splitter (1-in/3-out)
    Frequency response:Ê 20Hz ~ 20KHz (+0dB/-0.1dB)
    Dynamic range:Ê 140dBÊ
    Maximum input:Ê +26dBu @ 1kHz, +24dBu @ 20HzÊ
    THD +noise:Ê 0.003% @ 1kHz
    Phase deviation:Ê 0.2¡ @ 100Hz; 0.4¡ @ 20HzÊ
    Common mode rejection (CMR): -85dB @ 60Hz
    Input impedance:Ê 600 Ohms, balancedÊ
    Output impedance:Ê 600 Ohms, balancedÊ
    Features
    Transformer: Eclipse ET-LD4
    Ground lift - isolated out:Ê Disconnects ground path at isolated output
    Ground lift - auxiliary out:Ê Disconnects ground path at auxiliary output
    XLR configuration:Ê AES standard (pin-1 ground, pin-2 hot, pin-3 cold)Ê
    DB-25 configuration: Tascam / ProTools 8 channel interface standard
    General
    Construction:Ê 14 gauge steel
    Finish: Durable powder coat
    Size: (W x H x D) Ê19" x 6" x 1.75" (48.25 x 15.25 x 4.45cm)
    Weight:Ê 7.5 lb (3.4 kg)
    Shipping Size: W x H x D: 22" x 10" x 4.5" (55.9 x 25.4 x 11.4cm)
    Shipping Weight: 8lbs (3.63kg)
    Power:Ê Passive, no power requiredÊ
    Warranty:Ê Radial 3-year, transferable
    Conditions: For use in dry locations only between 5¡C and 40¡C
