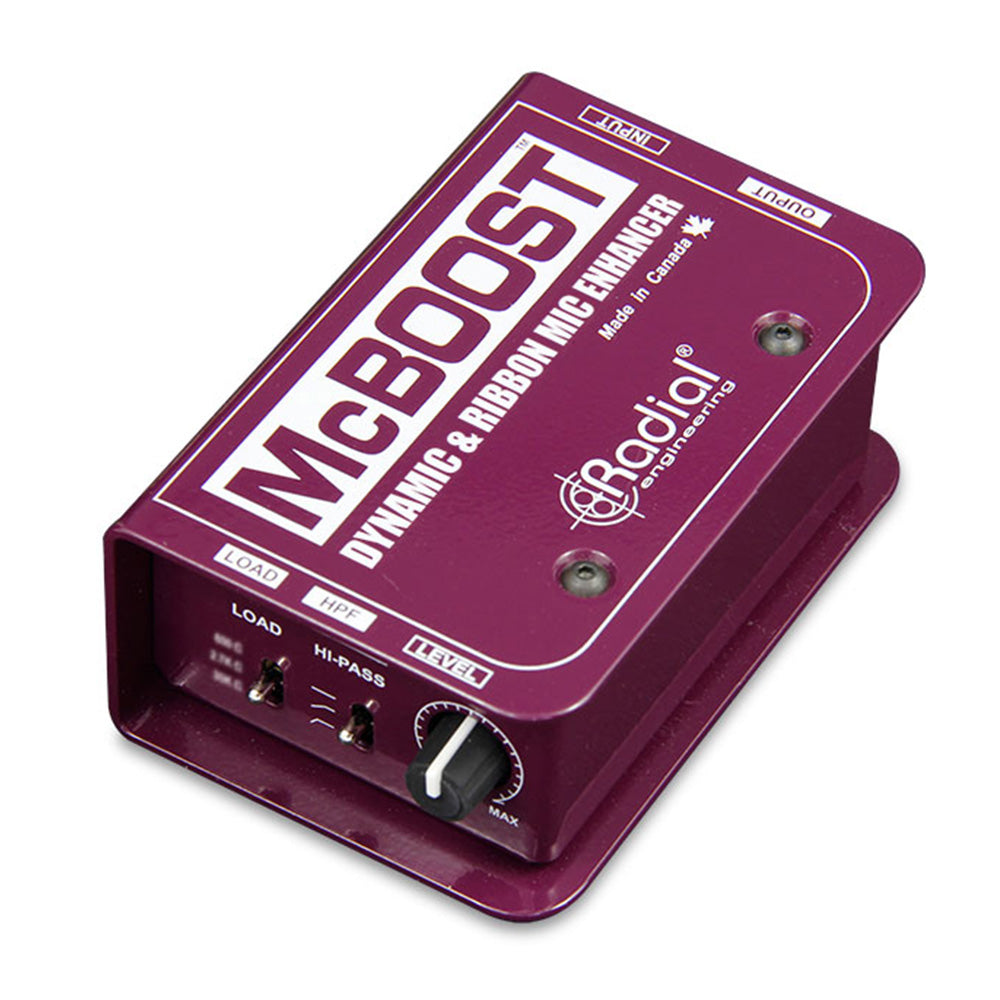

Radial Engineering McBoost 25dB Microphone Signal Enhancer

  • Dale #:

    RADI-MCBOOST
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Radial McBoost is a high performance microphone signal booster designed to elevate the output of a typical dynamic microphone for greater transient response and boost the signal of a low-output ribbon mic to bring it up to a usable level for mixing consoles or preamps that may not provide suf... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Radial McBoost is a high performance microphone signal booster designed to elevate the output of a typical dynamic microphone for greater transient response and boost the signal of a low-output ribbon mic to bring it up to a usable level for mixing consoles or preamps that may not provide sufficient gain.

Features:

  • 25dB signal booster for dynamic & ribbon mics
  • Extends dynamic range and microphone reach
  • Uses standard 48V phantom for power
  • 3-position load switch and high-pass filter

The 100% discrete class-A circuit design begins with a dual-transistor J-FET circuit to produce up to 25dB of gain without introducing noise, color or artifact. Each individual transistor is carefully measured and batch-sorted to comply with the design specification to certify performance. As with all Radial products, the circuit board is then loaded into a 14-gauge, I-beam, reinforced steel enclosure to prevent outside stress from torquing which otherwise could lead to premature part failure. A book-end cover creates protective zones at each end to safeguard the switches, potentiometer and connectors from the rigours of the road.

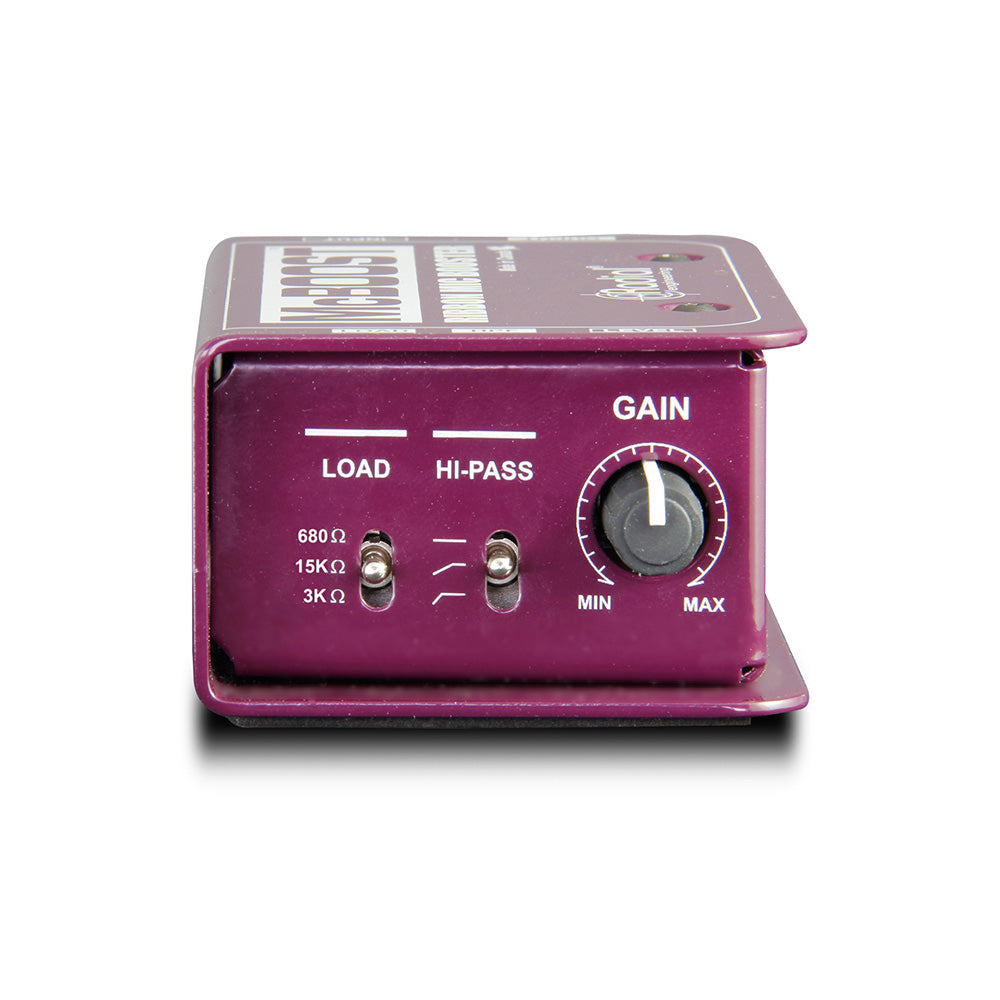

Merely connect the McBoost in-line using standard 3-pin XLRs and activate 48V phantom to provide power. Select between three impedance settings to optimize the response and then reduce low-frequency clutter with the 3-position high-pass filter. The McBoost will elevate the output to produce added clarity, excitement and extra drive for long cables whether you are in a recording studio, on a live concert stage or in a broadcast center.

More +

Product Specs

Audio circuit type:  Class-A Differential FET/Bipolar Hybrid
Frequency response: 7Hz to 30kHz
Total harmonic distortion:  0.005% @-30dB
Dynamic range:  105dB
Maximum input:  -6dBu
Maximum gain:  +25dB
Equivalent input noise:  -120dBu
Input impedance:  600 Ω
2.7k Ω
30k Ω
Clip level - input:  -17dBu / -14Bu / -9dBu
Clip level - output:  +10dBu
Noise floor:  -95dBu / -98dBu / -113dBu
Output impedance:  2.2k Ω
Intermodulation distortion:  0.01%
Phase Deviation:  0° @ 20Hz, <10° @ 20kHz
Gain control: Variable from +4dB to +25dB
High-pass filter:  100Hz and 55Hz @-3dB
Filter slope:  6dB / Octave

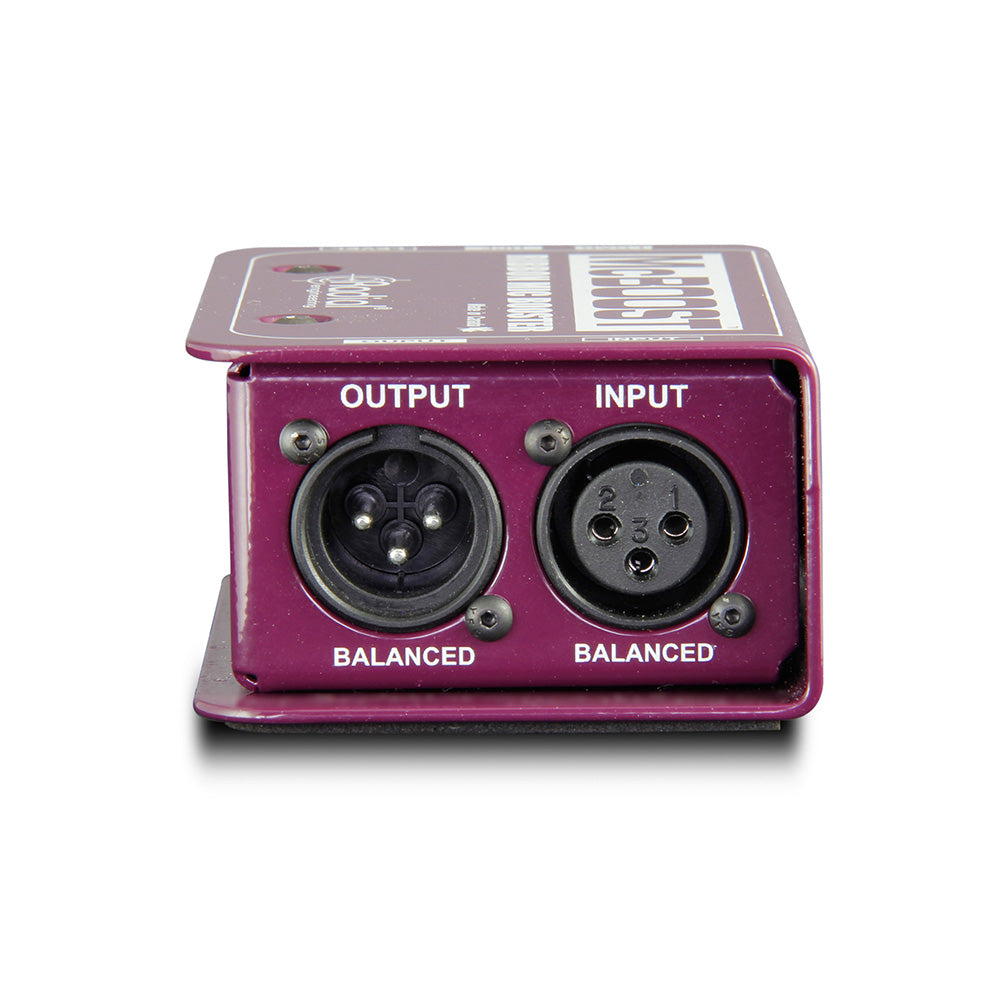

XLR configuration: Pin 2 + / Pin 3 - / Pin 1 Ground
Construction:  14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size: (L x W x H) 4.2" x 2.76" x 1.68" (106.7 x 70.1 x 42.7mm)
Weight:  .5 lbs (0.23kg)
Shipping size: (L x W x H) 6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
Shipping weight: 1.4lbs (0.64kg)
Power:  48V phantom
Conditions: For use in dry locations only between 5°C and 40°C
Warranty:  Radial 3-year, transferable
