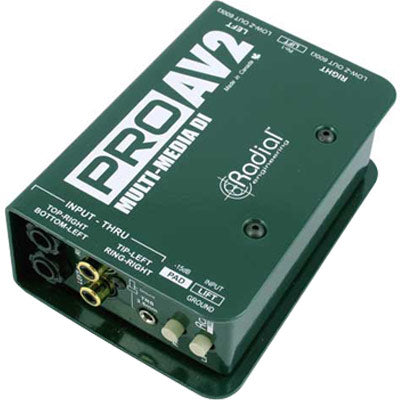

Radial Engineering ProAV2 Passive Stereo MultiMedia Direct Box
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Radial ProAV2 is a passive direct box specifically developed with the audio-video integrator in mind. The ProAV2 delivers two discrete channels where full stereo functionality is required. To eliminate the need for various adaptors, these units are equipped with a 'Swiss Army' array of connectivity options including 1/4 inputs for instruments, RCA and 3.5mm (1/8) connectors for CD players, iPods, video decks and computers. The front panel connectors can also be used as thru-puts to allow multiple patch points.
Features:
- 'Swiss Army knife' direct box for multi-media
- Easy to use, ultra-quiet passive design
- Eliminates ground loops that cause hum and buzz
- Handles huge transients without distortion
Custom wound Eclipse ET-DB2 transformers are able to withstand exceptionally hot signal levels while maintaining linearity from 20Hz to 20kHz. The resulting smooth Bessel curve is warm and natural, making them particularly adept at handling digital sources that can sound harsh. Transformer isolation further benefits by eliminating hum and buzz caused by ground loops or DC offset problems.
These features combine to make the ProAV2 a 'must have' problem solver for the audio-visual technician's tool kit.
| Audio circuit type:Ê | Passive, transformer based |
| Number of channels: | Dual channel (stereo) |
| Frequency response:Ê | 20Hz ~ 18.5KHz (± 0.2dB) |
| Dynamic range:Ê | 128dBÊ |
| Maximum input:Ê | +18dB @ 20HzÊ |
| Total harmonic distortion:Ê | 0.01% from 20Hz~20kHz @-10dB |
| Phase deviation:Ê | 1¡ @ 100Hz; 8¡ @ 20HzÊ |
| CMR ratio:Ê | n/a |
| Input impedance:Ê | 140k Ohms, unbalancedÊ |
| Output impedance:Ê | 150 Ohms, balancedÊ |
| Transformer: | Radial RT-DBI, 12:1 ratio |
| Shield: | Faraday, mu-metal can |
| Input pad:Ê | -15dB |
| Merge:Ê | n/a |
| 180¡ polarity reverse:Ê | Inverts absolute phase |
| Ground lift:Ê | Disconnects pin-1 at XLR outputÊ |
| XLR configuration:Ê | AES standard (pin-2 hot)Ê |
| Connectors: | 1/4, RCA, 3.5mm, in / thru, XLR-M out |
| Construction:Ê | 14 gauge steel chassis / sshell |
| Finish: | Durable powder coat |
| Size: (W x H x D) | 3.25” x 5” x 1.875” |
| Weight:Ê | 0.82kg / (1.8lbs) |
| Shipping Size: W x H x D: | 102 x 76 x 165mm (4.00 x 3.00 x 6.50) |
| Shipping Weight: | 1.2 kg (2.60 lbs) |
| Power:Ê | Passive, no power requiredÊ |
| Warranty:Ê | Radial 3-year, transferable |
| Conditions: | For use in dry locations only between 5¡C and 40¡C |
