Radial Engineering ProMS2 Passive 2-Way Microphone Signal Splitter

  • Dale #:

    RADI-PROMS2
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The Radial ProMS2 is a high performance mic splitter that accepts a balanced microphone signal and sends it to three outputs simultaneously. As a passive device, there is no need for power - you merely plug in and the ProMS2 automatically springs to life to deliver pristine audio without artefact... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

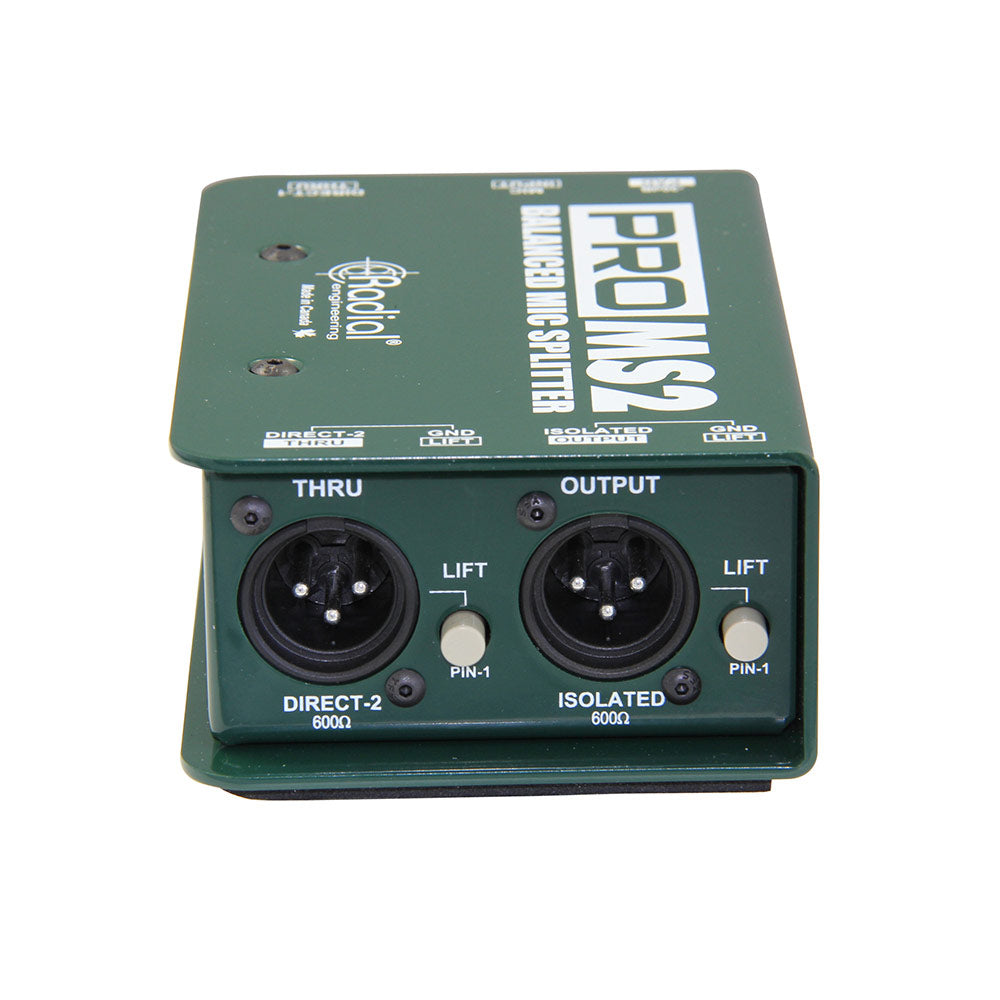

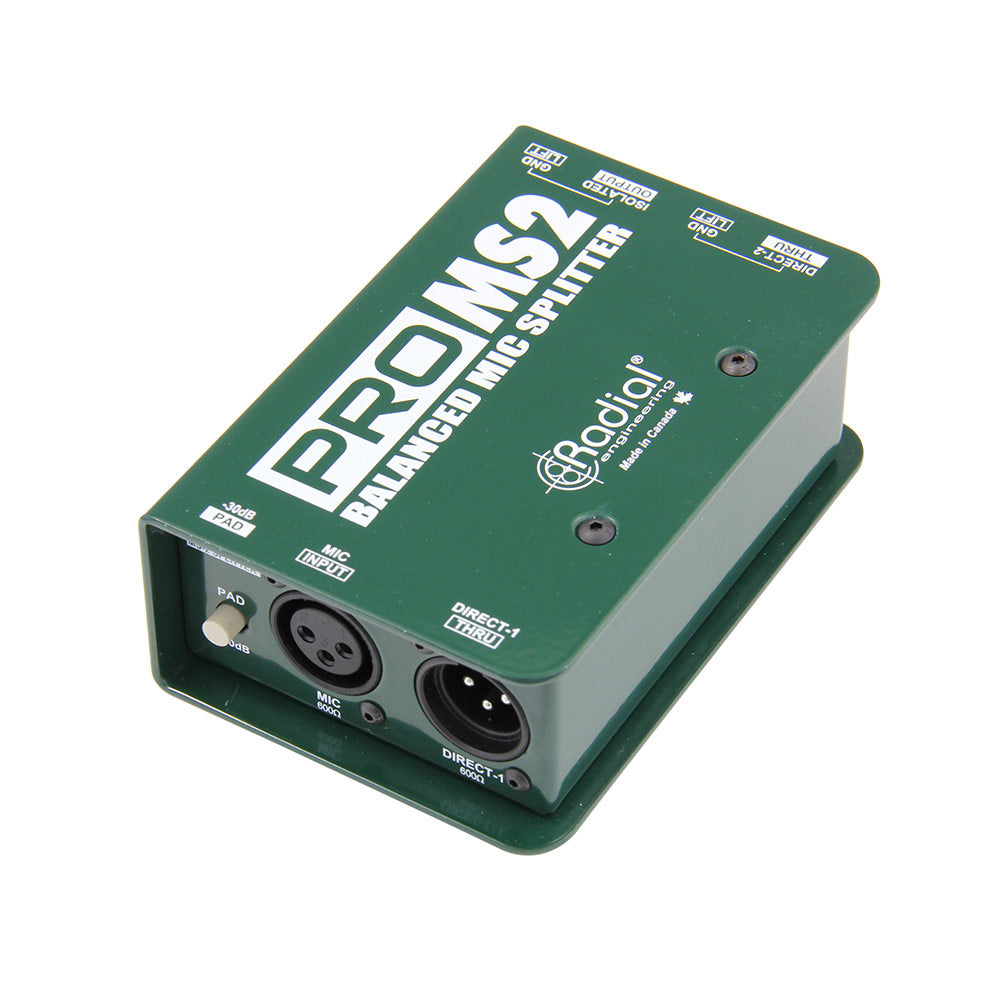

The Radial ProMS2 is a high performance mic splitter that accepts a balanced microphone signal and sends it to three outputs simultaneously. As a passive device, there is no need for power - you merely plug in and the ProMS2 automatically springs to life to deliver pristine audio without artefact or color.

Features:

  • High performance Eclipse transformer for optimal signal transfer
  • Equipped with direct, isolated and auxiliary outputs for 3-way split
  • May be rack-mounted in the J-Rak for multi-channel use
  • Rugged 14-gauge steel construction for added durability and shielding

The magic inside the ProMS2 is a premium Eclipse ET-MS10 transformer. This features a nickel laminated core that delivers a wide frequency response and exceptional signal handling with virtually zero distortion at all frequencies. And with better than 115dB of common mode noise rejection, you can rest assured that hum and buzz caused by ground loops and stray DC currents will be kept at a minimum. To shield against stray magnetic fields, the transformer is doubly protected with an integral mu-metal can plus a rugged external steel enclosure. This is augmented with RF filtering and a 100% discrete signal path to ensure optimal signal flow.

As with all Radial products, construction begins with a rugged 14-gauge steel for maximum durability. A unique book-end design creates a recessed zone around the switches and connectors to protect against the harsh environment of concert touring. An internal I-beam frame makes it virtually impossible to torque the PC board which could otherwise compromise the sensitive solder joints. The innovative design has the unique advantage of allowing up to 8 units to be rack-mounted using the Radial J-Rak. Typical applications include splitting a signal in the studio to feed more than one preamp, feeding a stage mic to more than one mixing console, or even splitting the signal from a live stage to supply a broadcast feed.

The Radial ProMS2 is a great sounding problem solver that lets you split microphone and DI signals with ease and confidence.

More +

Product Specs

Audio circuit type:  Passive
Input impedance:  2.5K Ohms, unbalanced
Output impedance:  140K Ohms, balanced
Frequency response:  20Hz ~ 20KHz (+0dB -1dB)
Gain: -0.5dB
Dynamic range:  >140dB
Total harmonic distortion:  0.001%
Noise floor: -140dB
Maximum input:  +26dBu
Phase deviation:  1° @ 20Hz
Intermodulation distortion: 0.003%
Common mode rejection ratio: -115dB at 60Hz
Features
Transformer: Eclipse ET-MS10
Pad -30dB
Ground lift:  Disconnects pin-1 at both XLR outputs
XLR configuration:  AES standard Pin-1 ground, Pin-2(+), Pin-3(-)
Connectors: XLR-F in, XLR-M direct; direct-2; isolated outputs
General
Construction:  14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size:  (W x H x D) 84 x 127 x 48mm (3.3 x 5.0 x 2)
Weight:  0.70 kg (1.55 lbs)
Shipping Size: W x H x D: 102 x 76 x 165mm (4 x 3 x 6.5)
Shipping Weight: .87 kg (1.92 lbs)
Power:  Passive, no power required
Warranty:  Radial 3-year, transferable
Conditions: For use in dry locations only between 5°C and 40°C
