DALE SKU # RADI-RELAYXO

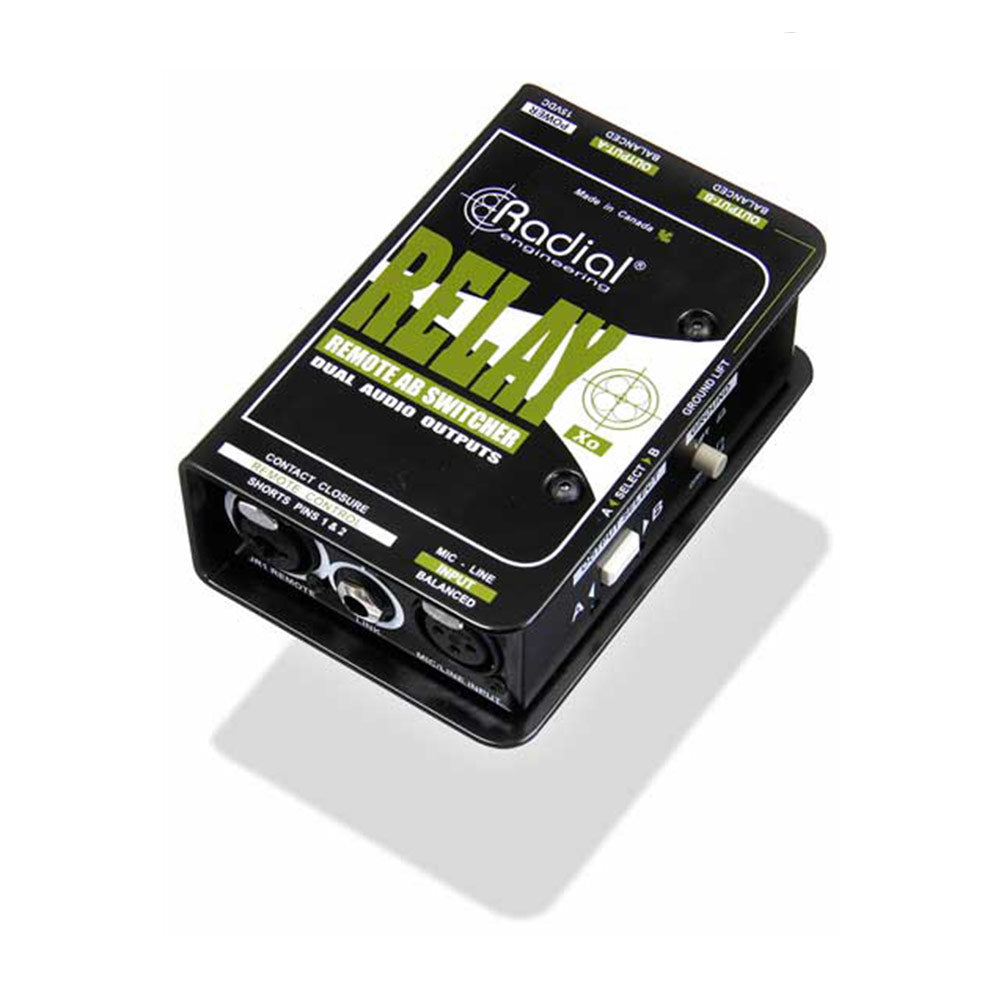

Radial Engineering Relay XO Balanced AB Signal Switcher

Sale price$299.99 Regular price$360.00
Save $60.01
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Radial Relay Xo is a 1-in, 2-out balanced audio switcher designed to route the output of a microphone to two different audio inputs. This, for instance, enables a vocalist to switch his mic between the main PA system and the monitors so that he can discreetly communicate with other band members or the technical staff. This is of particular importance for artists that employ in-ear monitors. You can also use the Relay Xo to send the output of a microphone to two channels on the PA. The first channel could be set 'dry' to speak to the audience between sets, while the second channel could be set 'wet' with reverb and echo to enhance the voice. This enables the vocalist to control effects and deliver a more professional performance.

    Features:

    • Switch vocal microphone from PA to intercom
    • Allows artist to speak with musicians and techs
    • Remote control using footswitch
    • Route any balanced signal to two destinations

    The Relay Xo features a balanced XLR input and two balanced XLR outputs. The audio signal path is completely passive 'pure wire'. There are no transformers or electronic buffers inside that could introduce distortion or color the tone. Instead, the Relay Xo employs military-grade gold-contact sealed relays to do the switching. This makes the Relay Xo equally suitable with mic and line level signals.

    Switching may be done using the side-access pushbutton switch or by remote control via the XLR and 1/4" input jacks using either the Radial JR1-L latching or JR1-M momentary footswitch. A remote link enables multiple Relay Xo's to be used in tandem.

    The Radial Relay... a powerful switcher that is easy to use!

    Audio circuit type:ÊRemotely controlled mechanical relay
    Frequency response:Ê10Hz ~ 100kHz
    Total harmonic distortion:Ê<0.0005%
    Dynamic range:Ê>140dB
    Input impedance:ÊSource dependent
    Output impedance:ÊSource dependent
    Common mode rejection:Ê-106dB
    Maximum input:Ê+26dBu
    Phase shift:Ê<1¡ at all frequencies
    Gain:Ê0dB
    Noise floor:Ê-115dBuÊ
    Intermodulation distortion:Ê0.001%
    Features
    Controls:None
    Switches:ÊA/B switch, ground lift
    Ground lift:ÊXLR Output B only
    Audio connectors:ÊXLR-F input, (2) XLR-M outputs
    XLR configuration:ÊAES standard pin-1 ground, pin-2 (+), pin-3 (-)
    Remote connectors:Combo (XLR-F / _ ), _ loop-through
    Contact closure function:With _ TRS jack, short tip and ground to switch
    With XLR, short pin-1 ground and pin-2 Hot to switch
    General
    Construction:Ê14 gauge steel with internal I-beam
    Finish:Durable powder coat
    Size: (L x W x D)5 x 3.3 x 1.8 (127mm x 84.1mm x 45.5mm)
    Weight:Ê1.4 lbs (635 grams)
    Shipping size: (L x W x D):6.5 x 4 x 3 (165mm x 102mm x 76mm)
    Shipping weight:2.4lbs (1088.6 grams)
    Power:15VDC, 30mA, center-pin (+)
    Conditions:For use in dry locations only between 5¡C and 40¡C
    Warranty:ÊRadial 3-year, transferable

    The Radial Relay Xo is a 1-in, 2-out balanced audio switcher designed to route the output of a microphone to two different audio inputs. This, for instance, enables a vocalist to switch his mic between the main PA system and the monitors so that he can discreetly communicate with other band members or the technical staff. This is of particular importance for artists that employ in-ear monitors. You can also use the Relay Xo to send the output of a microphone to two channels on the PA. The first channel could be set 'dry' to speak to the audience between sets, while the second channel could be set 'wet' with reverb and echo to enhance the voice. This enables the vocalist to control effects and deliver a more professional performance.

    Features:

    • Switch vocal microphone from PA to intercom
    • Allows artist to speak with musicians and techs
    • Remote control using footswitch
    • Route any balanced signal to two destinations

    The Relay Xo features a balanced XLR input and two balanced XLR outputs. The audio signal path is completely passive 'pure wire'. There are no transformers or electronic buffers inside that could introduce distortion or color the tone. Instead, the Relay Xo employs military-grade gold-contact sealed relays to do the switching. This makes the Relay Xo equally suitable with mic and line level signals.

    Switching may be done using the side-access pushbutton switch or by remote control via the XLR and 1/4" input jacks using either the Radial JR1-L latching or JR1-M momentary footswitch. A remote link enables multiple Relay Xo's to be used in tandem.

    The Radial Relay... a powerful switcher that is easy to use!

    Audio circuit type:ÊRemotely controlled mechanical relay
    Frequency response:Ê10Hz ~ 100kHz
    Total harmonic distortion:Ê<0.0005%
    Dynamic range:Ê>140dB
    Input impedance:ÊSource dependent
    Output impedance:ÊSource dependent
    Common mode rejection:Ê-106dB
    Maximum input:Ê+26dBu
    Phase shift:Ê<1¡ at all frequencies
    Gain:Ê0dB
    Noise floor:Ê-115dBuÊ
    Intermodulation distortion:Ê0.001%
    Features
    Controls:None
    Switches:ÊA/B switch, ground lift
    Ground lift:ÊXLR Output B only
    Audio connectors:ÊXLR-F input, (2) XLR-M outputs
    XLR configuration:ÊAES standard pin-1 ground, pin-2 (+), pin-3 (-)
    Remote connectors:Combo (XLR-F / _ ), _ loop-through
    Contact closure function:With _ TRS jack, short tip and ground to switch
    With XLR, short pin-1 ground and pin-2 Hot to switch
    General
    Construction:Ê14 gauge steel with internal I-beam
    Finish:Durable powder coat
    Size: (L x W x D)5 x 3.3 x 1.8 (127mm x 84.1mm x 45.5mm)
    Weight:Ê1.4 lbs (635 grams)
    Shipping size: (L x W x D):6.5 x 4 x 3 (165mm x 102mm x 76mm)
    Shipping weight:2.4lbs (1088.6 grams)
    Power:15VDC, 30mA, center-pin (+)
    Conditions:For use in dry locations only between 5¡C and 40¡C
    Warranty:ÊRadial 3-year, transferable
