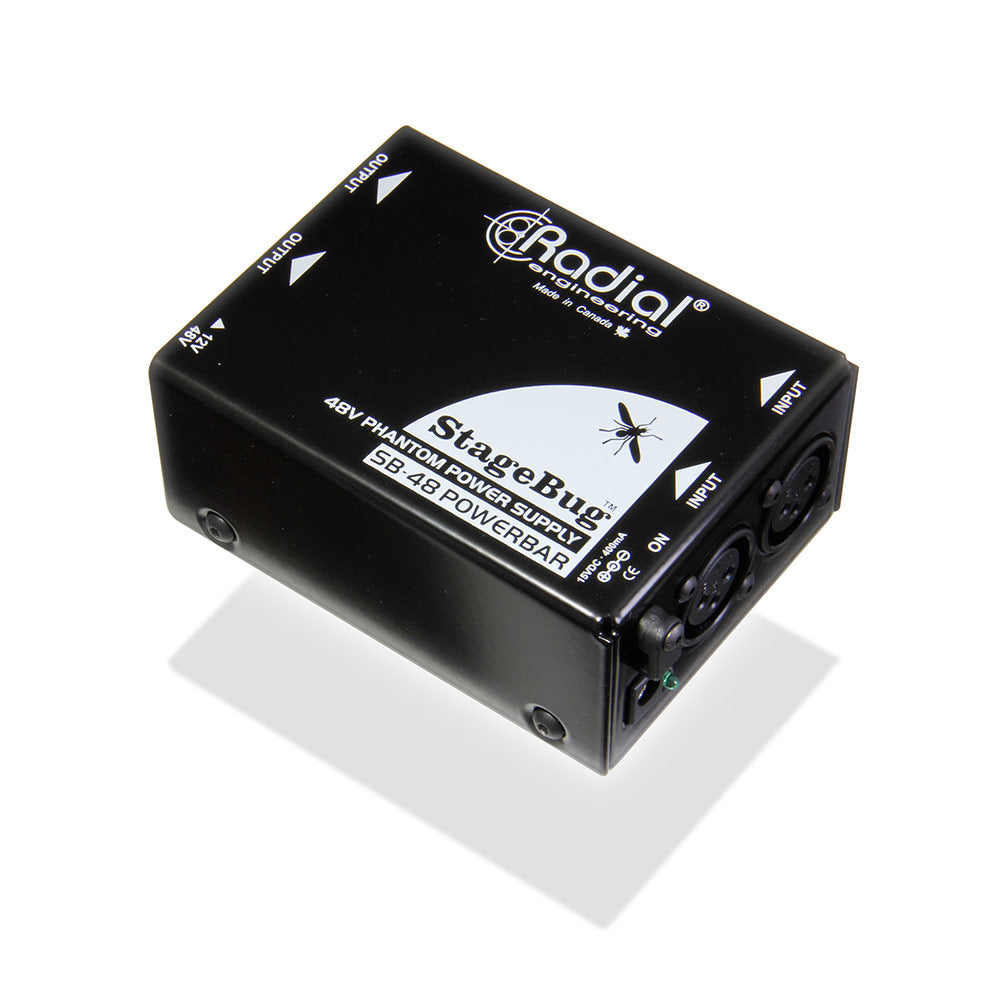

Radial Engineering StageBug SB-48 2-Channel Phantom Power Supply
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Radial SB-48 is a high performance phantom power generator that employs a non-radiating charge pump circuit to create a stable, ripple-free 48 volt supply for active direct boxes and condenser microphones. The stereo design features XLR inputs and outputs with a choice of 48V and 12V operation. The SB-48 is powered by a single 15VDC 400 milliamp supply that is included. The connector may be locked into place using a retention clamp. As with all Radial products, the SB-48 is manufactured in Canada from solid steel and powder coated for years of great looks!
| Circuit type | Non-radiating phantom power supply |
| Number of channels | 2 |
| XLR connectors | AES standard pin-1 Ground, pin-2 (+), pin-3 (-) |
| Phantom output | Switchable +48 / +12 volts DC |
| Power supply | 15VDC / 400mA external supply included |
The Radial SB-48 is a high performance phantom power generator that employs a non-radiating charge pump circuit to create a stable, ripple-free 48 volt supply for active direct boxes and condenser microphones. The stereo design features XLR inputs and outputs with a choice of 48V and 12V operation. The SB-48 is powered by a single 15VDC 400 milliamp supply that is included. The connector may be locked into place using a retention clamp. As with all Radial products, the SB-48 is manufactured in Canada from solid steel and powder coated for years of great looks!
| Circuit type | Non-radiating phantom power supply |
| Number of channels | 2 |
| XLR connectors | AES standard pin-1 Ground, pin-2 (+), pin-3 (-) |
| Phantom output | Switchable +48 / +12 volts DC |
| Power supply | 15VDC / 400mA external supply included |
