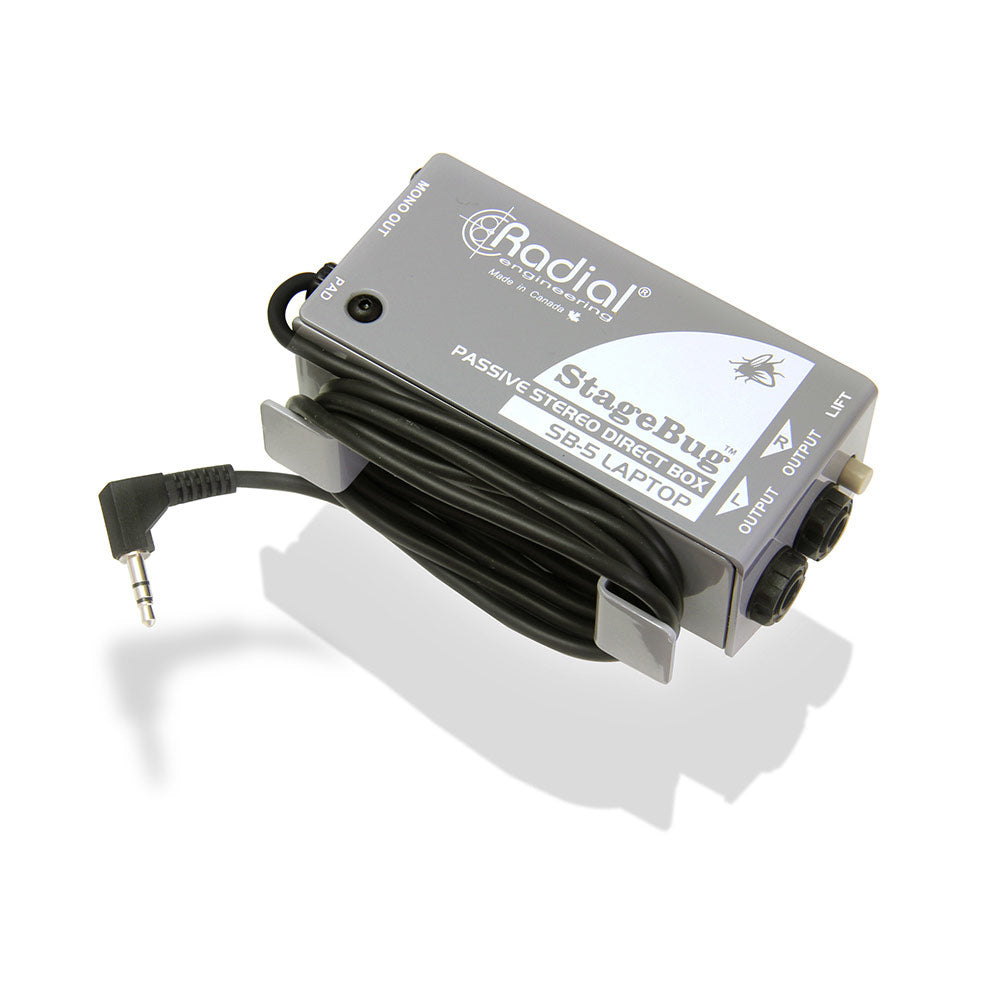

Radial Engineering StageBug SB-5 Passive Laptop Direct Box

  • Dale #:

    RADI-SB5LAPTOP
  • Availability:

    Sold Out
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Radial Stage Bug SB-5 is a compact stereo direct box designed to accommodate laptop computers, tablets and other consumer audio products when amplifying the signal through a PA system. A choice of output connectors is available including a stereo set of ¼ TRS jacks for full stereo operation o... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

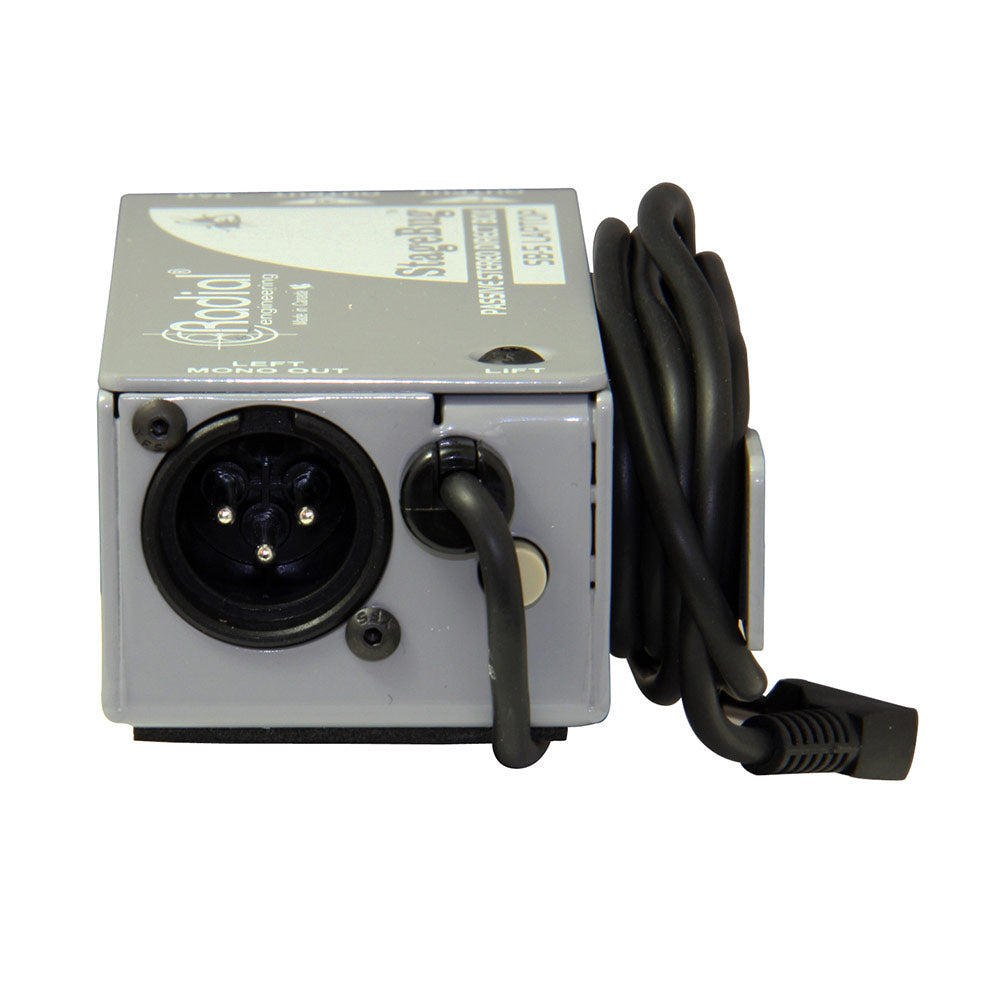

The Radial Stage Bug SB-5 is a compact stereo direct box designed to accommodate laptop computers, tablets and other consumer audio products when amplifying the signal through a PA system. A choice of output connectors is available including a stereo set of ¼ TRS jacks for full stereo operation or an XLR out that automatically sums the left-right program material to mono. This can save valuable channels on the PA system and makes setup easier in situations where full stereo reproduction is not required. A -15dB input pad may be engaged to reduce sensitivity and enable extra high output sources to be connected without distortion.

Features:

  • Stereo direct box for laptop computer
  • Integral 1.5m cable with sidewinder cleat
  • Transformer isolation eliminates noise
  • Plug & play easy to use – no power required

The passive design begins with an integrated input cable that connects from the headphone out via a flexible 1.5m (5') cable that is terminated with a standard 3.5mm (1/8") stereo connector. The cable is secured via a clamping strain relief and is wrapped using the sidewinder cleat for easy storage. This of course eliminates having to locate a cable making it easier to deploy in fast paced work environments. Inside, the signal is sent to a pair of custom wound transformers where the impedance is lowered and the signal is balanced for long cable runs - upwards to 100 meters (300'). Transformers further benefit by isolating the computer from the PA system to help eliminate hum and buzz caused by ground loops. This is augmented with a ground lift switch to further reduce ground contamination.

These features combine to make the SB-5 the perfect tool-kit DI for the AV technician, media manager or traveling musician equipped with a computer.

More +

Product Specs

Audio circuit type:  Passive, transformer based
Number of channels: Two channels, mono or stereo outputs
Frequency response:  20Hz ~ 20KHz (± 1dB)
Dynamic range:  100dB
Maximum input:  +20dB
Total harmonic distortion:  0.01% @ 1kHz
Phase deviation:  2° @ 100Hz; 5° @ 50Hz
Input impedance:  40k Ohms, unbalanced
Output impedance:  2.8k Ohms, balanced
Features
Transformer: Custom design
Input pad:  -10dB
Auto Merge:  Sums left & right sources to mono at XLR
Ground lift:  Disconnects pin-1 at 1/4 TRS outputs
XLR configuration:  AES standard (pin-2 hot)
Input connector: 3.5mm (1/8) integrated 1.5m (5') cable
Output connectors: 1/4 TRS stereo / XLR-M mono merge
General
Construction:  14 gauge steel chassis & outer shell
Finish: Baked enamel
Size: (L x W x D) 4.5 x 1,85 x 1.35 (114mm x 47mm x 34mm)
Weight:  0.55 lbs (250 grams)
Shipping Size: W x H x D: 102 x 76 x 165mm (4 x 3 x 6.5)
Shipping Weight: 0.8 lbs (365 grams)
Power:  Passive, no power required
Warranty:  Radial 3-year, transferable
