Radial Engineering Studio-Q Studio Talkback Interface
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Studio-Q™ is a compact studio talkback controller designed to provide a simple yet full-function cueing system that allows easy communication with artists in a separate booth or on the other side of the control room glass.

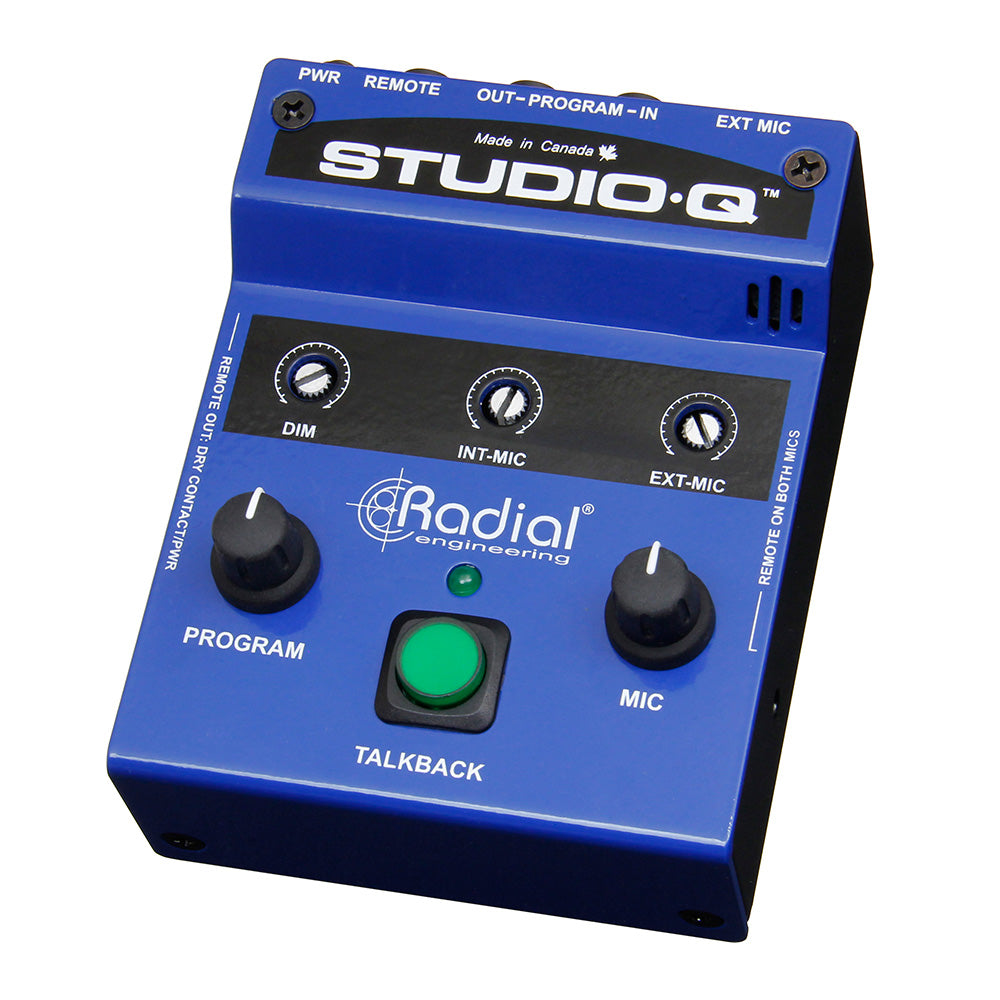

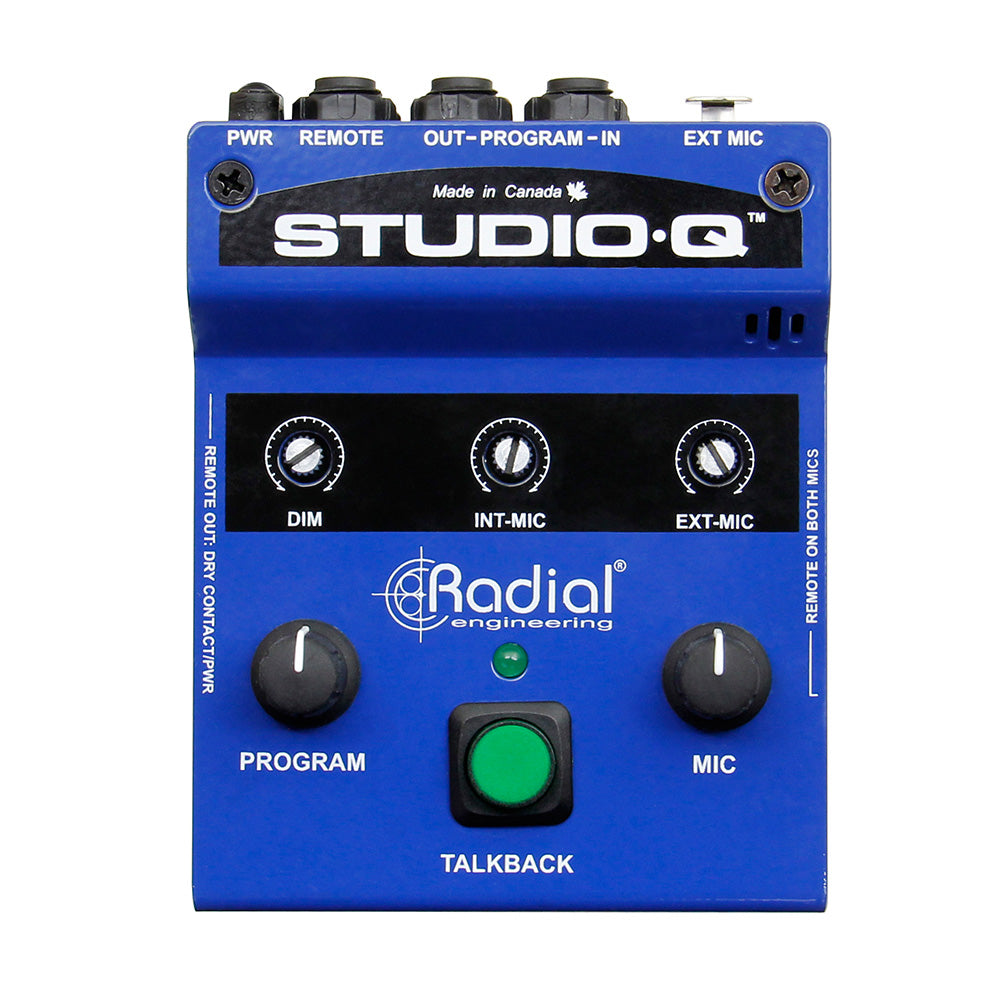

The Studio-Q begins with a centrally located talkback switch that activates the built-in microphone, illuminating a bright LED to indicate that the talkback channel to the artist is active. This is supplemented with an external mic input for a dynamic microphone, allowing a stand-mounted mic to function as the main talkback source, or act as an additional talkback mic for a producer. Both the internal and external microphone levels are set via individual trim controls along with a master mic volume. A Radial JR1™ remote footswitch can be connected for hands-free activation of one or both talkback mic's. When the Studio-Q talkback is active, the signal is routed to the studio headphone system while it automatically dims the program to the desired level. A separate program level control allows instant access to the playback volume feeding the headphone mix.

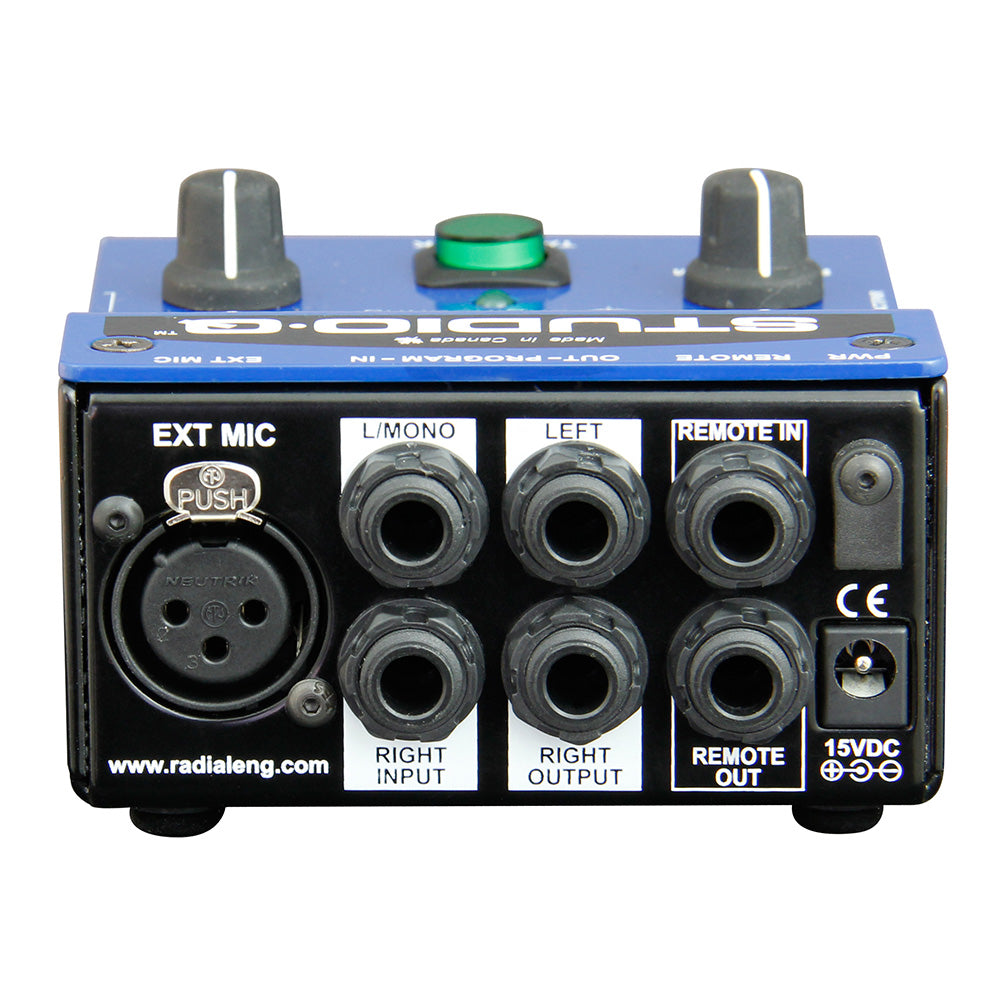

Connecting audio to the Studio-Q is straightforward with balanced 1/4" TRS program inputs and outputs. The external mic input features a standard XLR for a dynamic microphone, while the JR1 remote connects via 1/4" jack. An additional 'remote out' 1/4" jack allows you to send a dry contact signal to an external device when the talkback switch is depressed. This can also be set to carry DC power and accommodate a remotely powered LED beacon to attract attention when the artist isn't wearing headphones or is in the middle of a take.
Following Radial's pedigree for robust manufacturing, the Studio-Q is made from heavy 14-gauge steel for added durability and shielding against stray magnetic fields. A compact chassis size reduces the footprint on your desktop, with rubber feet that protect the work surface while keeping it firmly in place. The Studio-Q is powered by a 15VDC supply which may be locked in place using a cable clamp.
The Radial Studio-Q... a simple talkback system that improves communication and adds professionalism to your studio.
Features:
- Compact desktop cue system for studio recording
- Allows engineer & producer to talk to artist
- Built-in engineer mic and external producer mic input
- Improves studio efficiency, workflow and professionalism
| Audio Circuit Type:Ê | Active with FET dim circuits |
| Number of Channels: | Mono or Stereo operation |
| Frequency Response: | 20Hz - 20kHz ±0.5dB |
| Noise Floor:Ê | -86dBu |
| Dynamic Range: | 106dB |
| Maximum Input - Program: | +14dBu |
| Intermodulation Distortion: | <0.005% |
| Total Harmonic Distortion:Ê | <0.007% |
| Input Impedence - Program:Ê | 20 k½ |
| Input Impedence - EXT Mic:Ê | 2 k½ |
| Clip Level - _ Outputs:Ê | +20dBu |
| Output Impedence - _ Output:Ê | 225 ½ |
| Maximum Gain - EXT Mic input | +45dB |
| Dim Attenuation | -6dB to -80dB |
| Input Connections: | _ left/right program inputs, _" remote input, XLR microphone input |
| Output Connectors: | _ left/right outputs, _ remote output |
| Construction:Ê | 14-gauge steel |
| Finish: | Durable Powder Coat |
| Size (L x W x H): | 4.88" x 3.63" x 2" (12.4cm x 9.2cm x 5.1cm) |
| Weight: | 1.45lb (0.66kg) |
| Shipping Size (L x W x H): | 11.75" x 4.75" x 3" (29.8cm x 12.1cm x 7.6cm) |
| Shipping Weight: | 2.15lb (0.98kg) |
| Conditions:Ê | For indoor use at temperatures between +15¡C and +40¡C |
| Warranty:Ê | Radial 3-year, transferable |
| Power Supply:Ê | 15VDC 400mA, center pole positive |
The Studio-Q™ is a compact studio talkback controller designed to provide a simple yet full-function cueing system that allows easy communication with artists in a separate booth or on the other side of the control room glass.
The Studio-Q begins with a centrally located talkback switch that activates the built-in microphone, illuminating a bright LED to indicate that the talkback channel to the artist is active. This is supplemented with an external mic input for a dynamic microphone, allowing a stand-mounted mic to function as the main talkback source, or act as an additional talkback mic for a producer. Both the internal and external microphone levels are set via individual trim controls along with a master mic volume. A Radial JR1™ remote footswitch can be connected for hands-free activation of one or both talkback mic's. When the Studio-Q talkback is active, the signal is routed to the studio headphone system while it automatically dims the program to the desired level. A separate program level control allows instant access to the playback volume feeding the headphone mix.
Connecting audio to the Studio-Q is straightforward with balanced 1/4" TRS program inputs and outputs. The external mic input features a standard XLR for a dynamic microphone, while the JR1 remote connects via 1/4" jack. An additional 'remote out' 1/4" jack allows you to send a dry contact signal to an external device when the talkback switch is depressed. This can also be set to carry DC power and accommodate a remotely powered LED beacon to attract attention when the artist isn't wearing headphones or is in the middle of a take.
Following Radial's pedigree for robust manufacturing, the Studio-Q is made from heavy 14-gauge steel for added durability and shielding against stray magnetic fields. A compact chassis size reduces the footprint on your desktop, with rubber feet that protect the work surface while keeping it firmly in place. The Studio-Q is powered by a 15VDC supply which may be locked in place using a cable clamp.
The Radial Studio-Q... a simple talkback system that improves communication and adds professionalism to your studio.
Features:
- Compact desktop cue system for studio recording
- Allows engineer & producer to talk to artist
- Built-in engineer mic and external producer mic input
- Improves studio efficiency, workflow and professionalism
| Audio Circuit Type:Ê | Active with FET dim circuits |
| Number of Channels: | Mono or Stereo operation |
| Frequency Response: | 20Hz - 20kHz ±0.5dB |
| Noise Floor:Ê | -86dBu |
| Dynamic Range: | 106dB |
| Maximum Input - Program: | +14dBu |
| Intermodulation Distortion: | <0.005% |
| Total Harmonic Distortion:Ê | <0.007% |
| Input Impedence - Program:Ê | 20 k½ |
| Input Impedence - EXT Mic:Ê | 2 k½ |
| Clip Level - _ Outputs:Ê | +20dBu |
| Output Impedence - _ Output:Ê | 225 ½ |
| Maximum Gain - EXT Mic input | +45dB |
| Dim Attenuation | -6dB to -80dB |
| Input Connections: | _ left/right program inputs, _" remote input, XLR microphone input |
| Output Connectors: | _ left/right outputs, _ remote output |
| Construction:Ê | 14-gauge steel |
| Finish: | Durable Powder Coat |
| Size (L x W x H): | 4.88" x 3.63" x 2" (12.4cm x 9.2cm x 5.1cm) |
| Weight: | 1.45lb (0.66kg) |
| Shipping Size (L x W x H): | 11.75" x 4.75" x 3" (29.8cm x 12.1cm x 7.6cm) |
| Shipping Weight: | 2.15lb (0.98kg) |
| Conditions:Ê | For indoor use at temperatures between +15¡C and +40¡C |
| Warranty:Ê | Radial 3-year, transferable |
| Power Supply:Ê | 15VDC 400mA, center pole positive |
