Radial Engineering SW8 Auto Switcher (8x8 Channel)

  • Dale #:

    RADI-SW8
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The Radial SW8 is an 8 channel auto-switcher that allows you to set up a redundant backup system by automatically switching between two sources such as a pair of digital recorders, computers or network systems. Designed primarily for live concerts and stage shows where backing tracks are used for... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Radial SW8 is an 8 channel auto-switcher that allows you to set up a redundant backup system by automatically switching between two sources such as a pair of digital recorders, computers or network systems. Designed primarily for live concerts and stage shows where backing tracks are used for orchestration, vocals and sound effects, the SW8 employs an adjustable gate to detect a machine malfunction and automatically switch to a second backup machine to deliver a seamless performance. Switching can also be manually performed using a remote latching switch or via the front panel A~B switch. For larger systems, the SW8 is easily linked using a standard ¼ guitar type cable. This enables the unit to expand to 16, 24 or 32 channels with all systems switching simultaneously.

Features:

  • Switch between two playback systems automatically
  • Expandable 'link' with remote control contact closure
  • Balanced or unbalanced mic and line level operation
  • Transformer isolated DI output on each channel

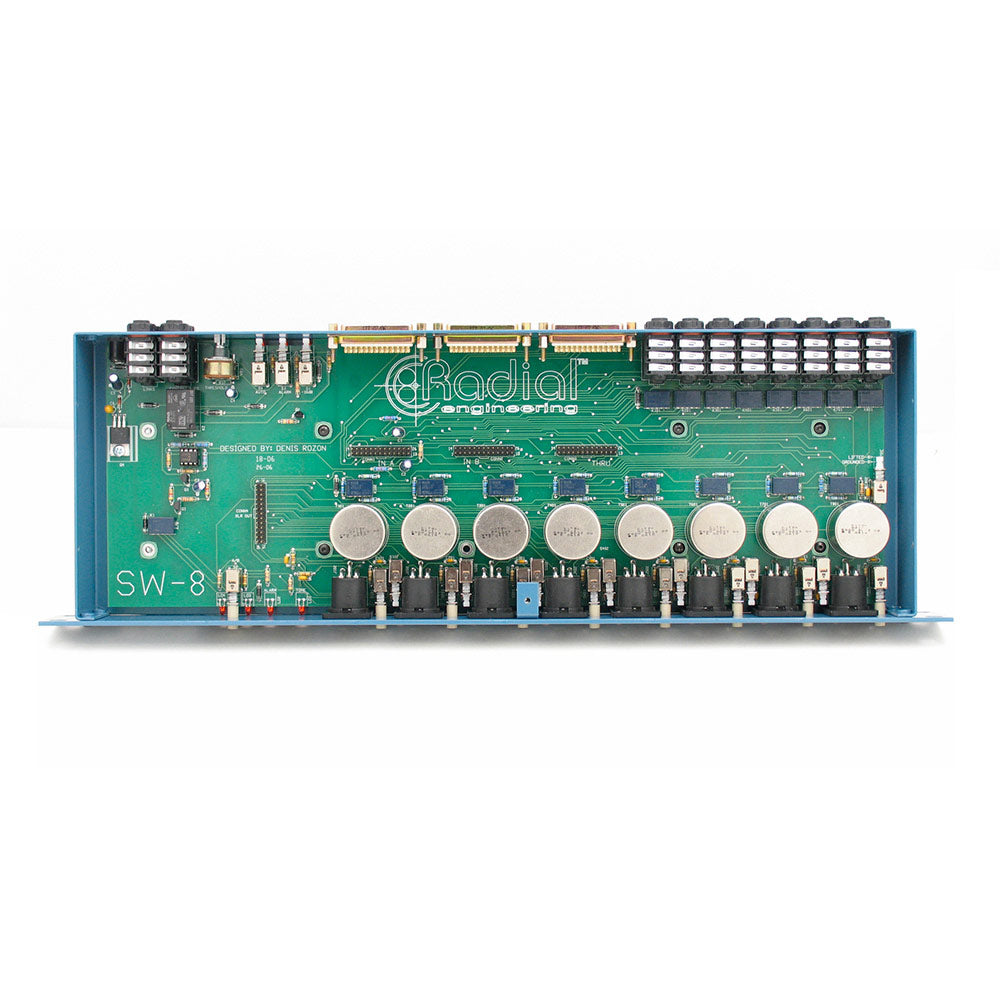

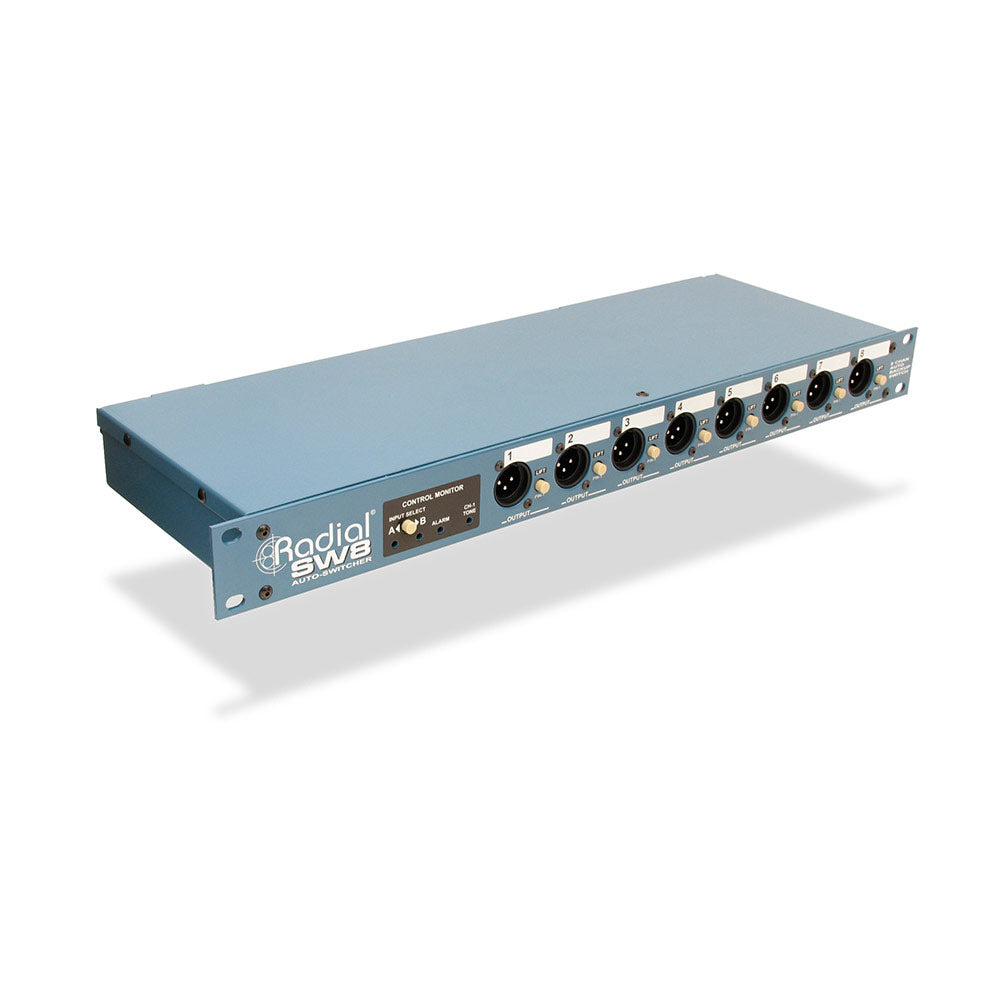

Housed in a heavy duty 14-gauge steel 19" enclosure, the Radial SW8 is equipped with choice of 25-pin D-sub or ¼" TRS connector input sets. A third D-Sub provides straight through balanced output while the front panel is equipped with XLR outputs. Inside, eight Radial direct box transformers come factory assigned to the XLR outputs for easy patching from the stage to the mic splitter. The isolation transformers help eliminate hum and buzz caused by ground loops may be re-patched internally to the D-Subs if required.

The Radial SW8 eliminates embarrassing system malfunctions by providing an easy to implement and easy to use system that will ensure each and every show will go on!

More +

Product Specs

Audio circuit type Passive signal path with active relay switching
Number of channels Eight channels
Frequency response 20Hz ~ 20KHz +0dB/-2dB (direct box outputs)
Dynamic range 120dB (direct box outputs)
Maximum input +26dBu @ 1kHz, 1% THD+N (direct box)
Common mode rejection ratio -88dB @ 0dBu (direct box outputs)
Total harmonic distortion 0.002% @ 1kHz, 0dBu output (direct box outputs)
Input impedance 140k Ohms, balanced (direct box)
Output impedance 150 Ohms, balanced (direct box outputs)
Transformer Radial custom transformer
Pad -20dB (global to all eight channels)
Ground lift Disconnects XLR pin-1 at isolated output
XLR configuration AES standard (pin-2 hot)
Connectors ¼" TRS, DB-25 inputs; XLR-F, DB-25 outputs
Construction 14 gauge steel chassis & outer shell
Finish Baked enamel
Size (W x H x D) 17.5" x 6" x 1.75" (44.5 x15.25 x 1.75cm)
Weight 9.2 lb (4.2kg)
Shipping Size: W x H x D 10.25" x 4.5" x 22.5" (260 x 114 x 572mm)
Shipping Weight 9.7 lb (4.4 kg)
Power Two +15VDC/400mA power supplies included
Warranty Radial 3-year, transferable
