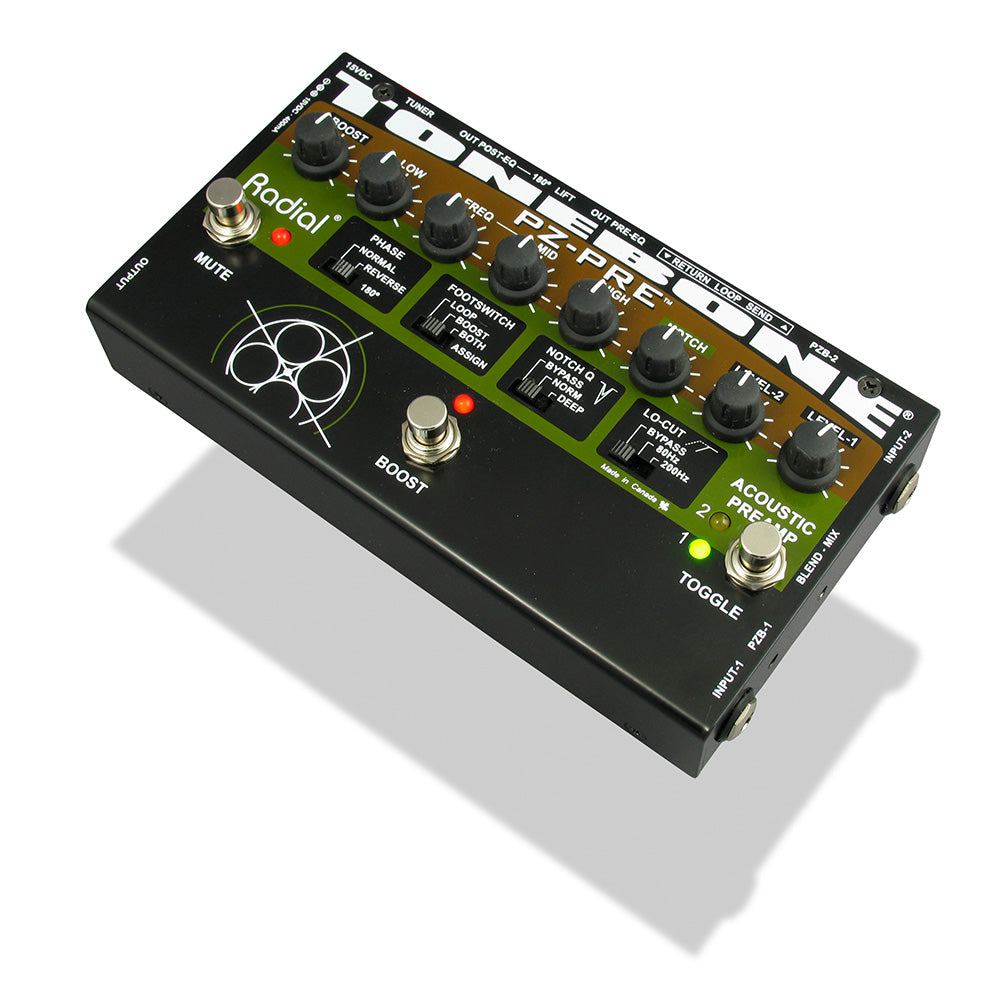

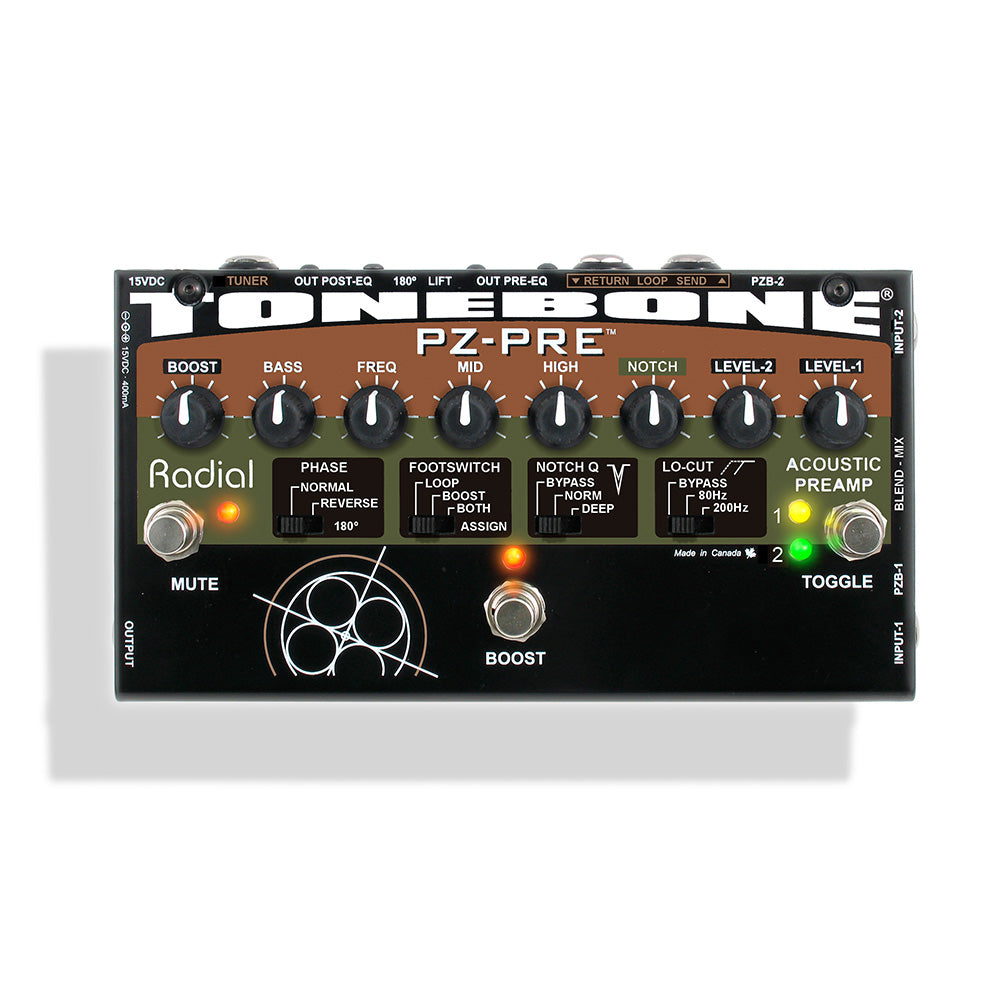

Radial Engineering ToneBone PZ-Pre Dual Instrument Preamplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Radial Tonebone PZ-Pre is the most powerful acoustic preamplifier ever to be put inside a pedal. And when we say acoustic, we do not just mean acoustic guitar - we mean ANY acoustic instrument including banjo, violin, cello, mandolin, contrabass, bouzouki or lute. The magic lies in the combination of high performance 100% discrete class-A PZB piezo boosters, an ultra-quiet preamp circuit that will adapt to any pickup system and a host of connectivity options that will put you in total control.
Features:
- Two channels to switch between instruments
- Notch & resonance filters eliminate feedback
- Pre & Post Radial DI outputs for PA and monitors
- Power booster and mute for more control on stage
The PZ-Pre is equipped with two inputs for quick instrument changes on stage. These can also be combined to blend two pickups together if you so desire. Features include a powerful yet warm sounding semi-parametric EQ to tailor your sound, feedback eliminating controls including a dual-Q notch filter to surgically remove feedback, a high-pass filter to cut low frequency resonance, and a phase reverse switch to eliminate hot spots on stage. It is also equipped with a host of outputs: a 1/4" hi-Z instrument out for an on-stage amp, a pre-EQ balanced XLR output for the PA system and a post EQ XLR out for stage wedges or in-ear monitors. A dedicated tuner out with mute switch lets you quietly tune on-stage. There's even a combination power booster - effects loop to add sizzle and dynamics to the performance and extra presence when soloing!
Compact and easy to use, the Radial PZ-Pre packs in all of the features you need to take your acoustic instrument from home to studio and club to concert.
| Circuit Type: | Proprietary active circuit |
| Standard input impedance: | 6.8k Ohm at input jack ('PZB' switch out) |
| Input with PZB switch in Impedance: | 10meg Ohm at input jack |
| Output Impendence: | 1k Ohm |
| Low cut roll-off: | Position 1: 75Hz Position 2: 2:220Hz |
| Notch Freq. range: | 56Hz to 330Hz |
| Notch Q: | Setting 1: -8dB Setting 2: -15dB |
| EQ | LOW MID
Parametric +/- 12dB @ 82Hz to 5.6kHzÊ HIGH +/- 12dB @ 7.5kHz |
| Boost level | 12dB |
| Effects send / receive | -10dB |
| FX loop impedance | Send: 1k Ohm Receive: 15k Ohm |
| Polarity | 180¡ switch (absolute phase reversal) |

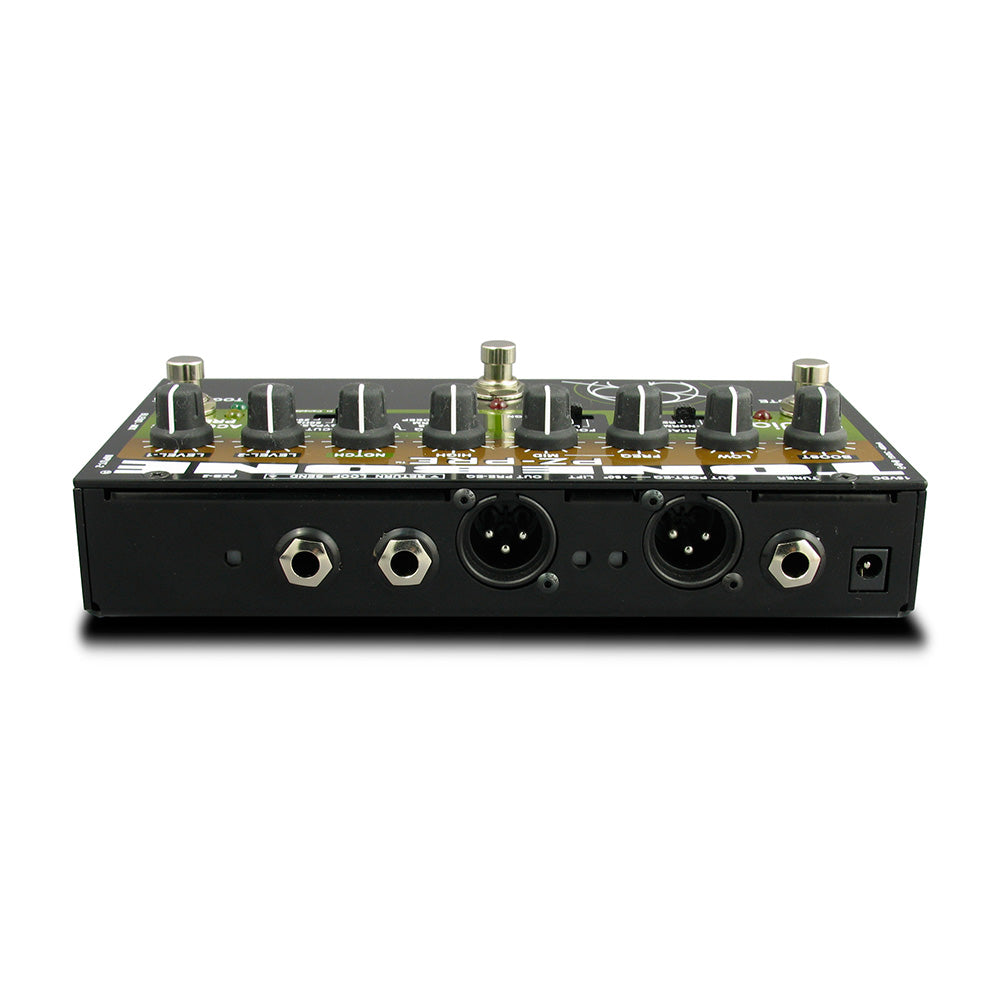

| Connections | Input-1: _" unbalanced Input-2: _" unbalanced Insert Send/Receive: _" unbalancedÊ Amp output: _"unbalanced, Hi-Z, 1k Ohm Tuner output: _"unbalanced, Hi-Z, 6.8k Ohm Pre-EQ output: XLR balanced mic level 600 OhmsÊ Post-EQ output: XLR balanced mic level 600 Ohms |
| Footswitches | Three: Mute, Boost, Toggle 1-2Ê Heavy-duty high-cycle switches |
| LED indicators | Large 3mm OD ultra-bright LED indicators for: mute, boost, Ch-1 / Ch-2 toggle status |
Construction |
14 guage steel, baked enamel finish |
Size |
8"w x 4 _"d x 2"h (205 x 110 x 51mm) |
Weight |
2.7lbs (1.2kg) |
Warranty |
Radial 3-year limited warranty |
| Power Supply: | 15VDC 400mA, center pole positive
Part # R800 9407 00 - 120 volt USA, Canada, TaiwanÊ Continental EuropeÊ United Kingdom Japan Australia |
