Radial Engineering Twin Servo Microphone Preamplifier for 500 Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

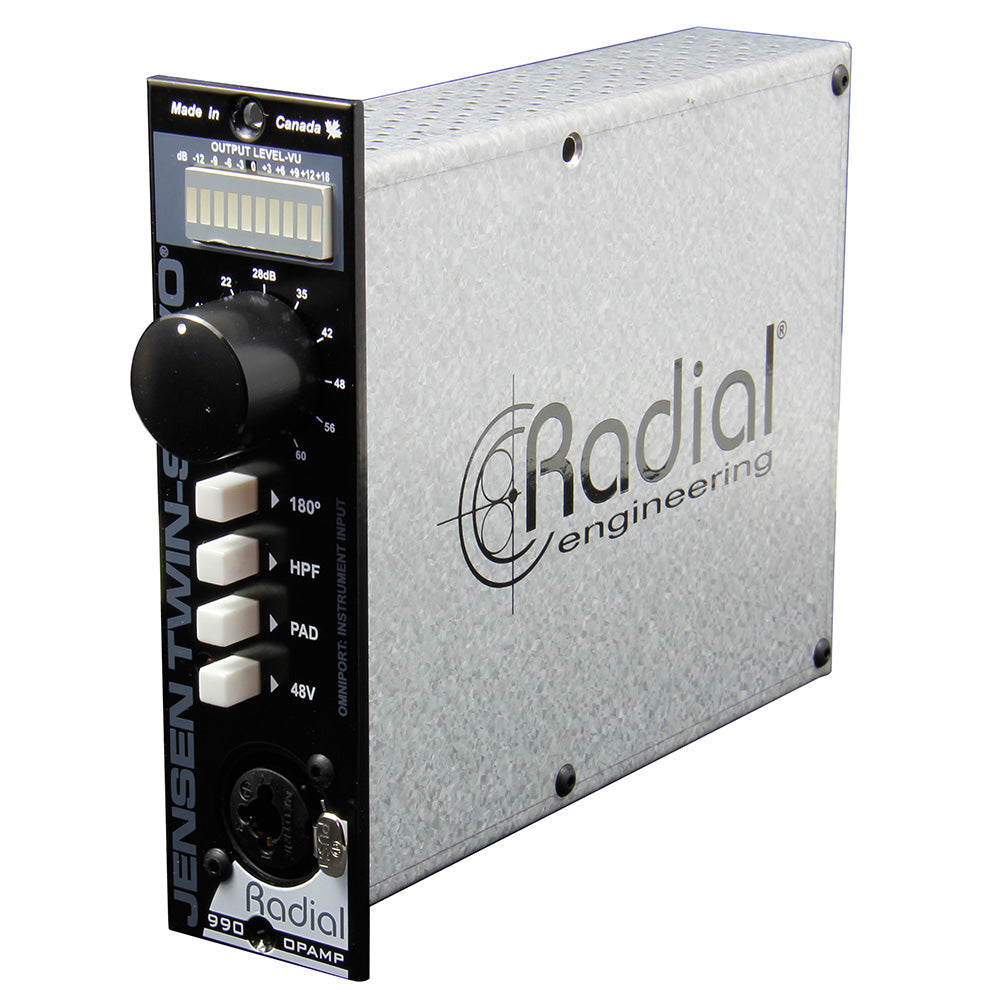

The Radial Jensen Twin-Servo & 500 series preamplifier is an updated version of what may well be the most spectacular preamp ever made. Features include a convenient front-panel Neutrik combo connector with choice of XLR and 1/4" inputs, a dual-gang potentiometer for level adjustment along with a 10 segment LED meter for signal management. This is supplemented with a 180º polarity reverse switch that toggles the absolute phase, a gentle high-pass filter to eliminate excessive resonance, a -15dB pad to prevent overload, and a 48V phantom power activation switch.
Features:
- Exceptionally wide frequency response from 0.5Hz to 150kHz
- Twin-servo topology eliminates capacitors in the signal path
- Virtually zero phase shift or bandwidth limitation
- Oversized Jensen transformers for maximum headroom

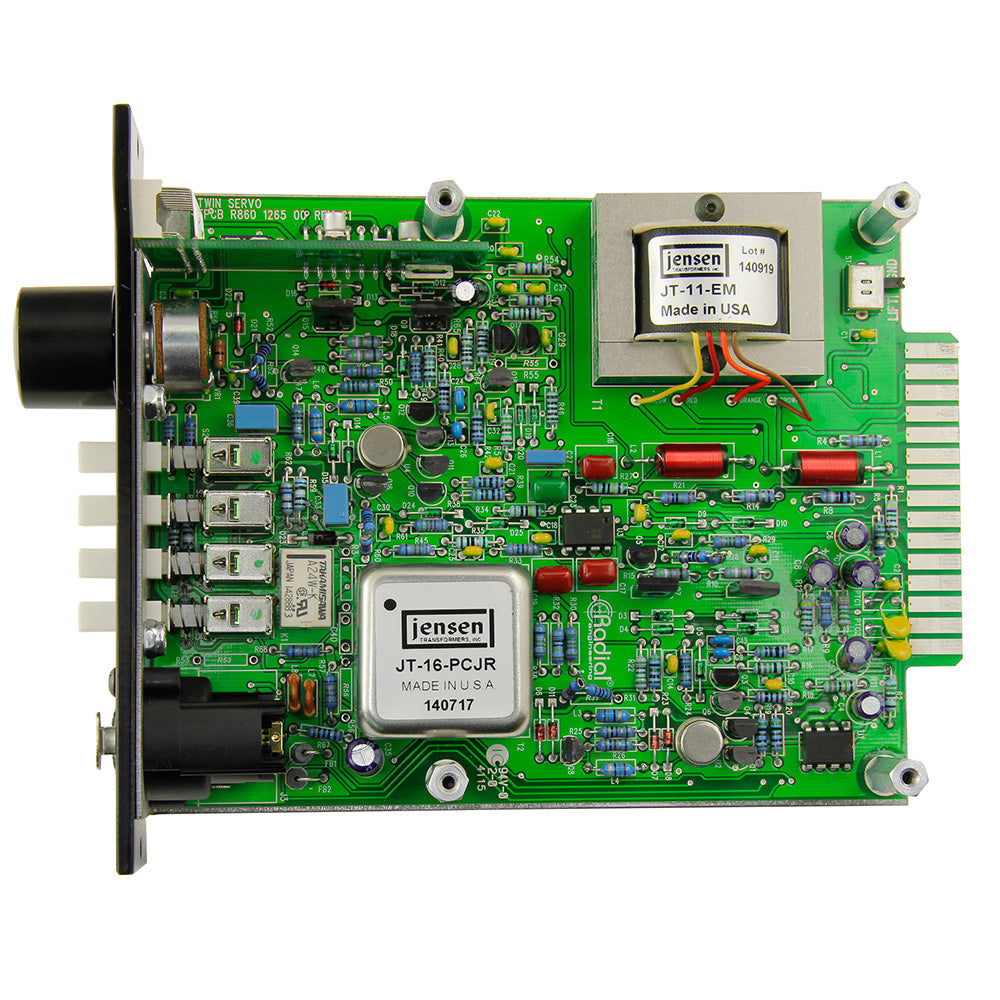

Originally developed by industry icon Deane Jensen in 1988, the Twin-Servo 500 is an adaptation that fits the popular 500 series format. The design begins with the legendary performance of two 100% discrete 990 op-amps cascaded in tandem to deliver 60dB of gain with less than 1/10th the distortion and twice the bandwidth of a single stage design. This maximizes the gain-margin so that no matter what the input, the lowest possible distortion will be realized. This also reduces noise at mid and low levels, a critical advantage for those that record with a wide dynamic range. In order to minimize phase distortion and retain the delicate balance of fundamentals with harmonics, all capacitors have been removed from the audio signal path and replaced by two DC servo feedback circuits. This not only reduces low-frequency noise, but also eliminates the ugly distortions associated with electrolytic capacitors that are especially degrading to low-level microphone signals when used to block phantom power in transformerless designs. To deliver the widest possible bandwidth, Jensen transformers are placed at both the input and output producing a frequency response that extends from 0.2Hz to 150kHz. The transformers further benefit with unmatched common-mode noise rejection from offending devices such as power supplies, light dimmers and motors that may be connected to the same power service.
The Jensen Twin-Servo... likely the finest microphone amplifier ever made.
| Circuit type:Ê | Two stage variable gain all discrete using original Deane Jensen circuit with IC DC servo. Jensen transformer coupled input and output. |
| Frequency response: | 14Hz to 85kHz / 8Hz to 100kHz (±1dB / ±3dB) |
| Total harmonic distortion:Ê | 0.004% |
| Dynamic range:Ê | 91dB |
| Input impedance - XLR: | 1.3k½ |
| Input impedance - instrument: | 220k½, unbalanced |
| Output impedance: | 75½ |
| Maximum output:Ê | +22dBu |
| Mic preamp gain:Ê | +60dB |
| Common mode rejection (CMRR): | -72dB |
| Equivalent input noise (EIN):Ê | -120dBu @ maximum gain |
| Total Harmonic Distortion (THD+N): | 0.004% |
| Intermodulation distortion:Ê | 0.004% |
| Features | |
| Microphone input:Ê | Transformer coupled, Jensen JT-15KE |
| Meter: | 10 segment peak indicator with hold |
| Polarity reverse: | 180¡ |
| Pad: | -15dB |
| Ground lift (rear panel): | Lifts ground on XLR inputs |
| XLR configuration: | AES spec: pin-1 ground, pin-2 (+), pin-3 (-) |
| General | |
| Power: | 110mA |
| Phantom power: | 48VDC - 10mA (as supplied by 500 frame) |
| High pass filter: | 6dB/octave @ 150Hz |
| Construction: | 500 Series module |
| Size: | 5.25" x 1.5" x 7" (134mm x 38mm x 178mm) |
| Weight:Ê | 1.75lb (0.79 kg) |
| Shipping size: | 6.75" x 1.875" x 9" ( 171mm x 48mm x 229mm) |
| Shipping weight: | 2.20lb (0.997 kg) |
| Conditions: | For use in dry locations only between 5¡C and 40¡C |
| Warranty:Ê | Radial 3-year, transferable |
The Radial Jensen Twin-Servo & 500 series preamplifier is an updated version of what may well be the most spectacular preamp ever made. Features include a convenient front-panel Neutrik combo connector with choice of XLR and 1/4" inputs, a dual-gang potentiometer for level adjustment along with a 10 segment LED meter for signal management. This is supplemented with a 180º polarity reverse switch that toggles the absolute phase, a gentle high-pass filter to eliminate excessive resonance, a -15dB pad to prevent overload, and a 48V phantom power activation switch.
Features:
- Exceptionally wide frequency response from 0.5Hz to 150kHz
- Twin-servo topology eliminates capacitors in the signal path
- Virtually zero phase shift or bandwidth limitation
- Oversized Jensen transformers for maximum headroom
Originally developed by industry icon Deane Jensen in 1988, the Twin-Servo 500 is an adaptation that fits the popular 500 series format. The design begins with the legendary performance of two 100% discrete 990 op-amps cascaded in tandem to deliver 60dB of gain with less than 1/10th the distortion and twice the bandwidth of a single stage design. This maximizes the gain-margin so that no matter what the input, the lowest possible distortion will be realized. This also reduces noise at mid and low levels, a critical advantage for those that record with a wide dynamic range. In order to minimize phase distortion and retain the delicate balance of fundamentals with harmonics, all capacitors have been removed from the audio signal path and replaced by two DC servo feedback circuits. This not only reduces low-frequency noise, but also eliminates the ugly distortions associated with electrolytic capacitors that are especially degrading to low-level microphone signals when used to block phantom power in transformerless designs. To deliver the widest possible bandwidth, Jensen transformers are placed at both the input and output producing a frequency response that extends from 0.2Hz to 150kHz. The transformers further benefit with unmatched common-mode noise rejection from offending devices such as power supplies, light dimmers and motors that may be connected to the same power service.
The Jensen Twin-Servo... likely the finest microphone amplifier ever made.
| Circuit type:Ê | Two stage variable gain all discrete using original Deane Jensen circuit with IC DC servo. Jensen transformer coupled input and output. |
| Frequency response: | 14Hz to 85kHz / 8Hz to 100kHz (±1dB / ±3dB) |
| Total harmonic distortion:Ê | 0.004% |
| Dynamic range:Ê | 91dB |
| Input impedance - XLR: | 1.3k½ |
| Input impedance - instrument: | 220k½, unbalanced |
| Output impedance: | 75½ |
| Maximum output:Ê | +22dBu |
| Mic preamp gain:Ê | +60dB |
| Common mode rejection (CMRR): | -72dB |
| Equivalent input noise (EIN):Ê | -120dBu @ maximum gain |
| Total Harmonic Distortion (THD+N): | 0.004% |
| Intermodulation distortion:Ê | 0.004% |
| Features | |
| Microphone input:Ê | Transformer coupled, Jensen JT-15KE |
| Meter: | 10 segment peak indicator with hold |
| Polarity reverse: | 180¡ |
| Pad: | -15dB |
| Ground lift (rear panel): | Lifts ground on XLR inputs |
| XLR configuration: | AES spec: pin-1 ground, pin-2 (+), pin-3 (-) |
| General | |
| Power: | 110mA |
| Phantom power: | 48VDC - 10mA (as supplied by 500 frame) |
| High pass filter: | 6dB/octave @ 150Hz |
| Construction: | 500 Series module |
| Size: | 5.25" x 1.5" x 7" (134mm x 38mm x 178mm) |
| Weight:Ê | 1.75lb (0.79 kg) |
| Shipping size: | 6.75" x 1.875" x 9" ( 171mm x 48mm x 229mm) |
| Shipping weight: | 2.20lb (0.997 kg) |
| Conditions: | For use in dry locations only between 5¡C and 40¡C |
| Warranty:Ê | Radial 3-year, transferable |
