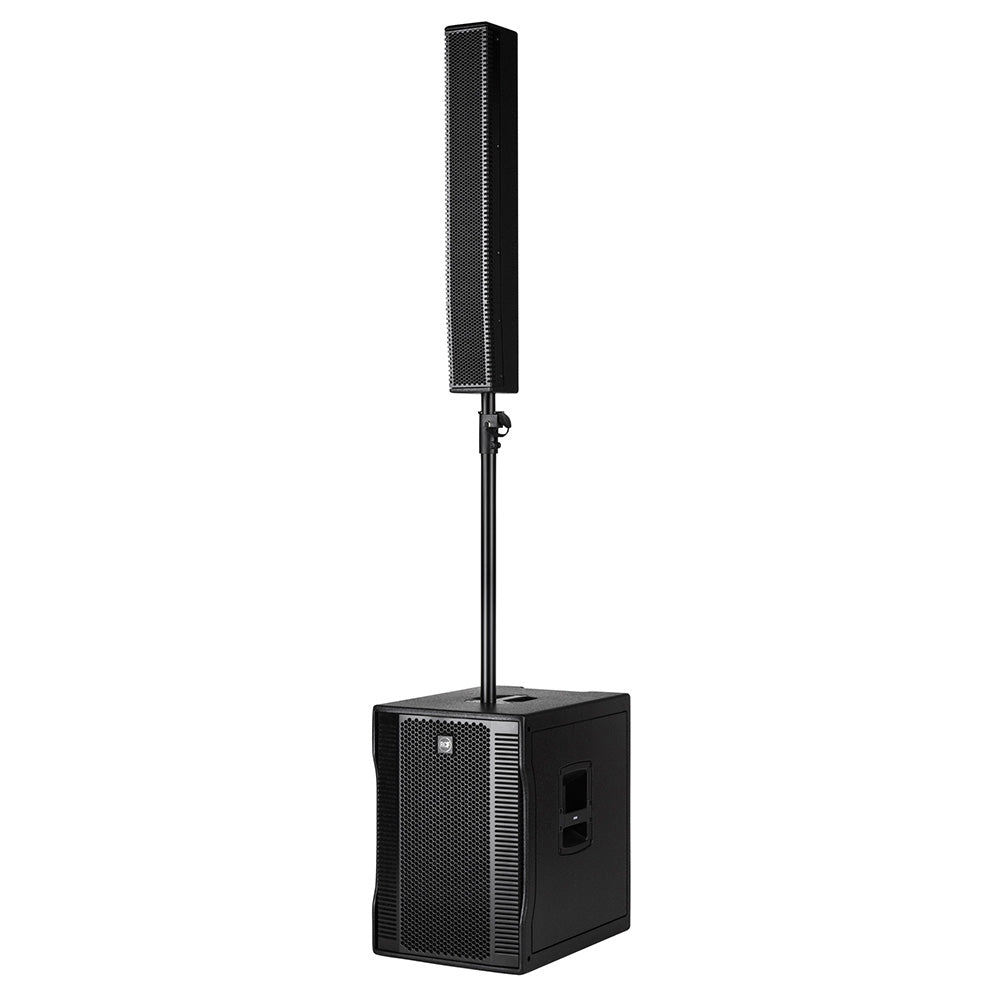

RCF EVOX 12 Active Two-Way Array PA System

  • Dale #:

    RCF-EVOX12SYSTEM
  • Availability:

    Backordered - Not In Stock
  • on backorder until February 2023.

Description

EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 ha... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4 “full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15” subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.

Features:

  • 1400 Watts Power
  • 130 dB max SPL
  • 40 Hz 20 kHz frequency response
  • 15" Woofer
  • 8 x 4" neodymium full-range woofer
  • 90° x 30° slightly tilted pattern control
  • Innovative DSP processing
  • Pole mountable, easy set-up and transportation

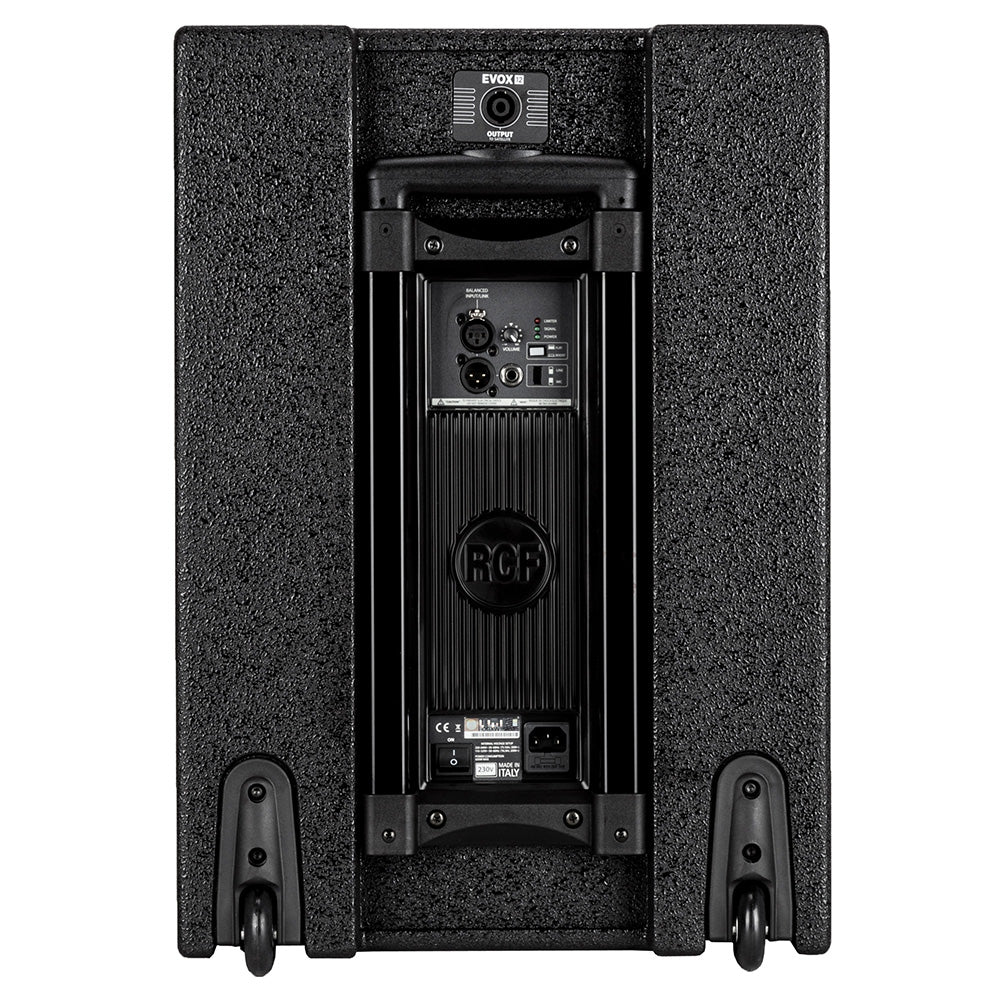

POWERFUL CLASS D AMPLIFIER
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. EVOX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

SUPERIOR TRANSDUCERS

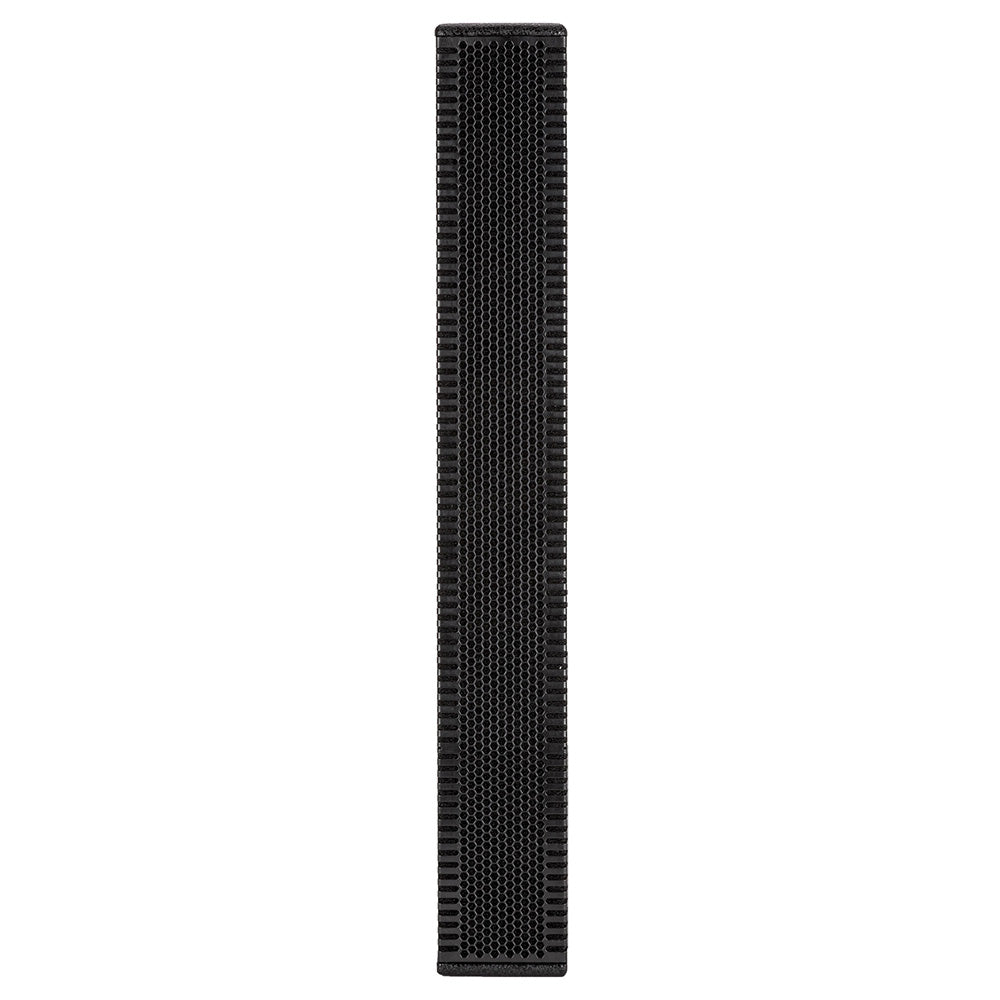

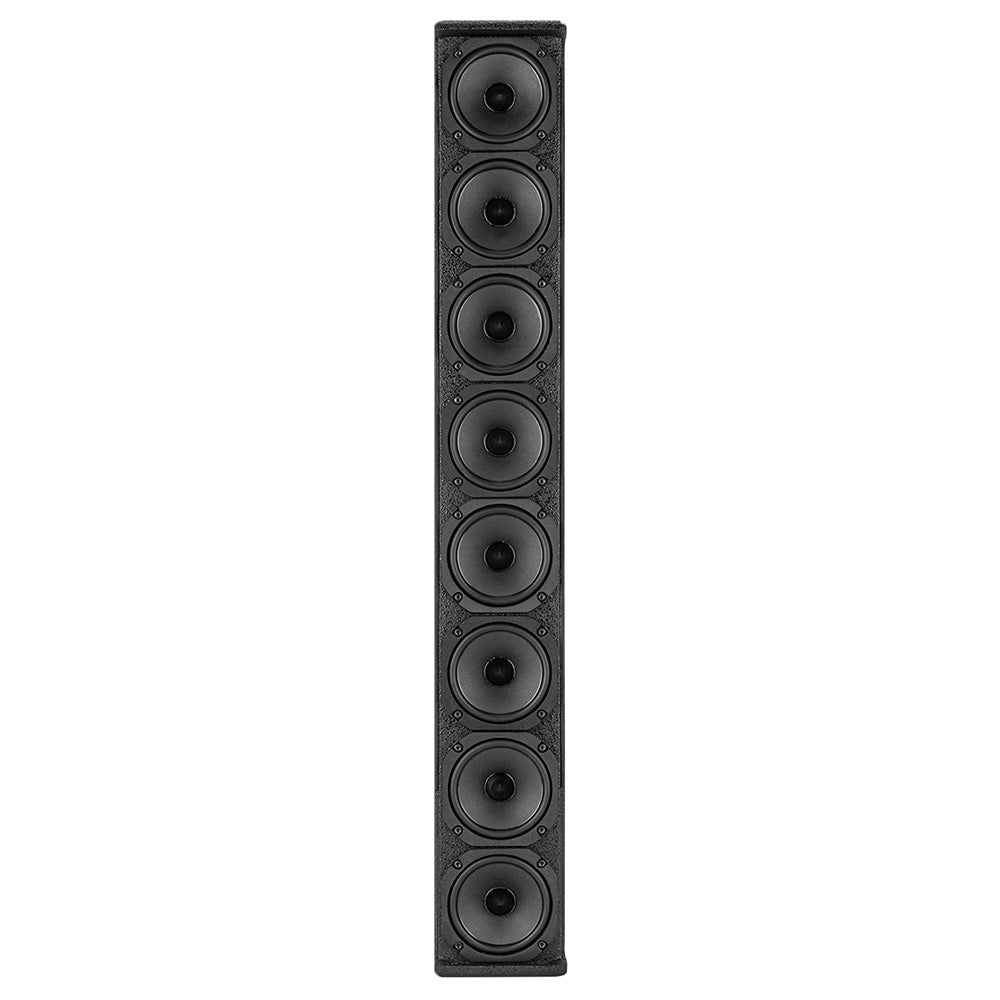

HIGH FREQUENCIES - The ultra-compact full-range 4” drivers are capable of handling extremely high SPL and power. The top column features 8 drivers.

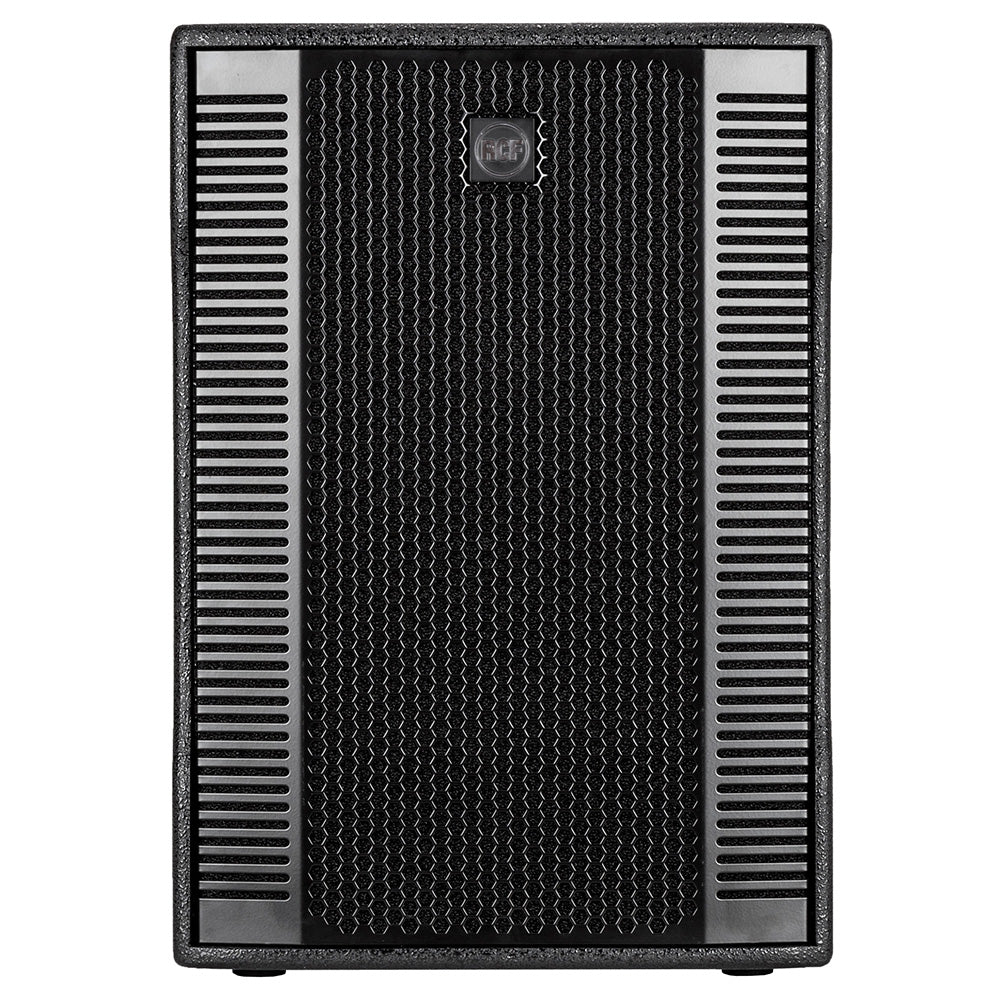

LOW FREQUENCIES The high excursion 15” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX 12 array design features constant horizontal directivity coverage of 90° x 30°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array.

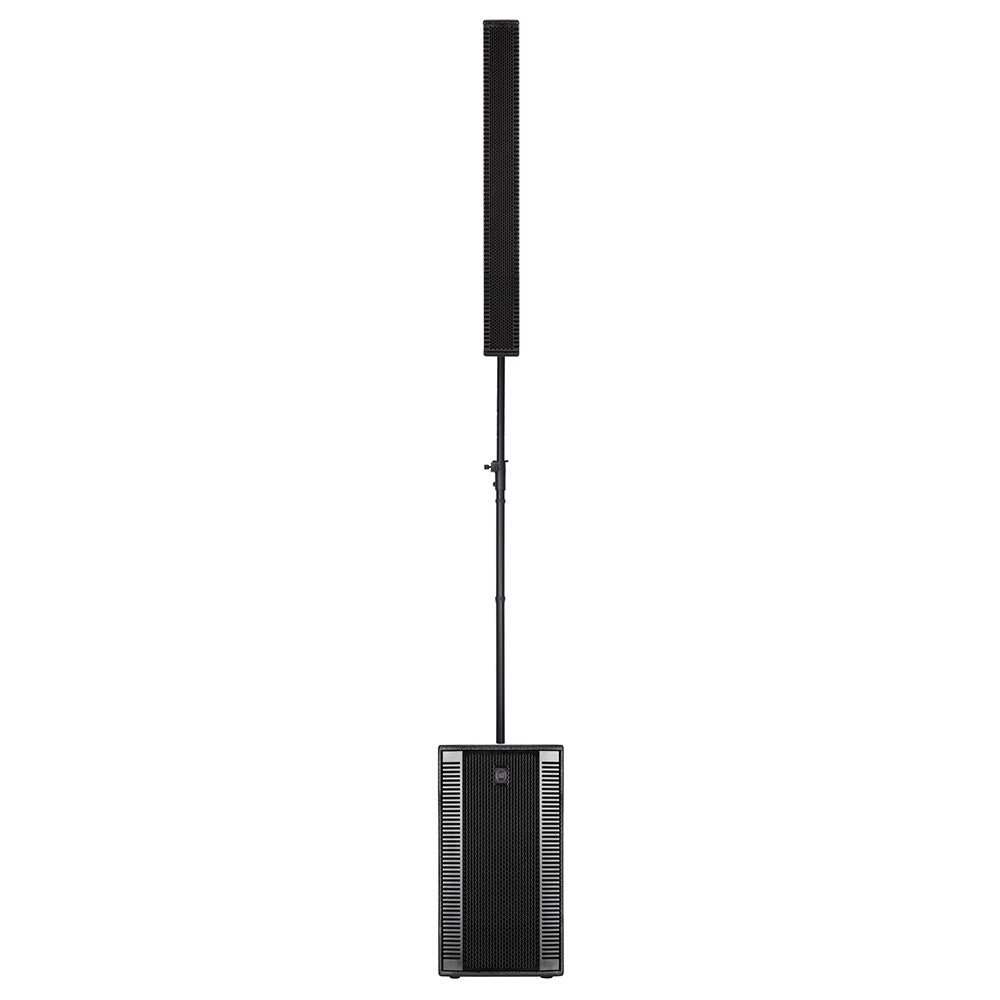

READY TO PLAY IN A FEW SIMPLE STEPS

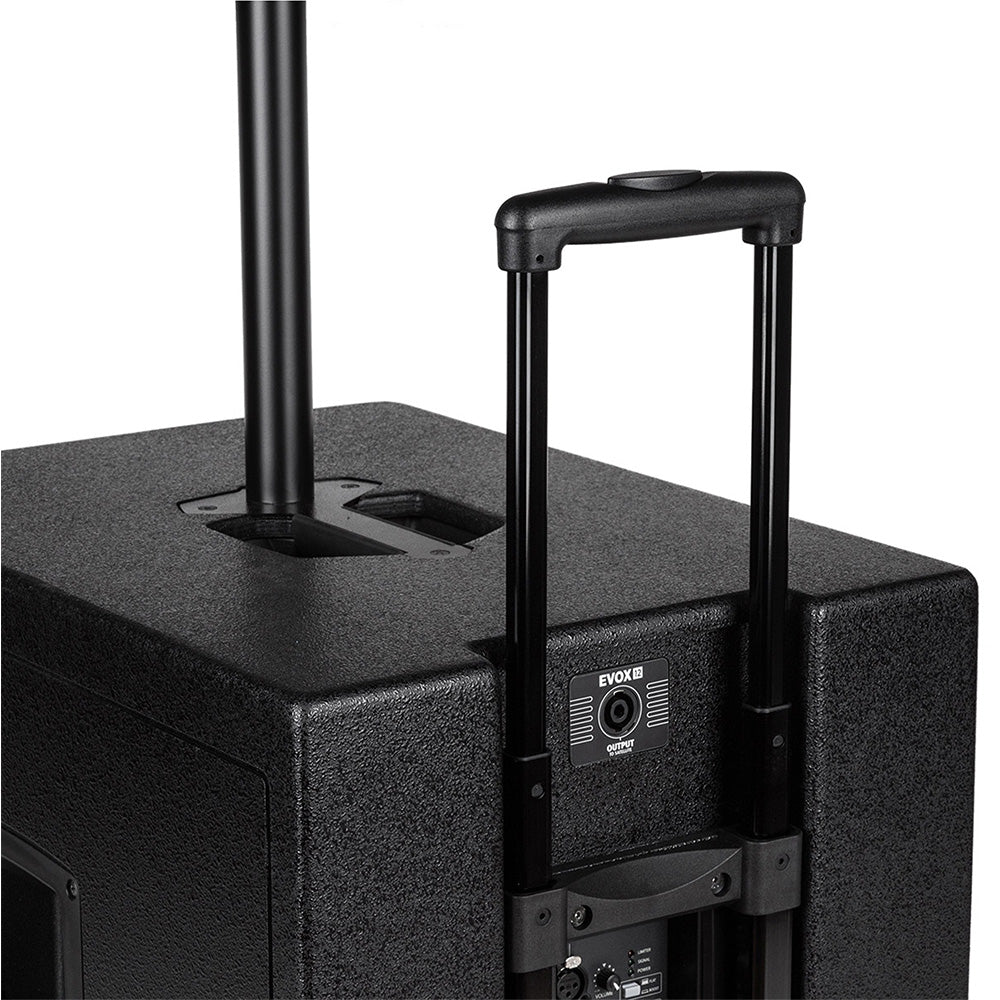

PORTABILITY With 3 simple steps, the EVOX 12 system is all set and ready to play! EVOX 12 system is designed to be easily transported and quickly set up. All the components – top column, sub, pole and cables –come in one package and fit in the optional transportation covers..

MOUNTING The top column will be inserted on the pole mount, which can be easily screwed on the Sub top side and the pole mount can be separated in two single parts in order to place it on the transportation bag.

PLAY! Carrying and mounting your audio system has never been so quick!

NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.

More +

Product Specs

FREQUENCY RESPONSE 40 Hz ÷ 20000 Hz
MAX SPL @ 1M 130 dB
HORIZONTAL COVERAGE ANGLE 90°
VERTICAL COVERAGE ANGLE 30°
Transducers
FULLRANGE 8 x 4.0'', 1.0'' v.c
WOOFER 15'', 3.0'' v.c

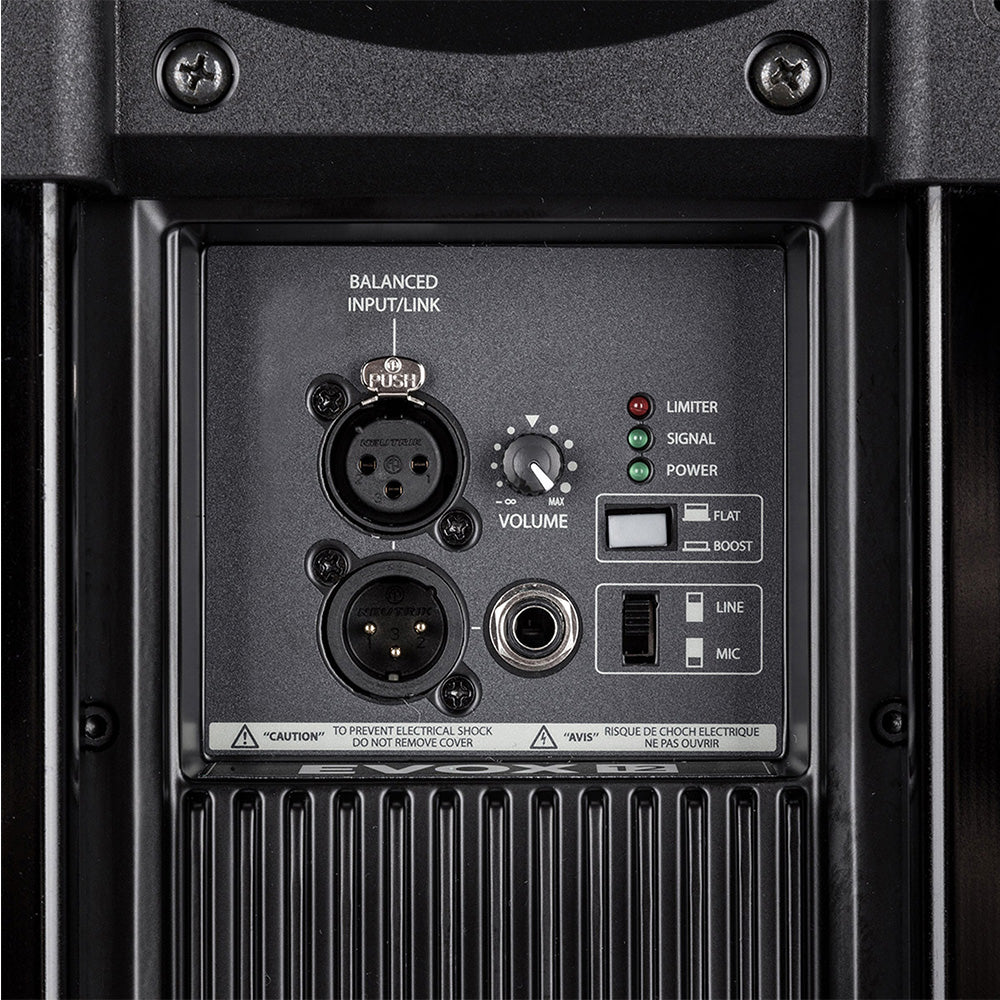

Input/Output section
INPUT SIGNAL bal/unbal
INPUT CONNECTORS XLR, Jack
OUTPUT CONNECTORS XLR
INPUT SENSITIVITY -2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES 180 Hz
PROTECTIONS Thermal, RMS
LIMITER Soft Limiter
CONTROLS Volume, EQ
Power section
TOTAL POWER 1400 W Peak, 700 W RMS
HIGH FREQUENCIES 400 W Peak, 200 W RMS
LOW FREQUENCIES 1000 W Peak, 500 W RMS
COOLING Convection
CONNECTIONS VDE
Standard compliance
CE MARKING Yes
Physical specifications
CABINET/CASE MATERIAL Baltic birch plywood
COLOR Black
Size
HEIGHT 2200 mm / 86.61 inches
WIDTH 410 mm / 16.14 inches
DEPTH 560 mm / 22.05 inches
WEIGHT 36.4 kg / 80.25 lbs
PACKAGE WEIGHT 43.89 kg / 96.76 lbs
