Description

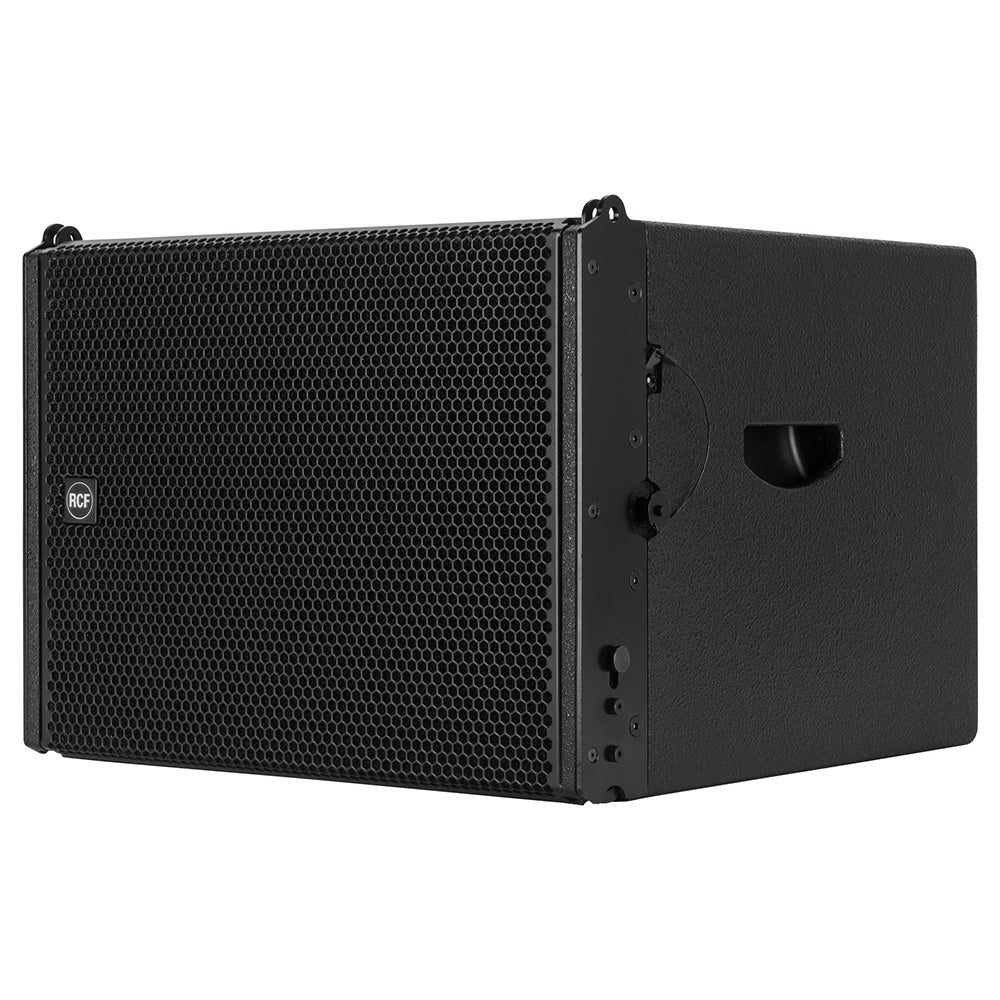

The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12" woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
Features:
- 1400 Watt Peak power - 700 Watt RMS
- 131 dB max SPL
- 40 Hz - 120 Hz frequency response
- 1 x 12" Woofer
- Stereo crossover
- Switchable crossover frequencies
- Designed to compliment the HDL 6-A speaker system
- Polarity reverse switch
Acoustical specifications | |
FREQUENCY RESPONSE | 40 Hz Ö 120 Hz |
Transducers | |
WOOFER | 12'', 3.0'' v.c |
Input/Output section | |
INPUT SIGNAL | bal/unbal |
INPUT CONNECTORS | XLR |
OUTPUT CONNECTORS | XLR |
INPUT SENSITIVITY | -2 dBu/+4 dBu |
Processor section | |
HI-PASS FREQUENCIES | 40Hz |
LOW-PASS FREQUENCIES | 80Hz, 110Hz |
PROTECTIONS | Thermal, RMS |
LIMITER | Soft Limiter |
CONTROLS | Volume, EQ, Phase, Xover |
Power section | |
TOTAL POWER | 1400 W Peak, 700 W RMS |
LOW FREQUENCIES | 1400 W Peak, 700 W RMS |
COOLING | Convection |
CONNECTIONS | Powercon IN/OUT |
Standard compliance | |
CE MARKING | Yes |
Physical specifications | |
CABINET/CASE MATERIAL | Baltic birch plywood |
HARDWARE | Array fittings, pole |
HANDLES | 2 side |
GRILLE | Steel |
COLOR | Black |
Size | |
HEIGHT | 379 mm / 14.92 inches |
WIDTH | 470 mm / 18.5 inches |
DEPTH | 508 mm / 20 inches |
WEIGHT | 25 kg / 55.12 lbs |
Shipping information | |
PACKAGE HEIGHT | 435 mm / 17.13 inches |
PACKAGE WIDTH | 560 mm / 22.05 inches |
PACKAGE DEPTH | 520 mm / 20.47 inches |
PACKAGE WEIGHT | 28 kg / 61.73 lbs |
