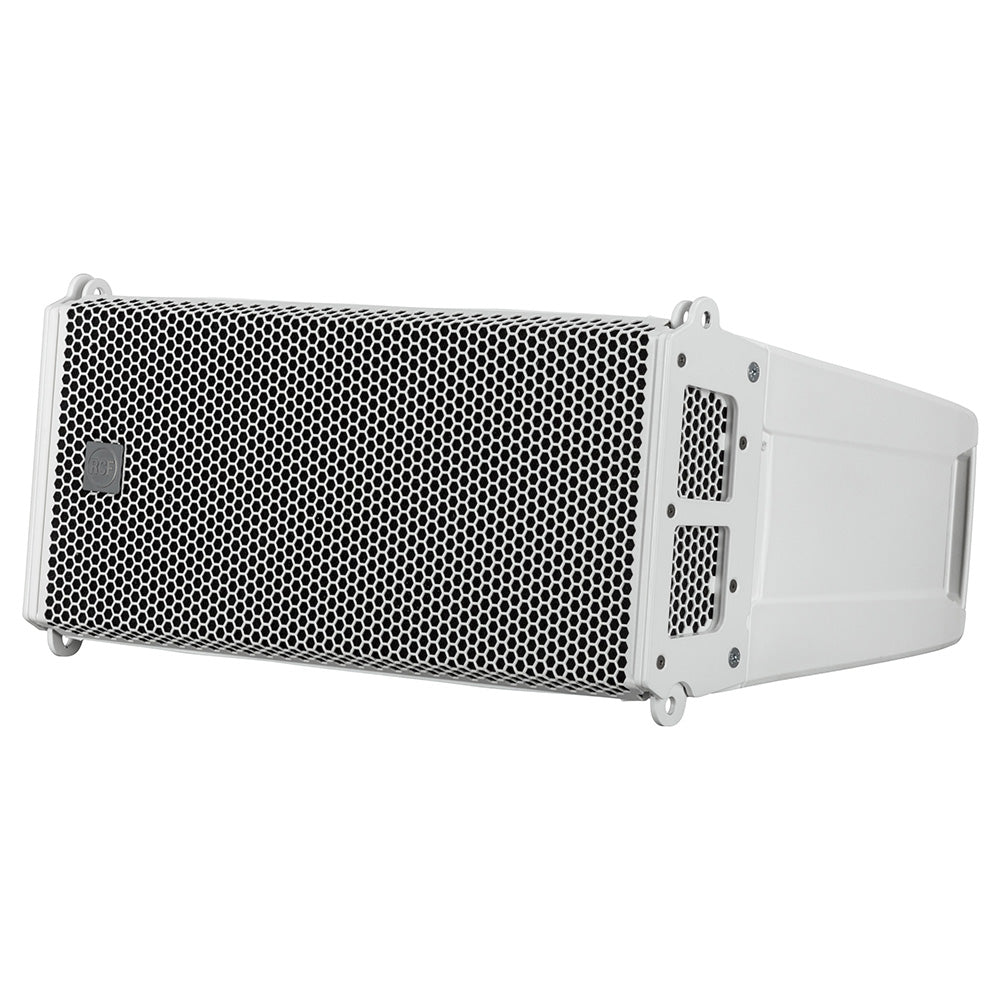

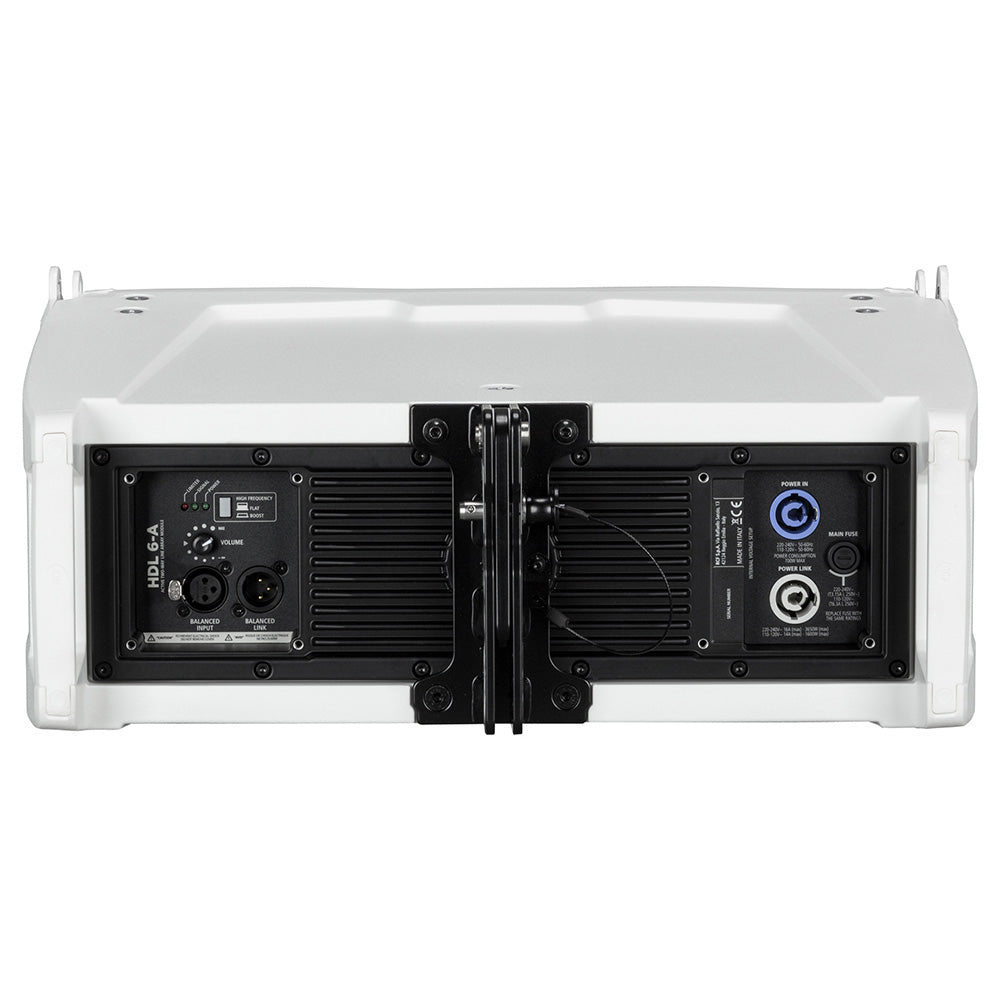

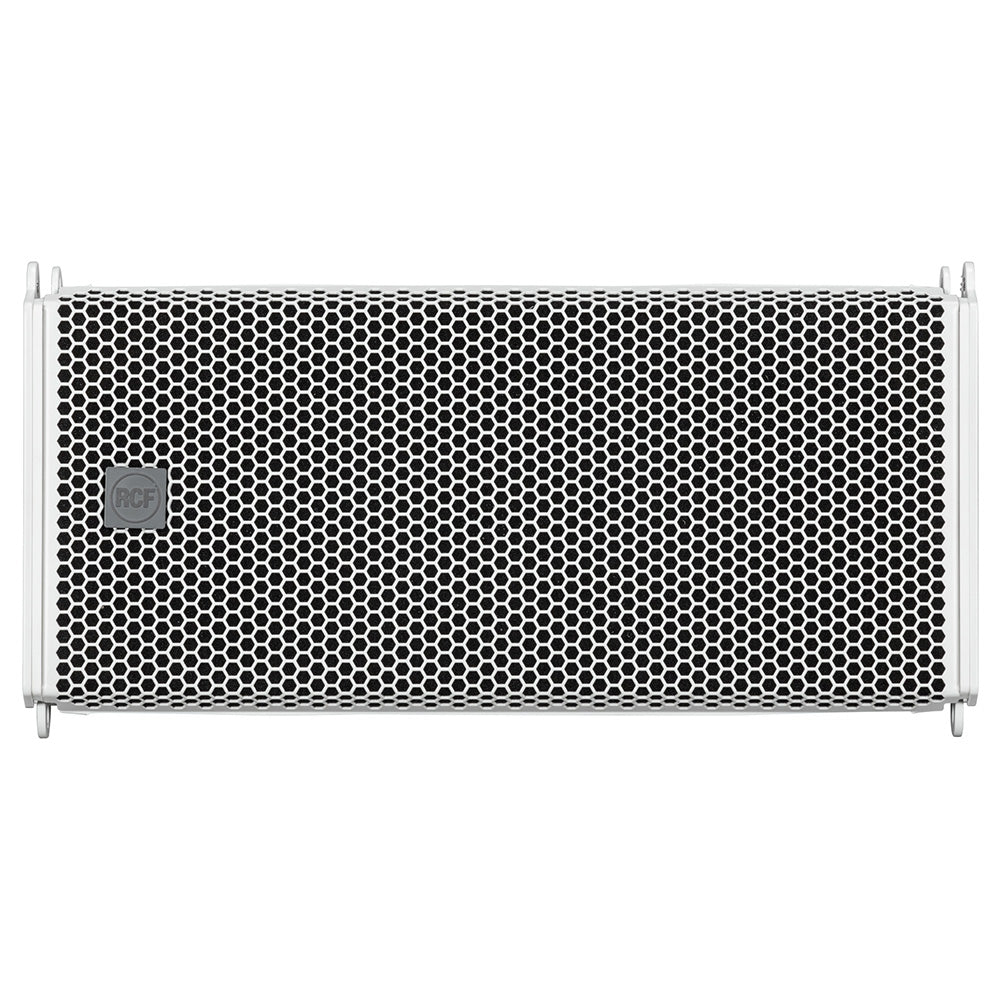

RCF HDL 6-A Active Line Array Loudspeaker Module (White)

  • Dale #:

    RCF-HDL6AW
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art R... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

Features:

  • 1400 W, two-way amplification
  • 131 dB max SPL
  • 1.7" voice coil neodymium compression driver
  • 2 x high power neodymium 6.0"woofers
  • 48 kHz, 32 bit floating point DSP processing
  • Symmetrical design
  • Extremely low weight
  • FiRPHASE processing

BLACK & WHITE
The concept of this speaker derives from the touring industry, bringing in a compact cabinet all the experience of RCF professional sound.

When a brighter look of the system is needed, HDL 6-A is available in white color.

CUSTOM DESIGNED WAVEGUIDE
The custom designed waveguide provides a precise coverage of 100° x 10° delivering a superb, linear high frequency response.

Thanks to its large format compression driver on a waveguide, the HDL 6-A offers superior intelligibility over distance.

SYMMETRICAL DESIGN
Due to its symmetrical design the HDL 6-A produces constant coverage without break up or attenuation.

The HDL 6-A tour grade system comes in a structurally wooden reinforced composite polypropylene enclosure, and is equipped with two aluminium rear handles for portability.

The RCF HDL will maintain its intelligibility, definition and signal strength while competitive models will attenuate and break up before the sound reaches its throw distance.

More +

Product Specs

Acoustical specifications
FREQUENCY RESPONSE 65 Hz ÷ 20000 Hz
MAX SPL @ 1M 131 dB
HORIZONTAL COVERAGE ANGLE 100°
VERTICAL COVERAGE ANGLE 10°
Transducers
COMPRESSION DRIVER 1.0'' neo, 1.75'' v.c
WOOFER 2 x 6.0'' neo, 2.0'' v.c
Input/Output section
INPUT SIGNAL bal/unbal
INPUT CONNECTORS XLR
OUTPUT CONNECTORS XLR
INPUT SENSITIVITY +4 dBu
Processor section
CROSSOVER FREQUENCIES 900 Hz
PROTECTIONS Thermal, RMS
LIMITER Soft Limiter
CONTROLS HF correction
Power section
TOTAL POWER 1400 W Peak, 700 W RMS
HIGH FREQUENCIES 400 W Peak, 200 W RMS
LOW FREQUENCIES 1000 W Peak, 500 W RMS
COOLING Convection
CONNECTIONS Powercon IN/OUT
Standard compliance
CE MARKING Yes
Physical specifications
CABINET/CASE MATERIAL PP Composite
HARDWARE Array fittings
HANDLES 2 Back
GRILLE Steel
COLOR Black
Size
HEIGHT 237 mm / 9.33 inches
WIDTH 470 mm / 18.5 inches
DEPTH 377 mm / 14.84 inches
WEIGHT 11.6 kg / 25.57 lbs
Shipping information
PACKAGE HEIGHT 260 mm / 10.24 inches
PACKAGE WIDTH 550 mm / 21.65 inches
PACKAGE DEPTH 425 mm / 16.73 inches
PACKAGE WEIGHT 13 kg / 28.66 lbs
