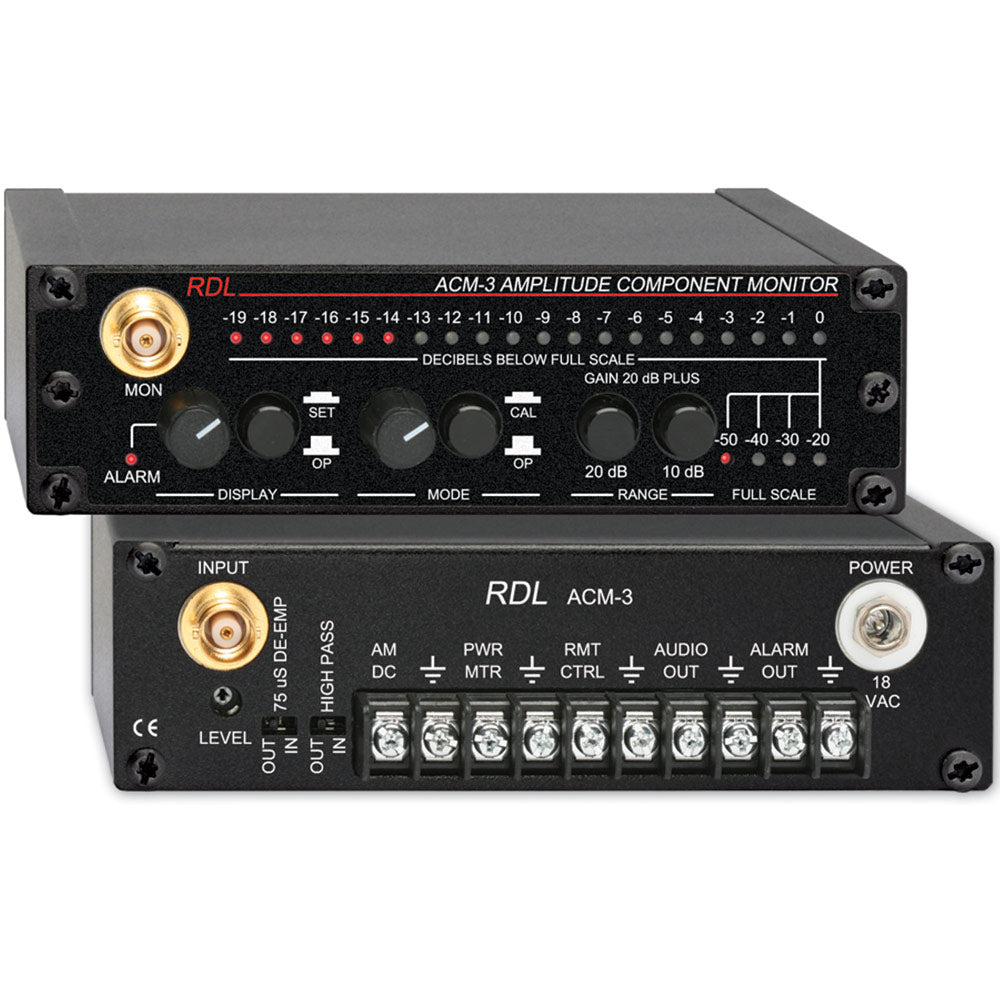

RDL ACM-3 Amplitude Component Monitor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
RDL's ACM technology is the only time-proven, industry accepted method of controlling Synchronous AM Noise (the elusive FM transmission bandwidth variations that aggravate multipath artifacts in listeners' receivers). Hundreds of top performing FMs in every major U.S. market turn to ACM technology for maximum bandwidth performance. Every transmitter, new or old, can easily produce poor bandwidth, or can be made to perform as well as any signal in the market. Every FM station needs ACM technology to provide the accurate AM measurment and continuous monitoring needed for optimum transmitter tuning and performance.
-
Features:
- Maintain Clarity
- Maximize Loudness
- Maximize Stereo Separation
- Reduce Subcarrier Crosstalk
- Assure Consistency of your Signal Coverage
- Maintain Positive Control of Multipath Artifacts
- Maximize Performance From Your FM Transmitter
- Mount using RU Series Mounting Options
| Input/Ouput Connector: | BNC |
| Maximum Input Signal: | 30 V (combined filtered carrier + AM) |
| Measurement Range: | -20 dB to -69 dB (front-panel display) -10 dB to -90 dB (front-panel scope jack) |
| Residual Noise: | < 95 dB below 100% amplitude modulation |
| Oscilloscope Jack: | BNC 5 V p-p for full-scale display |
| Audio Output: | +4 dBu, 100 source impedance |
| THD of recovered AM: | < 0.03% |
| DC Output: | DC level representing significant synchronous AM |

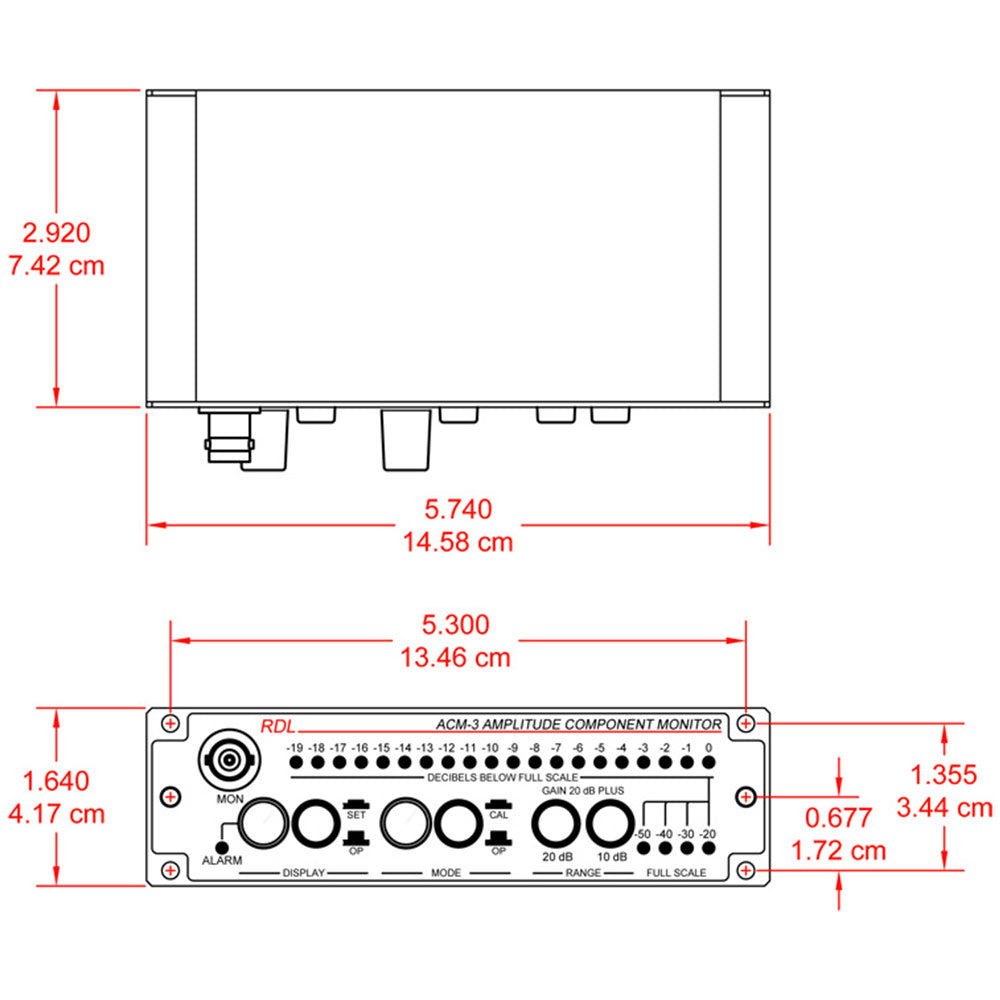

| Dimensions: | 1.7 in. x 5.8 in. x 4.1 in., (4.1 cm x 15.0 cm x 10.4 cm) |
| Power Requirement: | 18 Vac, external supply included (North America) |
| Ambient Operating Environment: | 0 degrees C to 50 degrees C |
RDL's ACM technology is the only time-proven, industry accepted method of controlling Synchronous AM Noise (the elusive FM transmission bandwidth variations that aggravate multipath artifacts in listeners' receivers). Hundreds of top performing FMs in every major U.S. market turn to ACM technology for maximum bandwidth performance. Every transmitter, new or old, can easily produce poor bandwidth, or can be made to perform as well as any signal in the market. Every FM station needs ACM technology to provide the accurate AM measurment and continuous monitoring needed for optimum transmitter tuning and performance.
-
Features:
- Maintain Clarity
- Maximize Loudness
- Maximize Stereo Separation
- Reduce Subcarrier Crosstalk
- Assure Consistency of your Signal Coverage
- Maintain Positive Control of Multipath Artifacts
- Maximize Performance From Your FM Transmitter
- Mount using RU Series Mounting Options
| Input/Ouput Connector: | BNC |
| Maximum Input Signal: | 30 V (combined filtered carrier + AM) |
| Measurement Range: | -20 dB to -69 dB (front-panel display) -10 dB to -90 dB (front-panel scope jack) |
| Residual Noise: | < 95 dB below 100% amplitude modulation |
| Oscilloscope Jack: | BNC 5 V p-p for full-scale display |
| Audio Output: | +4 dBu, 100 source impedance |
| THD of recovered AM: | < 0.03% |
| DC Output: | DC level representing significant synchronous AM |
| Dimensions: | 1.7 in. x 5.8 in. x 4.1 in., (4.1 cm x 15.0 cm x 10.4 cm) |
| Power Requirement: | 18 Vac, external supply included (North America) |
| Ambient Operating Environment: | 0 degrees C to 50 degrees C |
