RDL AMS-PB1 - Momentary DPDT Pushbutton Module for AMS Series
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

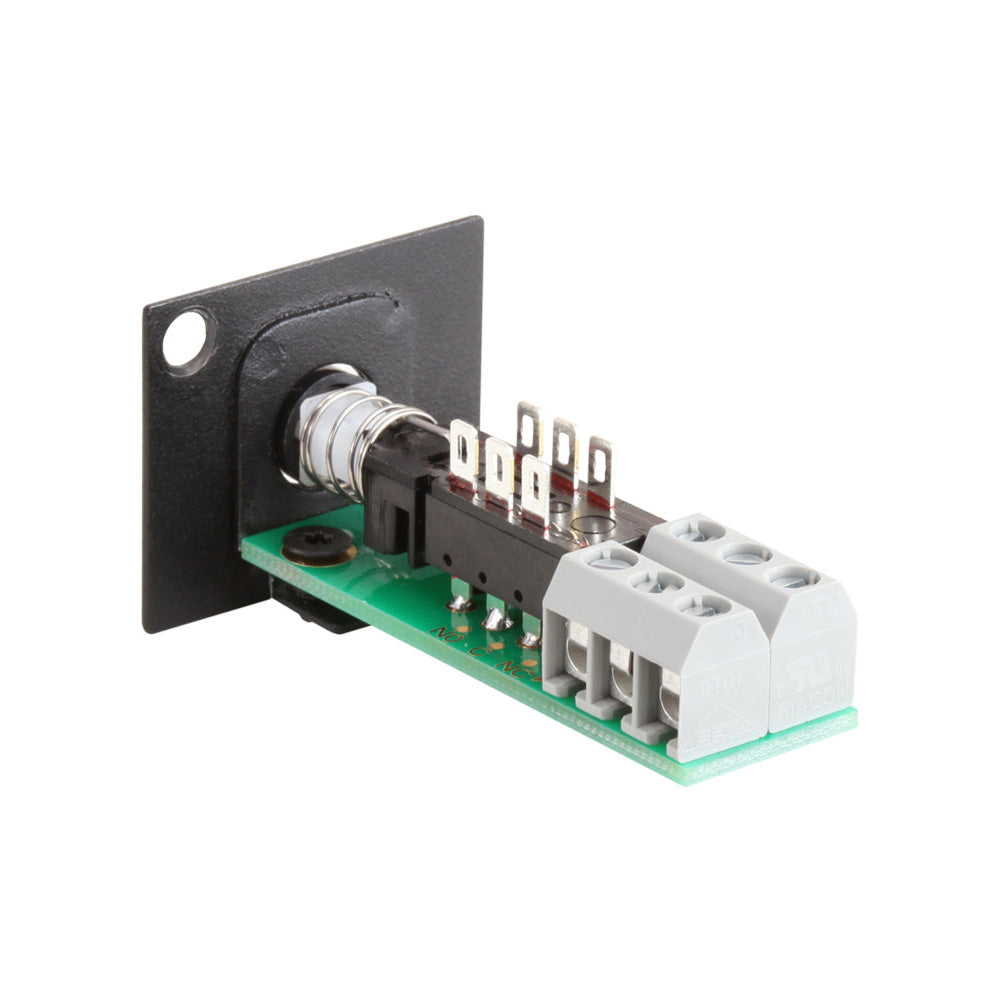

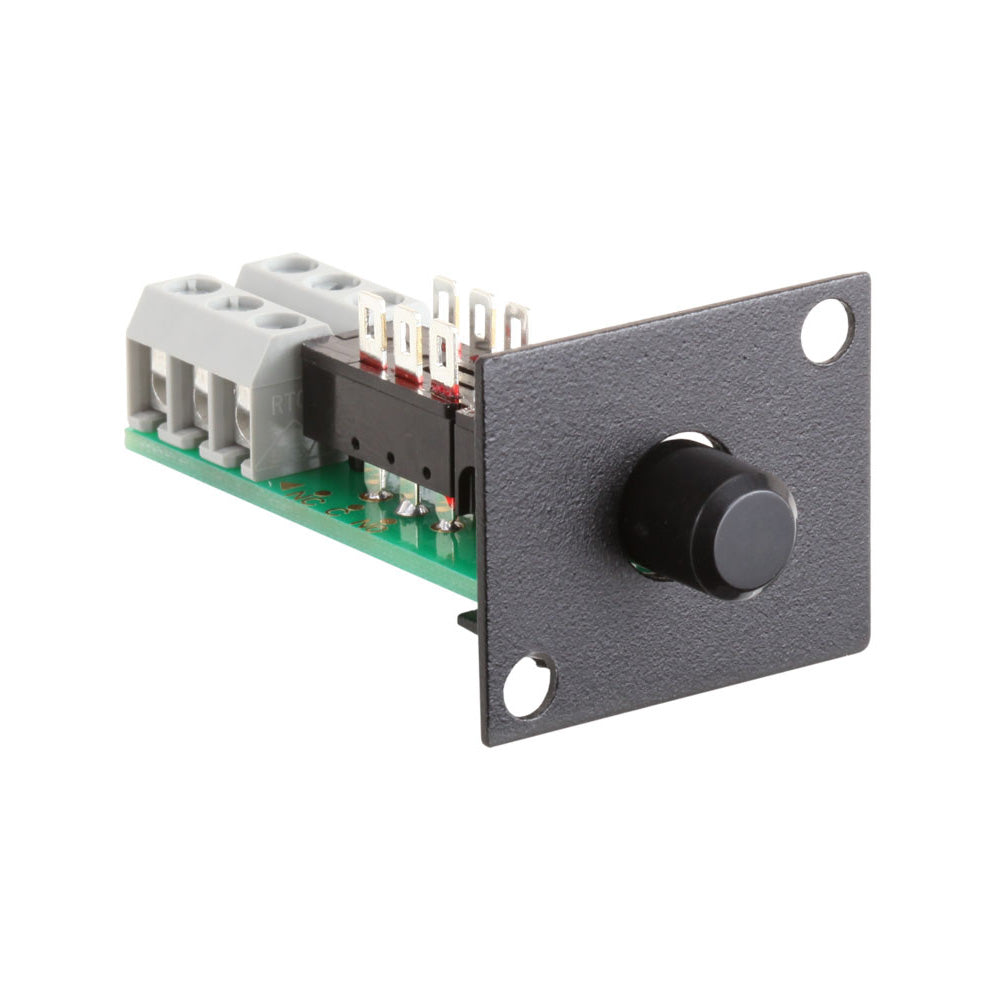

The AMS-PB1 is an accessory with a DPDT momentary pushbutton switch that mounts in AMS mounting frames and in standard D-style cutouts. Two high quality terminal blocks are provided for the connections. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.
Features:
- Mounts in D-Style Standard Cutouts
- Mounts in all RDL AMS Mounting Frames
- Mounts in RDL Decora-Style Wall Plates
- Availability of a Wide Variety of Associated AMS Accessories
- Bezel Provides Professional Aesthetic Appearance
- Provides Flexibility for Connections and Controls
| Mounting | AMS mounts; D-Style cutouts |
| Depth (behind the panel) | 2.08 in |
| Maximum Switching Power | 15 W (30 Vdc, 0.5 A) |
| Ambient Operating Environment | -10¡ C to 60¡ C |
| Package Type | Bag |
| WEEE Weight | 0.043 lbs |
| Shipping Weight | 0.071 lbs |
| Tariff code | 8543.70.9860 |
The AMS-PB1 is an accessory with a DPDT momentary pushbutton switch that mounts in AMS mounting frames and in standard D-style cutouts. Two high quality terminal blocks are provided for the connections. The front plate and bracket are constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.
Features:
- Mounts in D-Style Standard Cutouts
- Mounts in all RDL AMS Mounting Frames
- Mounts in RDL Decora-Style Wall Plates
- Availability of a Wide Variety of Associated AMS Accessories
- Bezel Provides Professional Aesthetic Appearance
- Provides Flexibility for Connections and Controls
| Mounting | AMS mounts; D-Style cutouts |
| Depth (behind the panel) | 2.08 in |
| Maximum Switching Power | 15 W (30 Vdc, 0.5 A) |
| Ambient Operating Environment | -10¡ C to 60¡ C |
| Package Type | Bag |
| WEEE Weight | 0.043 lbs |
| Shipping Weight | 0.071 lbs |
| Tariff code | 8543.70.9860 |
