DALE SKU # RDL-AVHK1X

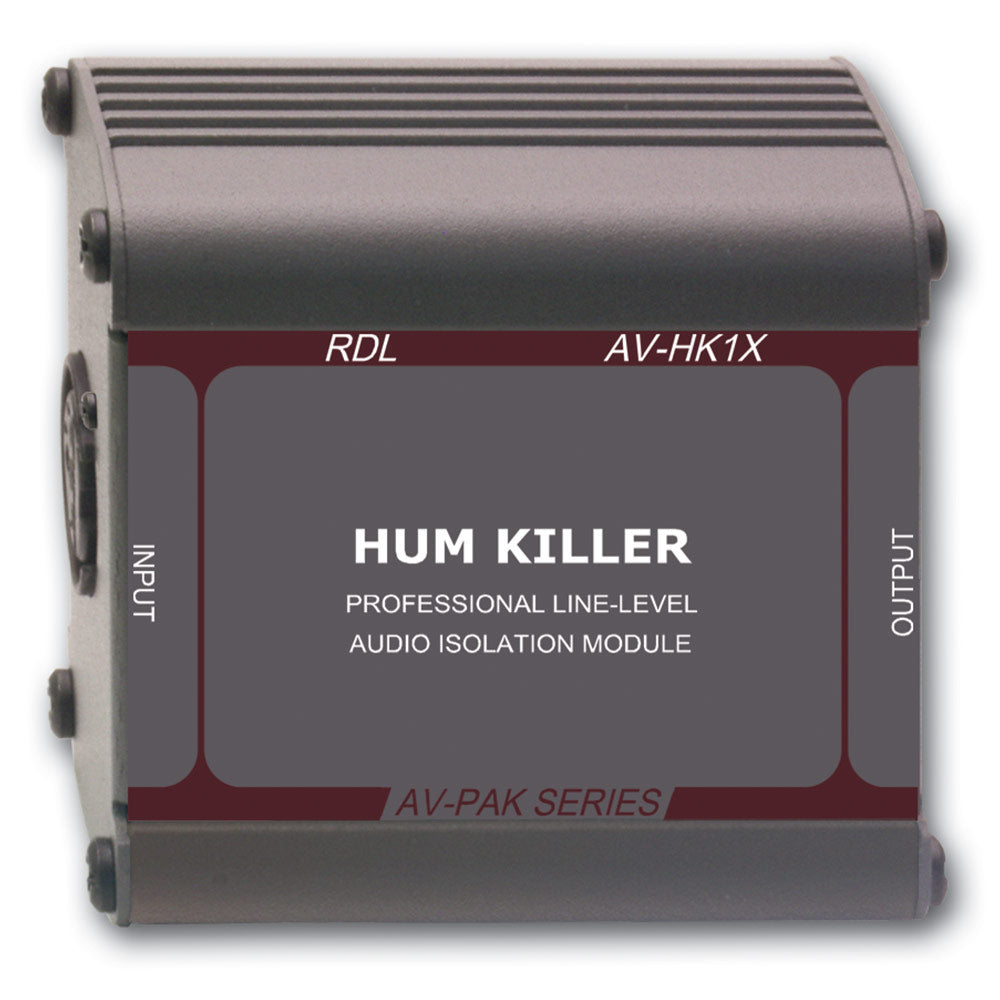

RDL AV-HK1X Hum Killer Audio Isolation Transformer Module

Sale price$139.37 Regular price$185.83
Save $46.46
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The X is a mono transformer isolation module for use with a balanced, low impedance source and either a low or high impedance load. Input and output connections are provided on XLR jacks with gold-plated contacts.

    The shield (pin 1) connection of the INPUT jack is electrically isolated from the case and from the output ground (pin 1) at audio frequencies. The ground (pin 1) connection of the OUTPUT jack is connected to the case shield. The user audio source, such as a mixer, preamplifier or other professional audio product, connects to the X input. The module output should be connected to the input of the grounded amplifier or mixer in the audio system.Galvanic isolation between the input and output is provided by a studio quality audio transformer. The X breaks the ground loop connection that can produce hum in a sound system. The input connector shield does provide a radio frequency ground return, thereby preserving system immunity to radio interference.
      Features:
    • Ground Isolation in Balanced Line
    • Line-Level Ground-Loop Elimination
    • Balanced Mono Galvanic Isolation
    • Isolation in Rugged Field Case
    • Portable or Permanent Isolation Module

    The AV-HK1X is a rugged product designed for portable use. For fixed installations, a mounting bracket is included.

    Input:+4 dBu nominal
    Output:+4 dBu nominal
    Frequency Response:20 Hz to 50 kHz (+/- 0.1 dB)
    THD+N:< 0.15% (20 Hz to 20 kHz 150 source, 10 k load)
    0.002% @ 1 kHz
    Finish:RDL Dark ULTRASTYLE (dark gray with beige lettering)
    Dimensions:
    Height:1.75 in. 4.45 cm (unmounted)
    Height:1.95 in. 4.95 cm (mounted)
    Width:2.90 in. 7.37 cm
    Length:3.25 in. 8.26 cm
    Ambient Operating Environment:0 degrees C to 55 degrees C

    The X is a mono transformer isolation module for use with a balanced, low impedance source and either a low or high impedance load. Input and output connections are provided on XLR jacks with gold-plated contacts.

    The shield (pin 1) connection of the INPUT jack is electrically isolated from the case and from the output ground (pin 1) at audio frequencies. The ground (pin 1) connection of the OUTPUT jack is connected to the case shield. The user audio source, such as a mixer, preamplifier or other professional audio product, connects to the X input. The module output should be connected to the input of the grounded amplifier or mixer in the audio system.Galvanic isolation between the input and output is provided by a studio quality audio transformer. The X breaks the ground loop connection that can produce hum in a sound system. The input connector shield does provide a radio frequency ground return, thereby preserving system immunity to radio interference.
      Features:
    • Ground Isolation in Balanced Line
    • Line-Level Ground-Loop Elimination
    • Balanced Mono Galvanic Isolation
    • Isolation in Rugged Field Case
    • Portable or Permanent Isolation Module

    The AV-HK1X is a rugged product designed for portable use. For fixed installations, a mounting bracket is included.

    Input:+4 dBu nominal
    Output:+4 dBu nominal
    Frequency Response:20 Hz to 50 kHz (+/- 0.1 dB)
    THD+N:< 0.15% (20 Hz to 20 kHz 150 source, 10 k load)
    0.002% @ 1 kHz
    Finish:RDL Dark ULTRASTYLE (dark gray with beige lettering)
    Dimensions:
    Height:1.75 in. 4.45 cm (unmounted)
    Height:1.95 in. 4.95 cm (mounted)
    Width:2.90 in. 7.37 cm
    Length:3.25 in. 8.26 cm
    Ambient Operating Environment:0 degrees C to 55 degrees C
