RDL D-AVM4 Audio/Video Decora Jack Panel - DB15, RCA, Mini - Custom Engraving Option


  • Dale #:

    RDL-DAVM4C
  • Availability:

    Special Order Item
  • RDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.

Description

The D/S-AVM4 is the ideal choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors and projectors. The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel.The front panel features... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

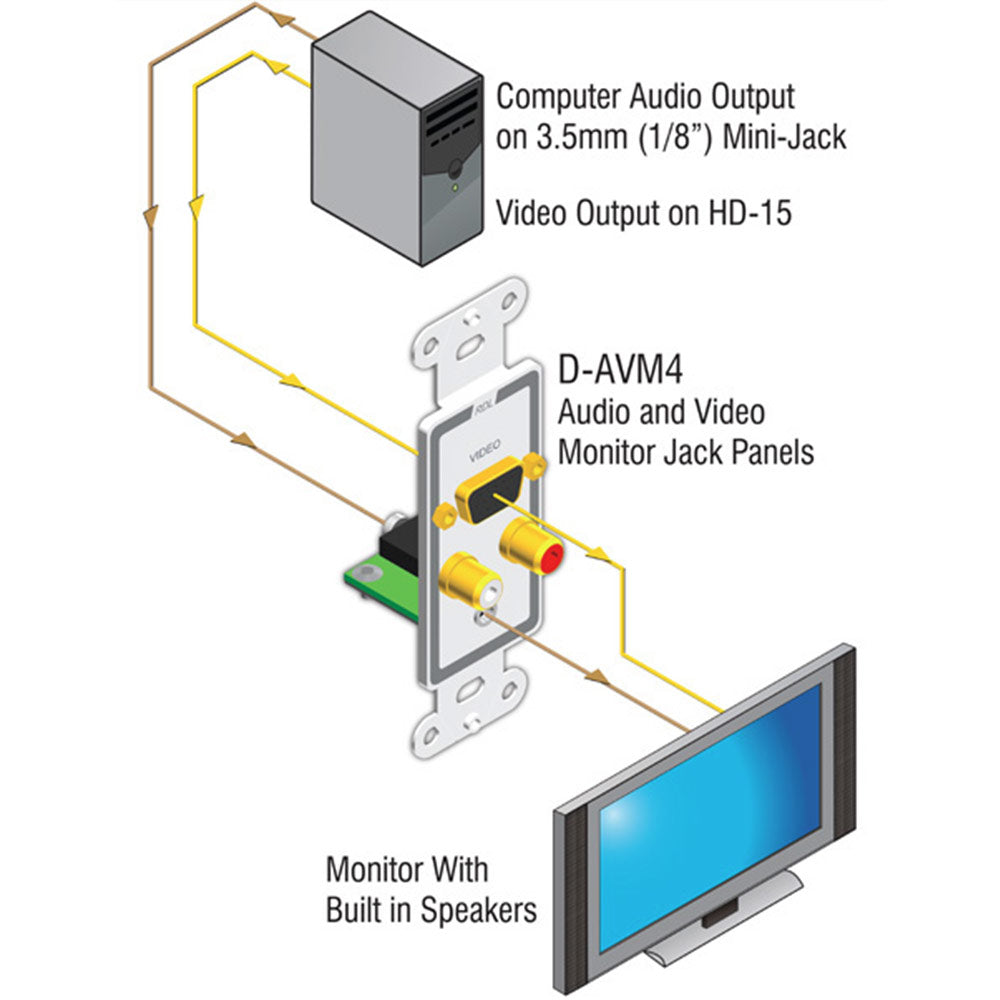

The D/S-AVM4 is the ideal choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors and projectors. The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel.

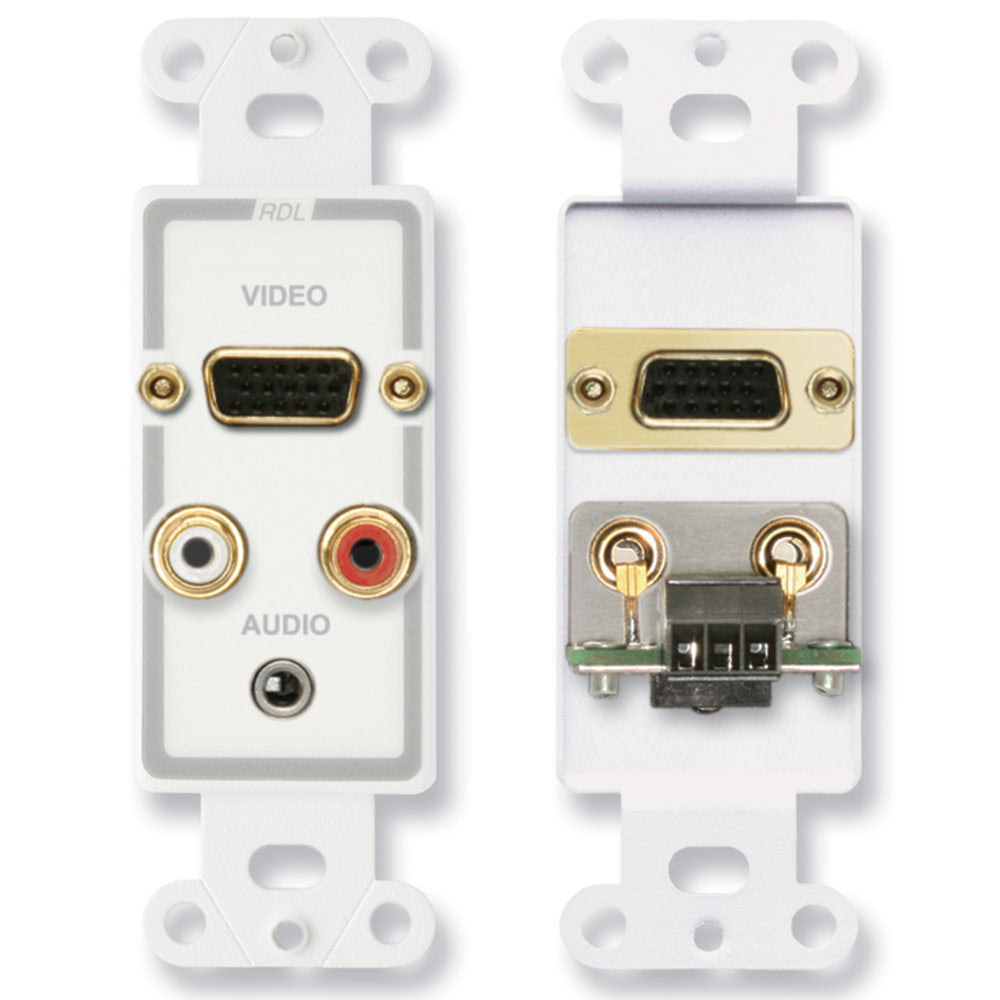

The front panel features a pass-through video monitor connector. Video connections are made on the front and rear panel using a standard DB15 video connector.The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for stereo consumer line level audio sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are fed to a rear-panel detachable terminal block. The audio signals are unbalanced and are intended for short wiring runs where balanced lines are not required.
    Features:
  • Unbalanced Output on Detachable Terminal Block
  • Stereo Audio Inputs to Stereo Audio Output
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Video Monitor Pass-Through Panel Connector
  • Available in RDL White/Gray

More +

Product Specs

Audio output connector:Detachable terminal block (Left and Right unbalanced audio)
Mounting Box Minimum Depth:0.15 in. (0.38 cm) plus the depth of the installer-provided video connector
Video input connector:Female DB15
Audio input connectors (3):RCA jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
Dimensions:Height: 4.13 in. 10.49 cm
Width: 1.3 in. 3.3 cm
Depth: 1.8 in. 4.57 cm
Video output connector:Female DB15 (pass-through from front panel)

More +
