Description
The D SERIES-J1 is a complete microphone input panel assembly. Connections to the female front?panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3). The installer may install a jumper between the SHIELD conn... Read MoreRetail Price: $90.88 Our Price: $68.16
Free Shipping (orders over $99)
Suggested Accessories
Description

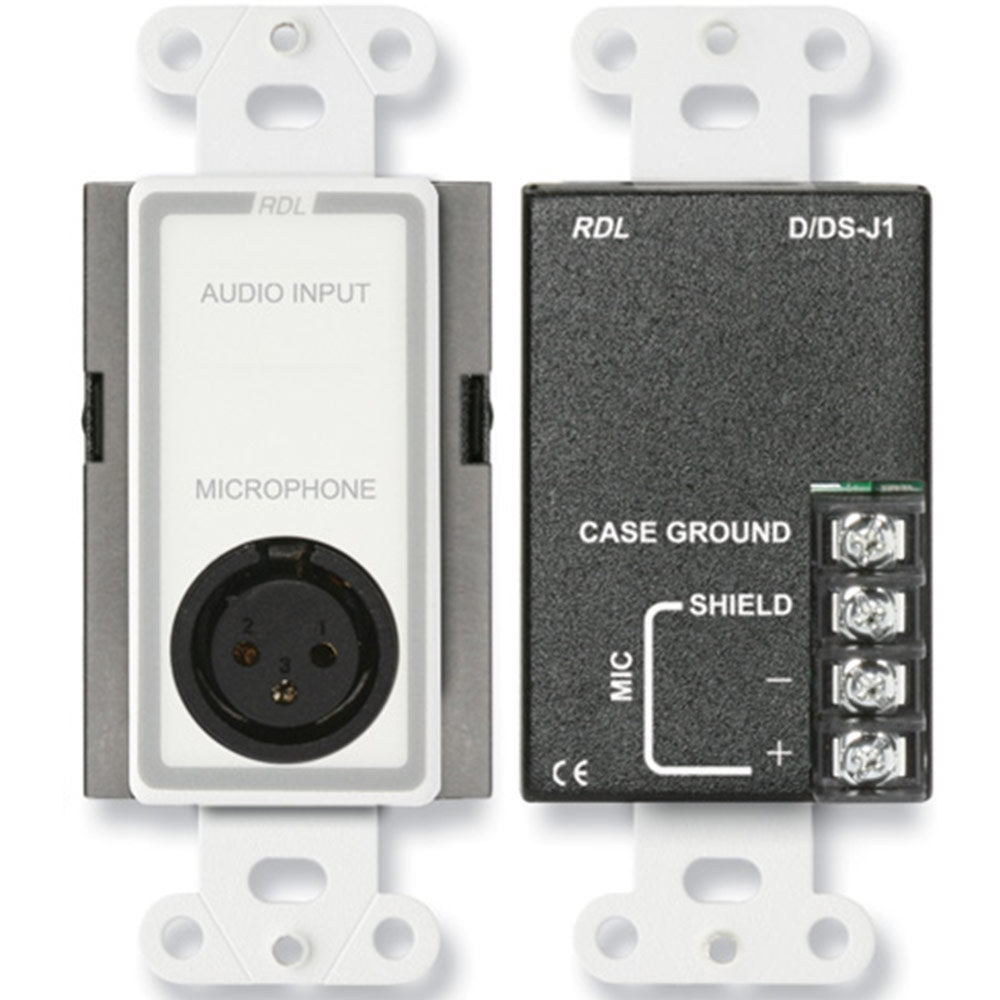

The D SERIES-J1 is a complete microphone input panel assembly. Connections to the female front?panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.
The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.
Features:
More +
Product Specs
Input Connector | XLR female gold contacts |
Output Connector | Barrier block |
Output Connections (4) | CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3) |
Power Requirement | Passive |

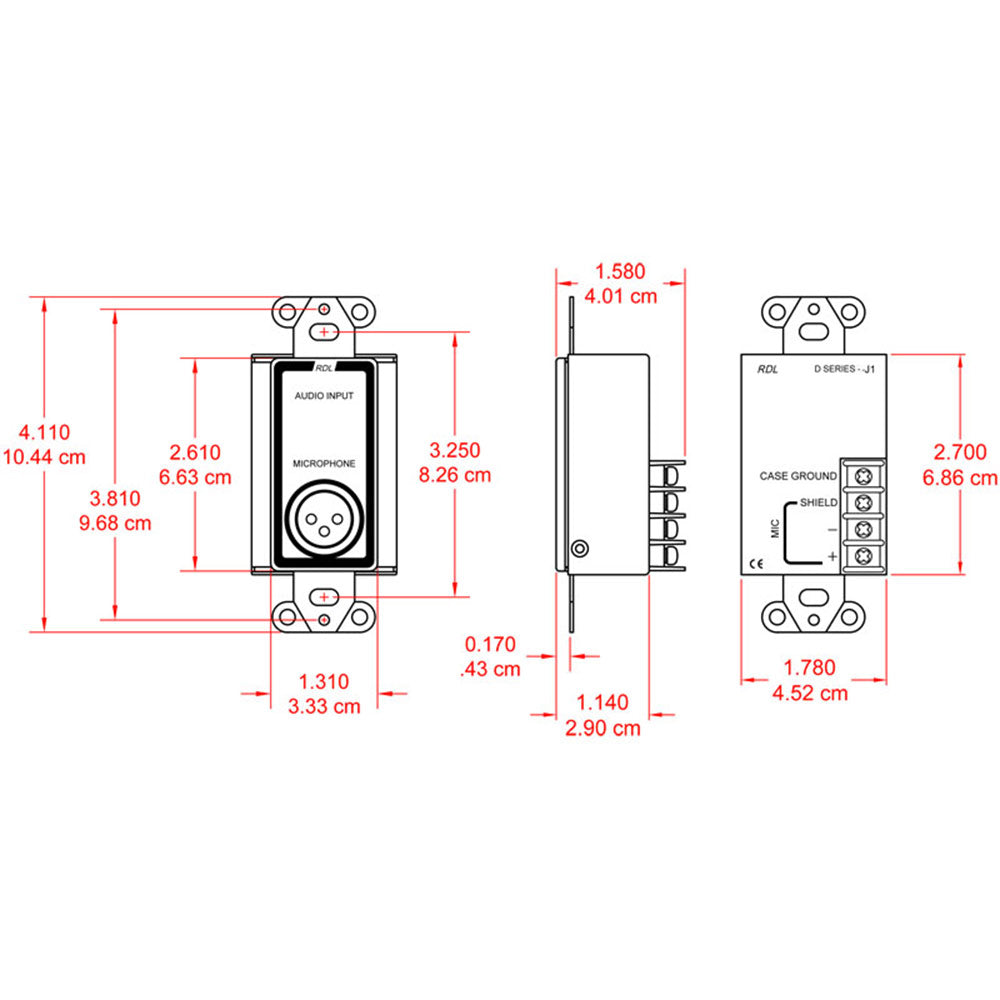

Dimensions | Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm |
Mounting Box Req. | Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm |
Package Type | Cardboard Box |
Package Dimensions | 3.625 x 4.625 x 2.125 in. |
Shipping Weight | 0.43 lbs. |
WEEE weight | 0.28 lbs. |
Tariff code | 8536.69.4030 |
