RDL D-J2 Line Input Assembly - RCA jacks, Terminal block - Custom Engraving Option


  • Dale #:

    RDL-DJ2C
  • Availability:

    Special Order Item
  • RDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.

Description

The D SERIES-J2 is a complete unbalanced audio input panel assembly. The front panel features two phono jacks intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. A balanced line-level output is p... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

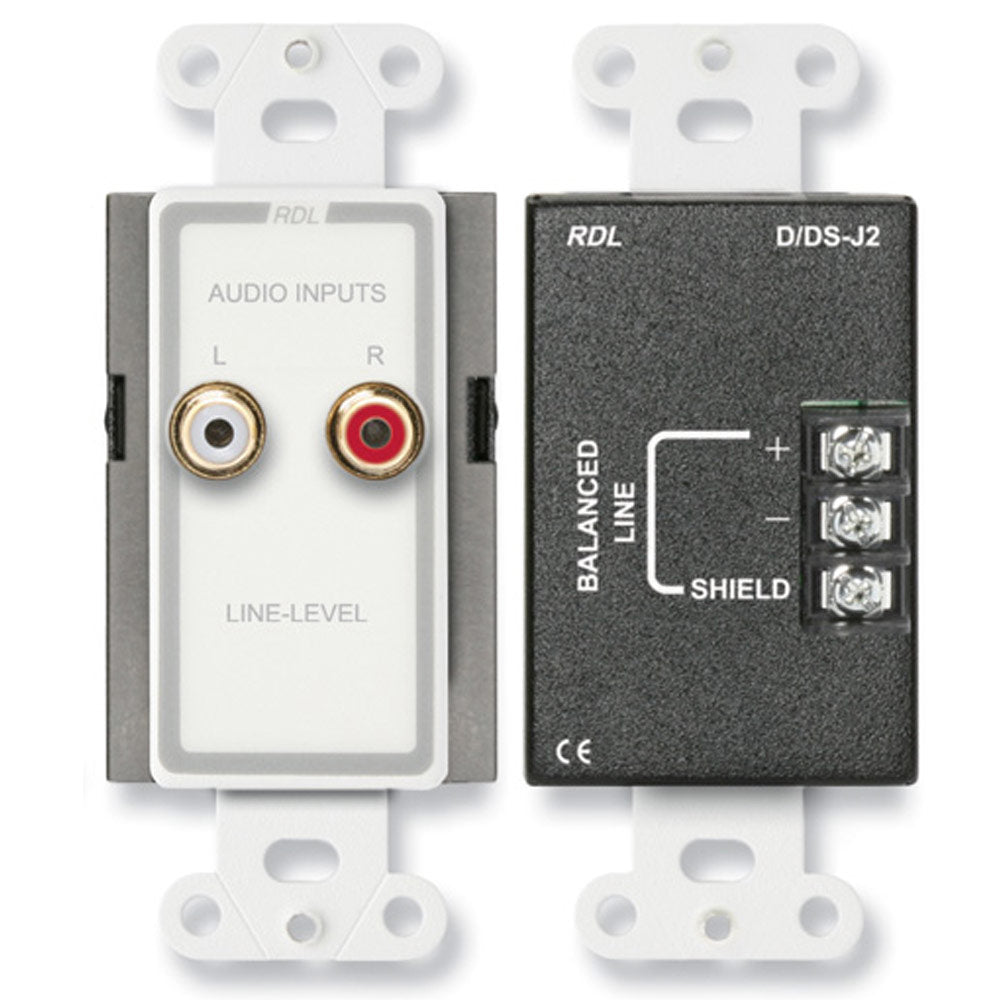

The D SERIES-J2 is a complete unbalanced audio input panel assembly. The front panel features two phono jacks intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. A balanced line-level output is provided on the rear-panel terminal block for connection to 10 k? or higher input impedance line level module or equipment inputs. The back of the D SERIES-J2 is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J2 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Features:

  • Wall Mounted Line-Level Audio Input Panel
  • Gold Plated Phono Jacks
  • Hum Cancellation on Unbalanced Line Inputs
  • Transformer Isolation for Unbalanced Line Inputs
  • Balanced Output for Unbalanced Line Inputs

More +

Product Specs

Input Connectors (2) Phono jacks with gold contacts
Output Connector Terminal block
Output Connections (3) +, -, SHIELD
Frequency Response (line in) 30 Hz to 20 kHz (±1 dB)
Power Requirement Passive
Dimensions Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
Mounting Box Req. Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
Package Type Cardboard Box
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight 0.475 lbs.
WEEE weight 0.325 lbs.
Tariff code 8536.69.4030
