RDL D-J3M Mic/Line Input Assembly - XLR and Mini Input Jacks
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

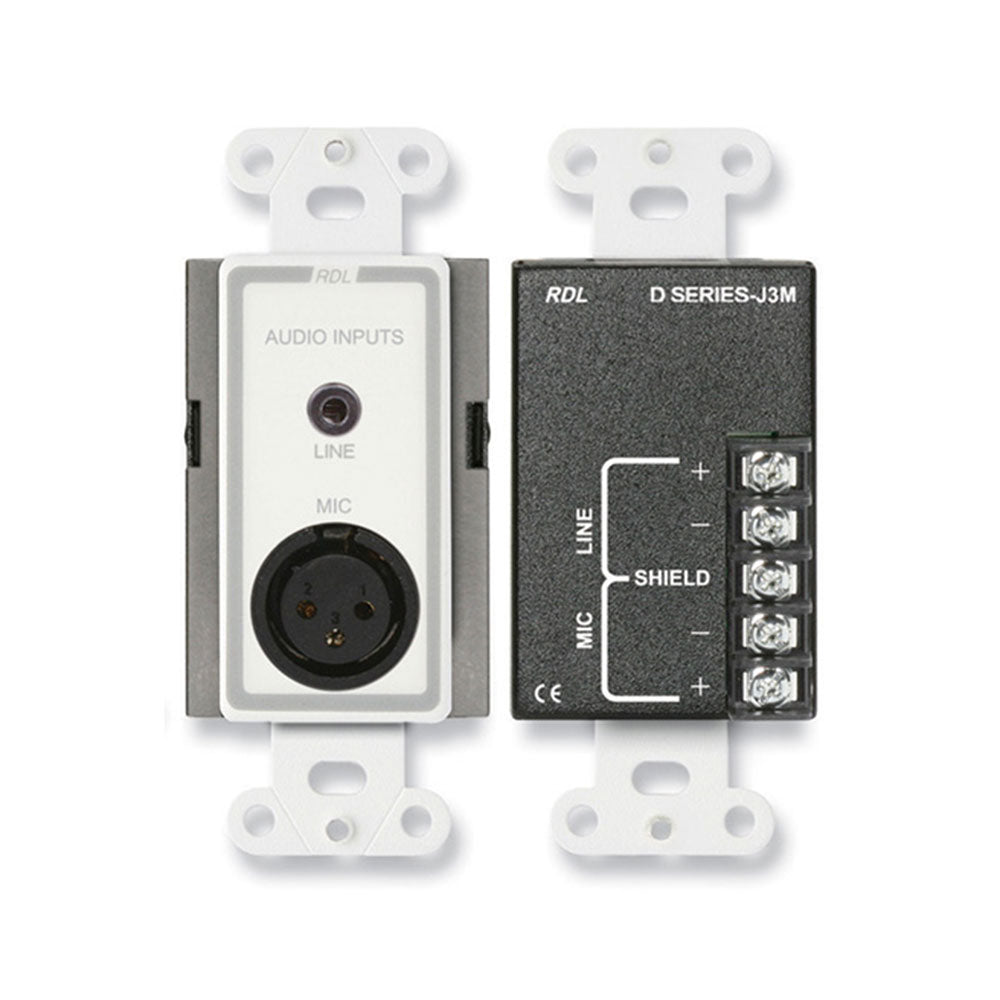

The D SERIES-J3M is a complete audio input panel assembly. The front panel features a female XLR jack and a single stereo mini-jack. The XLR is connected directly to the rear-panel barrier block. The mini-jack is intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 k? or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3M is finished with a metal enclosure clearly labeled for easy installation.
The D SERIES-J3M fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U or WB-2U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.
Features:
- Wall Mounted Audio Inputs
- XLR Microphone Input with Gold Contacts
- Mini-Jack Line Inputs
- Hum Cancellation on Unbalanced Line Inputs
- Transformer Isolation for Unbalanced Line Inputs
- Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs
| Input Connectors (2) | XLR female with gold contacts (1); Mini-jack (1) |
| Output Connector | Terminal block |
| Output Connections (5) | Line: +, -, SHIELD; Mic: SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3) |
| Frequency Response (line in) | 30 Hz to 20 kHz (±1 dB) |
| Power Requirement | Passive |
| Dimensions | Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm |
| Mounting Box Req | Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.505 lbs. |
| WEEE weight | 0.36 lbs. |
| Tariff code | 8536.69.4030 |
The D SERIES-J3M is a complete audio input panel assembly. The front panel features a female XLR jack and a single stereo mini-jack. The XLR is connected directly to the rear-panel barrier block. The mini-jack is intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 k? or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3M is finished with a metal enclosure clearly labeled for easy installation.
The D SERIES-J3M fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U or WB-2U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.
Features:
- Wall Mounted Audio Inputs
- XLR Microphone Input with Gold Contacts
- Mini-Jack Line Inputs
- Hum Cancellation on Unbalanced Line Inputs
- Transformer Isolation for Unbalanced Line Inputs
- Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs
| Input Connectors (2) | XLR female with gold contacts (1); Mini-jack (1) |
| Output Connector | Terminal block |
| Output Connections (5) | Line: +, -, SHIELD; Mic: SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3) |
| Frequency Response (line in) | 30 Hz to 20 kHz (±1 dB) |
| Power Requirement | Passive |
| Dimensions | Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm |
| Mounting Box Req | Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.505 lbs. |
| WEEE weight | 0.36 lbs. |
| Tariff code | 8536.69.4030 |
