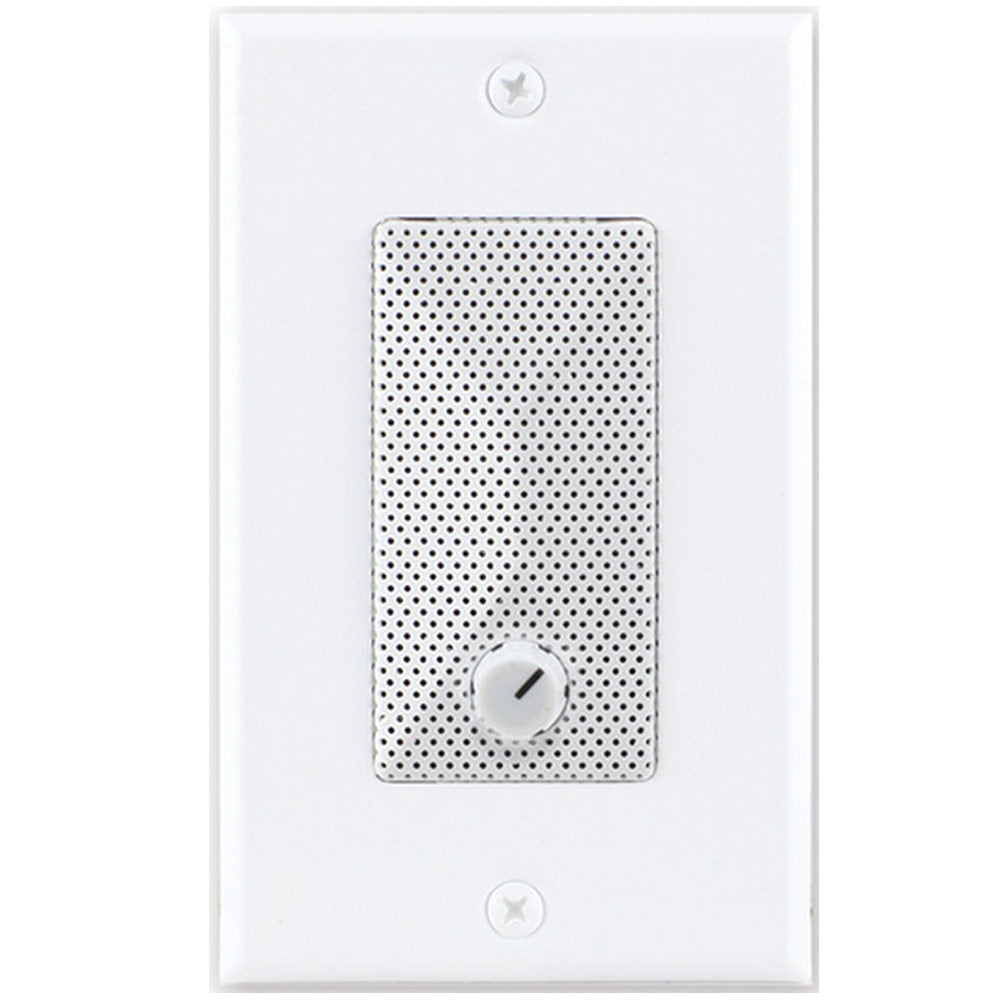

RDL D-PSP1A Decora Mount Format-A Active Loudspeaker (White)

  • Dale #:

    RDL-DPSP1A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The D SERIES-PSP1A is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. It is a single-pair audio amplifier module compatible with RDL Format A twisted pair products. The PSP1A receives audio and 24 Vdc power through a rear-panel RJ45 jac... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

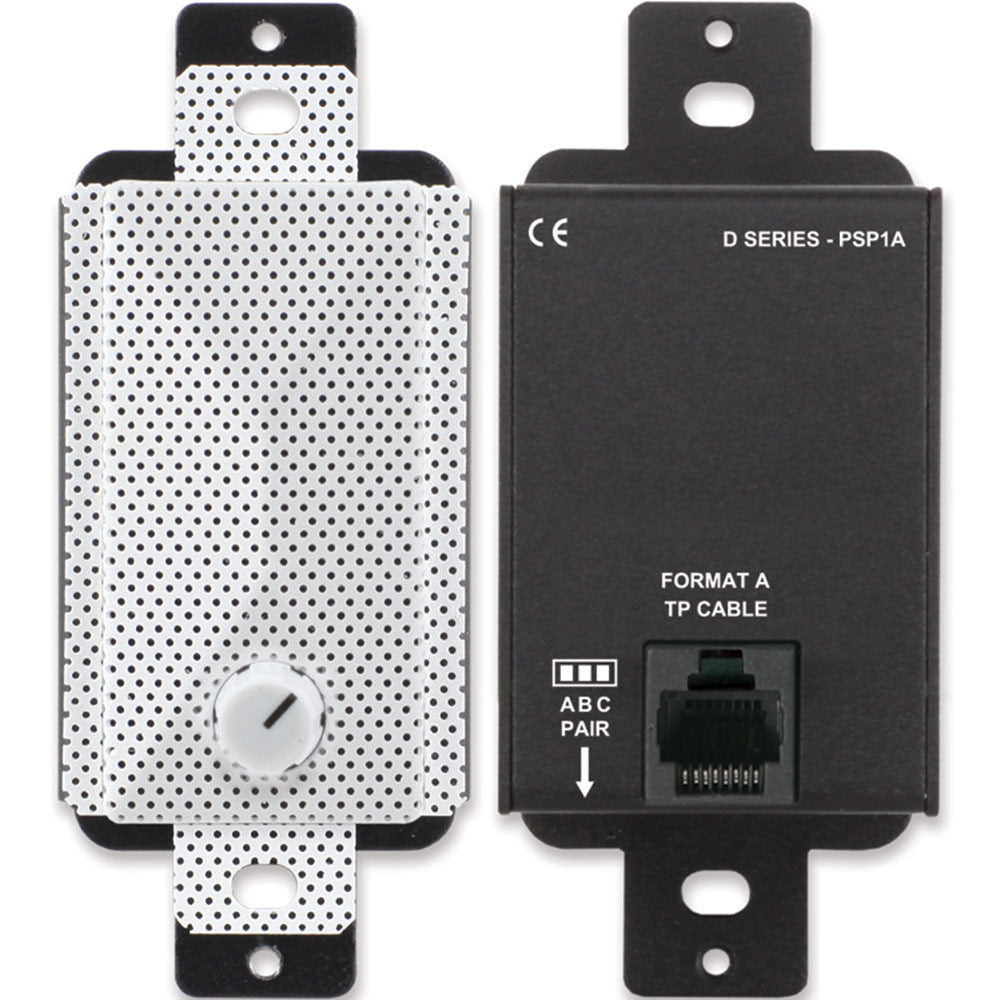

The D SERIES-PSP1A is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. It is a single-pair audio amplifier module compatible with RDL Format A twisted pair products. The PSP1A receives audio and 24 Vdc power through a rear-panel RJ45 jack. A rear-panel switch set during installation determines which of the three FORMAT-A pairs is amplified. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1A includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.

Features:

  • Exceptional Audio Quality for Ultra-Compact Size
  • 2 Watt RMS Audio Amplifier
  • Compressor/Limiter Prevents Clipping
  • Connects to Format-A Sender using Twisted-Pair Cable
  • Powered from RDL Twisted Pair Format-A Sender
  • Front-Panel Gain Adjustment
  • Acoustically Optimized Decora Enclosure
  • Fidelity Comparable to Larger Drivers
  • Hemispherical Dispersion Mounted In Wall or Flat Surface

The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.

Models are available with grills in black (DB-PSP1A), white (D-PSP1A), gray (DG-PSP1A) or stainless steel (DS-PSP1A).

More +

Product Specs

InputRDL Format-A
Input ConnectionRJ45
Format-A Signal Pair UsedSwitch-selectable A, B, or C (Rear-panel)
Gain AdjustmentSingle-turn audio taper (Front-panel)
Maximum SPL81 dB
Frequency Range150 Hz to 20 kHz, nominal
CMRR> 80 dB (50 Hz to 120 Hz)
Power Requirement24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referenced
Ambient Operating Environment0° C to 40° C Maximum; 20° C Recommended

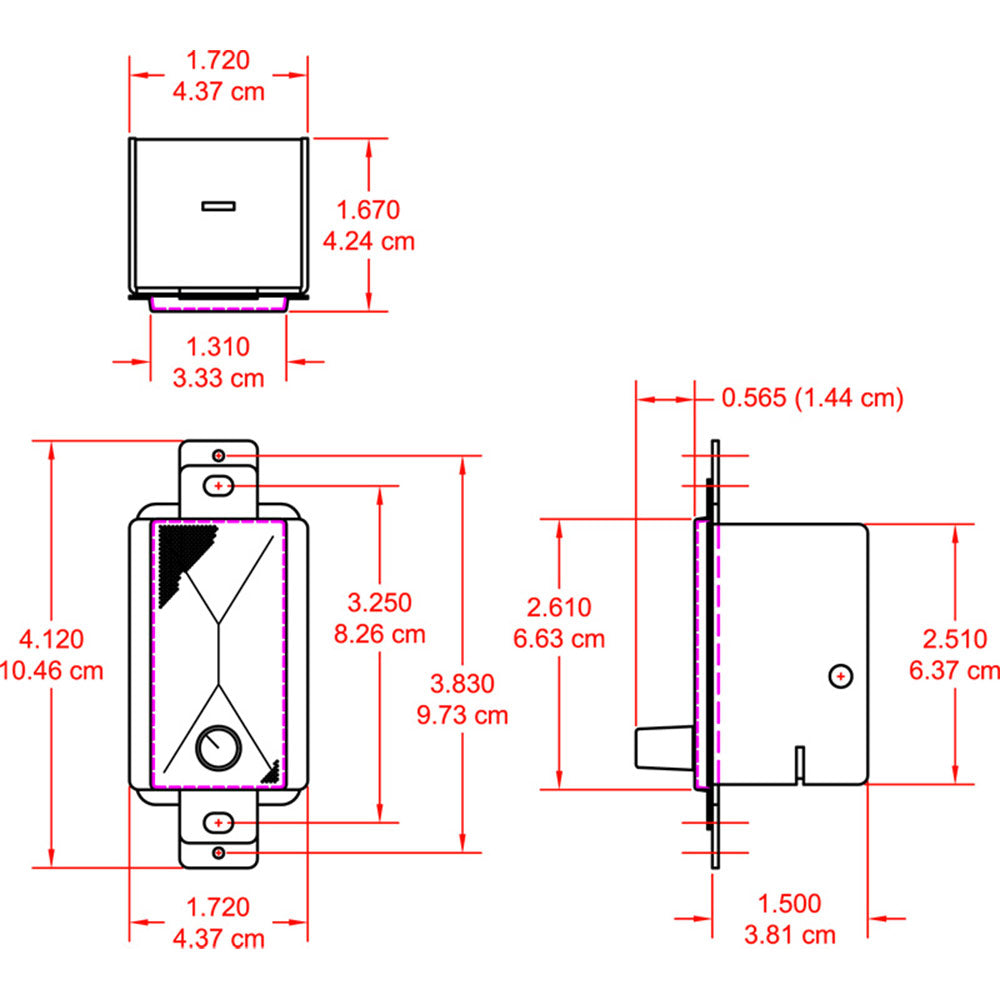

DimensionsHeight: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.27 in. 5.77 cm
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight.562 lbs.
WEEE weight.423 lbs.
Tariff code8518.40.2000
