RDL D-RC2ST 2-Channel Remote Source Selector for STICK-ON Series (White)


  • Dale #:

    RDL-DRC2ST
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The front panel of the D-RC2ST features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected. In a typical installation, ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

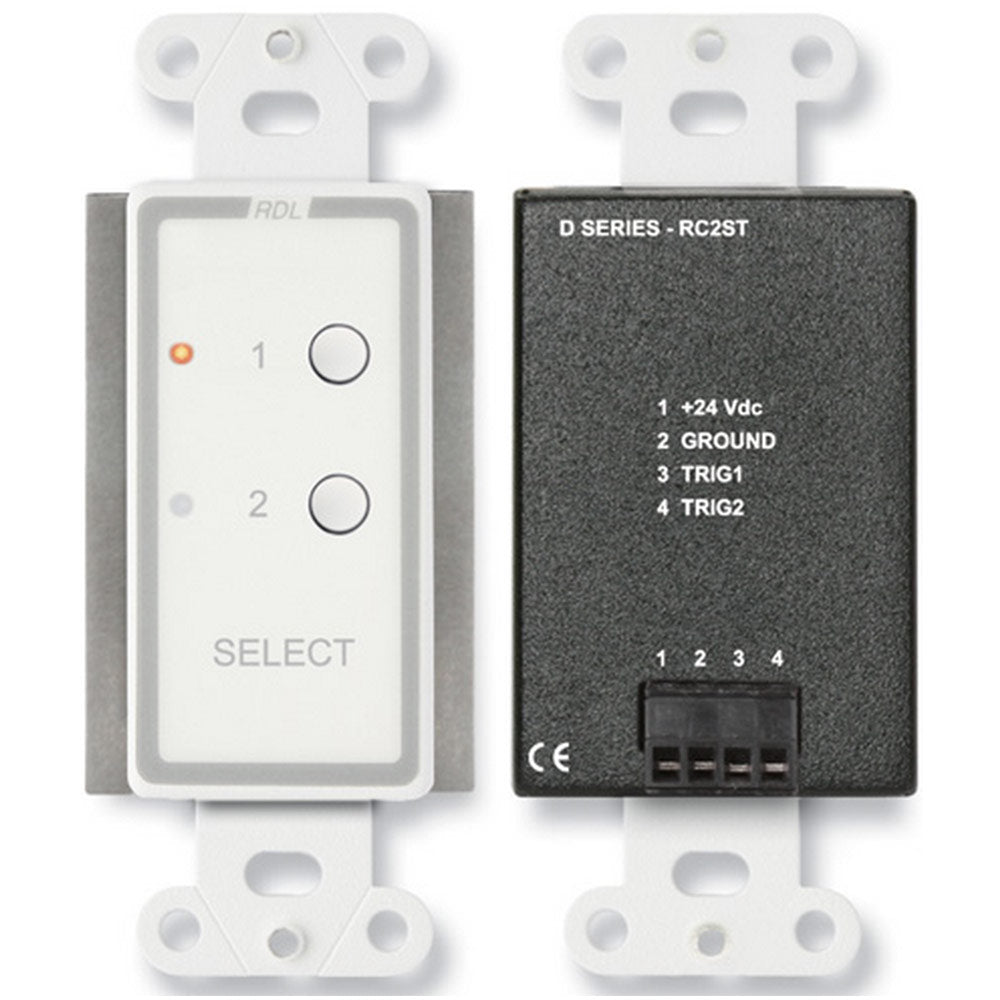

The front panel of the D-RC2ST features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected.

In a typical installation, the D-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations. To select between two audio sources, the D-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. For audio routing, an RDL ST-RX2 is used. In each of the above examples, only one output terminal is needed for triggering. Therefore a single shielded pair (or 3-conductor cable) is required for remote connection. For more complex switching networks, both outputs may be used.

In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote Control.

Features:

  • Remote Selection of 2 Audio Sources, Destinations or Functions
  • Single-Button Selection for Each Source
  • Open-collector Switching of 1 of 2 Module Functions
  • 3-wire or 4-wire Remote Wiring
  • Professional Aesthetic Appearance
  • Companion to other RDL® Remote Controls

More +

Product Specs

Selectors (2)Momentary pushbuttons, (1 for each channel)
Indicators (2)Red LEDs, (indicates channel selected)
ConnectionsDetachable terminal block; Power input; open-collector outputs (25 mA current limited)
Ambient Operating Environment-10° C to 55° C
Power RequirementGROUND-REFERENCED, 24 Vdc @ 30 mA

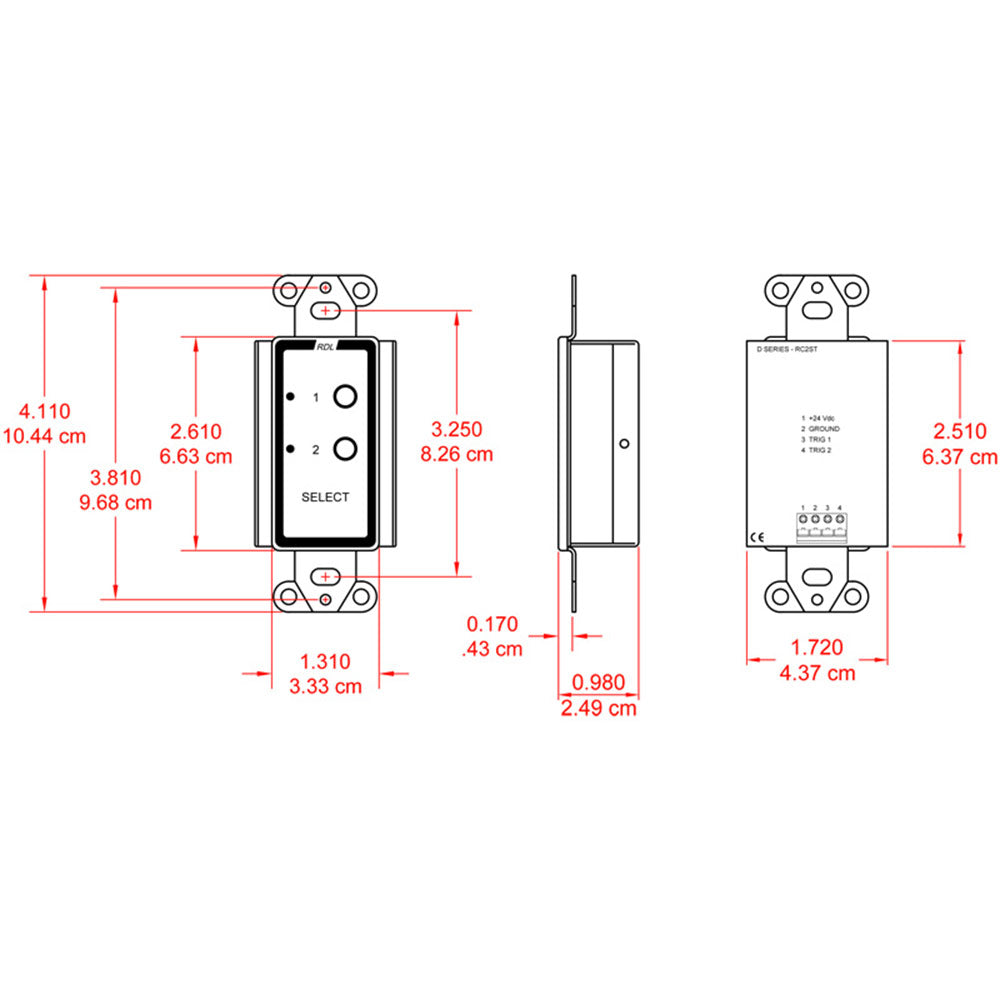

MountingMounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.37 lbs.
WEEE weight0.215 lbs.
Tariff code8517.62.0050
