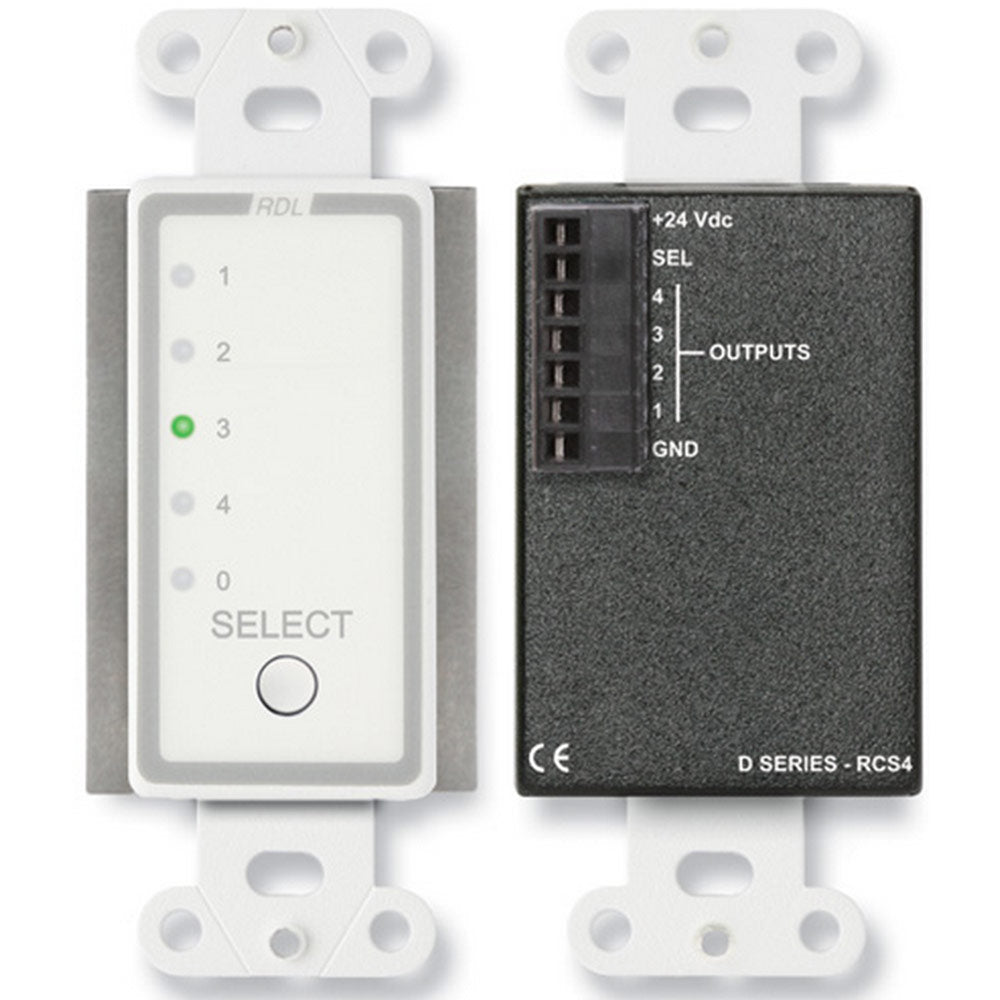

RDL D-RCS4 4-Channel Remote Source Selector for RU-SX4A (White)


  • Dale #:

    RDL-DRCS4
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The D-RCS4 is the ideal choice where sources are to be selected from a single or from multiple remote control locations, and visual indication is desired. The D-RCS4 is designed to directly interface with RDL control modules, such as the RACK-UP® series RU-SX4A Audio Selector. The D-RCS4 momentar... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The D-RCS4 is the ideal choice where sources are to be selected from a single or from multiple remote control locations, and visual indication is desired.

The D-RCS4 is designed to directly interface with RDL control modules, such as the RACK-UP® series RU-SX4A Audio Selector. The D-RCS4 momentary pushbutton sends a stepping signal back to the RDL control module. When connected to the RU-SX4A, pushing the button on the D-RCS4 causes the source to advance sequentially to the next input. The audio is muted during stepping to avoid annoying bursts of audio.

In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote Control.

Features:

  • Remote Control for RDL RU-SX4A Audio Selector
  • Remote Source Selection Panel
  • Visual Display of the Selected Source
  • Multiple Control / Indication Locations
  • Premium-Quality Remote Panel
  • Professional Aesthetic Appearance

More +

Product Specs

LED InputsGrounding input activates LED; direct connection from RDL selector module
Indicators (5)Green LEDs for each of 4 selected channels; red LED indicates no channel selected
OutputsSEL, 15 Vdc @ 5 mA (pushbutton actuated)
Ambient Operating Environment0° C to 55° C
ConnectionsDetachable terminal block
Power RequirementGROUND-REFERENCED, 24 Vdc @ 25 mA

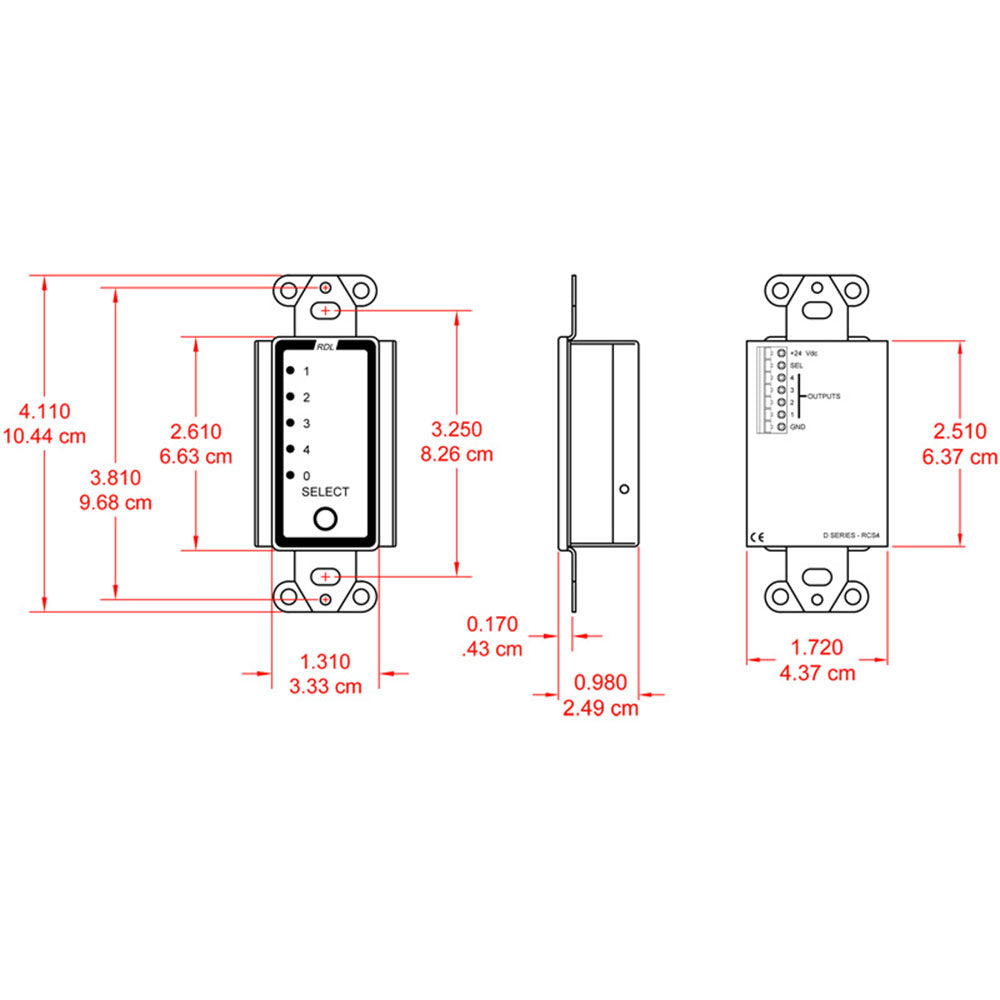

MountingMounts in US electrical box or RDL international wall boxes WB-1U, WB-2U; decorative plate available separately
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.37 lbs.
WEEE weight0.22 lbs.
Tariff code8517.62.0050
