RDL D-RLC10KM Remote Level Control - 0 to 10K Ohm with Muting (White) - Custom Engraving Option
Contact us
Availability:
Special Order ItemRDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.
Description

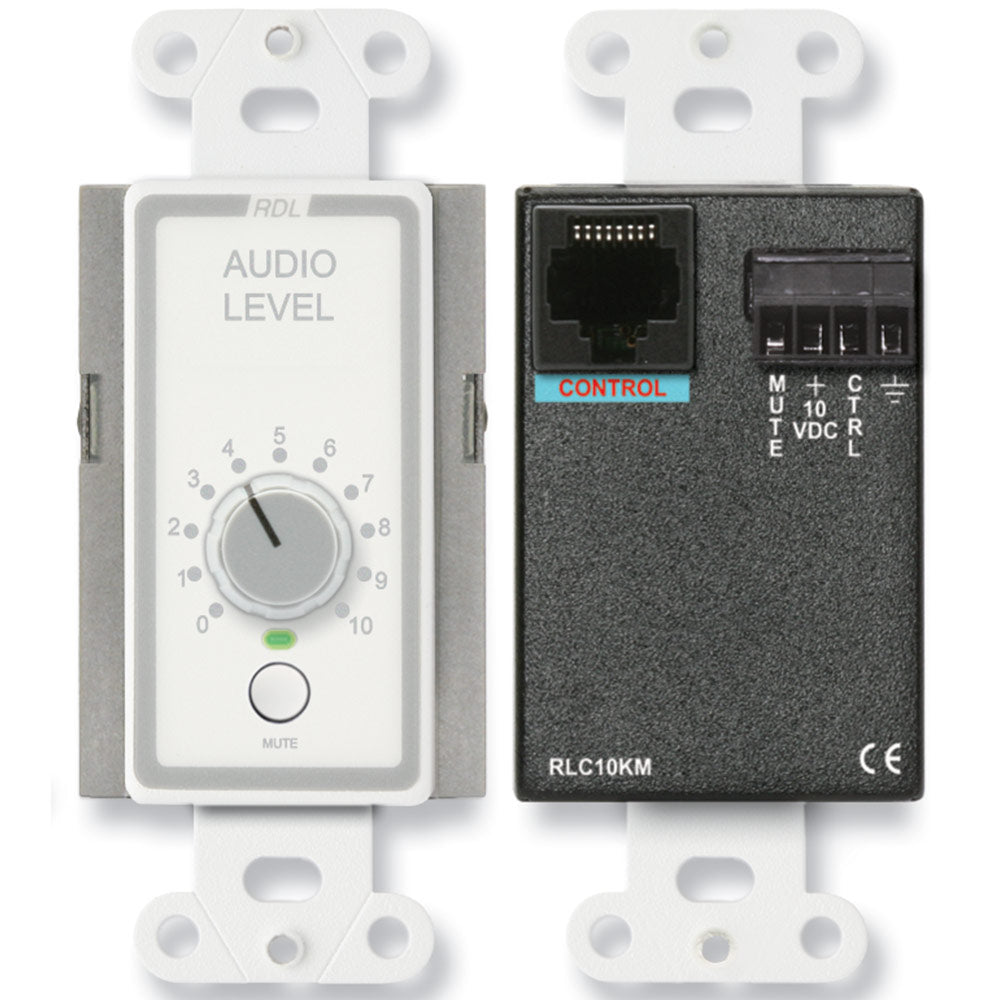

The RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The RLC10K contains a high-quality 10k ohm potentiometer for setting the control voltage.

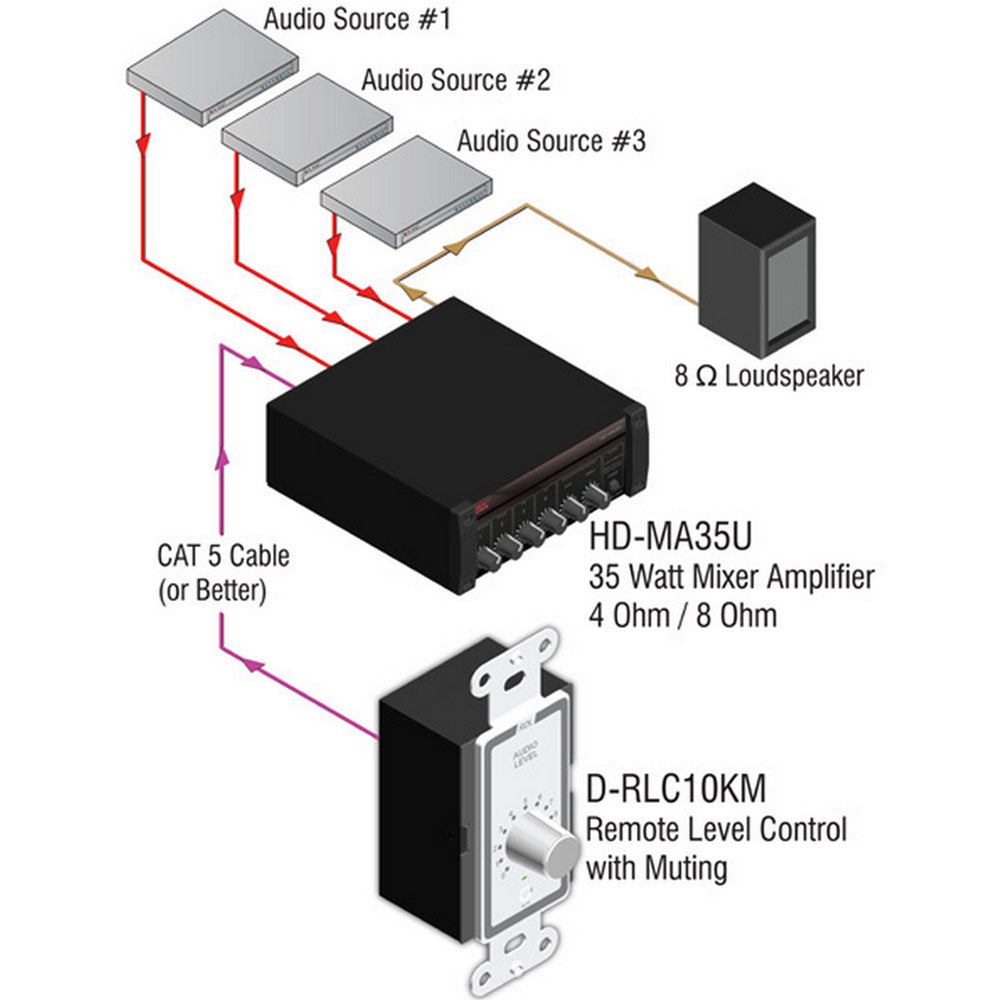

The RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level. Three conductors are required for connection between the RLC10K and an RDL VCA. A single shielded pair is normally used.
All the RLC10K features combine to make it the optimum economical choice for single-point remote level control in high-quality systems. Use the RLC10K individually with an RDL control module, or combine it side-by-side with other RDL remote accessories as part of a complete audio/video system.
Features:
- Remote Level Control Panel
- Rotary Control
- Direct Connection to RDL® VCA Modules
- Single Control Location
- Premium-Quality Remote Panel
- Professional Aesthetic Appearance
| Resistance | 0 to 10 k , linear |
| Mute button | Momentary |
| Indicator | Red = Muted (dc variable output = 0 volts); Green = Active (dc variable output tracks front panel knob) |
| MUTE Output | 25 mA open-collector |
| Mounting | Mounts in standard US electrical box; cover plate available separately |
| Dimensions | Height: 4.1 in. 10.4 cm; Depth: 1.44 in. 3.7 cm (without knob); Depth: 2 in. 5 cm (with knob); Width: 1.7 in. 4.33 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.43 lbs. |
| WEEE weight | 0.28 lbs. |
| Tariff code | 8517.62.0050 |
