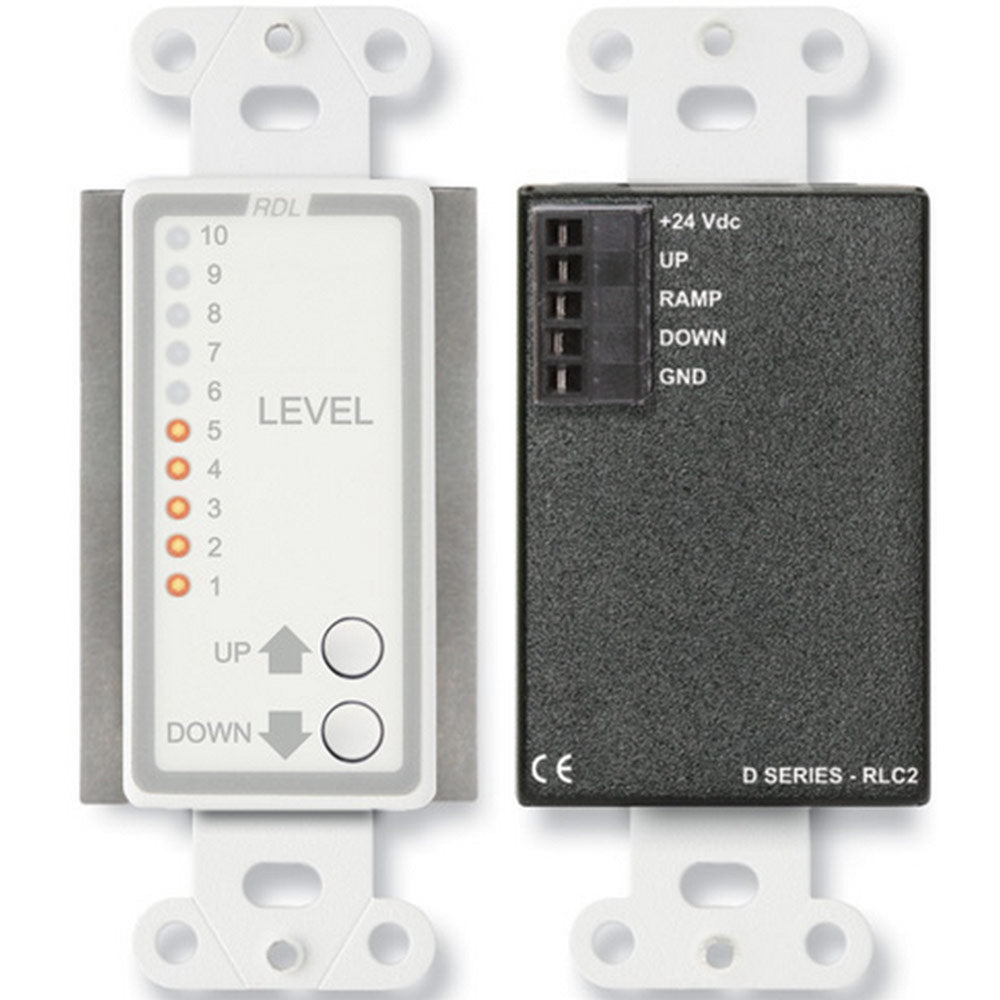

RDL D-RLC2 Remote Level Control with Ramp (White)


  • Dale #:

    RDL-DRLC2
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The D-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired. The D-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON® series ST-RG1 Ramp Generator, or RACK-UP® series... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The D-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired.

The D-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON® series ST-RG1 Ramp Generator, or RACK-UP® series RU-VCA2A Digitally Controlled Audio Attenuator. The D-RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU-VCA2A, pushing both buttons on the D-RLC2 simultaneously causes the level to return to the PRESET level on the RU-VCA2A.

In installations where ULTRASTYLE™ wall controls are preferred, use the RLC-10R Rotary Level Control.

Features:

  • Remote Level Control Panel
  • Pushbutton UP and DOWN
  • 10-segment Visual Level Display
  • Multiple Control / Indication Locations
  • Premium-Quality Remote Panel
  • Professional Aesthetic Appearance
  • Available in White, Black, and Stainless Steel

More +

Product Specs

Ramp Input0 to 10 Vdc
OutputsUP and DOWN, pushbutton actuated 15 Vdc @ 5 mA

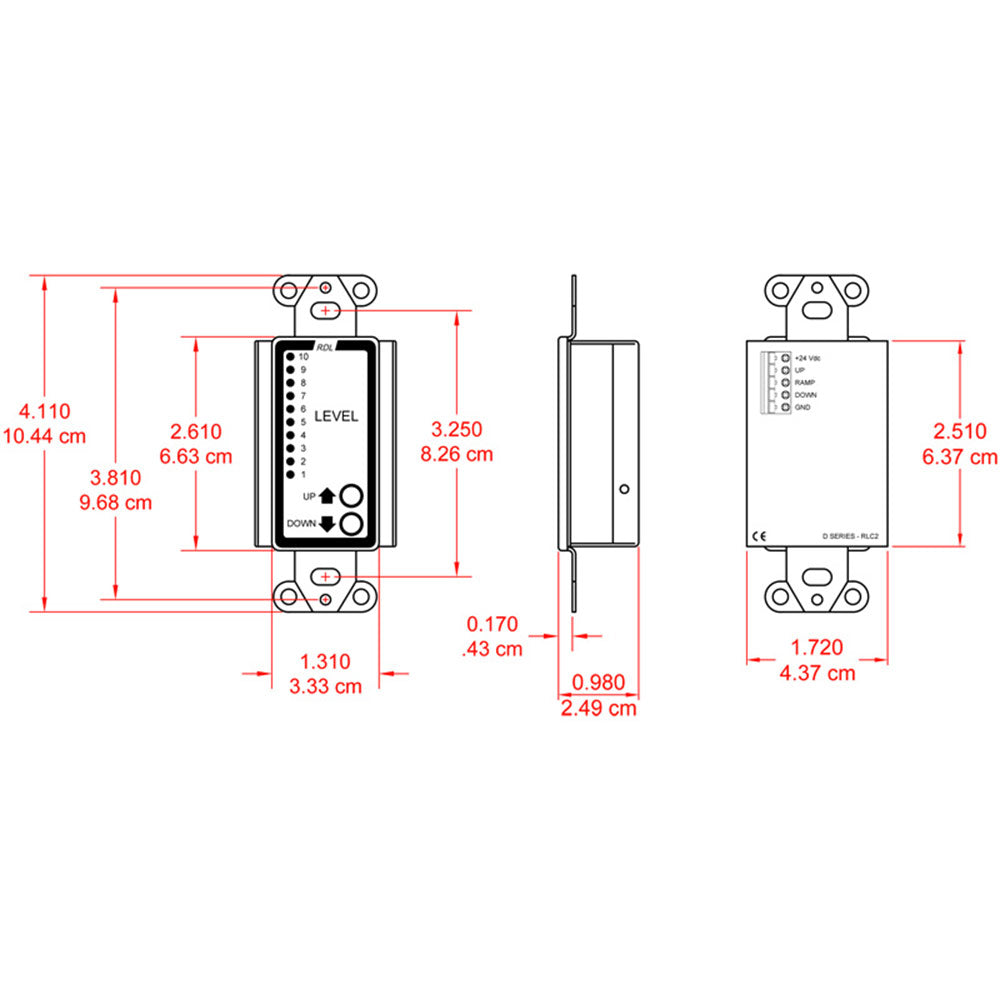

MountingMounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
Ambient Operating Environment0° C to 55° C
ConnectionsDetachable terminal block
Power RequirementGROUND-REFERENCED, 24 Vdc @ 75 mA
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.365 lbs.
WEEE weight0.215 lbs.
Tariff code8517.62.0050
