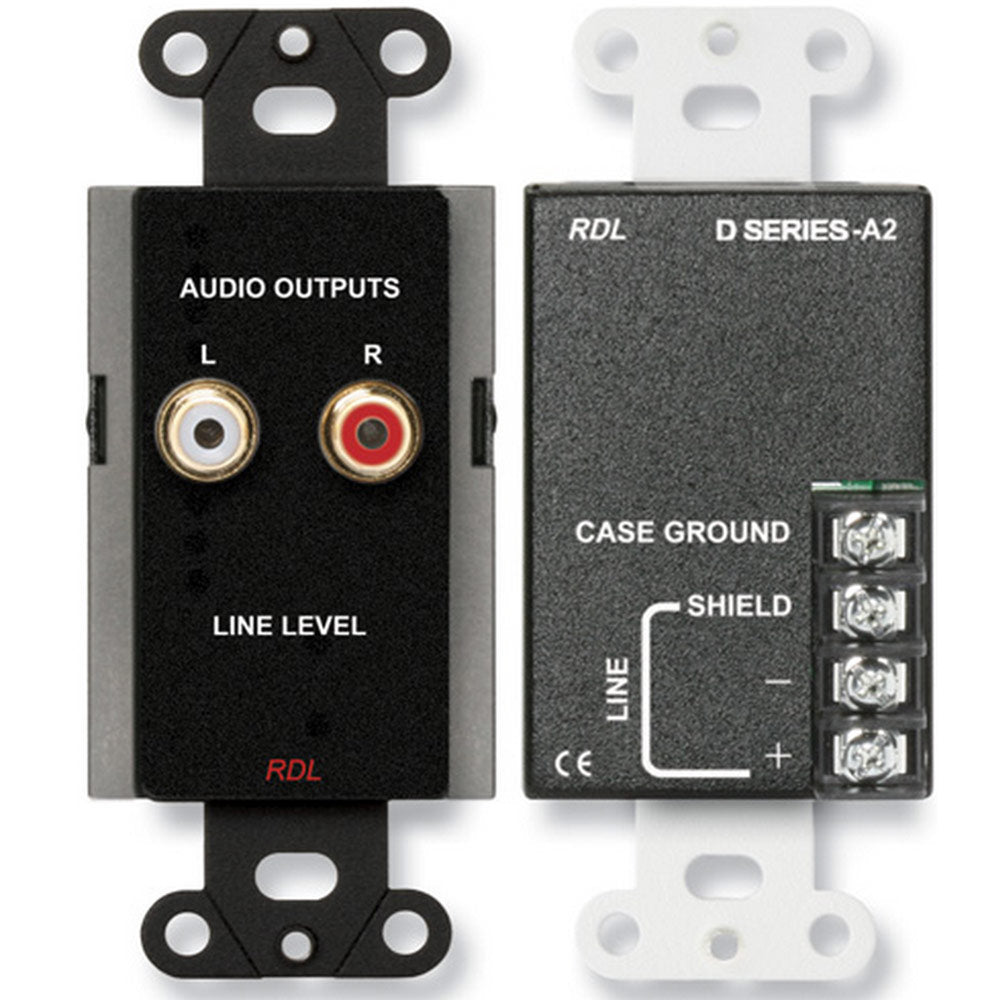

RDL DB-A2 RCA Line Out Assembly on Decora Wall Plate


  • Dale #:

    RDL-DBA2
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The D SERIES-A2 is a passive audio output assembly that provides one or two unbalanced consumer level audio outputs from a balanced line-level audio source. It may be connected to the +4 dBu line level output of any RDL product, even if that output is simultaneously feeding other equipment. The D... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The D SERIES-A2 is a passive audio output assembly that provides one or two unbalanced consumer level audio outputs from a balanced line-level audio source. It may be connected to the +4 dBu line level output of any RDL product, even if that output is simultaneously feeding other equipment. The D SERIES-A2 circuit design provides a high degree of audio isolation if a user accidentally feeds a consumer-level source into the D SERIES-A2. The attenuation of such reverse signals is sufficient for most installations. Active RDL modules are available for complete isolation if required. The D SERIES-A2 output jacks are transformer isolated from the balanced line input, and the input shield is separated from the case ground to reduce the possibility of induced hum. The D SERIES-A2 is not intended as an audio input panel.

The D SERIES-A2 fits directly into back boxes, available from RDL, to fit cabinets or US or international walls (RDL WB-1U). It may also be mounted directly into cabinets or most standard US single gang electrical boxes.

Features:

  • Wall Mounted Consumer Level Outputs
  • Single or Dual Outputs from Mono Source
  • Gold Plated Phono Jack Outputs
  • Transformer Isolation of the Line Outputs
  • Unbalanced Audio Outputs from a Balanced Line Input
  • High Attenuation of Reverse Signals

More +

Product Specs

Input Level+4 dBu, nominal
Input ConnectorFull size barrier block
Input Impedance10 k balanced bridging, monaural
Output Connectors (2)Phono jacks with gold contacts
Input Connections (4)CASE GROUND, SHIELD, + , -
Frequency Response50 Hz to 20 kHz (±1 dB)
Attenuated Signal-Reverse Path:< -50 dB (at 150 balanced source output, +4 dBu reference, -10 dBV signal injected into output jack)
Power RequirementPassive

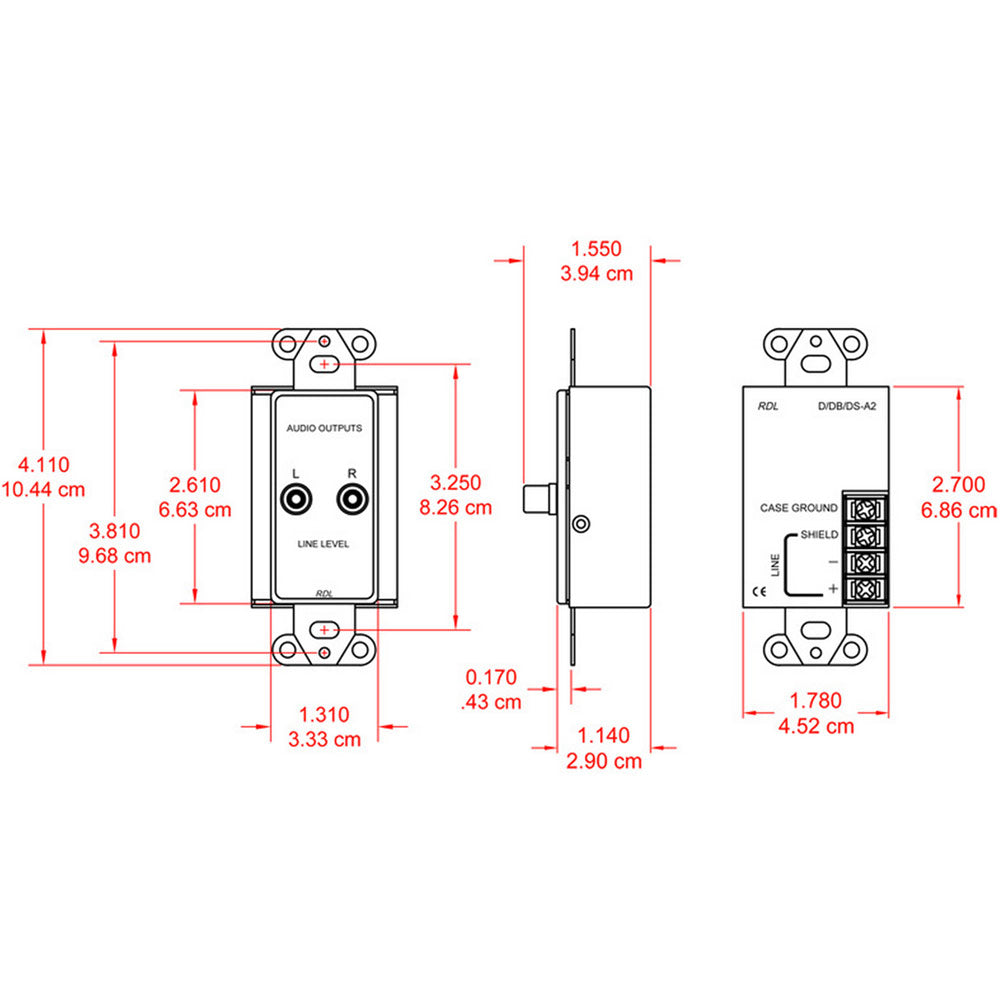

DimensionsHeight: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
Mounting Box Req.Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.46 lbs.
WEEE weight0.3 lbs.
Tariff code8536.69.4030

More +
