RDL DB-A2 RCA Line Out Assembly on Decora Wall Plate - Custom Engraving Option


  • Dale #:

    RDL-DBA2C
  • Availability:

    Special Order Item
  • RDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.

Description

The D SERIES-A2 is a passive audio output assembly that provides one or two unbalanced consumer level audio outputs from a balanced line-level audio source. It may be connected to the +4 dBu line level output of any RDL product, even if that output is simultaneously feeding other equipment. The D... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

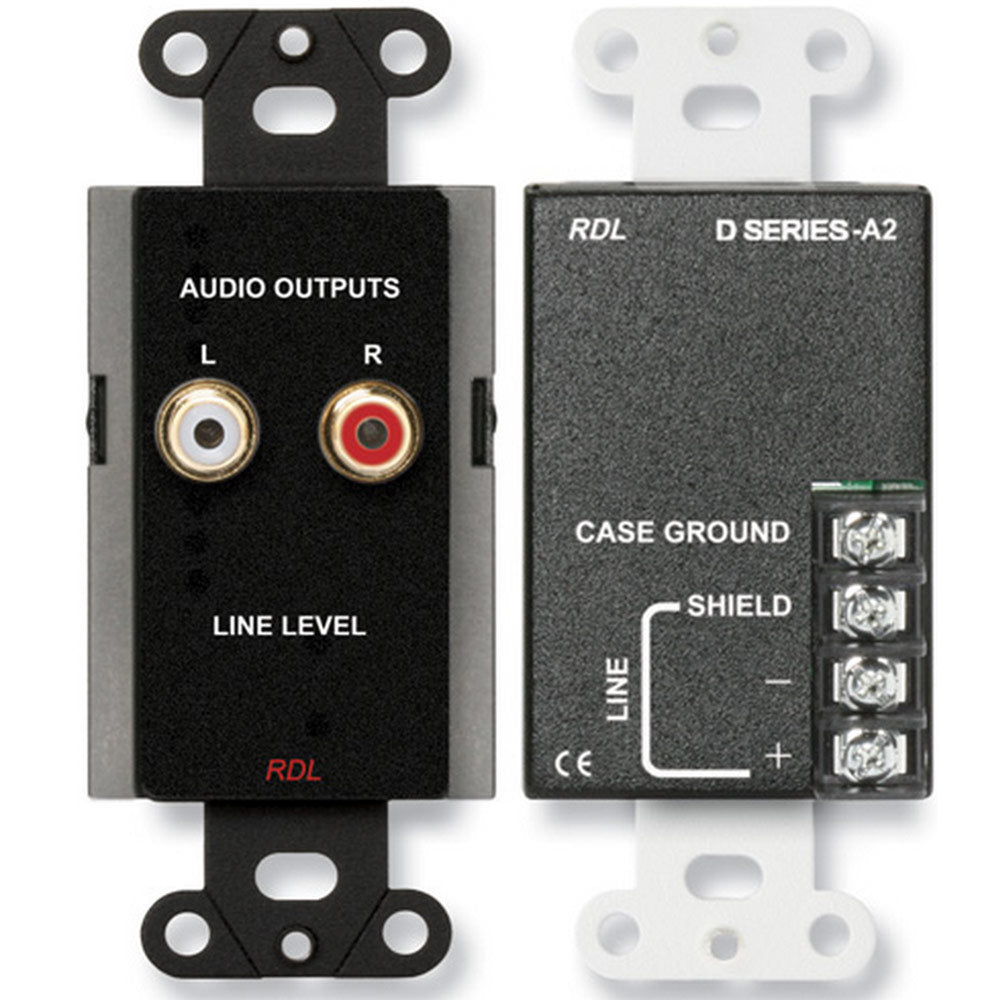

The D SERIES-A2 is a passive audio output assembly that provides one or two unbalanced consumer level audio outputs from a balanced line-level audio source. It may be connected to the +4 dBu line level output of any RDL product, even if that output is simultaneously feeding other equipment. The D SERIES-A2 circuit design provides a high degree of audio isolation if a user accidentally feeds a consumer-level source into the D SERIES-A2. The attenuation of such reverse signals is sufficient for most installations. Active RDL modules are available for complete isolation if required. The D SERIES-A2 output jacks are transformer isolated from the balanced line input, and the input shield is separated from the case ground to reduce the possibility of induced hum. The D SERIES-A2 is not intended as an audio input panel.

The D SERIES-A2 fits directly into back boxes, available from RDL, to fit cabinets or US or international walls (RDL WB-1U). It may also be mounted directly into cabinets or most standard US single gang electrical boxes.

Features:

  • Wall Mounted Consumer Level Outputs
  • Single or Dual Outputs from Mono Source
  • Gold Plated Phono Jack Outputs
  • Transformer Isolation of the Line Outputs
  • Unbalanced Audio Outputs from a Balanced Line Input
  • High Attenuation of Reverse Signals

More +

Product Specs

Input Level+4 dBu, nominal
Input ConnectorFull size barrier block
Input Impedance10 k balanced bridging, monaural
Output Connectors (2)Phono jacks with gold contacts
Input Connections (4)CASE GROUND, SHIELD, + , -
Frequency Response50 Hz to 20 kHz (±1 dB)
Attenuated Signal-Reverse Path:< -50 dB (at 150 balanced source output, +4 dBu reference, -10 dBV signal injected into output jack)
Power RequirementPassive

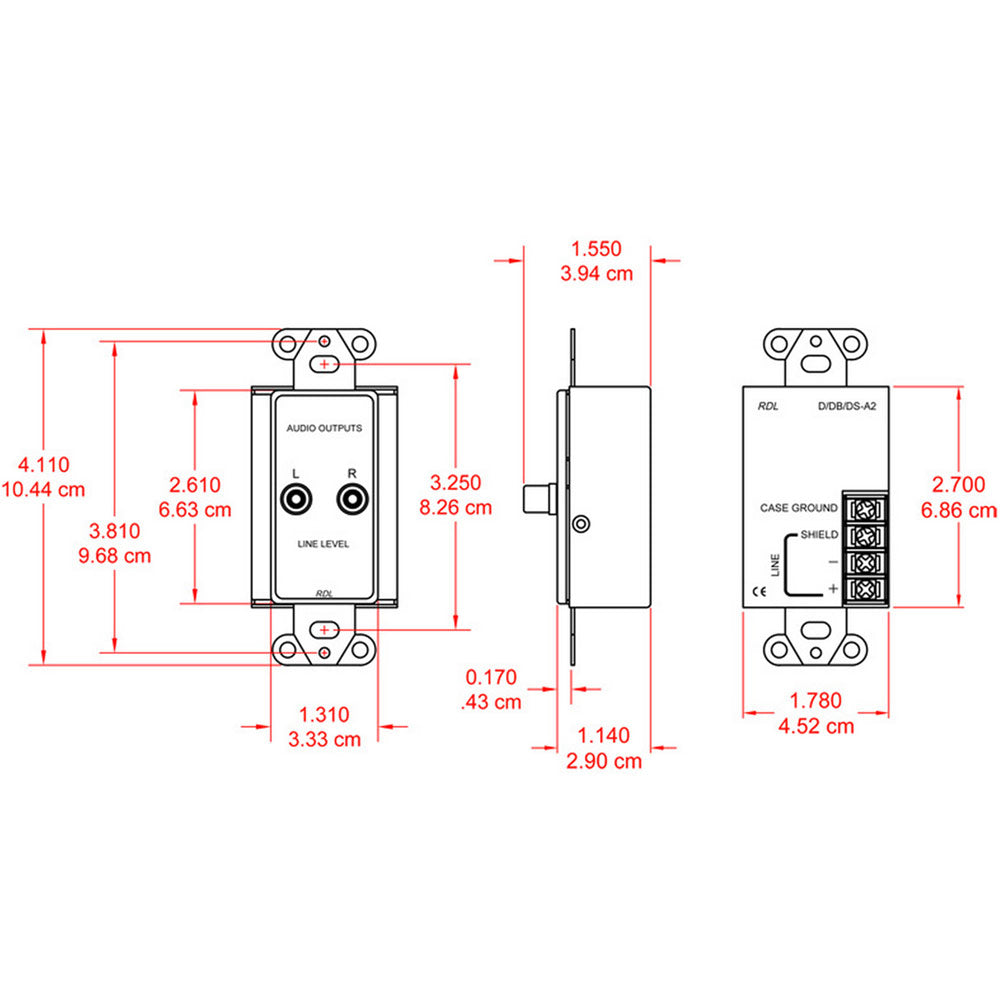

DimensionsHeight: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
Mounting Box Req.Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.46 lbs.
WEEE weight0.3 lbs.
Tariff code8536.69.4030

More +
