RDL DB-CIJ3 RCA/3.5mm Line Input Jacks on Decora Wall Plate (Mono) - Custom Engraving Option


  • Dale #:

    RDL-DBCIJ3C
  • Availability:

    Special Order Item
  • RDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.

Description

The DB-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line. The DB-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DB-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line.

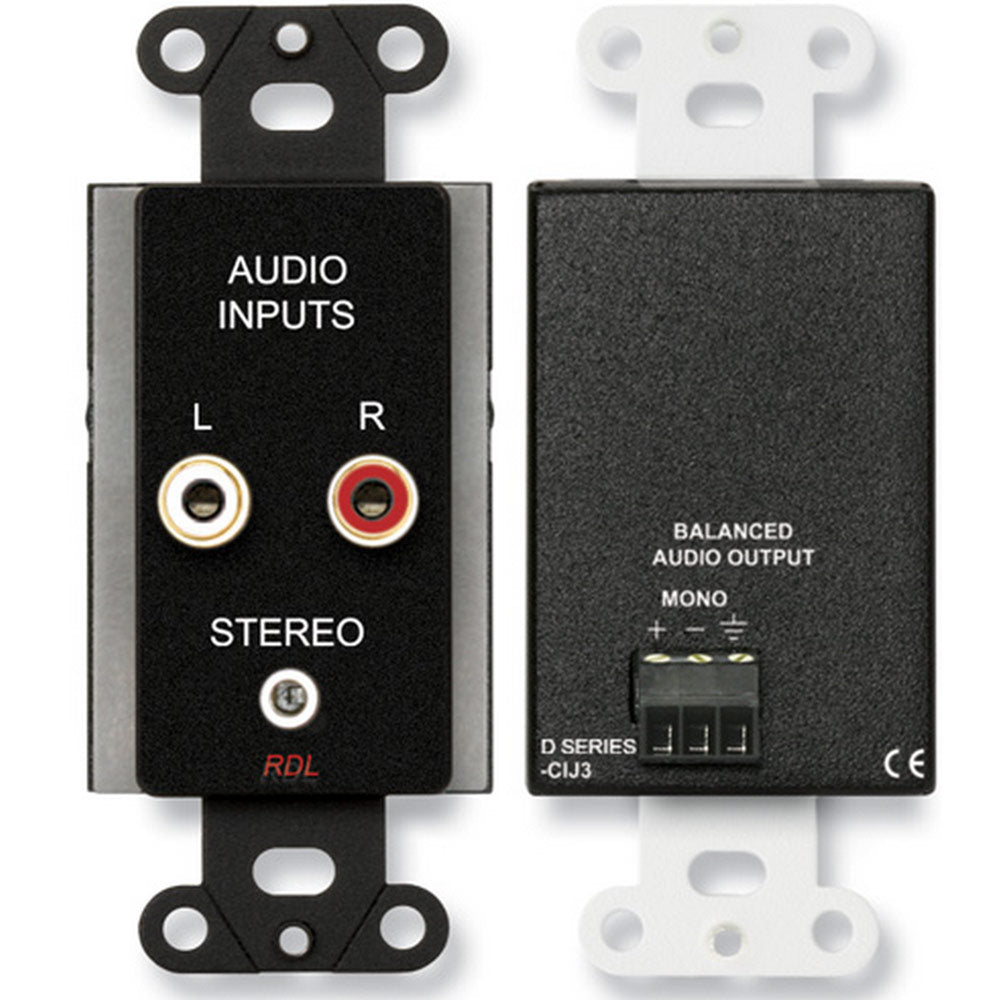

The DB-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10 k? or higher input impedance line-level module or equipment input.

Features:

  • Stereo Inputs to Mono Output
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced to Balanced Conversion Without Gain
  • Transformer Isolation for Unbalanced Line Inputs
  • Hum Cancellation on Unbalanced Line Inputs
  • Line-Level Output to Feed 10 k? Equipment Inputs
  • Output Connections on Detachable Terminal Block
  • Mix Stereo Inputs to Mono Balanced
  • Available in RDL White/Gray (D-CIJ3)
  • Available in Stainless Steel (DS-CIJ3)

More +

Product Specs

Input connectors (3)Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
Frequency response (line level)50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
THD<0.2% (1 kHz)
Output connectorDetachable terminal block

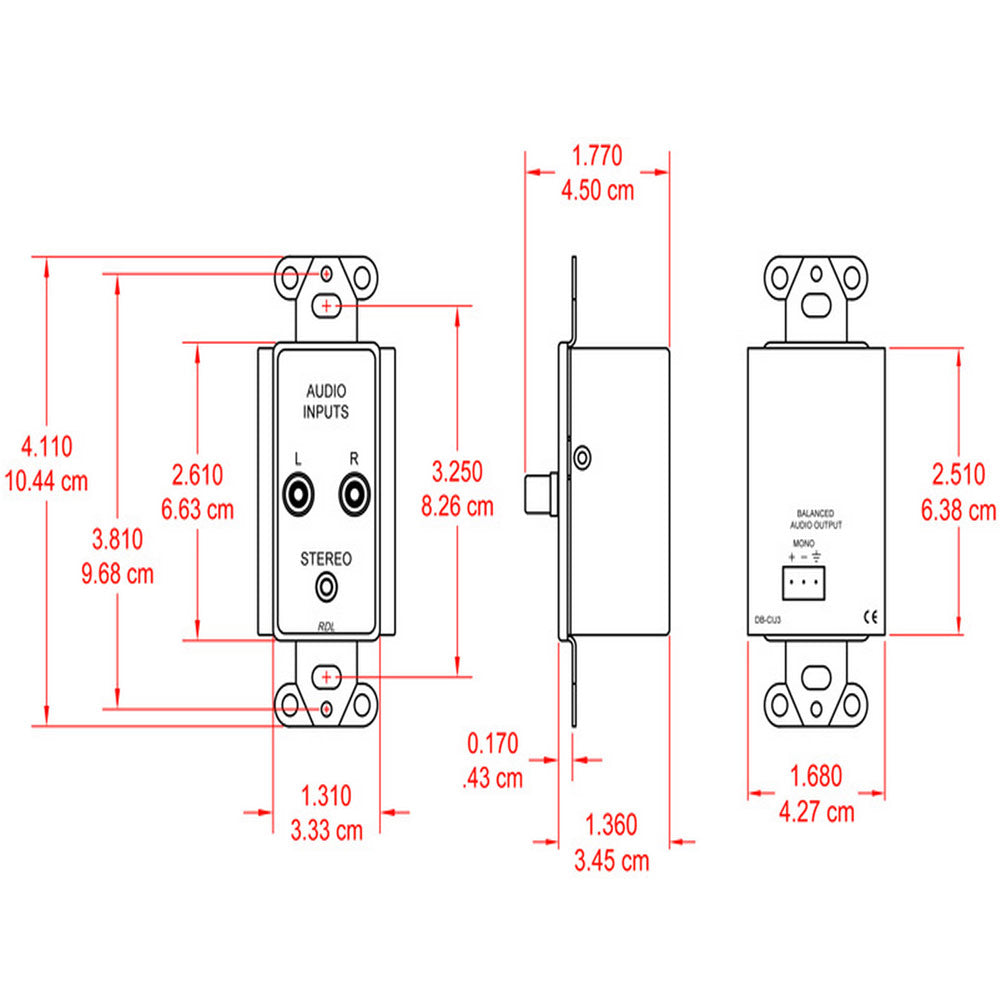

DimensionsHeight: 4.13 in. 10.49 cm
Width: 1.7 in. 4.32 cm
Depth: 2.15 in. 5.47 cm
Mounting Box Minimum DimensionsWidth: 1.80 in. 4.57 cm
Depth: 1.75 in. 4.45 cm
Ambient Operating Environment0° C to 55° C
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.48 lbs.
WEEE weight0.34 lbs.
Tariff code8536.90.8085
