RDL DB-CIJ3D RCA/3.5mm Line Input Jacks on Decora Wall Plate (Stereo)


  • Dale #:

    RDL-DBCIJ3D
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

The DB-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line. The DB-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

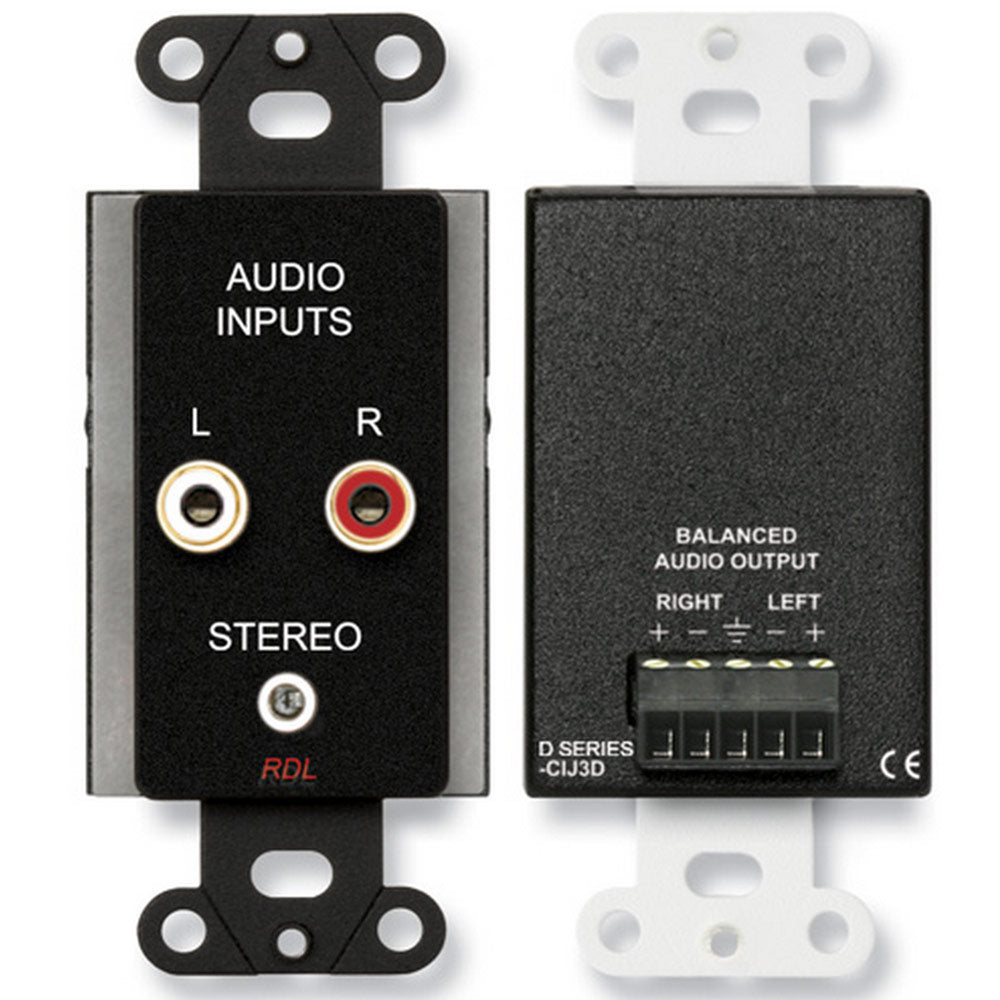

The DB-CIJ3 is the ideal choice in installations requiring the passive mixing of two unbalanced line level audio sources to feed a mono balanced (or unbalanced) audio line. The DB-CIJ3 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are combined and balanced through audio transformers configured to reject induced hum. A mono line-level output is provided on the rear-panel detachable terminal block for connection to a 10k ohm or higher input impedance line-level module or equipment input.

Features:

  • Stereo Inputs to Mono Output
  • Stereo Inputs on RCA Jacks and Stereo Mini-Jack
  • Unbalanced to Balanced Conversion Without Gain
  • Transformer Isolation for Unbalanced Line Inputs
  • Hum Cancellation on Unbalanced Line Inputs
  • Line-Level Output to Feed 10k ohm Equipment Inputs
  • Output Connections on Detachable Terminal Block
  • Mix Stereo Inputs to Mono Balanced

More +

Product Specs

Input connectors (3) Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo)
Frequency response (line level) 50 Hz to 20 kHz (±1 dB); 30 Hz to 20 kHz (±2 dB)
THD <0.2% (1 kHz)
Output connector Detachable terminal block

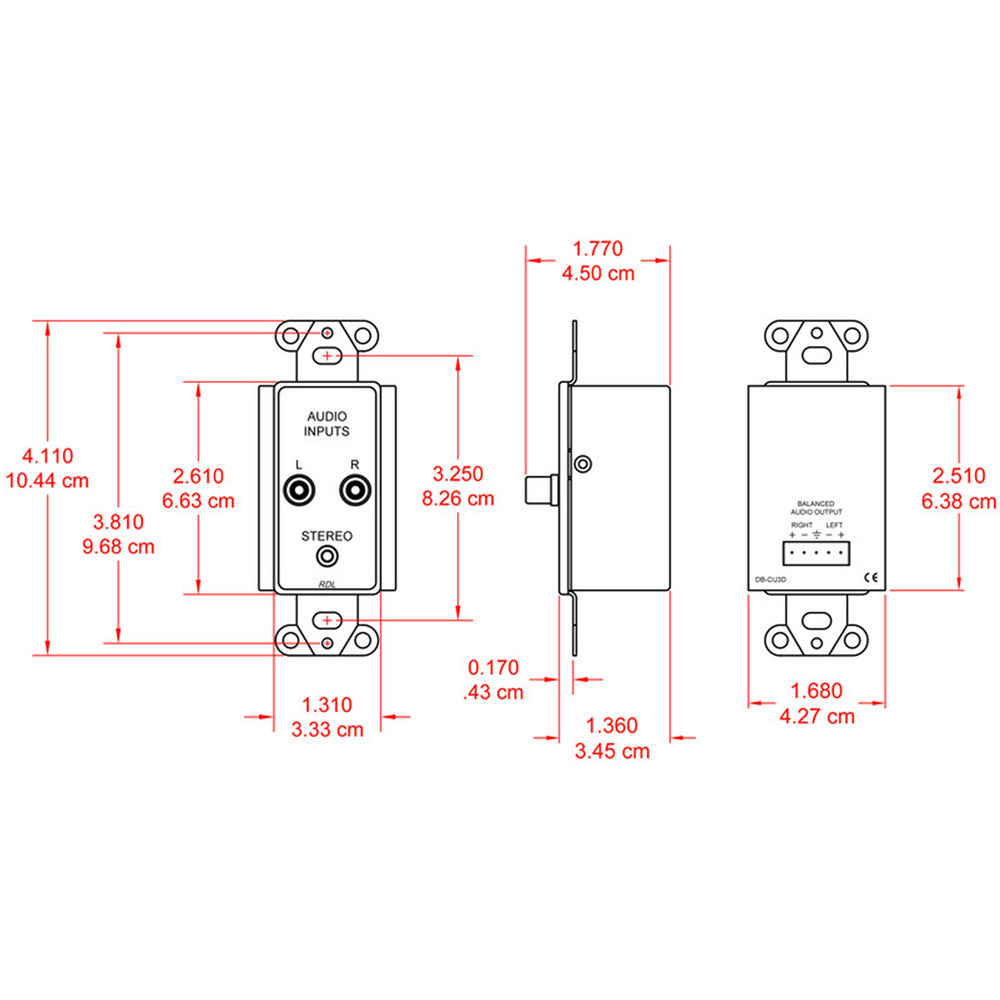

Dimensions Height: 4.13 in. 10.49 cm
Width: 1.7 in. 4.32 cm
Depth: 2.15 in. 5.47 cm
Mounting Box Minimum Dimensions Width: 1.80 in. 4.57 cm
Depth: 1.75 in. 4.45 cm
Ambient Operating Environment 0° C to 55° C
Package Type Cardboard Box
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight 0.48 lbs.
WEEE weight 0.34 lbs.
Tariff code 8536.90.8085
