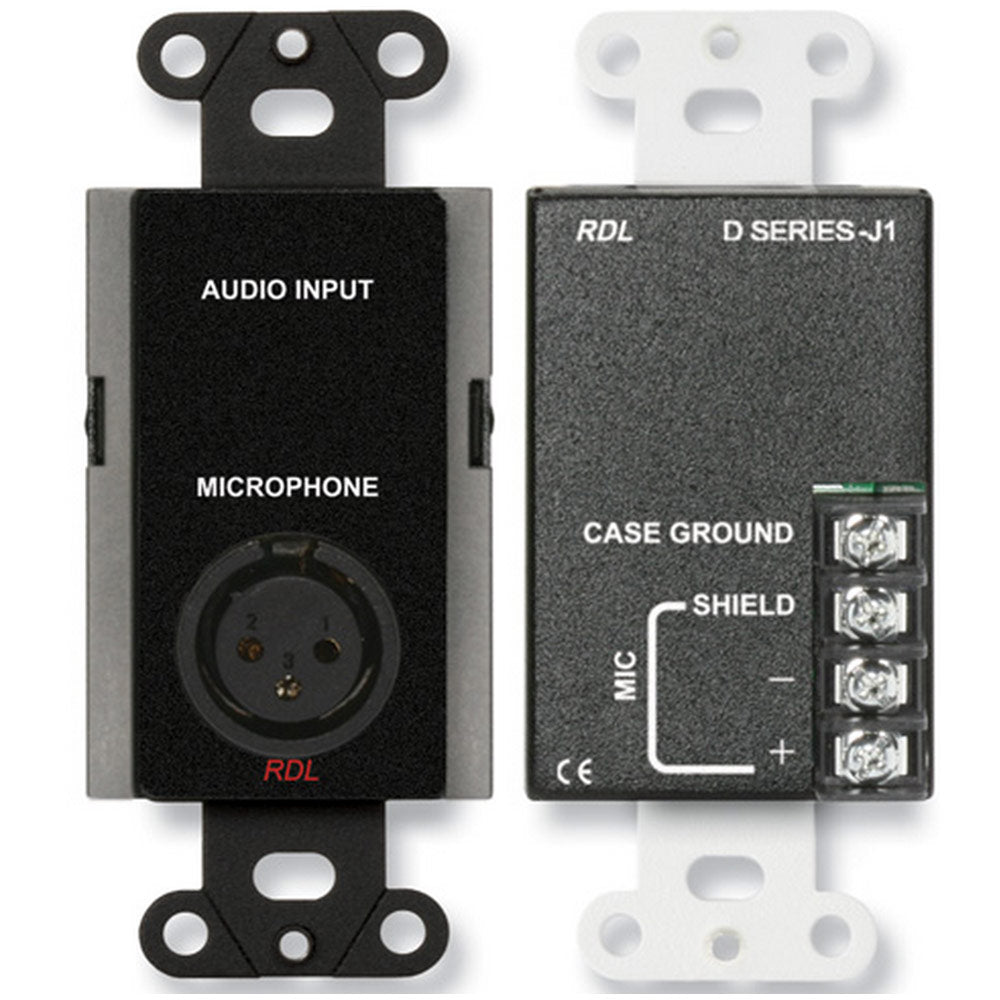

RDL DB-J1 Microphone Input Assembly in Decora Wall Plate
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DB-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines. The DB-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10k ohm or higher input impedance line-level module or equipment inputs.
Features:
- Stereo Inputs to Stereo Outputs
- Stereo Inputs on RCA Jacks and Stereo Mini-Jack
- Unbalanced to Balanced Conversion Without Gain
- Transformer Isolation for Unbalanced Line Inputs
- Hum Cancellation on Unbalanced Line Inputs
- Line-Level Output to Feed 10k ohm Equipment Inputs
- Output Connections on Detachable Terminal Block
| Input Connector | XLR female gold contacts |
| Output Connector | Barrier block |
| Output Connections (4) | CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3) |
| Power Requirement | Passive |

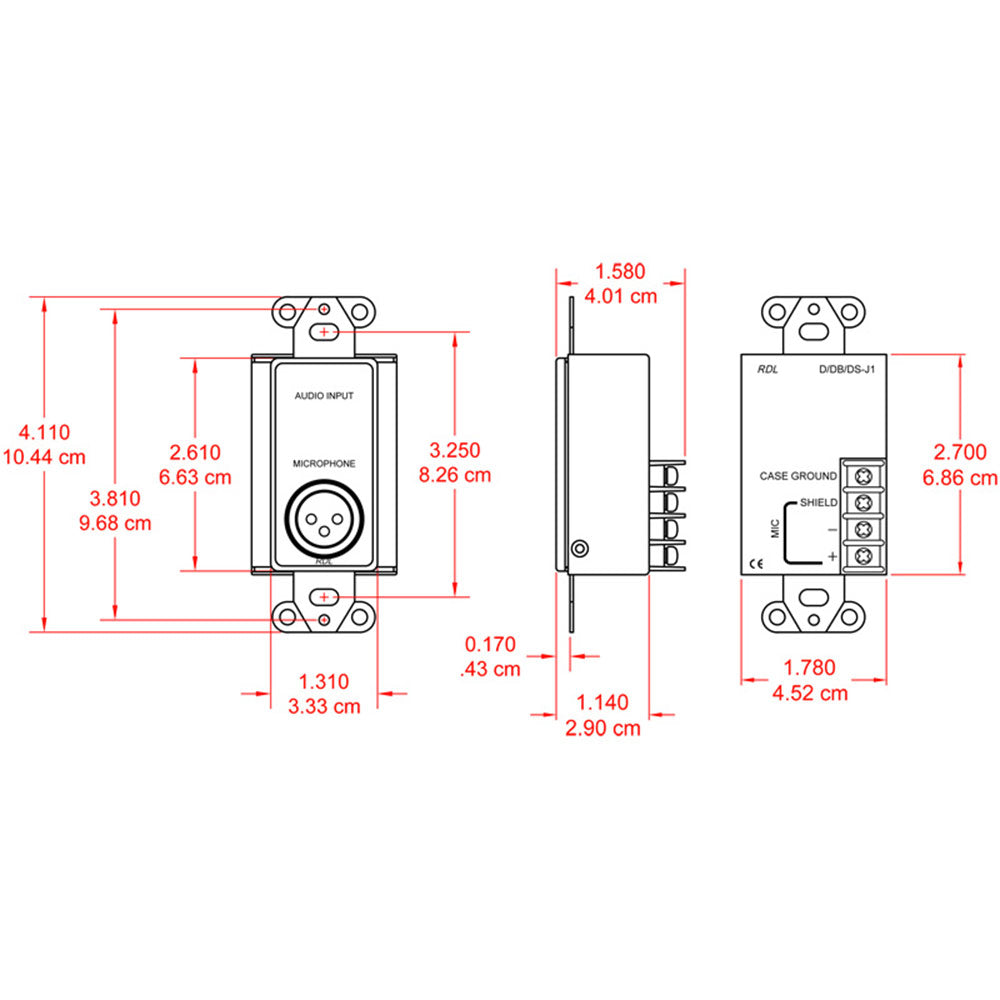

| Dimensions | Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm |
| Mounting Box Req. | Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.43 lbs. |
| WEEE weight | 0.28 lbs. |
| Tariff code | 8536.69.4030 |
The DB-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines. The DB-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10k ohm or higher input impedance line-level module or equipment inputs.
Features:
- Stereo Inputs to Stereo Outputs
- Stereo Inputs on RCA Jacks and Stereo Mini-Jack
- Unbalanced to Balanced Conversion Without Gain
- Transformer Isolation for Unbalanced Line Inputs
- Hum Cancellation on Unbalanced Line Inputs
- Line-Level Output to Feed 10k ohm Equipment Inputs
- Output Connections on Detachable Terminal Block
| Input Connector | XLR female gold contacts |
| Output Connector | Barrier block |
| Output Connections (4) | CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3) |
| Power Requirement | Passive |
| Dimensions | Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm |
| Mounting Box Req. | Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.43 lbs. |
| WEEE weight | 0.28 lbs. |
| Tariff code | 8536.69.4030 |
