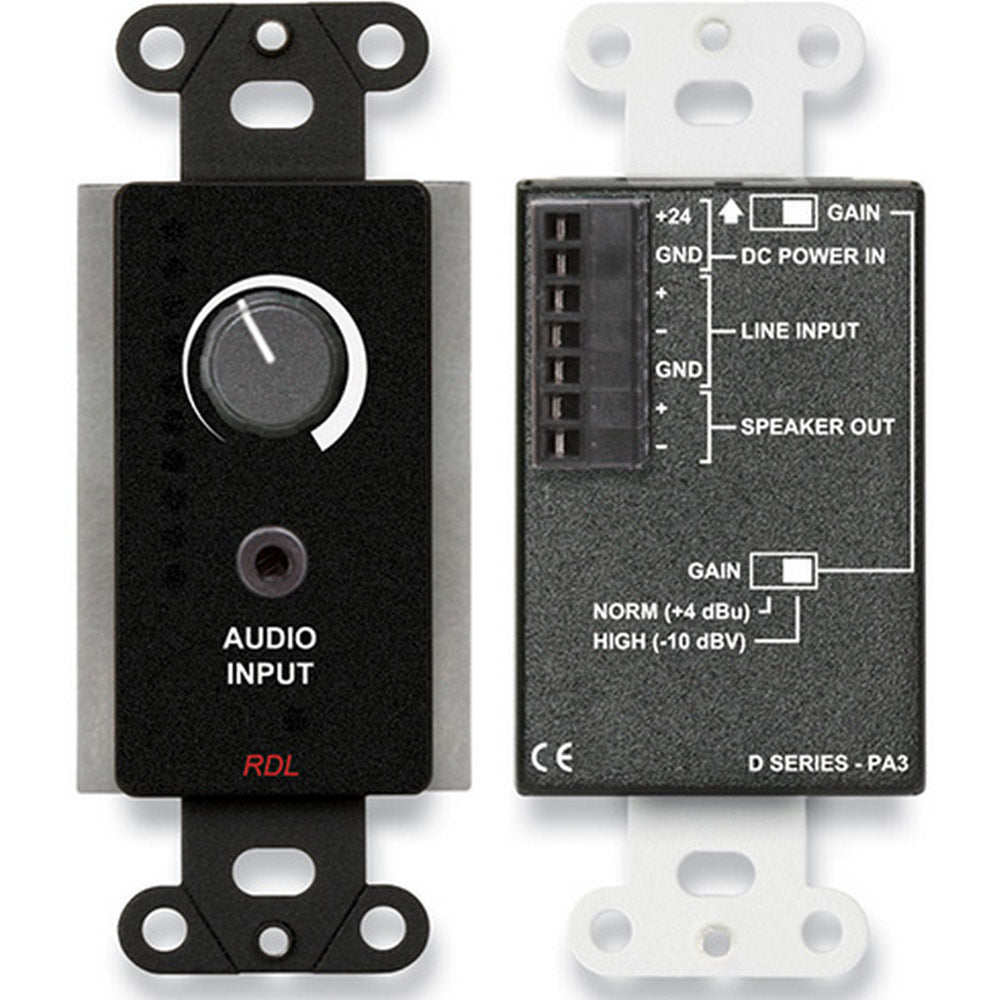

RDL DB-PA3 3.5-Watt Audio Amplfiier in Decora Wall Plate (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The D SERIES-PA3 is a high efficiency 3.5 W power amplifier with two line inputs and an amplified output to drive a 4 or 8 ohm speaker. The -PA3 features a balanced line level input that may be connected unbalanced. The gain range will accommodate standard unbalanced levels as well as professional balanced levels.
Features:
- Wall-Mounted Amplifier with 2 Inputs
- Balanced Input on the Rear Panel
- Mini-Jack Input on the Front Panel
- Automatic Switching Between Inputs
- Source Selection Using Solid-State Switching
- Front-Panel Gain Adjustment
- 3.5 Watt RMS Audio Amplifier into 8 Ohms
- 6.5 Watt RMS Audio Amplifier into 4 Ohms
- Output Drives 4 or 8 Ohm Speaker
- Speaker Output on the Rear Panel
- High-Efficiency Class D Operation
- Speaker Output Connection on Detachable Terminal Block
- Ultra-Compact All Metal Construction
- Thermal and Short-Circuit Protection
| Inputs (2) | 20 k balanced or unbalanced bridging |
| Input Level | +4 dBu nominal (Balanced, Low input sensitivity); -15 dBV nominal (Unbalanced, High input sensitivity) |
| Minimum Input Level | -18 dBu (Balanced, Max. gain); -19 dBV (Unbalanced Mini-Jack, Max. gain) |
| Maximum Input Level | +22 dBu (Low input sensitivity); +4 dBu (High input sensitivity) |
| Gain Adjustment | Single-turn audio taper (Front-panel) |
| Output Power | 3.5 W RMS (Max., into 8 ohms); 6.5 W RMS (Max., into 4 ohms) |
| Frequency Response | 20 Hz to 20 kHz (± 1 dB) |
| THD+N | < 0.1% (@ 1 kHz, 1 W) |
| Noise | < -80 dB (below 1 W RMS, balanced input); < -70 dB (below 1 W RMS, Mini-Jack input) |
| CMRR | > 50 dB (50 Hz to 120 Hz) |
| Power Requirement | 24 Vdc @ 30 mA (Idle); 55 mA (1/8 power; normal voice or music); 225 mA (3.5 W into 8 ohms) |
| Ambient Operating Environment | 0¡ C to 40¡ C Maximum; 20¡ C Recommended |

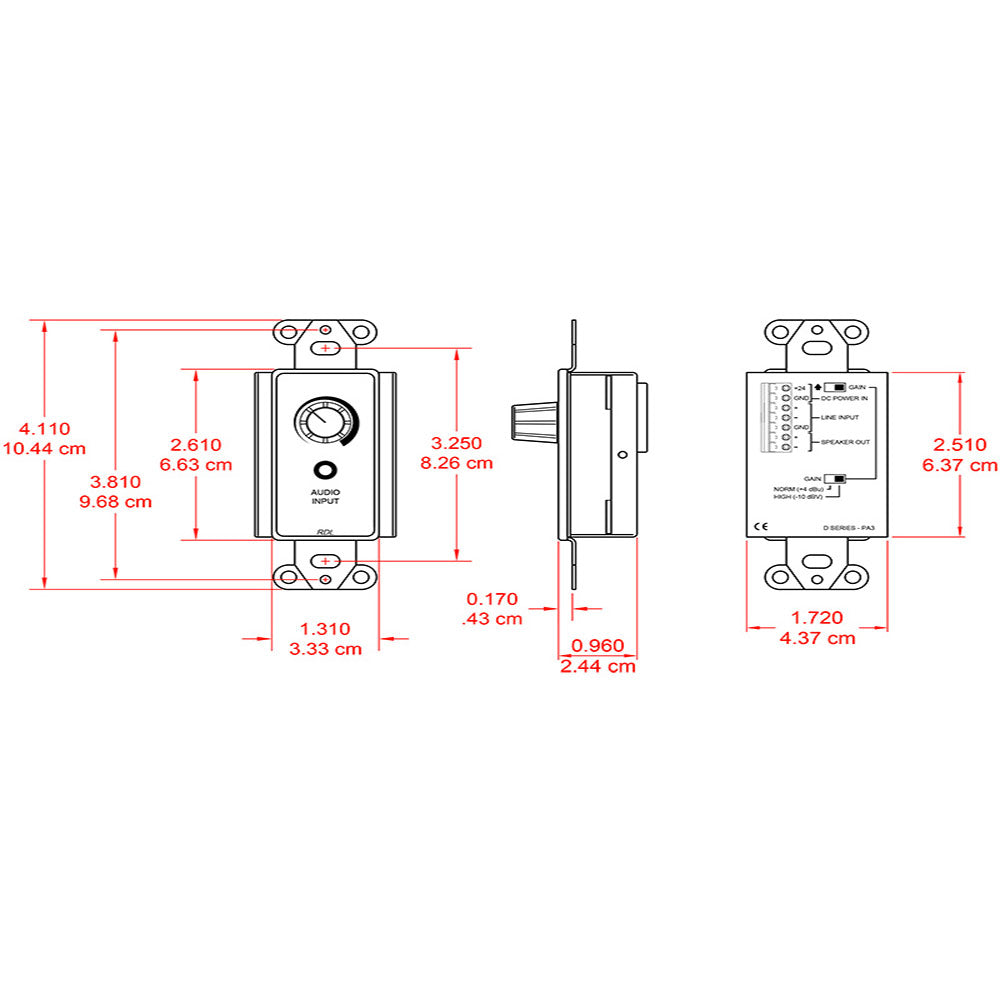

| Dimensions | Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.05 in. 5.21 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | .405 lbs. |
| WEEE weight | .270 lbs. |
| Tariff code | 8518.40.2000 |
