RDL DB-PSP1 Decora Mount Active Loudspeaker (Black)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

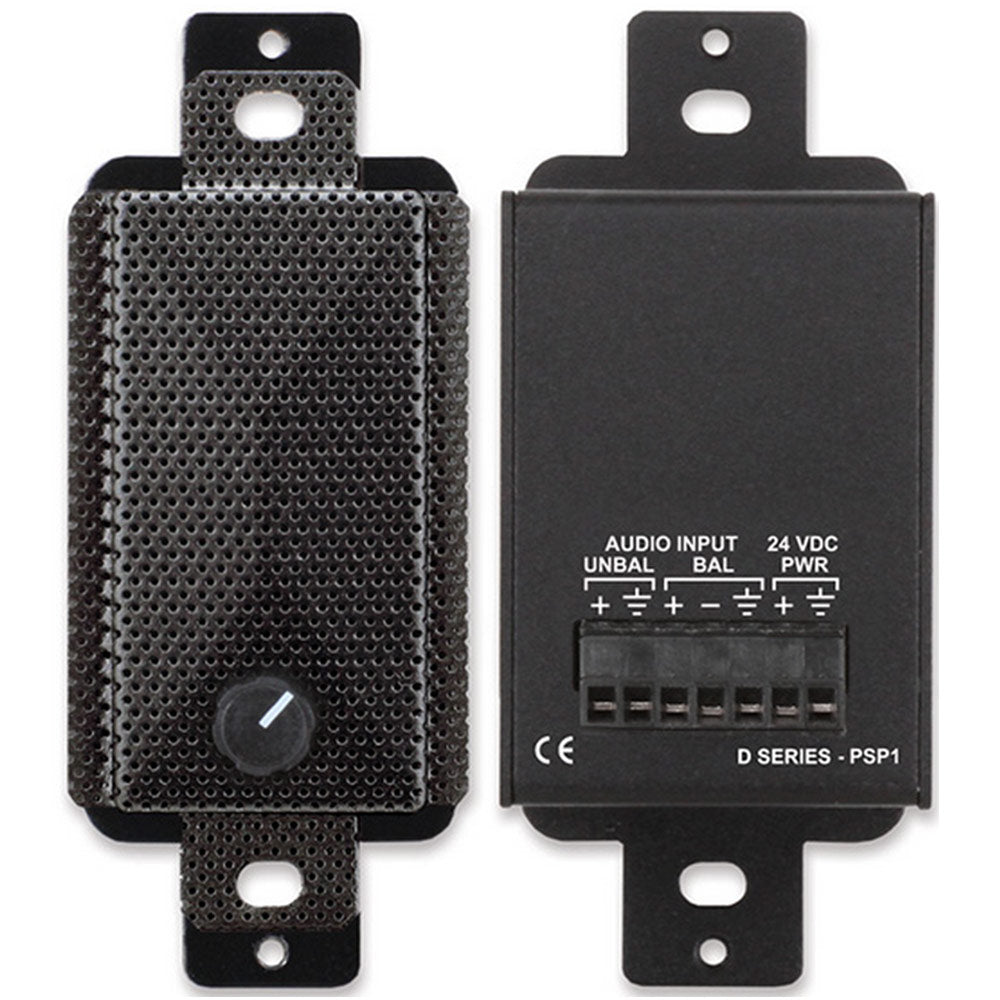

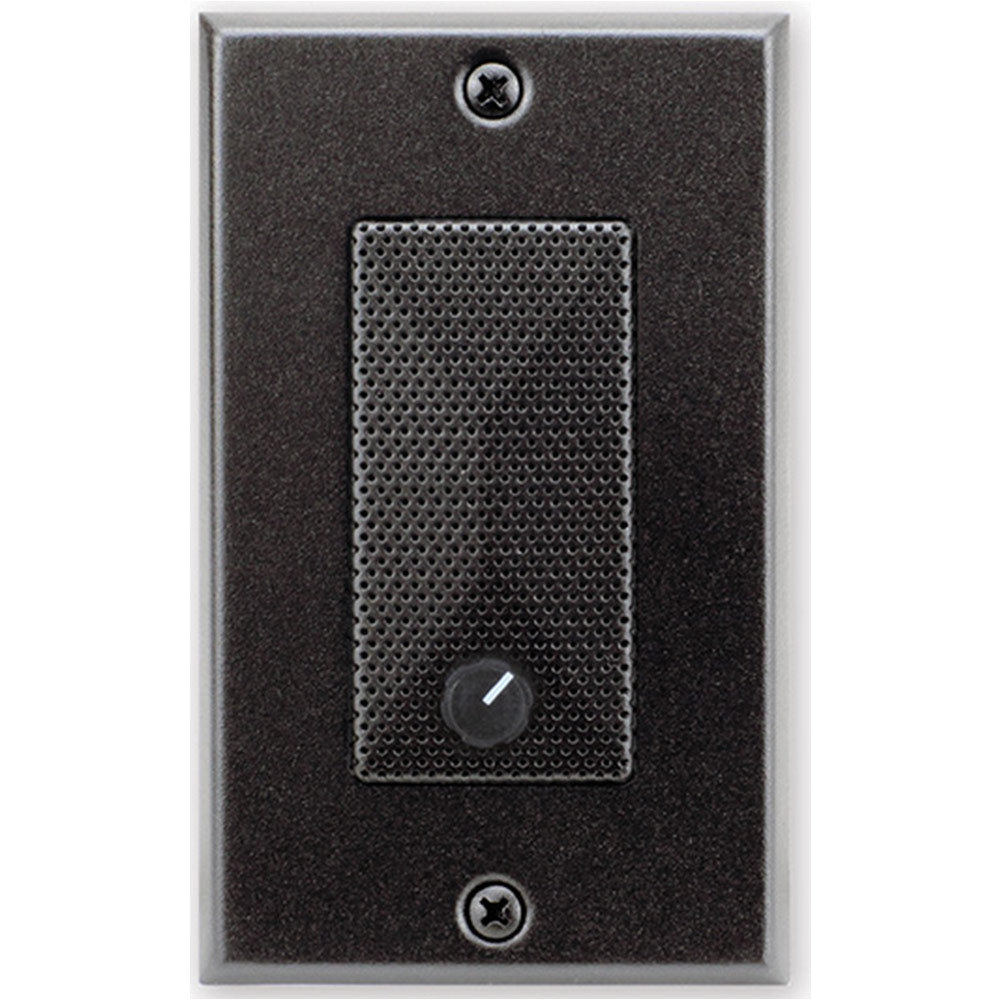

The D SERIES-PSP1 is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1 includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.
Features:
- Exceptional Audio Quality for Ultra-Compact Size
- 2 Watt RMS Audio Amplifier
- Compressor/Limiter Prevents Clipping
- Balanced +4 dBu Input on the Rear Panel
- Unbalanced -10 dBV input on the Rear Panel
- Front-Panel Gain Adjustment
- Acoustically Optimized Decora Enclosure
- Fidelity Comparable to Larger Drivers
- Hemispherical Dispersion Mounted In Wall or Flat Surface
The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.
Models are available with grills in black (DB-PSP1), white (D-PSP1), gray (DG-PSP1) or stainless steel (DS-PSP1).
| Inputs (2) | 30 k balanced or 10 k unbalanced |
| Input Level | +4 dBu nominal (Balanced); -10 dBV nominal (Unbalanced) |
| Minimum Input Level | -18 dBu (Balanced, Max. gain); -19 dBV (Unbalanced, Max. gain) |
| Maximum Input Level | +22 dBu |
| Gain Adjustment | Single-turn audio taper (Front-panel) |
| Maximum SPL | 81 dB |
| Frequency Range | 150 Hz to 20 kHz, nominal |
| CMRR | > 50 dB (50 Hz to 120 Hz) |
| Power Requirement | 24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referenced |
| Ambient Operating Environment | 0¡ C to 40¡ C Maximum; 20¡ C Recommended |

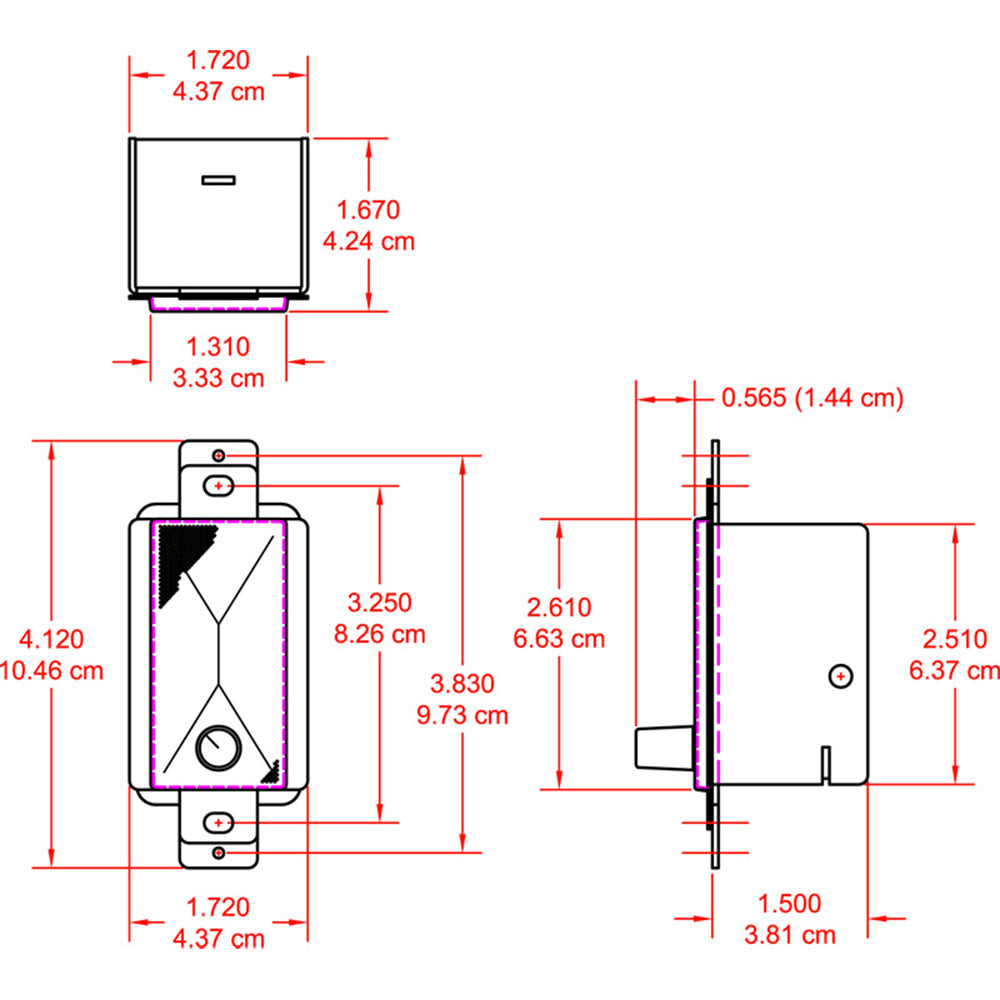

| Dimensions | Height: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.64 in. 6.7 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | .573 lbs. |
| WEEE weight | .435 lbs. |
| Tariff code | 8518.40.2000 |
The D SERIES-PSP1 is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1 includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.
Features:
- Exceptional Audio Quality for Ultra-Compact Size
- 2 Watt RMS Audio Amplifier
- Compressor/Limiter Prevents Clipping
- Balanced +4 dBu Input on the Rear Panel
- Unbalanced -10 dBV input on the Rear Panel
- Front-Panel Gain Adjustment
- Acoustically Optimized Decora Enclosure
- Fidelity Comparable to Larger Drivers
- Hemispherical Dispersion Mounted In Wall or Flat Surface
The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.
Models are available with grills in black (DB-PSP1), white (D-PSP1), gray (DG-PSP1) or stainless steel (DS-PSP1).
| Inputs (2) | 30 k balanced or 10 k unbalanced |
| Input Level | +4 dBu nominal (Balanced); -10 dBV nominal (Unbalanced) |
| Minimum Input Level | -18 dBu (Balanced, Max. gain); -19 dBV (Unbalanced, Max. gain) |
| Maximum Input Level | +22 dBu |
| Gain Adjustment | Single-turn audio taper (Front-panel) |
| Maximum SPL | 81 dB |
| Frequency Range | 150 Hz to 20 kHz, nominal |
| CMRR | > 50 dB (50 Hz to 120 Hz) |
| Power Requirement | 24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referenced |
| Ambient Operating Environment | 0¡ C to 40¡ C Maximum; 20¡ C Recommended |
| Dimensions | Height: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.64 in. 6.7 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | .573 lbs. |
| WEEE weight | .435 lbs. |
| Tariff code | 8518.40.2000 |
