RDL DB-RC4RU 4-Channel Remote Source Selector for RACK-UP (Black)


  • Dale #:

    RDL-DBRC4RU
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The D-RC4RU is a wall-box mounted remote module designed to directly control an RDL RU-SX4A Audio Switcher Module. The RU-SX4A provides solid state switching of one of four balanced/unbalanced audio inputs to a single balanced/ unbalanced audio output. The D-RC4RU connects directly to the power a... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The D-RC4RU is a wall-box mounted remote module designed to directly control an RDL RU-SX4A Audio Switcher Module. The RU-SX4A provides solid state switching of one of four balanced/unbalanced audio inputs to a single balanced/ unbalanced audio output. The D-RC4RU connects directly to the power and SLAVE terminals of the RU-SX4A using a 3-pair cable (or a 6-conductor cable). The D-RC4RU may be used to directly control the RDL RU-VSX4 Video Switcher.

Features:

  • Remote Selection of 4 Audio Sources
  • Single-Button Selection for Each Source
  • Remote Selection of Balanced Audio Sources
  • 3-pair (or 6 conductor) Remote Wiring
  • Professional Aesthetic Appearance
  • Companion to other RDL Remote Controls
  • LED Indication

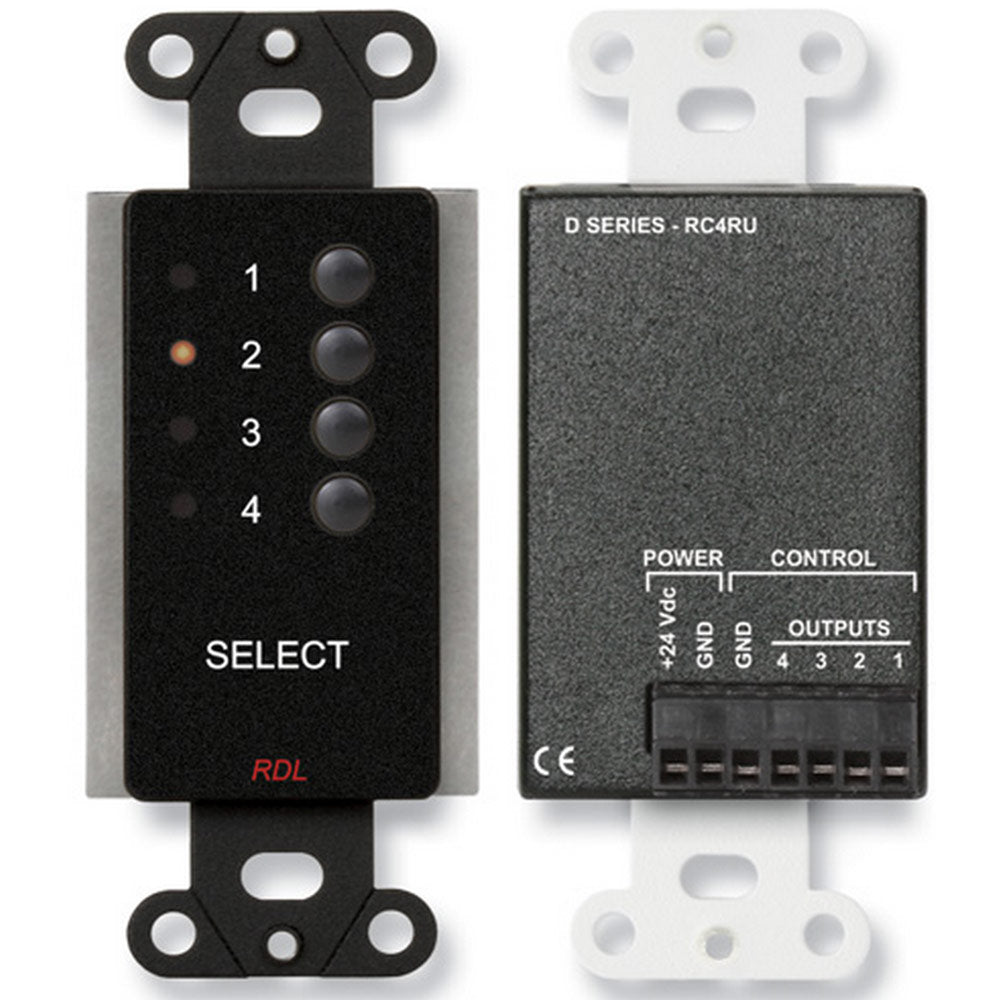

The front panel of the D-RC4RU features four pushbuttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other 3 buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED adjacent to each button shows which source is selected. There are 4 output terminals on the D-RC4RU. Each of these is an open-collector output, which is pulled to ground when the output is selected. For stereo installations, the D-RC4RU is capable of driving two RU-SX4As simultaneously.

In installations where ULTRASTYLE wall controls are preferred, use the RUC-4 Universal Remote Control.

More +

Product Specs

Selectors (4) Momentary pushbuttons (1 for each channel)
Indicators (4) Red LEDs, (indicates channel selected)
Connections Detachable terminal block; Interfaces directly with RDL RU-SX4A
Ambient Operating Environment 0° C to 55° C
Power Requirement GROUND-REFERENCED, 24 Vdc @ 30 mA

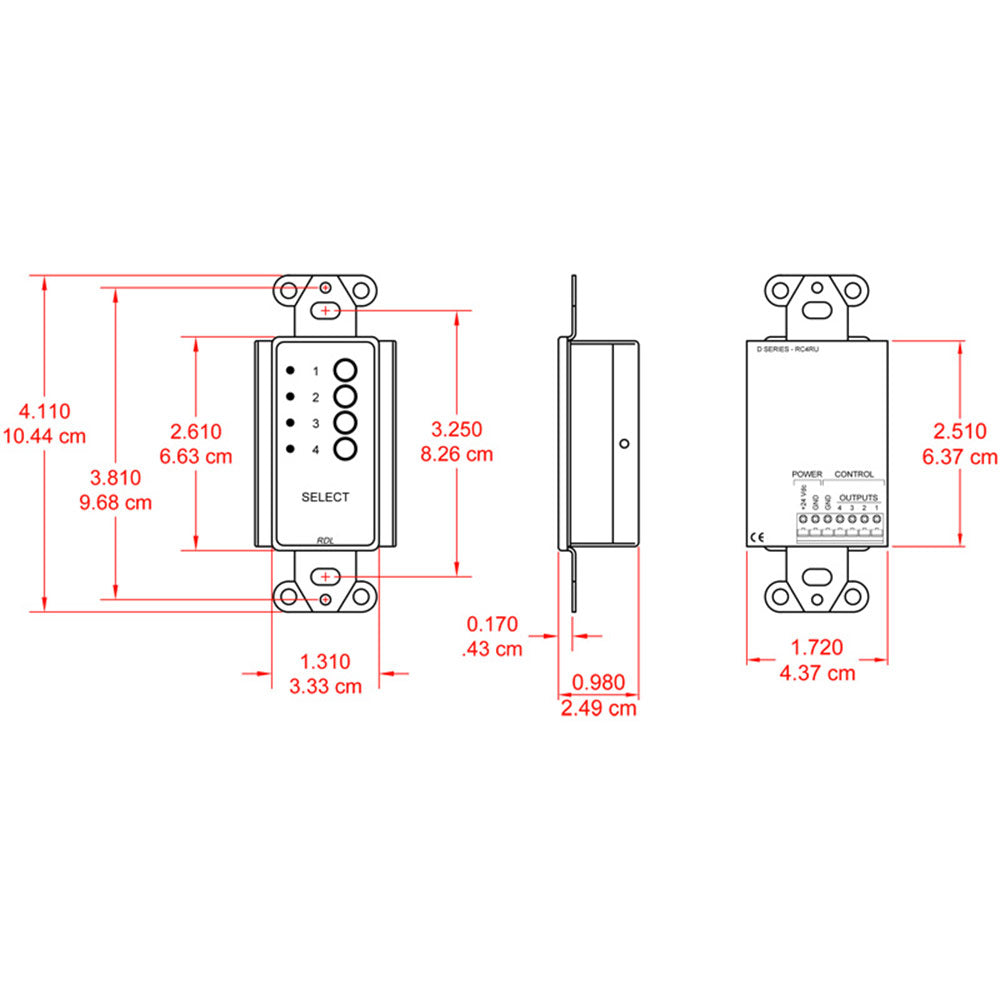

Mounting Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
Package Type Cardboard Box
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight 0.38 lbs.
WEEE weight 0.23 lbs.
Tariff code 8517.62.0050
