RDL DB-RC4ST 4-Channel Remote Source Selector for ST-SX4 (Black)


  • Dale #:

    RDL-DBRC4ST
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The D-RC4ST is a wall-box mounted remote module designed to directly control an RDL ST-SX4 Audio Switcher Module. The ST-SX4 provides solid-state switching of one of four unbalanced audio inputs to a single unbalanced audio output. The D-RC4ST connects directly to the POWER and CTRL terminals of ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The D-RC4ST is a wall-box mounted remote module designed to directly control an RDL ST-SX4 Audio Switcher Module. The ST-SX4 provides solid-state switching of one of four unbalanced audio inputs to a single unbalanced audio output. The D-RC4ST connects directly to the POWER and CTRL terminals of the ST-SX4 using either a 3-conductor cable or a single shielded pair.

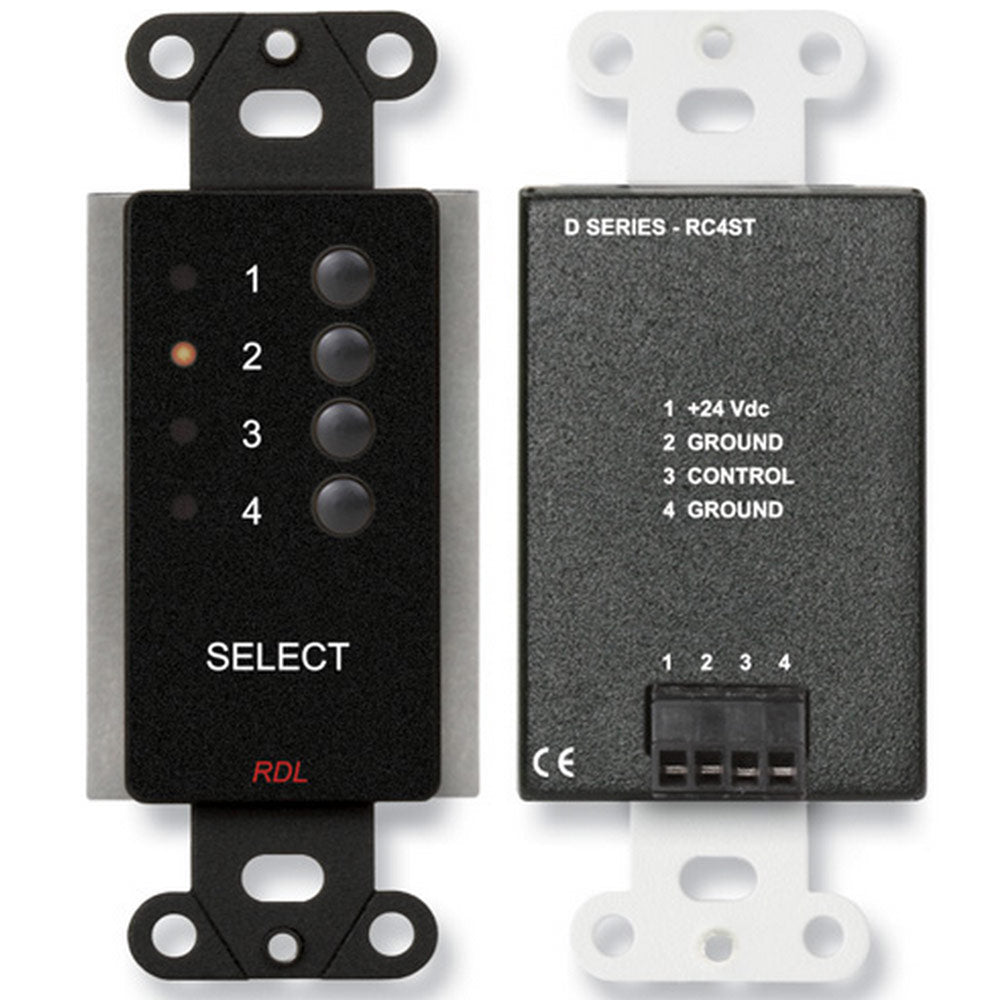

The front panel of the D-RC4ST features four pushbuttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other three buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED, adjacent to each button shows which source is selected. For stereo installations, the SLAVE output from the ST-SX4 is used to drive the CTRL input of an additional ST-SX4.

Features:

  • Remote Selection of 4 Audio Sources
  • Single-Button Selection for Each Source
  • Remote Selection of Unbalanced Audio Sources
  • 3-Conductor Remote Wiring
  • Professional Aesthetic Appearance
  • Companion to other RDL® Remote Controls

More +

Product Specs

Selectors (4)Momentary pushbuttons (1 for each channel)
Indicators (4)Red LEDs (indicates channel selected)
ConnectionsDetachable terminal block; Interfaces directly with RDL ST-SX4
Ambient Operating Environment0° C to 55° C
Power RequirementGROUND-REFERENCED, 24 Vdc @ 30 mA

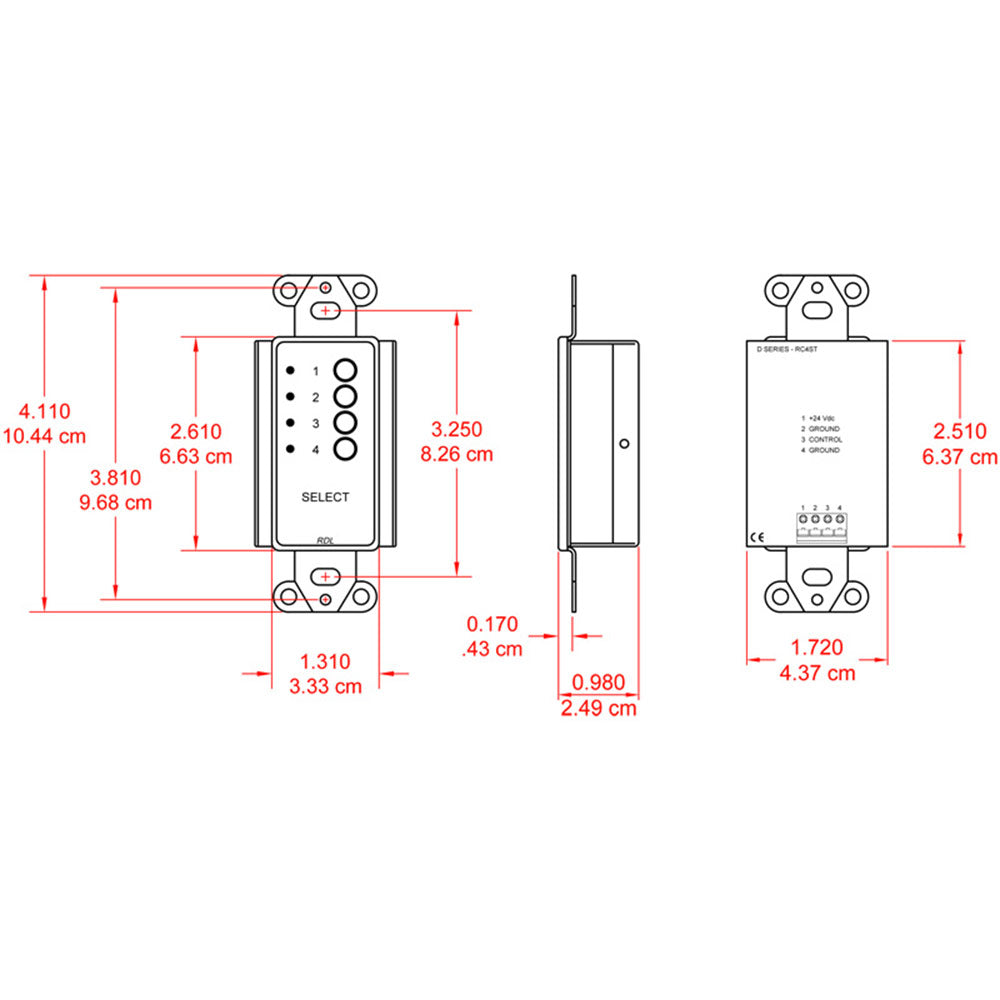

MountingMounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.375 lbs.
WEEE weight0.22 lbs.
Tariff code8517.62.0050
