Dale #:
RDL-DBRCS4Availability:
Reserve Yours NowThis item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.
Please Note: requires PS-24AS Power Supply (sold separately)
Description
The D-RCS4 is the ideal choice where sources are to be selected from a single or from multiple remote control locations, and visual indication is desired. The D-RCS4 is designed to directly interface with RDL control modules, such as the RACK-UP® series RU-SX4A Audio Selector. The D-RCS4 momentar... Read MoreRetail Price: $147.61 Our Price: $108.00
Free Shipping (Continental US)
Suggested Accessories
Description

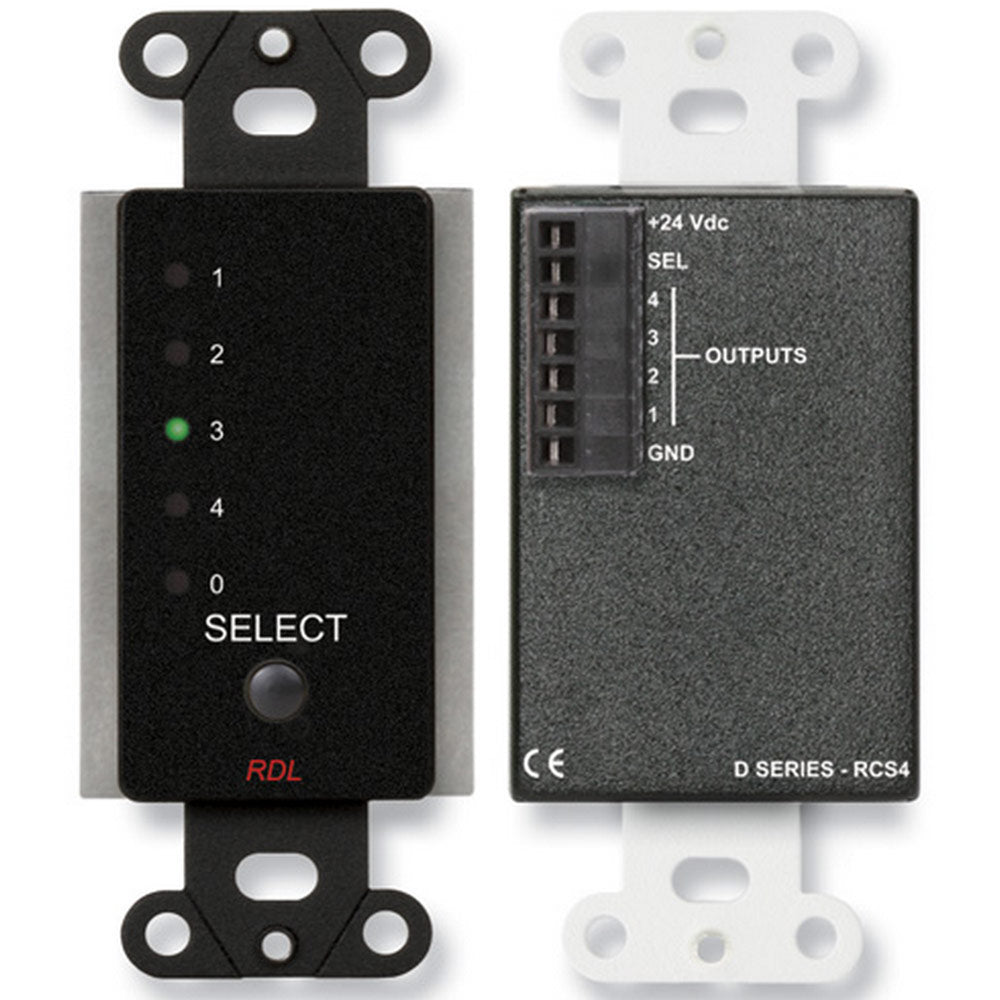

The D-RCS4 is the ideal choice where sources are to be selected from a single or from multiple remote control locations, and visual indication is desired.
The D-RCS4 is designed to directly interface with RDL control modules, such as the RACK-UP® series RU-SX4A Audio Selector. The D-RCS4 momentary pushbutton sends a stepping signal back to the RDL control module. When connected to the RU-SX4A, pushing the button on the D-RCS4 causes the source to advance sequentially to the next input. The audio is muted during stepping to avoid annoying bursts of audio.
In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote Control.
Features:
More +
Product Specs
LED Inputs | Grounding input activates LED; direct connection from RDL selector module |
Indicators (5) | Green LEDs for each of 4 selected channels; red LED indicates no channel selected |
Outputs | SEL, 15 Vdc @ 5 mA (pushbutton actuated) |
Ambient Operating Environment | 0° C to 55° C |
Connections | Detachable terminal block |
Power Requirement | GROUND-REFERENCED, 24 Vdc @ 25 mA |

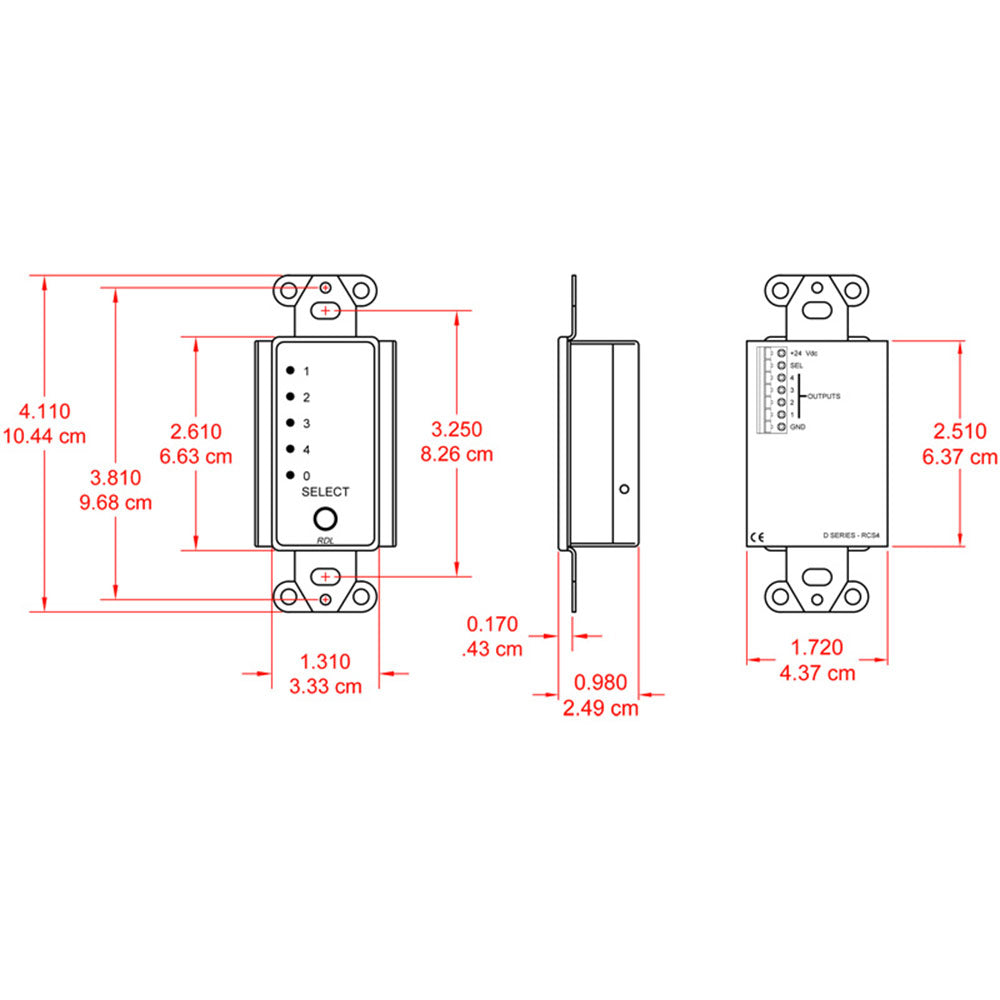

Mounting | Mounts in US electrical box or RDL international wall boxes WB-1U, WB-2U; decorative plate available separately |
Package Type | Cardboard Box |
Package Dimensions | 3.625 x 4.625 x 2.125 in. |
Shipping Weight | 0.37 lbs. |
WEEE weight | 0.22 lbs. |
Tariff code | 8517.62.0050 |
More +
