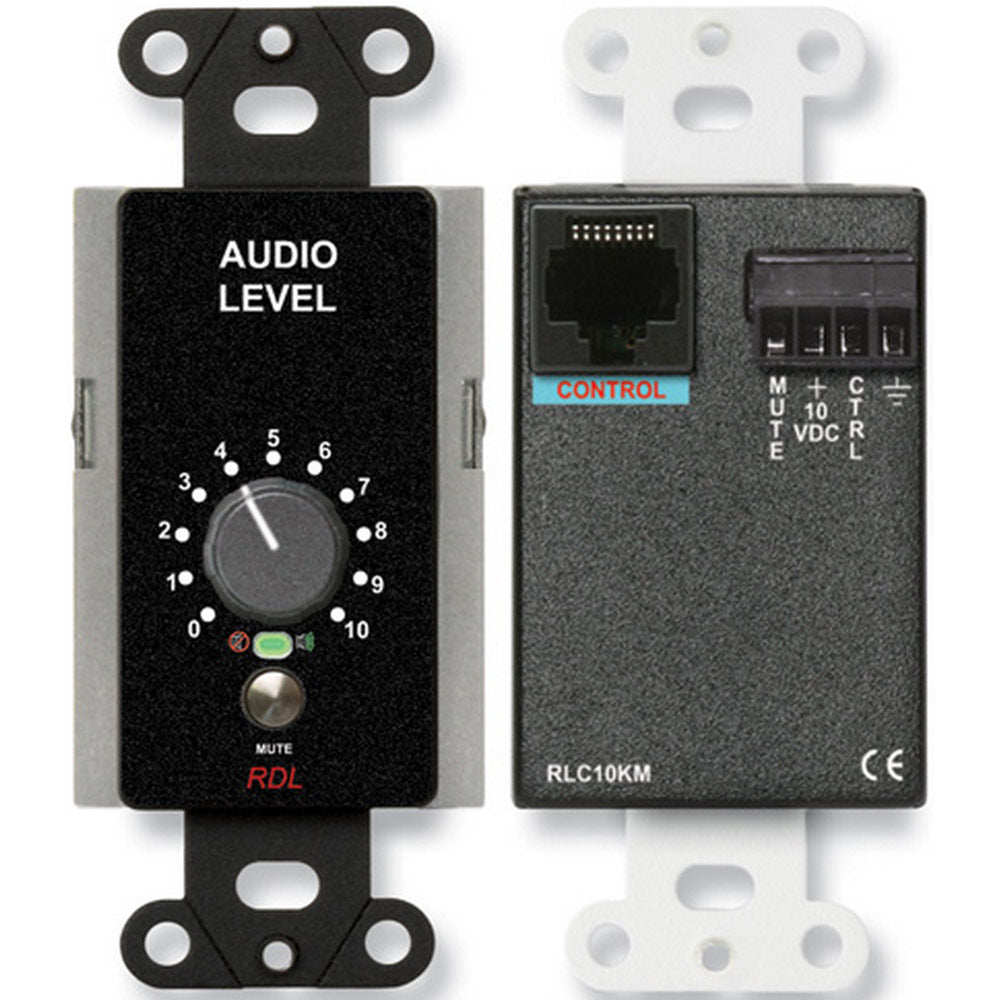

RDL DB-RLC10KM Remote Level Control - 0 to 10K Ohm with Muting (Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The RLC10K contains a high-quality 10k ohm potentiometer for setting the control voltage.
The RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.
Features:
- Remote Level Control Panel
- Rotary Control
- Direct Connection to RDL® VCA Modules
- Single Control Location
- Premium-Quality Remote Panel
- Professional Aesthetic Appearance
| Resistance | 0 to 10 k , linear |
| Mute button | Momentary |
| Indicator | Red = Muted (dc variable output = 0 volts); Green = Active (dc variable output tracks front panel knob) |
| MUTE Output | 25 mA open-collector |
| Mounting | Mounts in standard US electrical box; cover plate available separately |

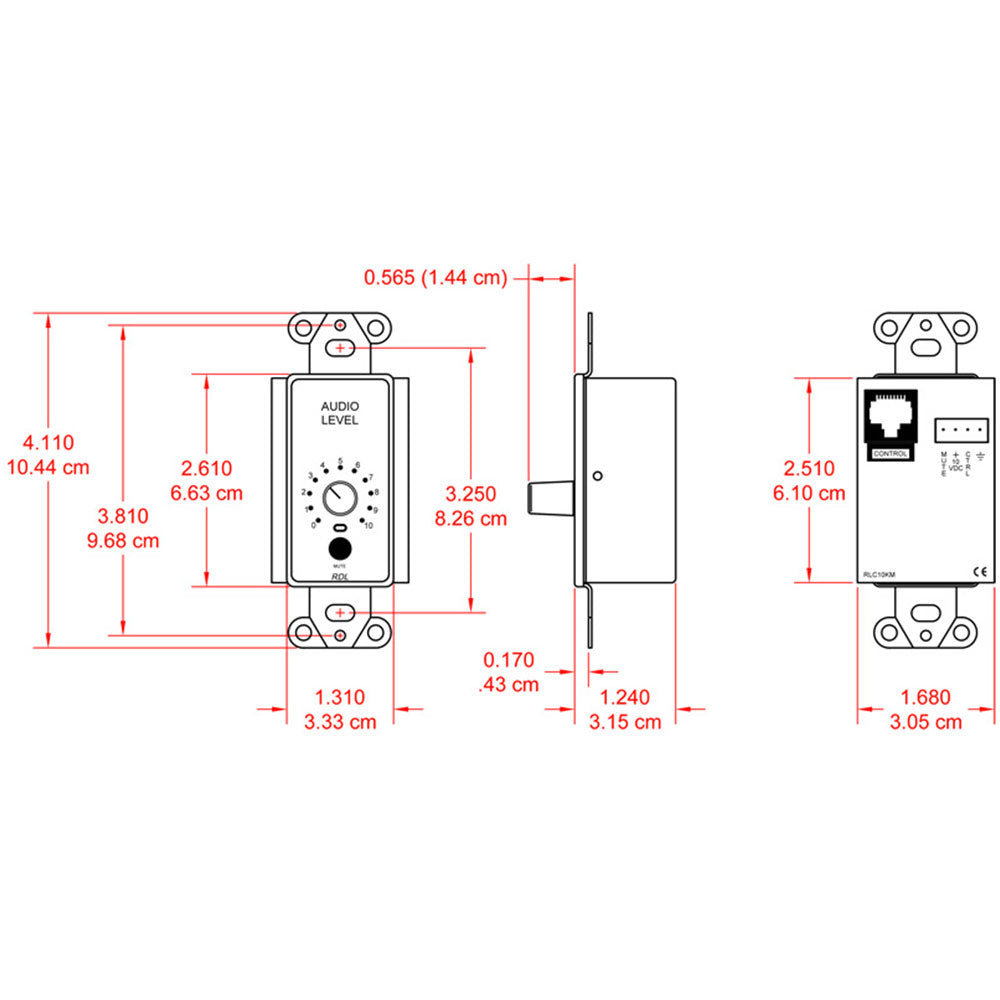

| Dimensions | Height: 4.1 in. 10.4 cm; Depth: 1.44 in. 3.7 cm (without knob); Depth: 2 in. 5 cm (with knob); Width: 1.7 in. 4.33 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.43 lbs. |
| WEEE weight | 0.28 lbs. |
| Tariff code | 8517.62.0050 |
The RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The RLC10K contains a high-quality 10k ohm potentiometer for setting the control voltage.
The RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.
Features:
- Remote Level Control Panel
- Rotary Control
- Direct Connection to RDL® VCA Modules
- Single Control Location
- Premium-Quality Remote Panel
- Professional Aesthetic Appearance
| Resistance | 0 to 10 k , linear |
| Mute button | Momentary |
| Indicator | Red = Muted (dc variable output = 0 volts); Green = Active (dc variable output tracks front panel knob) |
| MUTE Output | 25 mA open-collector |
| Mounting | Mounts in standard US electrical box; cover plate available separately |
| Dimensions | Height: 4.1 in. 10.4 cm; Depth: 1.44 in. 3.7 cm (without knob); Depth: 2 in. 5 cm (with knob); Width: 1.7 in. 4.33 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.43 lbs. |
| WEEE weight | 0.28 lbs. |
| Tariff code | 8517.62.0050 |
