RDL DB-RLC10KM Remote Level Control - 0 to 10K Ohm with Muting (Black) - Custom Engraving Option


  • Dale #:

    RDL-DBRLC10KMC
  • Availability:

    Special Order Item
  • RDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.

Description

The RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The RLC10K contains a high-quality 10k ohm potentiometer for setting the control voltage.... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

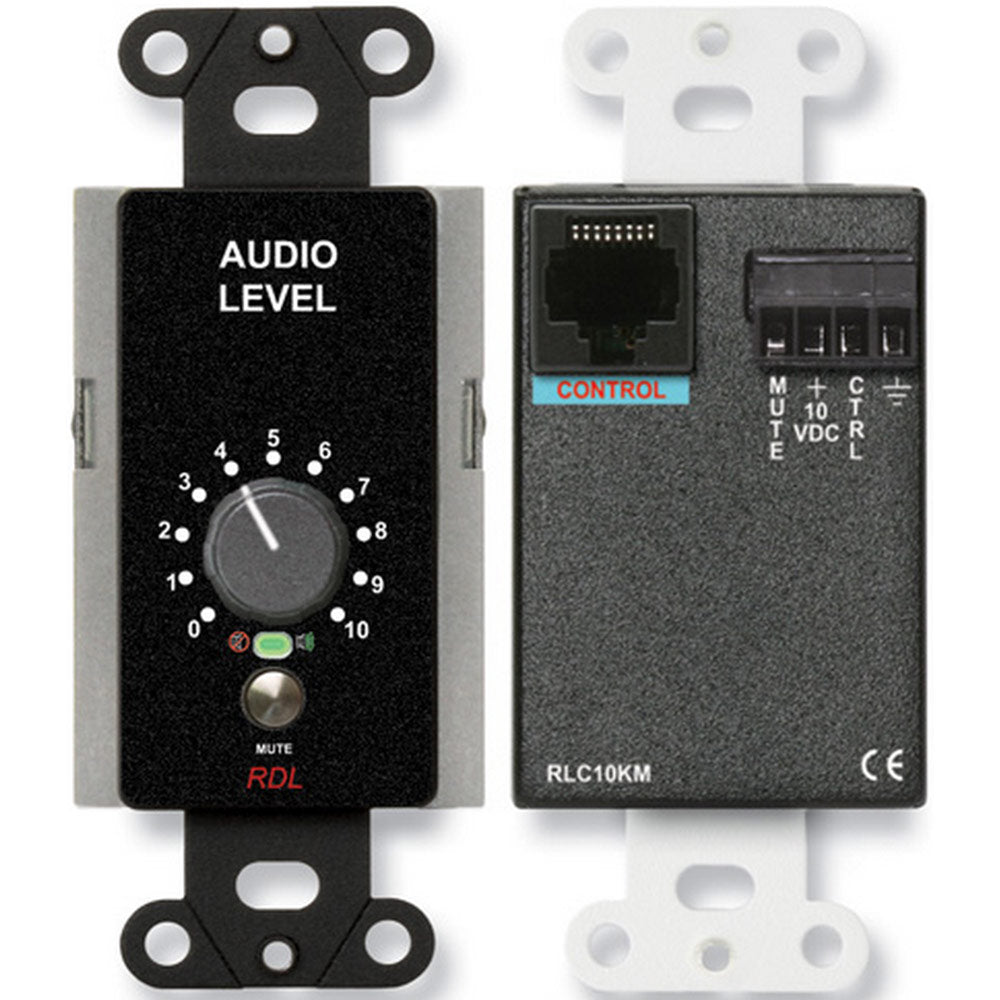

The RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3-wire control input of the VCA module. The RLC10K contains a high-quality 10k ohm potentiometer for setting the control voltage.

The RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.

Features:

  • Remote Level Control Panel
  • Rotary Control
  • Direct Connection to RDL® VCA Modules
  • Single Control Location
  • Premium-Quality Remote Panel
  • Professional Aesthetic Appearance

More +

Product Specs

Resistance0 to 10 k , linear
Mute buttonMomentary
IndicatorRed = Muted (dc variable output = 0 volts); Green = Active (dc variable output tracks front panel knob)
MUTE Output25 mA open-collector
MountingMounts in standard US electrical box; cover plate available separately

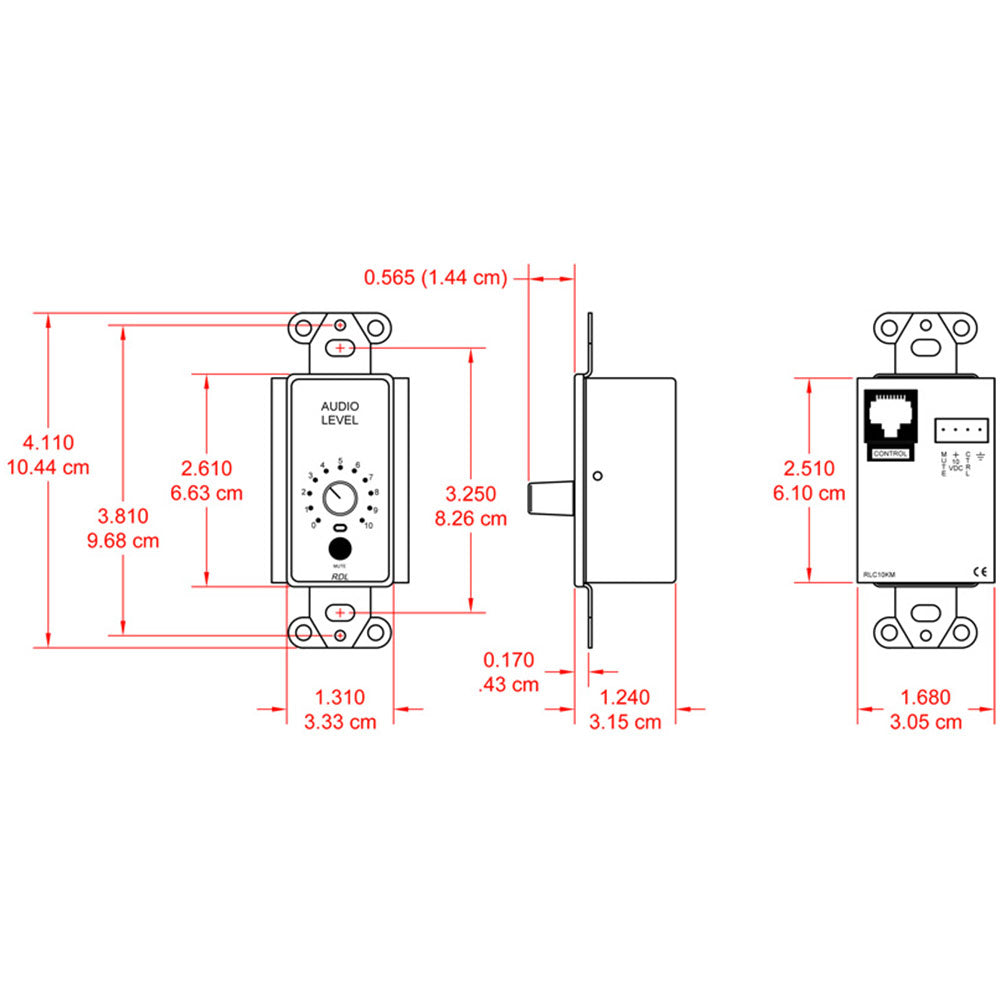

DimensionsHeight: 4.1 in. 10.4 cm; Depth: 1.44 in. 3.7 cm (without knob); Depth: 2 in. 5 cm (with knob); Width: 1.7 in. 4.33 cm
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.43 lbs.
WEEE weight0.28 lbs.
Tariff code8517.62.0050

More +
