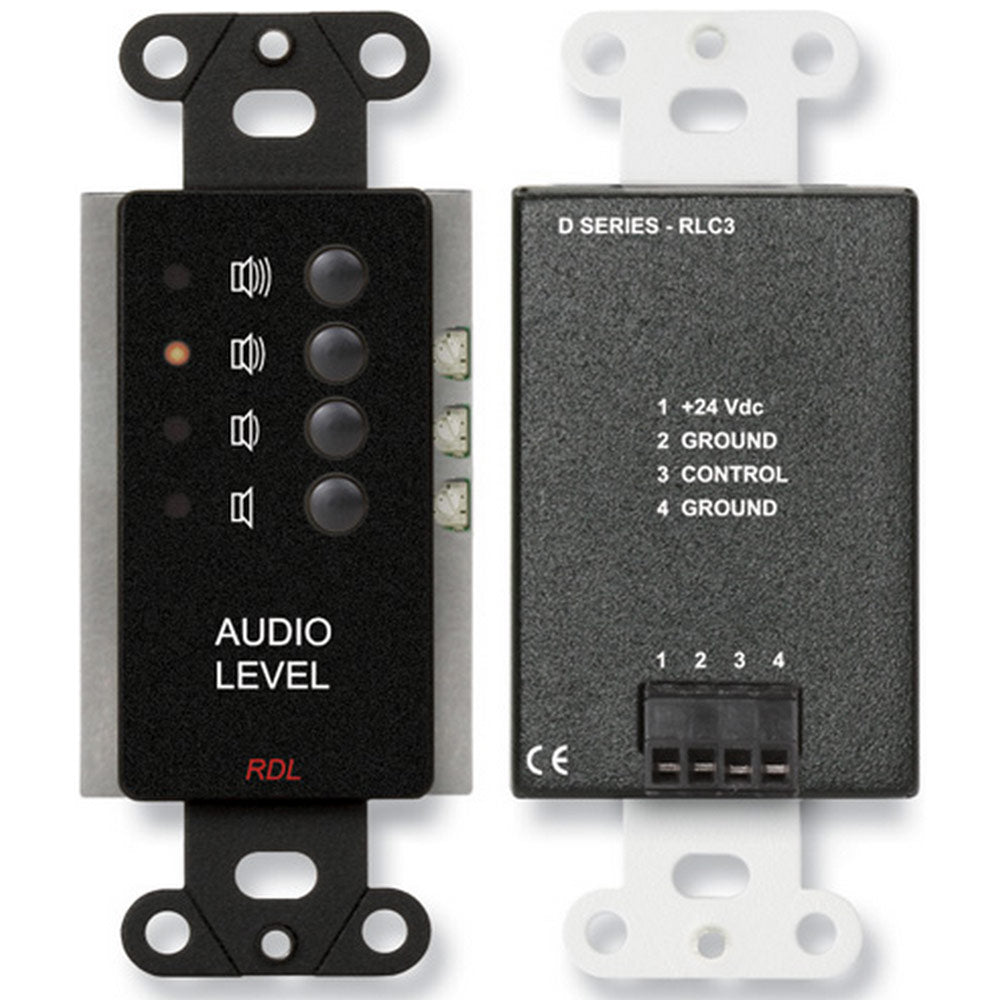

RDL DB-RLC3 Remote Level Control with Preset Levels (Black)


  • Dale #:

    RDL-DBRLC3
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The RLC10KM is the ideal companion to RDL VCA modules where levels are to be controlled from a single remote location and pushbutton muting is desired. It is designed to directly interface with the 3 wire control input of an RDL VCA module. A single shielded pair is normally used. The RLC10KM con... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The RLC10KM is the ideal companion to RDL VCA modules where levels are to be controlled from a single remote location and pushbutton muting is desired. It is designed to directly interface with the 3 wire control input of an RDL VCA module. A single shielded pair is normally used. The RLC10KM contains a long life 10k ohm potentiometer for setting the control voltage. The front panel has 10 graphic increments which provide a visual indication of the level setting. A MUTE button alternately mutes or un-mutes the audio in the associated RDL VCA product. An LED MUTE indicator glows red when the output is muted (0 volts dc), and turns green when the output is active (dc output voltage set by control). The RLC10KM features a standard RDL white front panel. The RLC10KMS is offered in stainless steel with custom lettering available. These finishes match other RDL remote selectors and jack plates for a visually appealing installation of multiple controls.

Features:

  • Remote Level Control Panel
  • Mute Button Toggles Output On and Off
  • Red/Green On/Off Mute Indicator
  • Single-Turn Rotary Control
  • Single Control Location
  • Direct Connection to RDL VCA Modules
  • Direct Control of Modules with RJ45 VCA Control
  • RJ45 or Discrete Wiring Connections

More +

Product Specs

Interface Direct connection with RDL modules using 0 to 10 Vdc, 10 k resistive control (see ST-VCA3, RU-VCA2)
Output Selectable resistance (CTRL Terminal ) to ground in 4 steps:
High:10 kOhm, 0 dB
Norm:Adjustable, -3 dB to -30 dB
Low:Adjustable, -5 dB to -40 dB
Min:Adjustable, -10 dB to Off
Connections Detachable terminal block
Ambient Operating Environment 0° C to 55° C
Power Requirement Ground-referenced, 24 Vdc @ 30 mA
Mounting Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately.

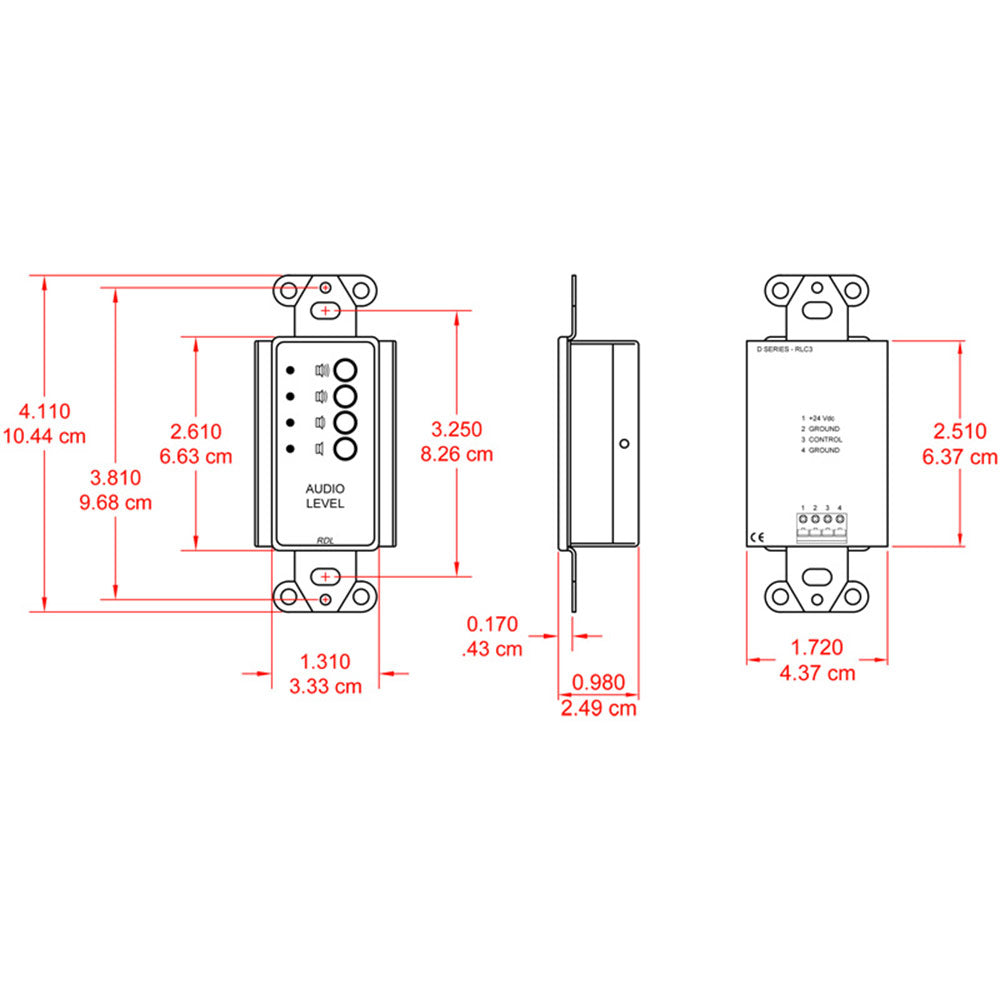

Dimensions Height: 4.11 in. 10.44 cm; Width: 1.66 in. 4.06 cm; Depth: 1.72 in. 4.37 cm
Package Type Cardboard Box
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight 0.37 lbs.
WEEE weight 0.22 lbs.
Tariff code 8517.62.0050
