DALE SKU # RDL-DBRN02

RDL DB-RN02 - 0x2 Wall-Mount Mic/Line Dante Interface (Black)

Sale price$679.00 Regular price$899.00
Save $220.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

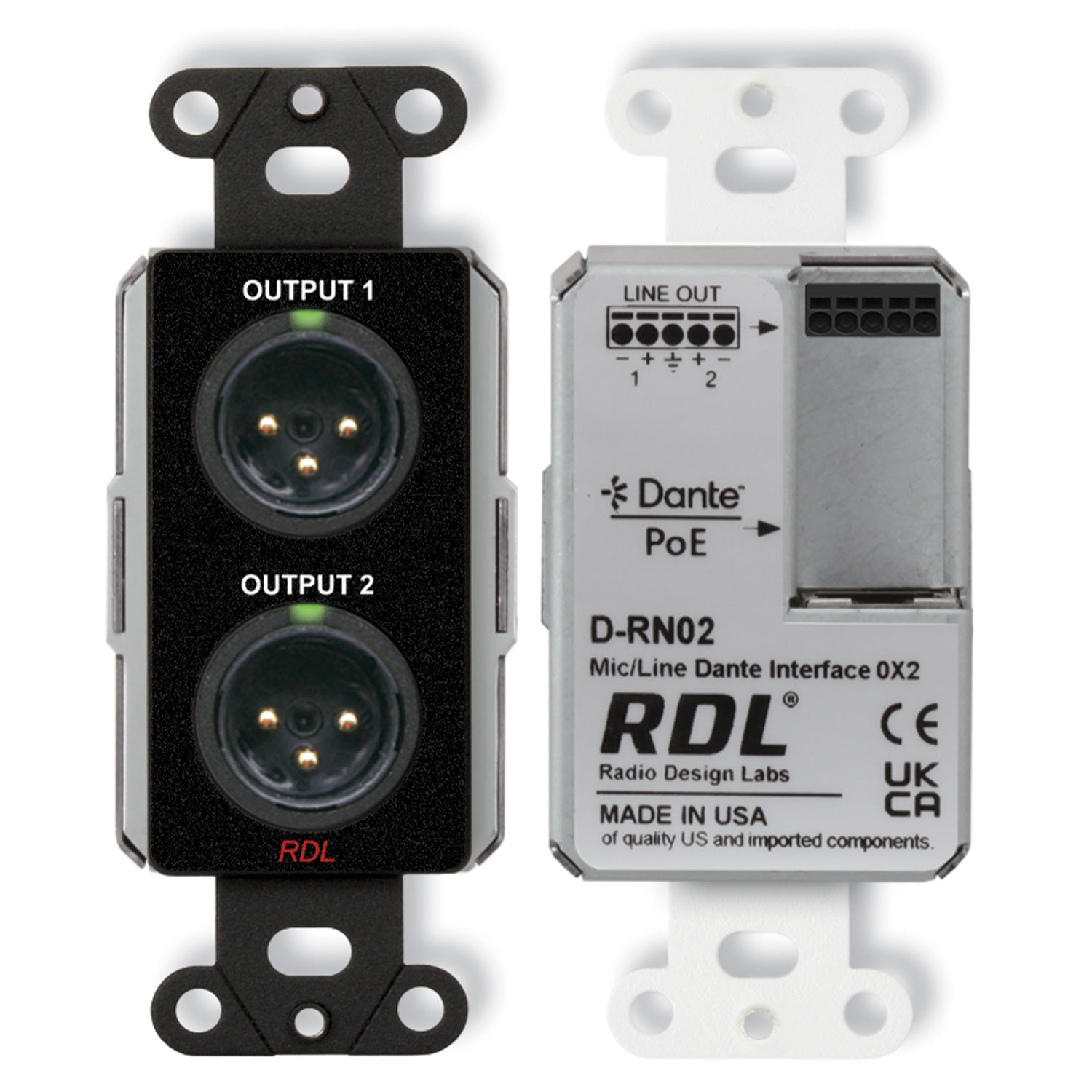

    The D-RN02 is a complete wall-mounted Dante or AES67 audio network interface. It features two balanced XLR mic or line outputs on the front panel and on a rear-panel detachable wiring block. The module is configured and adjusted using RDL CONSOLE or other network control software. The D-RN02 fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back boxes with 60 mm distance screw hole mounting centers. The D-RN02 is PoE powered and is available in multiple finishes with optional customized graphics.

    Network to Mic/Line Outputs Section
    Two Dante or AES67 audio channels are converted to balanced line level feeding front-panel XLR jacks and a rear-panel detachable wiring block. Each output provides balanced +4 dBu for a network digital audio level of -18 dBFS. Each output is equipped with a software- controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 63 dB, then OFF. Each front-panel output is equipped with a software-controlled mic/line output attenuator pad. When an output is set to mic level, the step attenuator reduces the mic output in 1 dB steps to a maximum attenuation of 63 dB below mic level, then OFF.

    Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.

    The D-RN02 is a professional grade product delivering studio-quality fidelity and low noise performance, coupled through XLR jacks housed in a steel chassis mounted with a powder-coated or stainless-steel Decora front plate.

    The D-RN02's superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A. for continuous duty in demanding installations. Designed to outperform. Built to last.

    Features:

    • Single-Gang Dante or AES67 Network Interface for Two Audio Outputs
    • Two Balanced Outputs on Front Panel XLRs and on Rear Panel Detachable Wiring Block
    • Front-Panel XLR Outputs are Software-Selectable for Mic or Line Level
    • Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
    • Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
    • Compatible with RDL Network Remote Controls
    • High Resolution 24 Bit Digital to Analog Conversion
    • Legendary RDL Studio Quality, Low-Noise Performance
    TYPICAL PERFORMANCE
    Network Connector: RJ45 with Link and Speed indicators
    Digital Audio Ethernet Protocol: Dante
    Transmission Rate: 100 Mbps
    Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
    Bit Depth Supported: 24 bits
    Audio Operating Level: -18 dBFS = +4 dBu
    Reference Level: 0 dBFS = +22 dBu
    Network to Mic/Line Outputs Section
    Outputs (2): Balanced, XLR and detachable wiring block (2)
    Output Level (operating): +4 dBu (nominal) balanced
    Output Level (maximum): +22 dBu balanced
    Output Attenuator: Software-controlled,
    0 to -63 dB and OFF
    (analog output per received network channel)
    Output Impedance: 150 ? balanced
    Frequency Response: Mic: 20 Hz to 20 kHz (± 0.5 dB);
    Line: 20 Hz to 20 kHz (± 0.5 dB)
    THD+N: < 0.1%
    THD: < 0.01% (1 kHz)
    Noise: < -80 dB (below +4 dBu); < -100 dB (below +22 dBu)
    Crosstalk: Below Noise Floor (20 Hz to 20 kHz at operating level, output to output)
    Headroom above +4 dBu: > 18 dB
    Indicators (4): Ethernet Link and Speed (2, rear panel); Sync and Power (2, front panel)
    Ambient Operating Environment: 0¡ C to 50¡ C
    Power Requirement: PoE Class 0, IEEE 802.3af
    Specification Conditions: Gain/Level: ± 1 dB;
    Source termination: 150 ?
    Dimensions: 1.80" (4.57 cm) W;
    4.11" (10.44 cm) H;
    2.09" (5.31 cm) D
    Package Type: Cardboard Box
    Package Dimensions: 2.75" (6.99 cm) x
    6.7" (17.02 cm) x
    6.25" (15.88 cm)
    Shipping Weight: 0.69 lbs. (0.313 kg)
    WEEE weight: 0.43 lbs. (0.195 kg)
    US Tariff code: 8543.70.9100
    EU Tariff code: 8543.70.0600

    The D-RN02 is a complete wall-mounted Dante or AES67 audio network interface. It features two balanced XLR mic or line outputs on the front panel and on a rear-panel detachable wiring block. The module is configured and adjusted using RDL CONSOLE or other network control software. The D-RN02 fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back boxes with 60 mm distance screw hole mounting centers. The D-RN02 is PoE powered and is available in multiple finishes with optional customized graphics.

    Network to Mic/Line Outputs Section
    Two Dante or AES67 audio channels are converted to balanced line level feeding front-panel XLR jacks and a rear-panel detachable wiring block. Each output provides balanced +4 dBu for a network digital audio level of -18 dBFS. Each output is equipped with a software- controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 63 dB, then OFF. Each front-panel output is equipped with a software-controlled mic/line output attenuator pad. When an output is set to mic level, the step attenuator reduces the mic output in 1 dB steps to a maximum attenuation of 63 dB below mic level, then OFF.

    Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.

    The D-RN02 is a professional grade product delivering studio-quality fidelity and low noise performance, coupled through XLR jacks housed in a steel chassis mounted with a powder-coated or stainless-steel Decora front plate.

    The D-RN02's superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A. for continuous duty in demanding installations. Designed to outperform. Built to last.

    Features:

    • Single-Gang Dante or AES67 Network Interface for Two Audio Outputs
    • Two Balanced Outputs on Front Panel XLRs and on Rear Panel Detachable Wiring Block
    • Front-Panel XLR Outputs are Software-Selectable for Mic or Line Level
    • Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps
    • Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software
    • Compatible with RDL Network Remote Controls
    • High Resolution 24 Bit Digital to Analog Conversion
    • Legendary RDL Studio Quality, Low-Noise Performance
    TYPICAL PERFORMANCE
    Network Connector: RJ45 with Link and Speed indicators
    Digital Audio Ethernet Protocol: Dante
    Transmission Rate: 100 Mbps
    Sample Rates Supported: 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz
    Bit Depth Supported: 24 bits
    Audio Operating Level: -18 dBFS = +4 dBu
    Reference Level: 0 dBFS = +22 dBu
    Network to Mic/Line Outputs Section
    Outputs (2): Balanced, XLR and detachable wiring block (2)
    Output Level (operating): +4 dBu (nominal) balanced
    Output Level (maximum): +22 dBu balanced
    Output Attenuator: Software-controlled,
    0 to -63 dB and OFF
    (analog output per received network channel)
    Output Impedance: 150 ? balanced
    Frequency Response: Mic: 20 Hz to 20 kHz (± 0.5 dB);
    Line: 20 Hz to 20 kHz (± 0.5 dB)
    THD+N: < 0.1%
    THD: < 0.01% (1 kHz)
    Noise: < -80 dB (below +4 dBu); < -100 dB (below +22 dBu)
    Crosstalk: Below Noise Floor (20 Hz to 20 kHz at operating level, output to output)
    Headroom above +4 dBu: > 18 dB
    Indicators (4): Ethernet Link and Speed (2, rear panel); Sync and Power (2, front panel)
    Ambient Operating Environment: 0¡ C to 50¡ C
    Power Requirement: PoE Class 0, IEEE 802.3af
    Specification Conditions: Gain/Level: ± 1 dB;
    Source termination: 150 ?
    Dimensions: 1.80" (4.57 cm) W;
    4.11" (10.44 cm) H;
    2.09" (5.31 cm) D
    Package Type: Cardboard Box
    Package Dimensions: 2.75" (6.99 cm) x
    6.7" (17.02 cm) x
    6.25" (15.88 cm)
    Shipping Weight: 0.69 lbs. (0.313 kg)
    WEEE weight: 0.43 lbs. (0.195 kg)
    US Tariff code: 8543.70.9100
    EU Tariff code: 8543.70.0600
