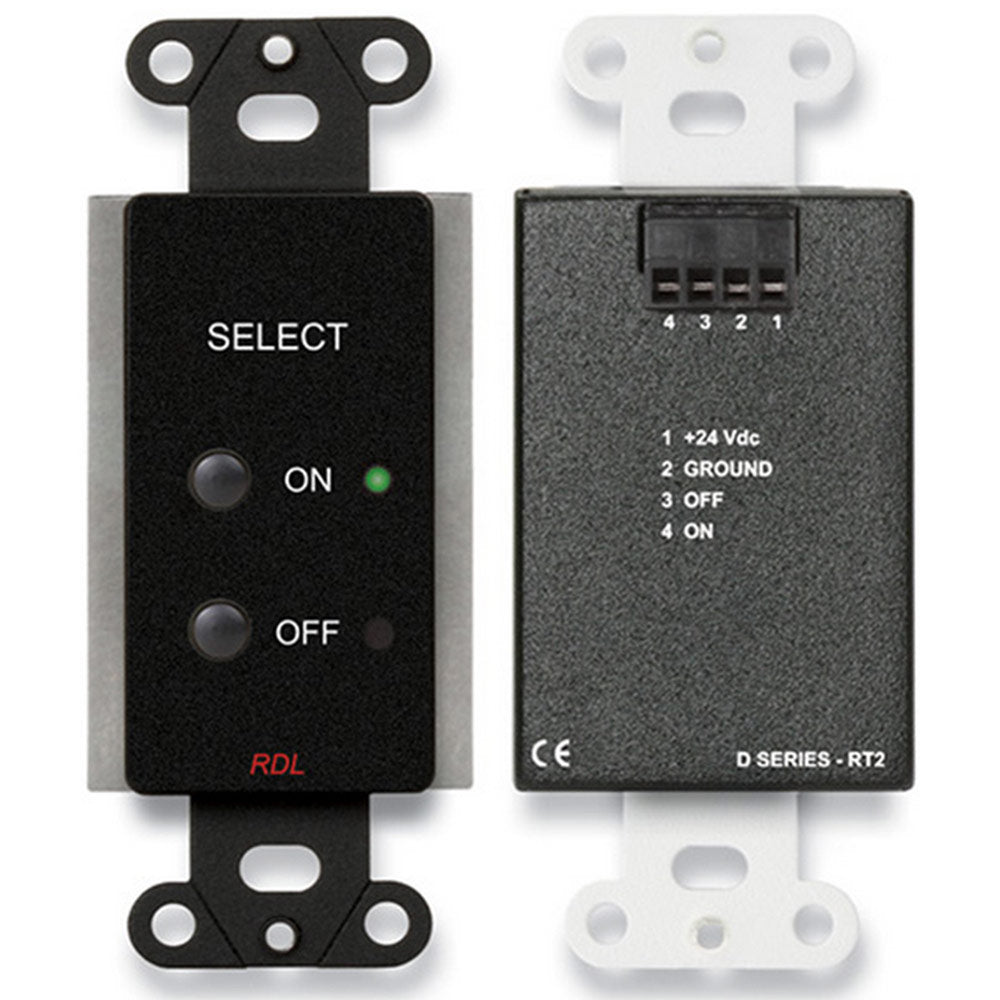

RDL DB-RT2 Remote Control On/Off Selector in Decora Wall Plate (Black)


  • Dale #:

    RDL-DBRT2
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The front panel of the D-RT2 features two pushbuttons with two associated LEDs. Upon initial power-up, the OFF mode is selected. Touching the other button de-selects OFF and immediately selects ON. An LED adjacent to each button shows which mode is selected. In a typical installation, the D-RT2 m... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The front panel of the D-RT2 features two pushbuttons with two associated LEDs. Upon initial power-up, the OFF mode is selected. Touching the other button de-selects OFF and immediately selects ON. An LED adjacent to each button shows which mode is selected.

In a typical installation, the D-RT2 may be used to turn an audio or video source on or off. To turn on an audio source, the D-RT2 may be connected to an RDL ST-SSR1 or ST-RX2 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. In each of the above examples, only one output terminal is needed for triggering, therefore a single shielded pair (3-conductor cable) is required for remote connection. For more complex switching networks, both outputs (ON and OFF) may be used. In an audio or video control installation, the D-RT2 may be mounted adjacent to an RDL remote volume control, such as the RLC2, RLC3 or RLC10K.

In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote.

Features:

  • Remote Selection of ON or OFF
  • Single-Button Selection for Each Function
  • Open-collector Switching
  • 3-wire or 4-wire Remote Wiring
  • Professional Aesthetic Appearance
  • Companion to other RDL® Remote Controls
  • LED Indication
  • Available in White, Black, and Stainless Steel

More +

Product Specs

Selectors (2) Momentary pushbuttons, (1 for ON, 1 for OFF)
Indicators (2) Green/Red LEDs, (indicates status ON or OFF respectively)
Connections Detachable terminal block; Power input; Separate open-collector outputs for ON and OFF (25 mA max.)
Ambient Operating Environment 0° C to 55° C
Power Requirement GROUND-REFERENCED, 24 Vdc @ 30 mA

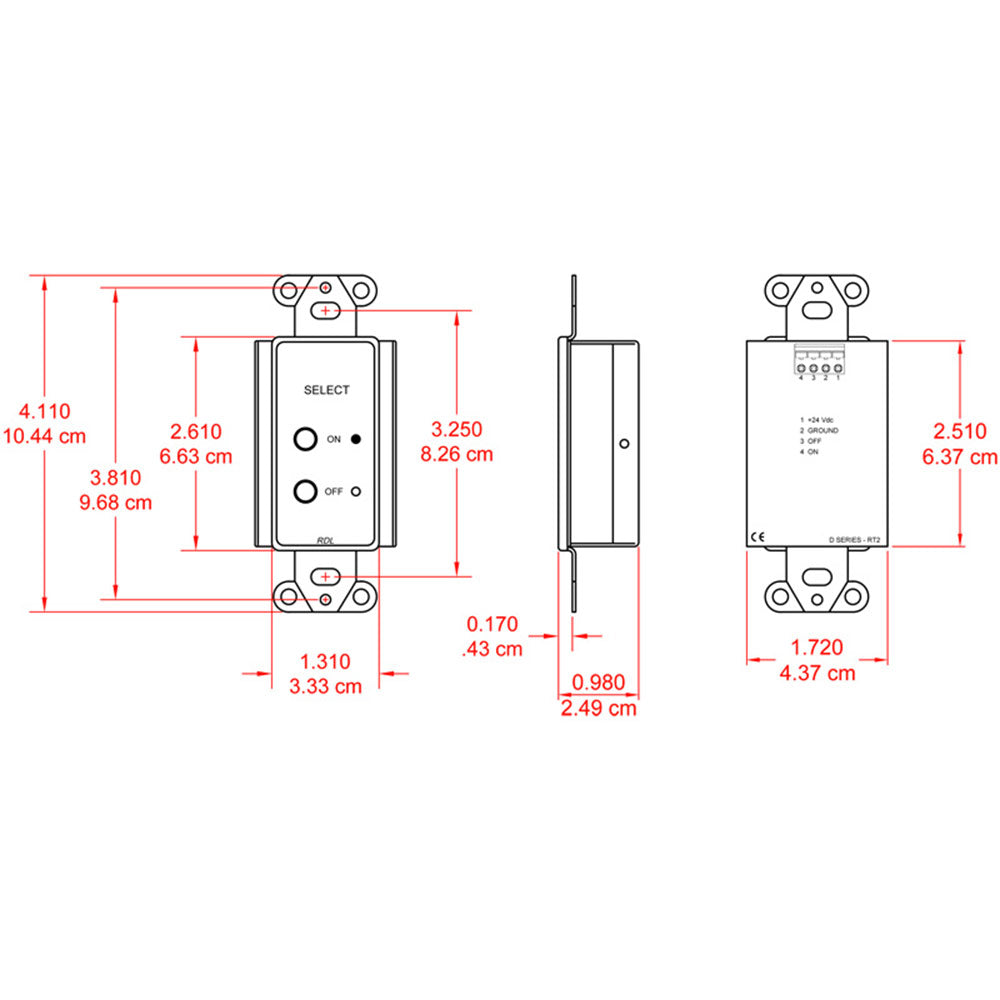

Mounting Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately
Package Type Cardboard Box
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight 0.45 lbs.
WEEE weight 0.285 lbs.
Tariff code 8517.62.0050
