RDL DB-SFRC8 Room Control Station for SourceFlex System (Black)


  • Dale #:

    RDL-DBSFRC8
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The D SERIES-SFRC8 Room Control Station is a SourceFlex listening station for wall mounting in a room, providing source selection and volume control from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced an... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

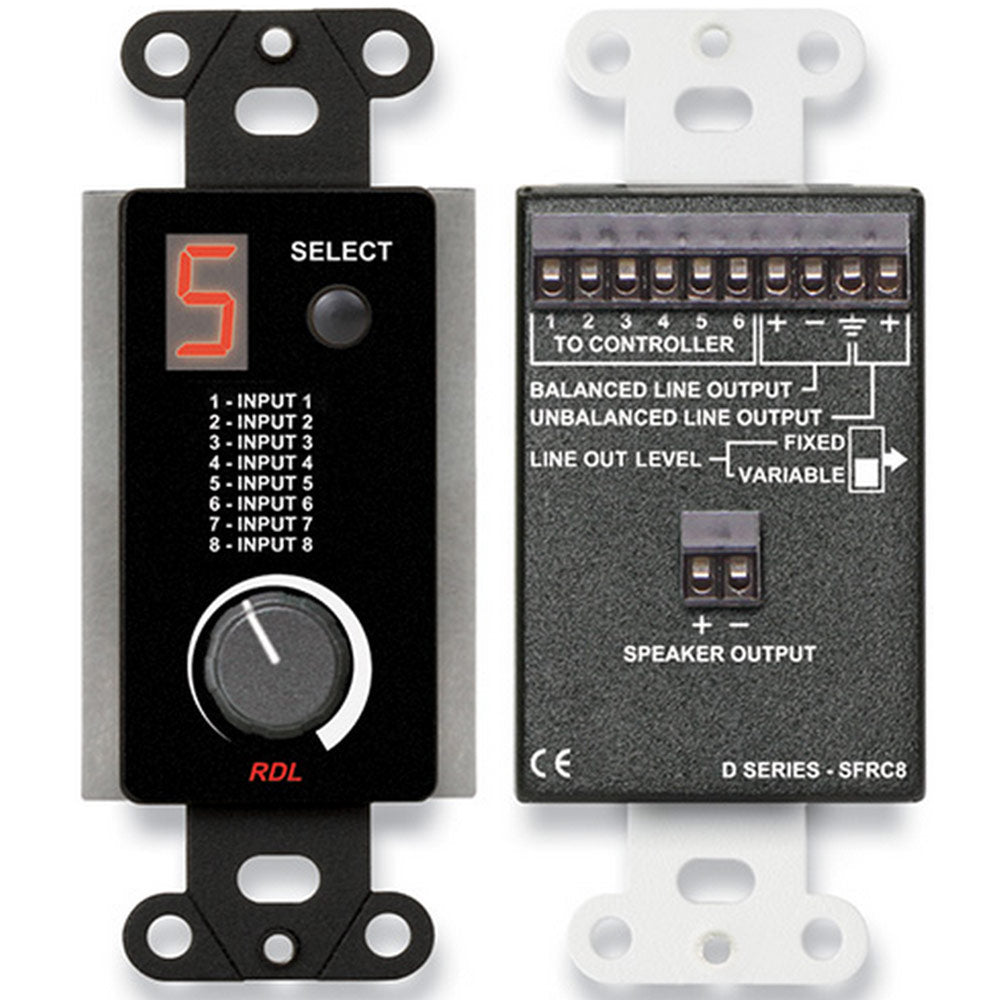

The D SERIES-SFRC8 Room Control Station is a SourceFlex listening station for wall mounting in a room, providing source selection and volume control from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier. The amplified power output can deliver up to 3.5 Watts RMS into an 8 ohm Speaker.

Features:

  • Single Room Listening Station with In-Wall Controls
  • Source Selection Pushbutton
  • Volume Adjustment Using a Single-Turn Control
  • Selection From up to 8 Audio Sources
  • Line-Level Audio Output
  • Line Output Switchable Fixed or Variable
  • Variable Output Follows Front-Panel Level Control
  • 3.5 Watt RMS Audio Amplifier into 8 Ohms, 6.5 Watts into 4 Ohms
  • High-Efficiency Class D Operation
  • Thermal and Short-Circuit Protection
  • Speaker Output Connection on Detachable Terminal Block
  • Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
  • Compatible with Other RDL Wall Plates and Controls
  • Ideal for Office Distributed Sound Systems with Music and Paging

More +

Product Specs

Input 10-position detachable terminal block
Display 7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
Selector Momentary button channel SELECT
Gain Adjustment Single-turn audio taper (Front-panel)
Frequency Response 20 Hz to 20 kHz (Line level, ±0.1 dB); 40 Hz to 20 kHz (Speaker, ±1 dB)
THD+N < 0.1% (Line level, 20 Hz to 20 kHz); < 0.25% (Speaker, 1 kHz)
Noise < -85 dB (Line level, below +4 dBu); < -80 dB (Speaker, below 1 W RMS)
Control Signals dc (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller)
Line Outputs (2) +4 dBu balanced, -10 dBV unbalanced, nominal
Output Power 3.5 W RMS (Max., into 8 ohms); 6.5 W RMS (Max., into 4 ohms)
Power Requirement 24 Vdc @ 30 mA (Idle); 55 mA (1/8 power; normal voice or music); 225 mA (3.5 W into 8 ohms), Supplied from SourceFlex controller
Ambient Operating Environment 0° C to 40° C Maximum; 20° C Recommended

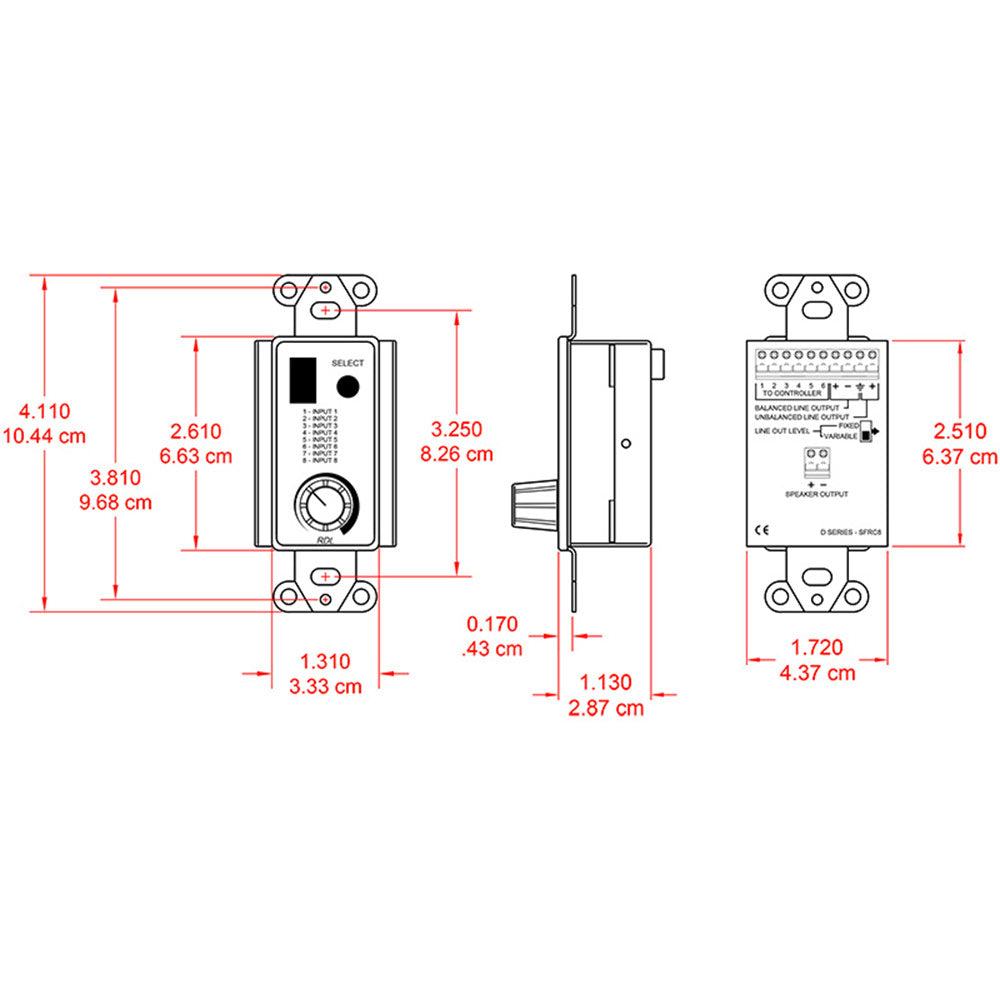

Dimensions Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.05 in. 5.21 cm
Package Type Cardboard Box
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight .44 lbs
WEEE weight 0.305 lbs.
Tariff code 8518.40.2000
