RDL DB-SFRC8L Audio Source Selector for SourceFlex System (Black) - Custom Engraving Option

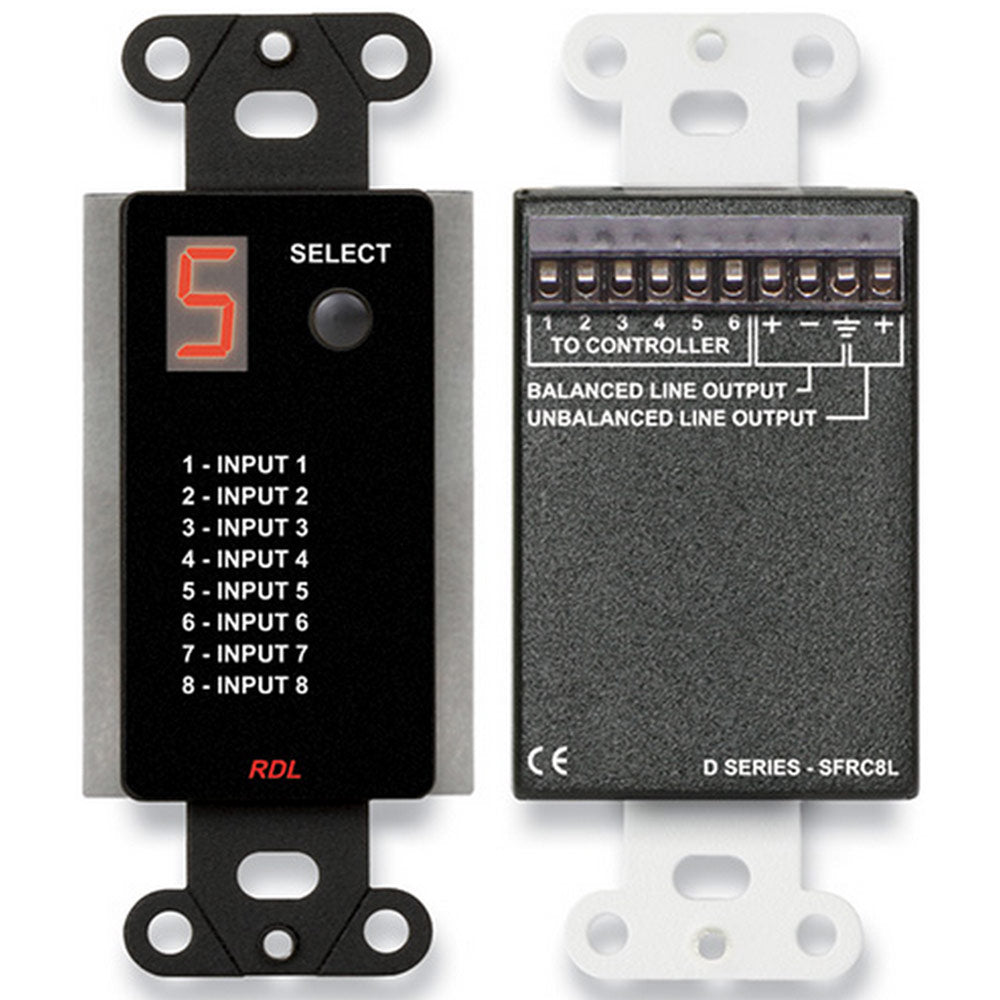

The D SERIES-SFRC8L Audio Selector is a SourceFlex module for wall mounting in a room, providing source selection from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier.

The balanced line output level is +4 dBu nominal. The unbalanced output is -10 dBV.

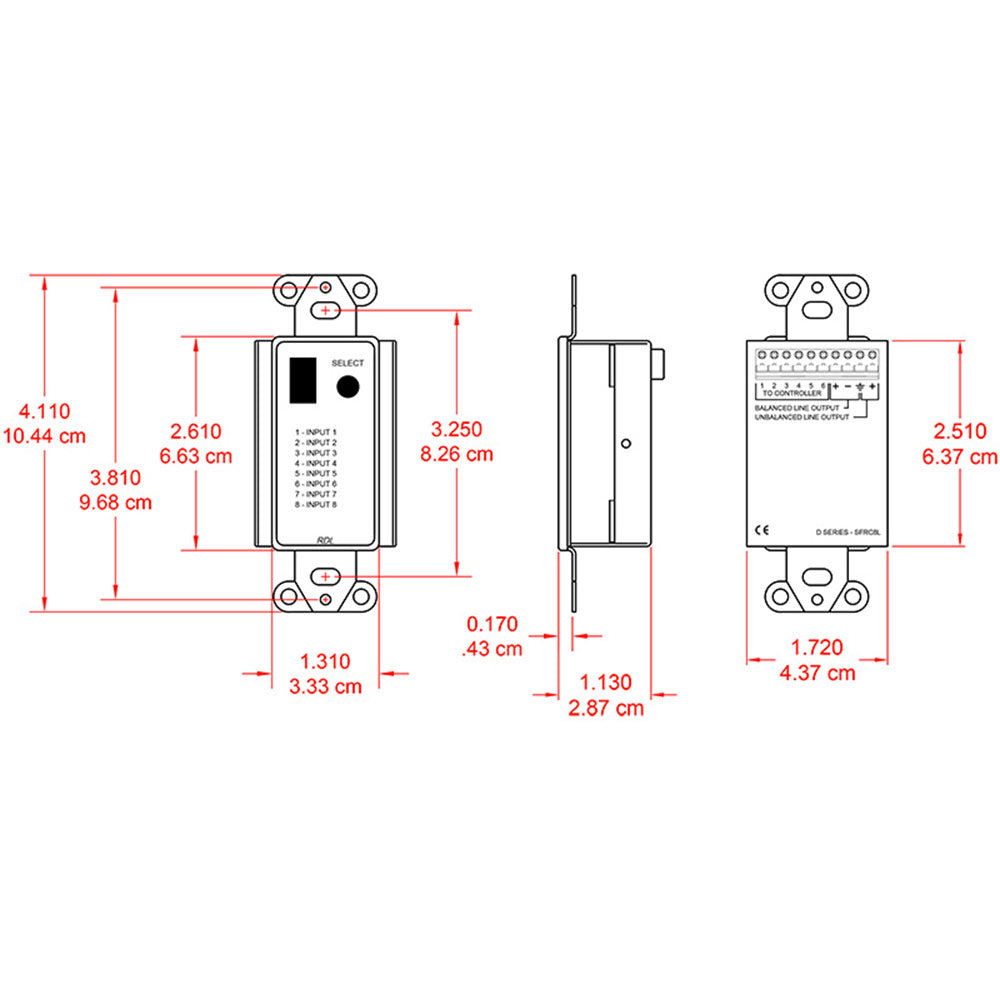

The D SERIES-SFRC8L is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8L is ideal for office distributed sound systems with background music and a paging source.

Features:

• Single Room Listening Station with In-Wall Controls
• Source Selection Pushbutton
• Selection From up to 8 Audio Sources
• Line-Level Audio Output
• Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
• Compatible with Other RDL Wall Plates and Controls
• Ideal for Office Distributed Sound Systems with Music and Paging
• Available in White, Black, and Stainless Steel Finishes
