RDL DB-SH1 Decora Mount Stereo Headphone Amplifier with Volume Control (Black)


  • Dale #:

    RDL-DBSH1
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The DB-SH1 is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. The DB-SH1 is ideally suited to applications as diverse as language translation, museums, interview studios and music stores. The module mounts conveniently in a prec... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

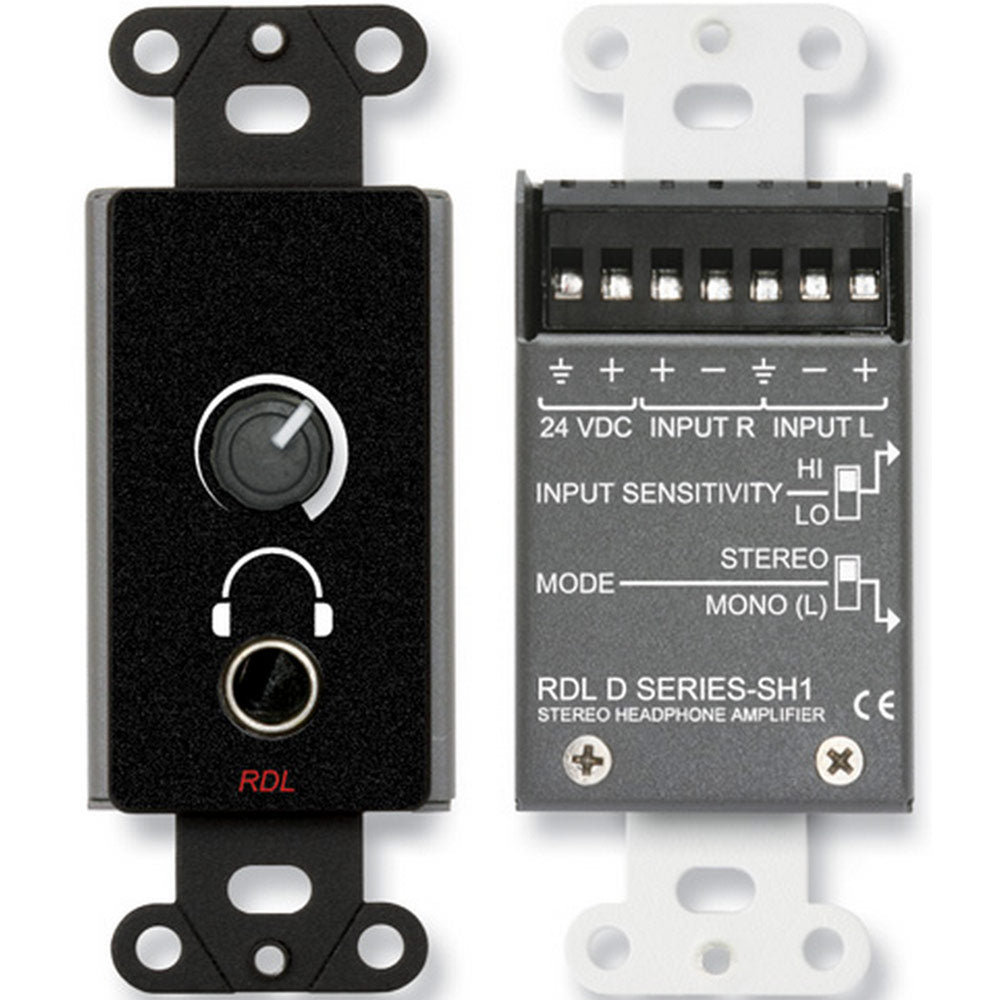

The DB-SH1 is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. The DB-SH1 is ideally suited to applications as diverse as language translation, museums, interview studios and music stores. The module mounts conveniently in a precut opening in a wood or metal enclosure or in various RDL mounting accessories.

Features:

  • Panel-Mounted Headphone Amplifier
  • Wall-Mounted Headphone Amplifier
  • Integral Long-Life VCA Stereo Level Control
  • Balanced or Unbalanced Inputs
  • Switch-Selectable Input Sensitivity
  • Switch-Selectable Mono (Left) or Stereo Operation
  • Amplifier To Drive High or Low Impedance Headsets
  • Convenience of Decora Mounting Possibilities

The DB-SH1 is a dual channel headphone amplifier with balanced/unbalanced left and right inputs. Each input accepts operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the side of the rear enclosure are set prior to mounting the module. One switch is provided for setting the input sensitivity. The mode switch selects between stereo and mono operation. In the mono position, the left input is used to drive both output channels. When the module is used in a monaural system, only the left channel input must be wired. The front panel level control is a long life potentiometer controlling matched VCAs. Audio does not pass through this control, assuring years of noise free level adjustment. The output amplifiers deliver more than 50 mW into either high or low impedance headphones through a durable, metal 1/4" (6.3 mm) standard headphone jack. Module operation is from a 24 Vdc ground referenced power supply. It can also operate from a 12 Vdc supply with a 6 dB reduction in headroom and a maximum output power of 10 mW.

More +

Product Specs

Inputs (2) 10 k balanced or unbalanced bridging
Input Level +4 dBu nominal (Low input sensitivity);
-15 dBV nominal (High input sensitivity)
Maximum Input Level +21 dBu (Low input sensitivity);
+3 dBu (High input sensitivity)
Output Signal (normal rated) 10 mW into 100
Output Signal (maximum) 50 mW into 100
THD+N < 0.5% @ 1 kHz
Frequency Response 30 Hz to 20 kHz (± 2 dB)
Noise < -70 dB below normal operating level
Gain User-adjustable on front panel 18.5 dB (maximum, High input sensitivity); Unity (maximum, Low input sensitivity)
CMRR > 60 dB (50 to 120 Hz)
Crosstalk Below noise floor (20 Hz to 20 kHz)
Ambient Operating Environment 0° C to 55° C
Power Requirement GROUND-REFERENCED 24 Vdc @ 50 mA
Package Type Cardboard Box
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight 0.475 lbs.
WEEE weight 0.33 lbs.
Tariff code 8518.40.2000
