DescriptionThe -TPA1A modules are two pair audio amplifier modules compatible with RDL Format A twisted pair products. Each -TPA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono an... Read More
Retail Price: $275.76 Our Price: $193.00
Free Shipping (Continental US)

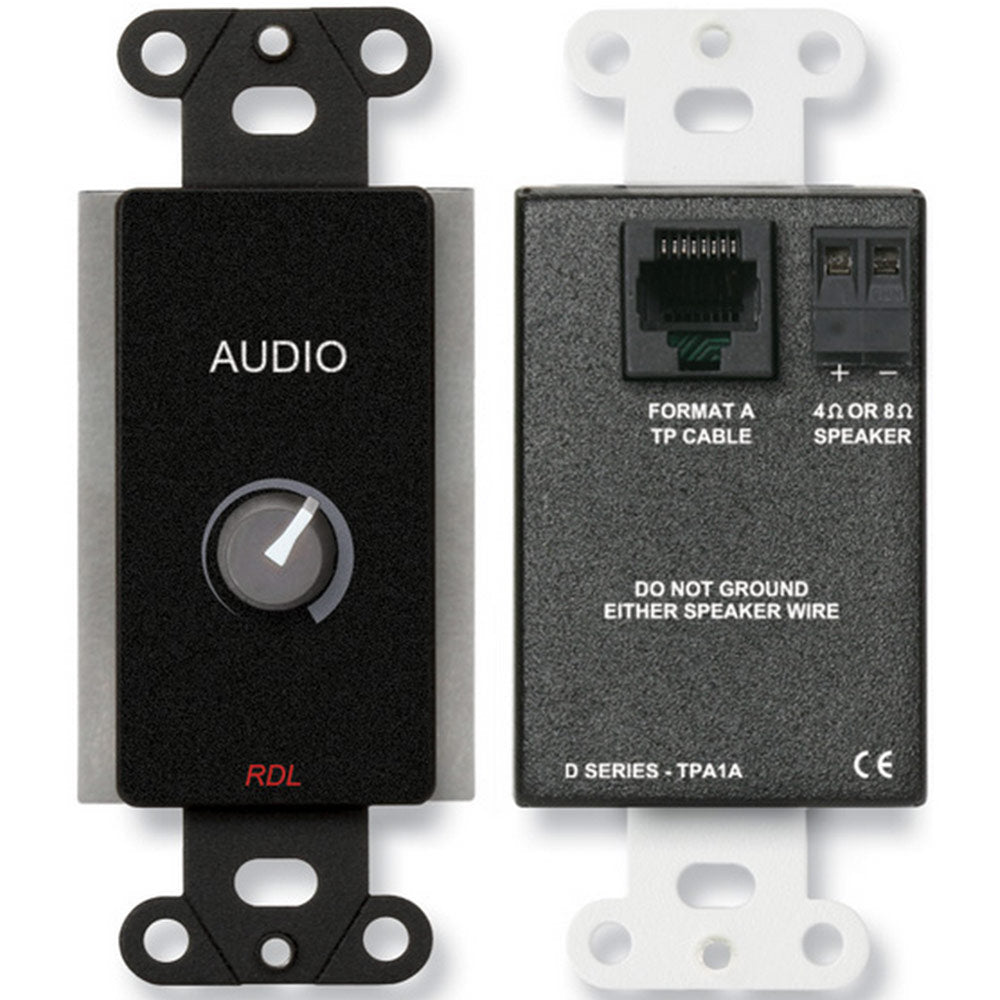

The -TPA1A modules are two pair audio amplifier modules compatible with RDL Format A twisted pair products. Each -TPA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono and amplified. The amplified output level is set by an internal VCA which is controlled by a front-panel volume control. The VCA attenuator provides years of scratch-free gain adjustment.
The -TPA1A circuits are all designed for low power consumption. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. When the user reduces the audio level to minimum, the class D output stage is switched off. This sleep mode remains active until the user turns up the output level.
The output drives either a 4 Ohm or 8 Ohm speaker. The speaker cable connects to the module using a detachable terminal block.
The front panel does not include any illuminated indicators, making the -TPA1A ideally suited to installation in dark rooms or areas. Installation is simple and quick, requiring only the connection of the speaker leads and the twisted pair RJ45.
The -TPA1A may be fed and powered from any RDL Format-A sender, and is ideal in hospitality installations fed from a sender connected to a TV monitor (for example: FP-TPS4A Audio Sender from TV with fixed audio output level).
Use the -TPA1A wherever a single speaker user-adjustable wall mounted amplifier is needed. Combine the amplifier with other RDL Format-A products for a cost-effective, high-performance audio system.
|Gain Adjustment||Single turn audio taper, VCA attenuator|
|Frequency Response||50 Hz to 20 kHz (± 1.5 dB)|
|THD+N||< 0.1% (@ 1 kHz, 1 W)|
|Noise||<-70 dB (below 1 W RMS)|
|CMRR||> 60 dB (50 Hz to 120 Hz)|
|Output Power||3.5 W RMS (max., into 8 Ohms); 6.5 W RMS (max., into 4 Ohms)|
|Power Consumption||45 mA (idle), 95 mA (1 W into 8 Ohms), 150 mA (1 W into 4 Ohms), 215 mA (3.5 W into 8 Ohms)|
|Sleep Mode Power Consumption||< 0.3 W|
|Sleep Mode Enable||Active at audio gain <-60 dB|
|Ambient Operating Environment||0° C to 40° C Maximum; 20° C Recommended|

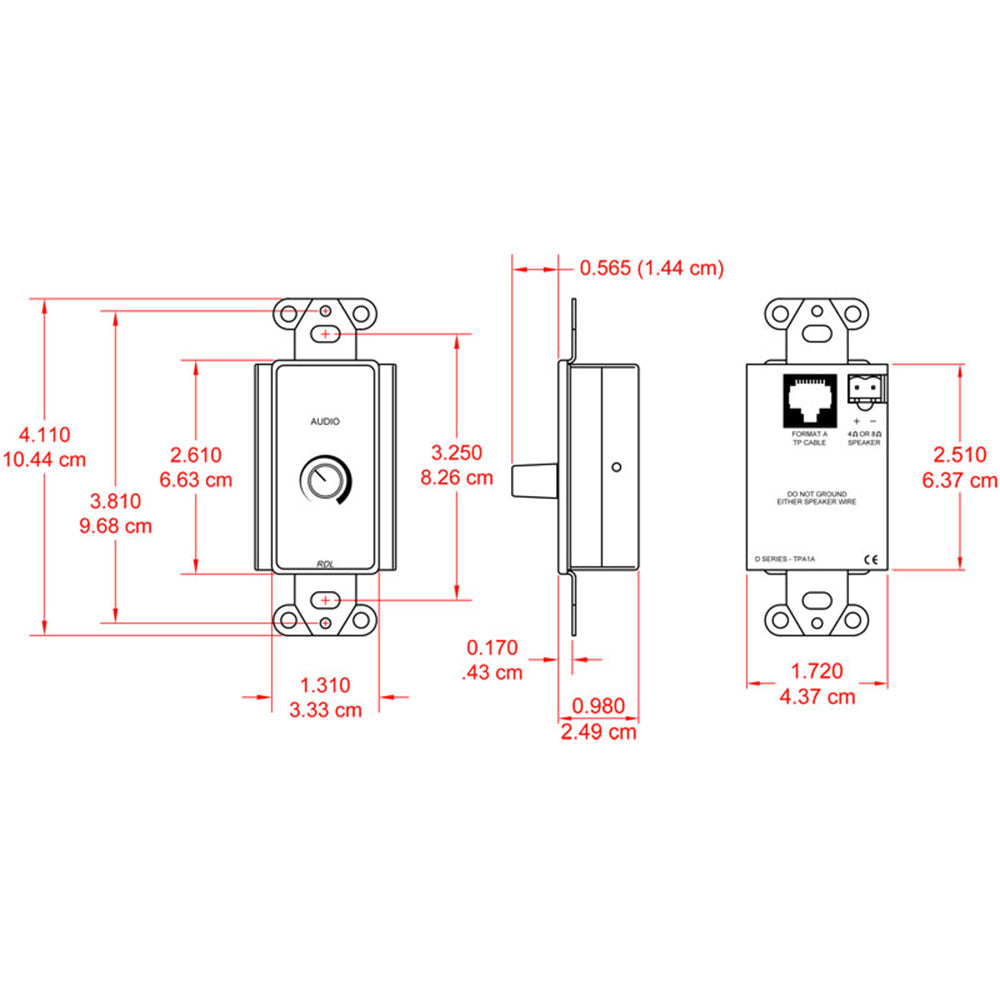

|Dimensions||Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm|
|Package Type||Cardboard Box|
|Package Dimensions||3.625 x 4.625 x 2.125 in.|
|Shipping Weight||0.395 lbs.|
