RDL DB-TPR1A Decora Mount Active Format-A Receiver - XLR Output (Black) - Custom Engraving Option


  • Dale #:

    RDL-DBTPR1AC
  • Availability:

    Special Order Item
  • RDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.

Description

The D SERIES-TPR1A modules are single-pair audio receiving modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect external equipment. The -TPR1A models mount in RDL WB-1U and WB-2... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

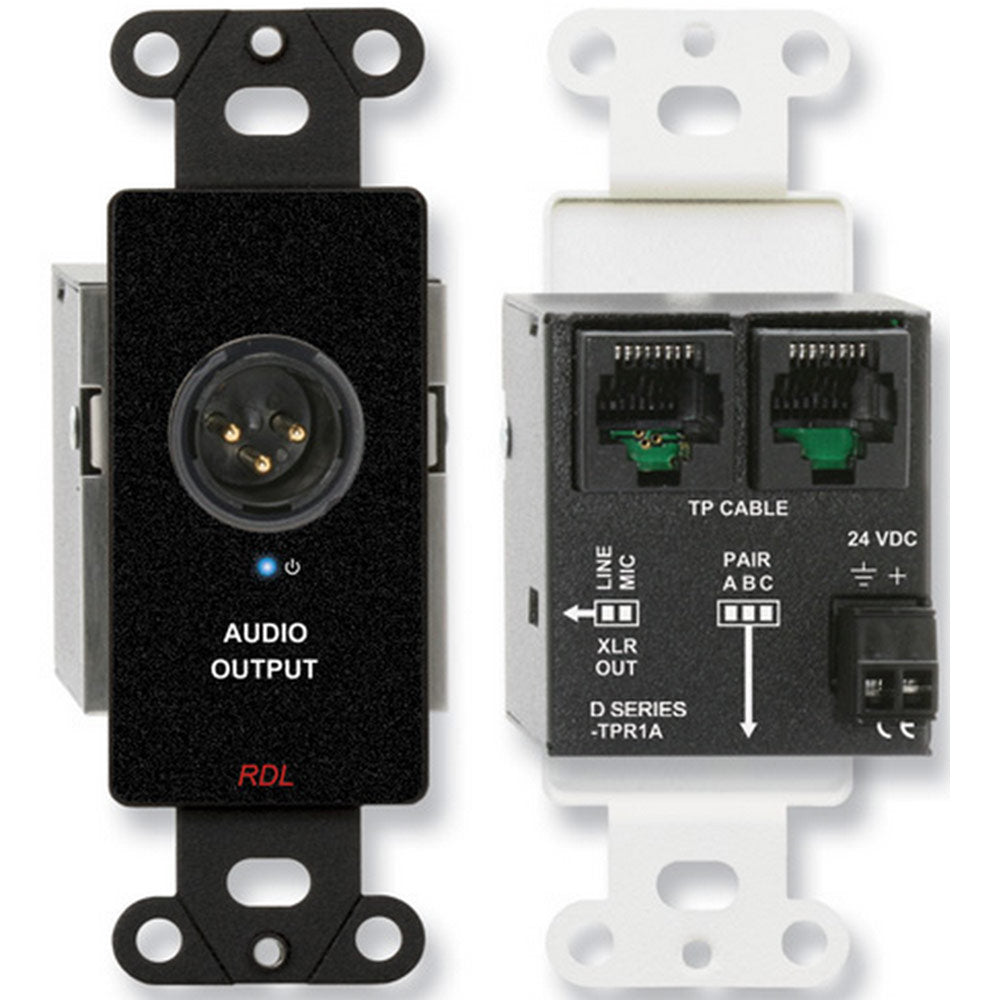

The D SERIES-TPR1A modules are single-pair audio receiving modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect external equipment. The -TPR1A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPR1A features a white front-panel laminate with gray lettering that matches RDL Decora©-style remote controls. The DB-TPR1A features a black front-panel laminate. The DS-TPR1A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations.

Features:

  • Balanced Mic or Line Level XLR Output
  • Switch-Selectable Output Level on Rear Panel
  • Switch Selects which Pair (A, B or C) Feeds the Output
  • Signal and Power Pair Pass-through on RJ45s
  • Remote Powering through Twisted Pair Cable
  • Fused Local Power Feeds all Connected Modules
  • Local Power Input on Terminal Block
  • Blue LED Indicates Module is Powered
  • Daisy-Chain with Additional Format-A Receivers
  • Studio-Quality Precision Active Balanced Circuitry

APPLICATION: The D SERIES-TPR1A modules feature an XLR output jack. A rear-panel switch set during installation determines which of the three FORMAT-A pairs is buffered to feed the module output. The audio signal received from the selected pair of the RJ45 INPUT jack feeds the XLR audio output jack. The output level from the XLR jack is set to either MIC or LINE level during installation using a rear-panel switch.

This module receives signal from only one cable pair, so the D SERIES-TPR1A modules have a second RJ45 jack to connect cables to additional receiver modules. Two other single-pair receivers may be chained to the second RJ45 jack, or a single two-pair receiver may be connected. In addition to completing the reception of signals from all three FORMAT-A pairs, additional receivers may be connected to the same twisted pair feed. The bridging input circuits used in all FORMAT-A twisted pair receivers allow connection of up to 10 receiver outputs for each cable pair. The possibility of multiple receiver locations adds enormous flexibility in the design of audio routing systems using RDL FORMAT-A products. The power pair and all three audio pairs are fed through both rear-panel RJ45 jacks.

The D SERIES-TPR1A may be powered directly from a 24 Vdc power supply using the rear-panel detachable terminal block. Local power connected to the module is also fed to all connected remote modules. The -TPR1A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable. Module power is indicated by a front-panel LED.

RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products.

More +

Product Specs

InputRDL Format-A
Input ConnectionRJ45 (Models D-, DS-); Detachable Terminal Block (Model EM-)
Format-A Signal Pair UsedSwitch-selectable A, B, or C
Format-A OutputRJ45 (not applicable to EM-)
Output150 balanced
Output ConnectionXLR
Output Level-45 dBu Mic or +4 dBu Line Level, Switch-selectable on rear panel
Frequency Response10 Hz to 50 kHz (± 0.1 dB)
THD+N< 0.005%
Noise below +4 dBu< -90 dB
Headroom above +4 dBu> 18 dB
CMRR> 80 dB (50 Hz to 150 Hz)
IndicatorPower In
Power Connections (2)Detachable terminal block; RJ45
Ambient Operating Environment0° C to 50° C
Power Requirement24 Vdc @ 45 mA plus connected loads
Dimensions1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) D
Mounting Box Minimum Depth2.4" (Models D-, DS-); 39 mm (Model EM-)
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.375 lbs.
WEEE weight0.23 lbs.
Tariff code8517.18.0000
